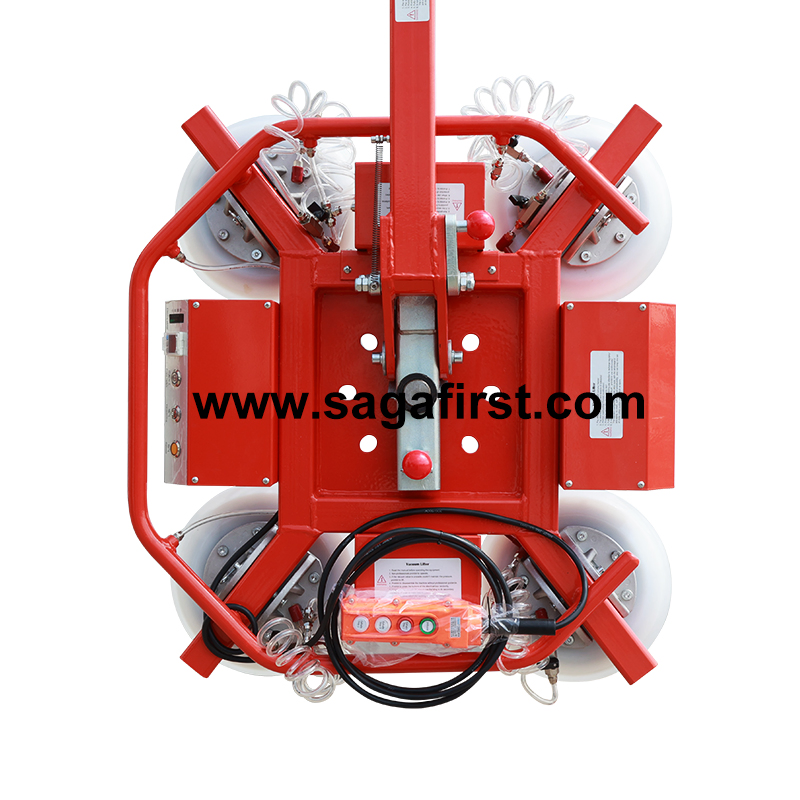

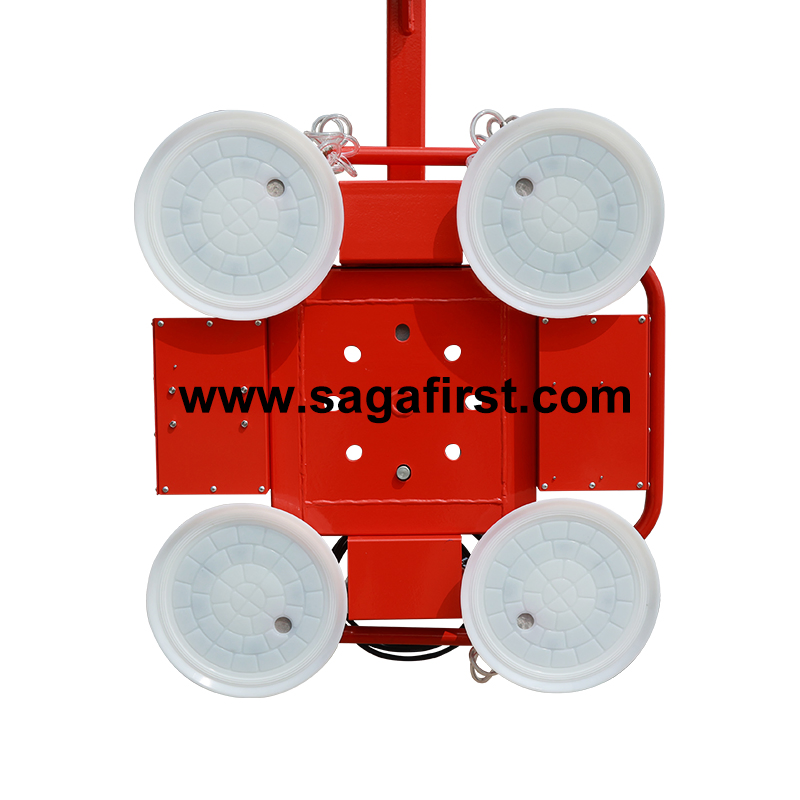

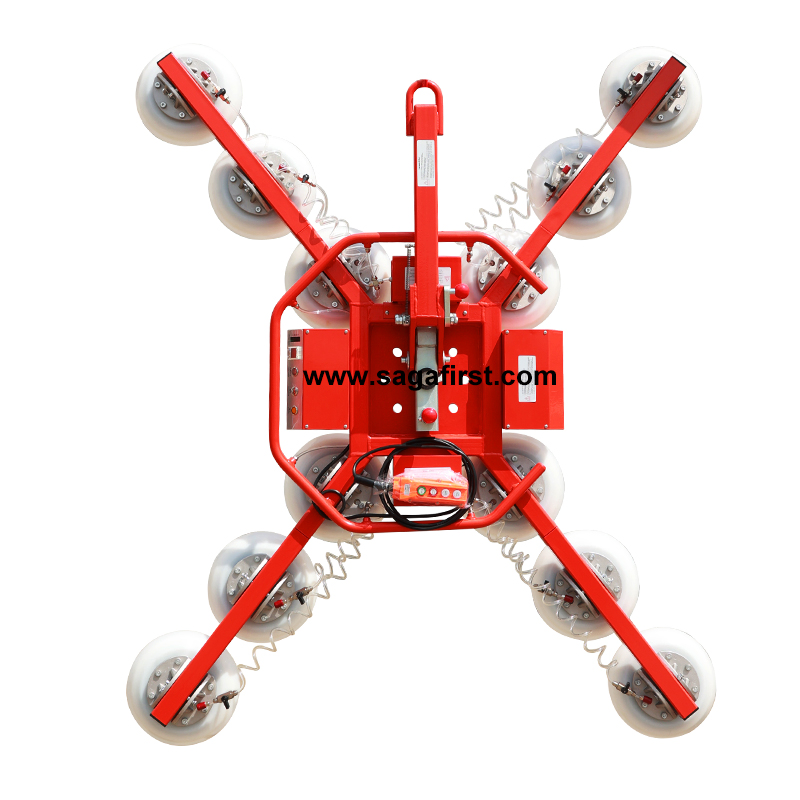

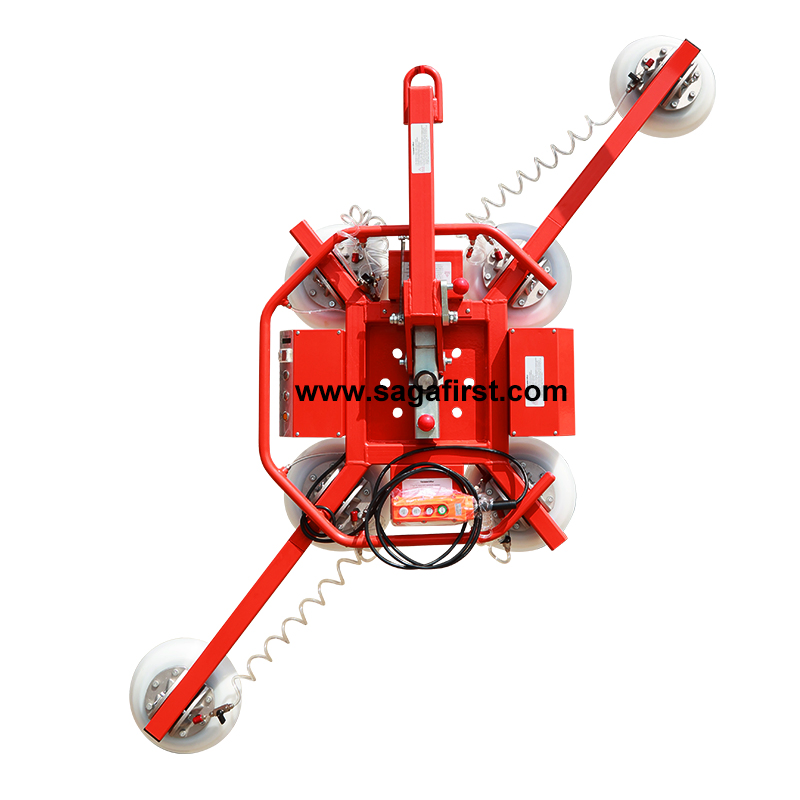

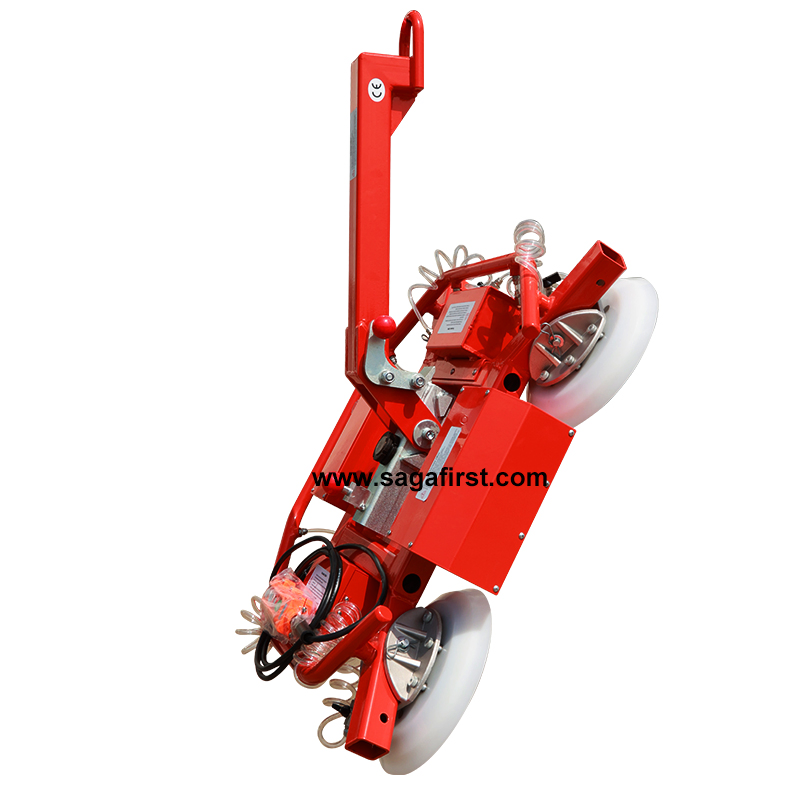

X Type H Type Suction Caps Full Electric Vacuum Lift Price

Technical Specifications

Model NO.

GL-SC

Primary Usage

Installing and Moving Heavy Panels

Load Capacity

400kg / 600kg / 800kg / 1000kg

Suitable Materials

Glass, Wood, Metal Sheet, Marble

Rotation

360° Manual Rotation

Tilting

90° Manual Tilting

Suction Cup Size

300mm Diameter

Single Cup Capacity

100kg Per Piece

Voltage

DC12V (Battery)

Charger

AC220/110V

Control System

Integrated Cabinet & Wired Remote

Transport Package

Wooden Carton

Professional Vacuum Suction Caps

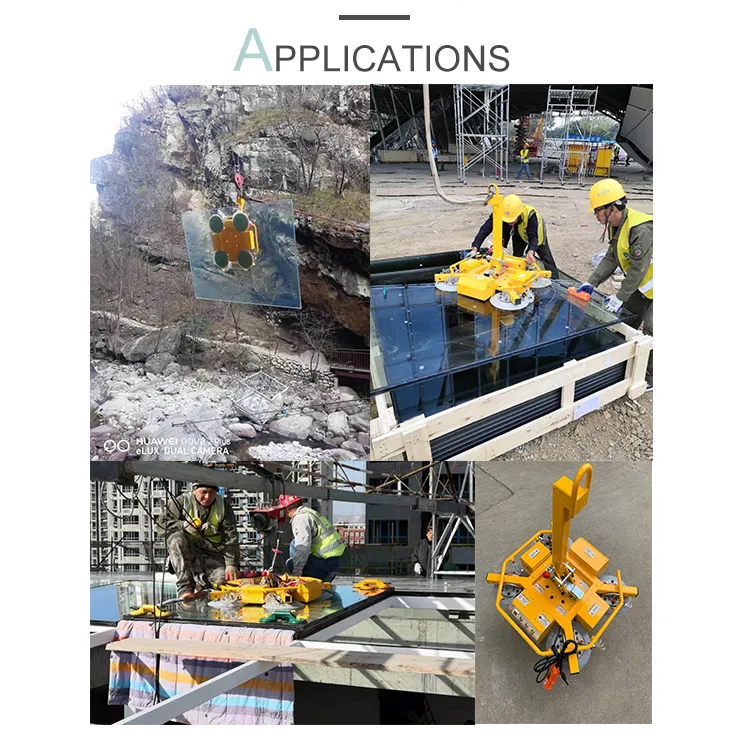

Vacuum suction caps are specially designed for handling various types of heavy plates, boards, and glass. They are highly efficient for installing steel boards, glass walls, and moving materials such as granite and marble. Widely utilized in glass deep processing, construction installation, and metal sheet workshops.

Model	Unit	GL-SC-400	GL-SC-600	GL-SC-800	GL-SC-1000
Lifting Capacity	kg	400	600	800	1000
Cup Qty	/	4	6	8	10
Single Cup Size	mm	300	300	300	300
Rotation/Tilting	/	360° Manual Rotate / 90° Manual Tilt
Sucker Frame Size	mm	850750300	1800900300	17601460300	19001600300
Gross Weight	kg	97	110	123	150

Features & Advantages

1

Protection: Sealed cover for component protection, ensuring safe and reliable operation. Usually used with bridge or cantilever cranes.

2

Adjustability: Adjustable suction cup positions to accommodate glass of various shapes and sizes.

3

Independent Power: Equipped with high-quality maintenance-free battery and American THOMAS vacuum pump; no external air or power source required during use.

4

Digital Monitoring: Features a Japan Panasonic digital display vacuum pressure switch and battery fuel gauge for clear safety monitoring.

5

Safety Systems: Auto-supply vacuum pressure system and power-cut pressure-keeping device with alarm for maximum security.

Frequently Asked Questions

1. What materials can this vacuum lifter handle?

It is designed for handling glass, wooden panels, metal sheets, and marble or granite slabs.

2. How does the machine perform if there is a power failure?

The lifter is equipped with a pressure-keeping device and an alarm. In case of accidental power failure, the pressure-keeping function extends the holding time to ensure safety.

3. Is the suction cup position adjustable?

Yes, the frame is an adjustable type, allowing you to change the position of the suction cups to absorb different shapes and sizes of materials.

4. Can I buy replacement parts locally?

The lift uses many common hardware parts, which can typically be found at local hardware markets or forklift parts shops. We also provide parts via express if needed.

5. What is the quality guarantee period?

We provide a quality guarantee of up to 24 months, offering free parts for replacement during the warranty period.

6. Does it require a constant power connection during operation?

No, it uses a DC12V maintenance-free battery, meaning no air source or external power supply is needed during the handling process.
