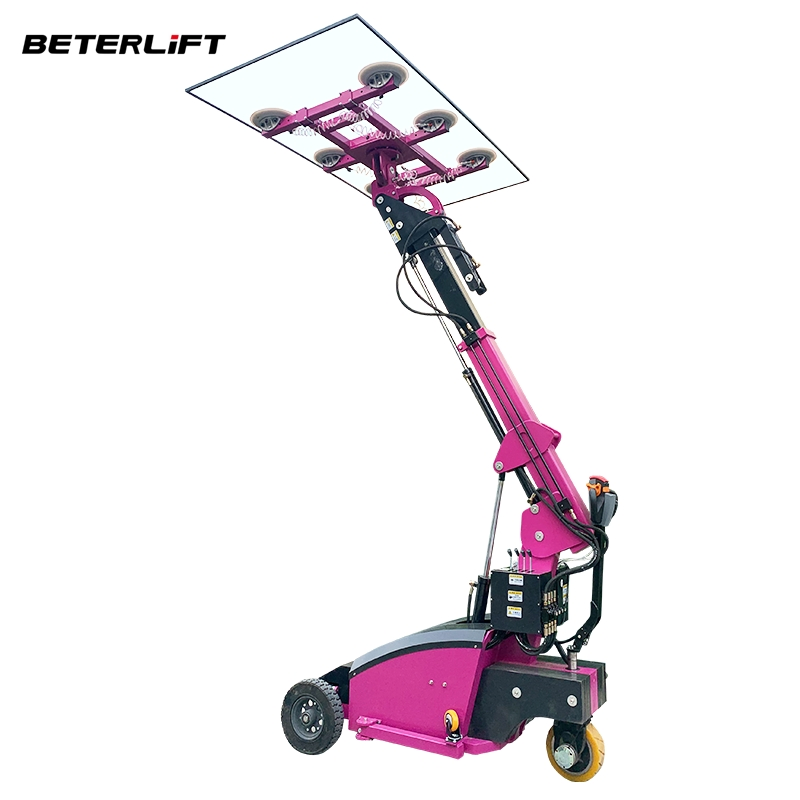

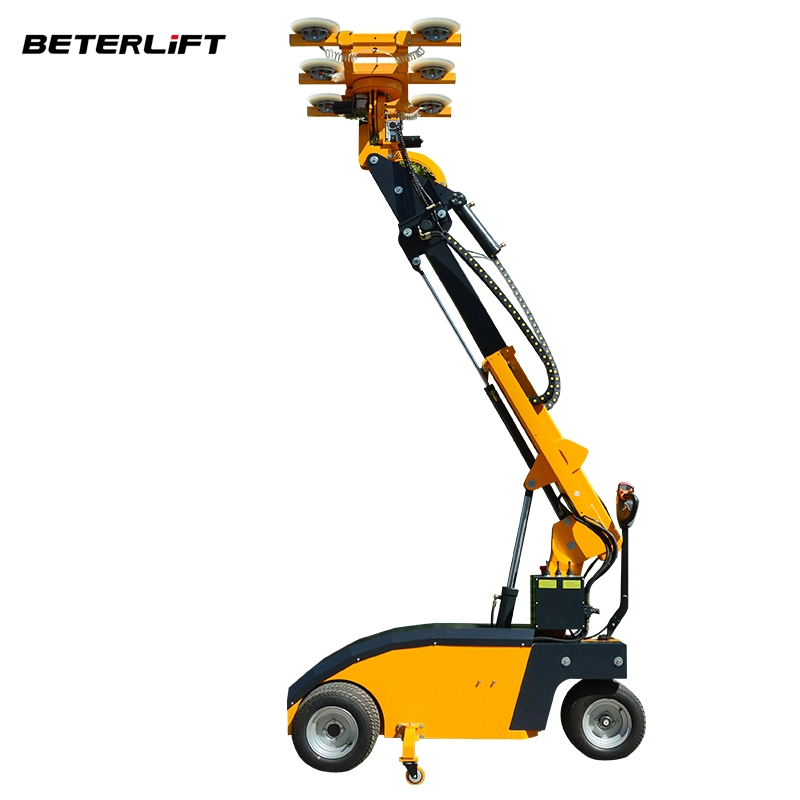

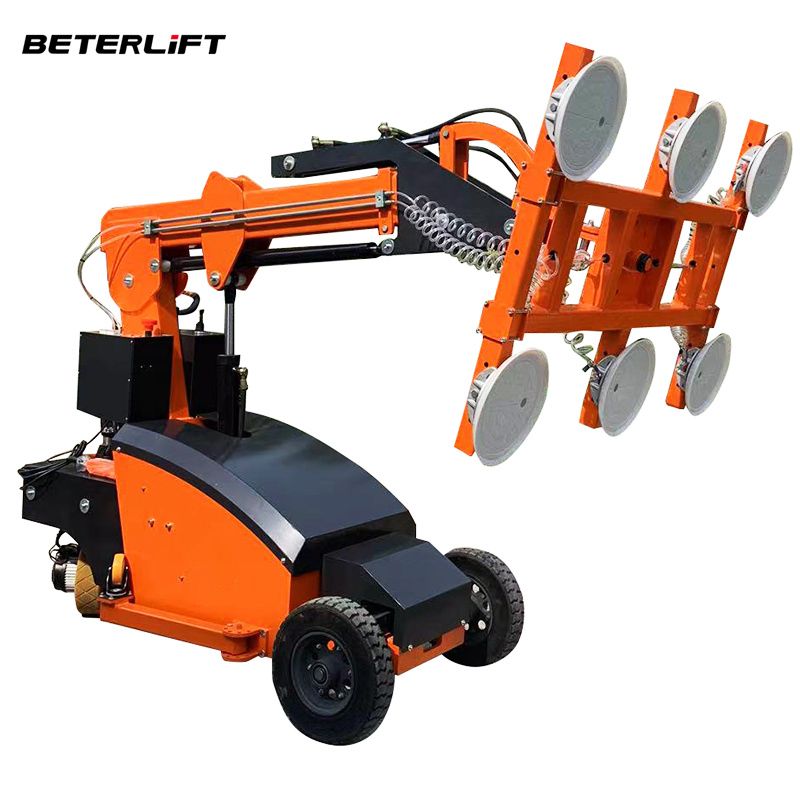

300kg to 800kg Glass Suction Lifter Robot Steel Metal Sheets Granite Electric Vacuum Lift

1 / 5

300kg to 800kg Glass Suction Lifter Robot Steel Metal Sheets Granite Electric Vacuum Lift

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

BGL-LD

Cup Quantity

4-12

Color

Yellow, Green, Customized

Type

LD Telescopic Arm

Loading Capacity

400-800kg

Power

DC Battery (12V)

Rotation

360 Degree Manual Rotation

Material

High-Strength Steel

Product Description

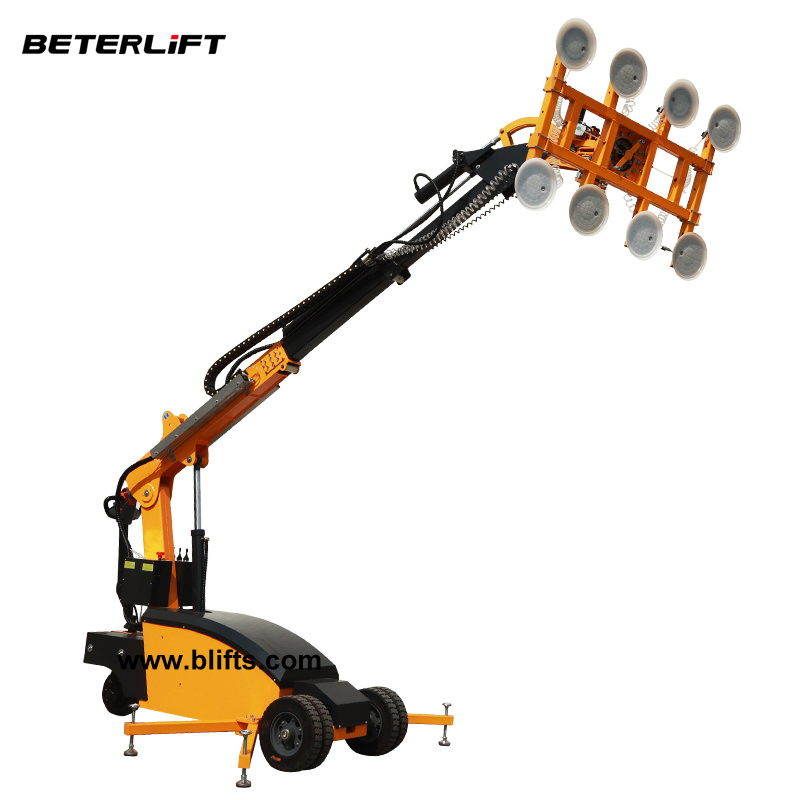

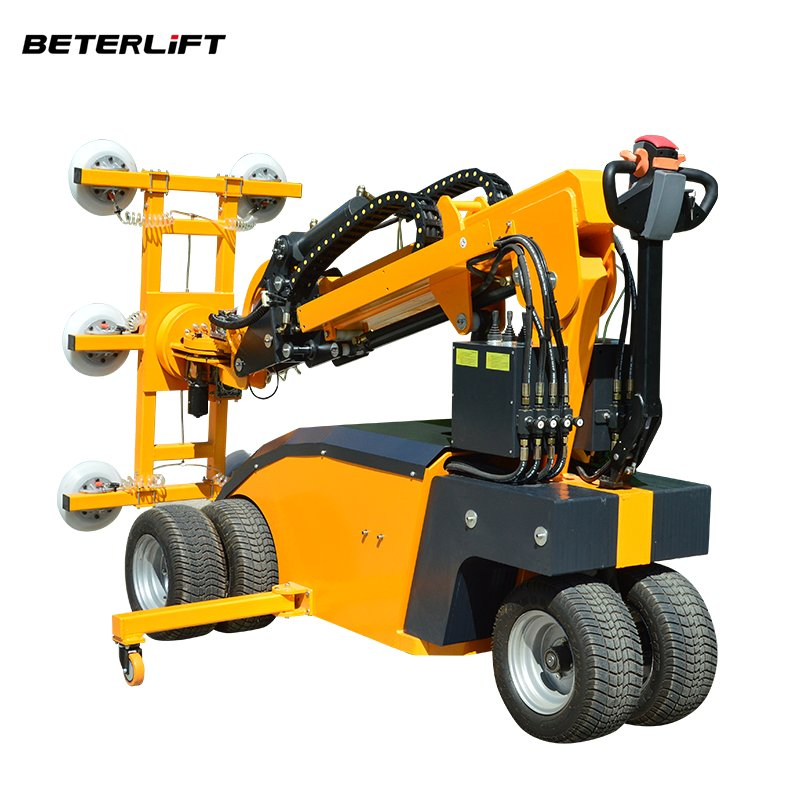

300kg to 800kg Glass Vacuum Lifter Machine (OEM & ODM)

This series vacuum lifter is a fast, safe, and convenient automatic equipment. It utilizes the principle of vacuum adsorption, using a vacuum pump as the source to generate a vacuum at the suction cup end. This allows for firmly holding various workpieces such as glass and iron plates. The rotatable mechanical arm enables picking up and transporting workpieces to designated positions efficiently.

Application: Mainly suitable for the installation or transportation of glass, wood, cement, and iron plates. An adjustable bracket is equipped to adapt to panels of different sizes. For rough surfaces, optional sponge suction cups are available.

Features & Advantages

Integrated Control System: Secures quick and automatic positioning vertically and horizontally by a single push on a button.
Reliable Actuators: DC24V actuators for lifting, extension, and tipping ensure efficiency and precision.
Flexible Movement: Pad frame features automatic vertical up/down movement by 180 degrees.
Lateral Precision: Automatic lateral side shift of 100mm for fine positioning.
Customizable Rotation: Automatic 360-degree rotation and automatic left/right turning are available as options.

Product Parameters

Model Type	BGL-LD-300	BGL-LD-400	BGL-LD-500	BGL-LD-600	BGL-LD-800
Load Capacity (Retract)	300kg	400kg	500kg	600kg	800kg
Load Capacity (Extend)	150kg	200kg	250kg	300kg	400kg
Lifting Height	3500mm	3500mm	3700mm	3700mm	4500mm
Suction Cups QTY	4pcs	6pcs	6pcs	6pcs	8pcs
Battery	2x12V/100AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Chassis L*W	2660x810mm	2660x810mm	2800x810mm	2800x810mm	2800x810mm

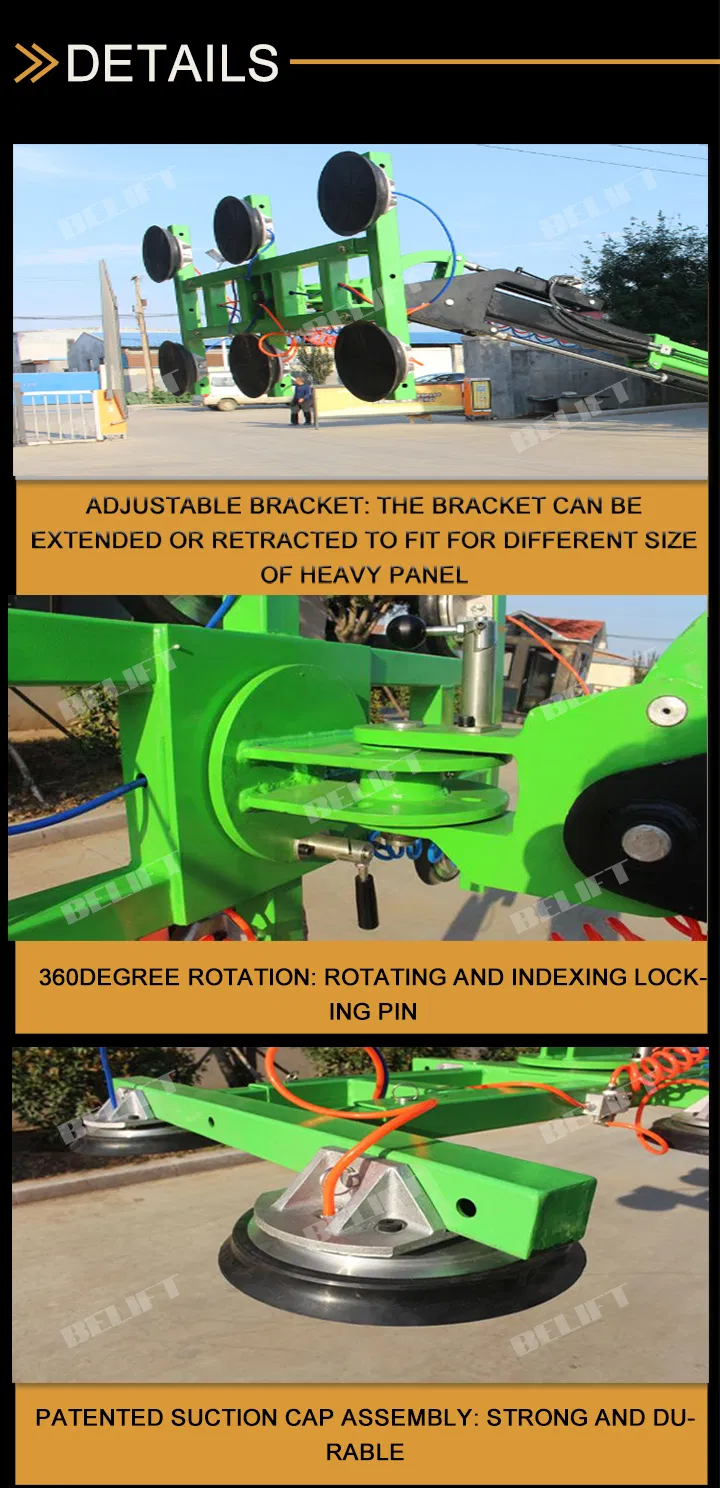

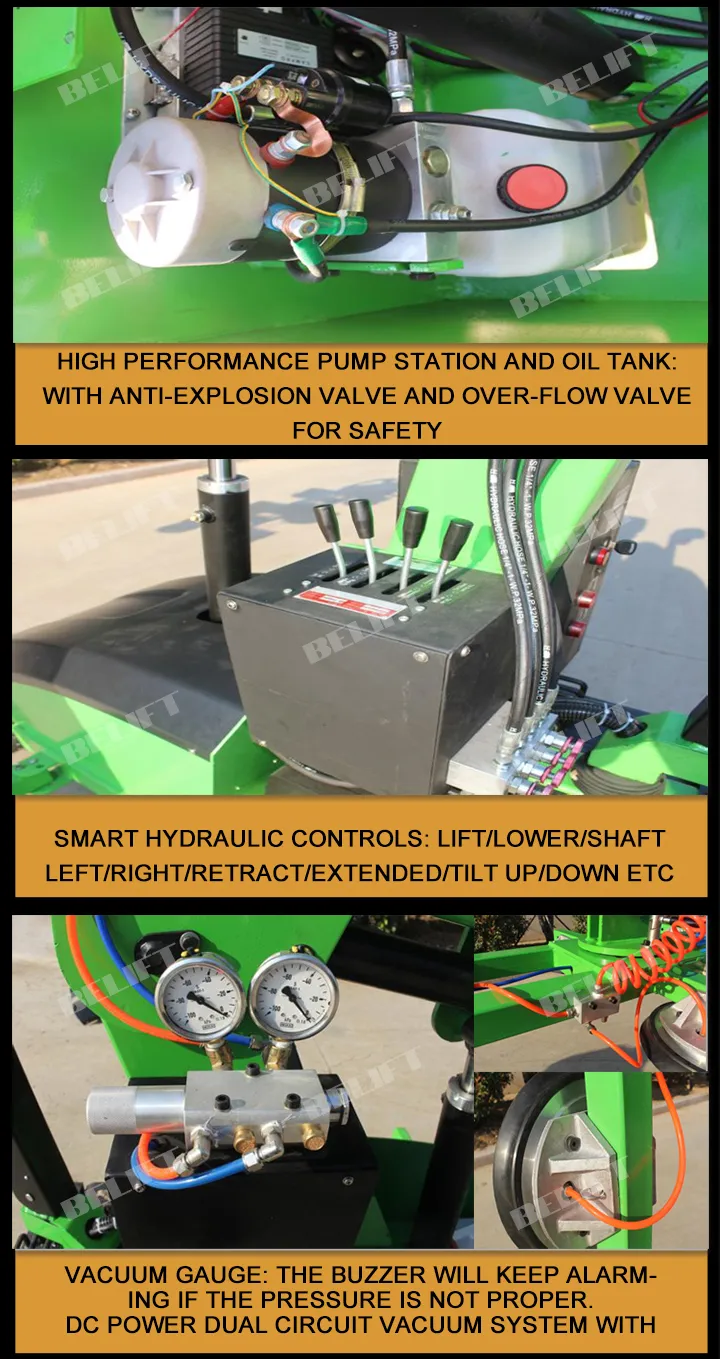

Detailed Photos

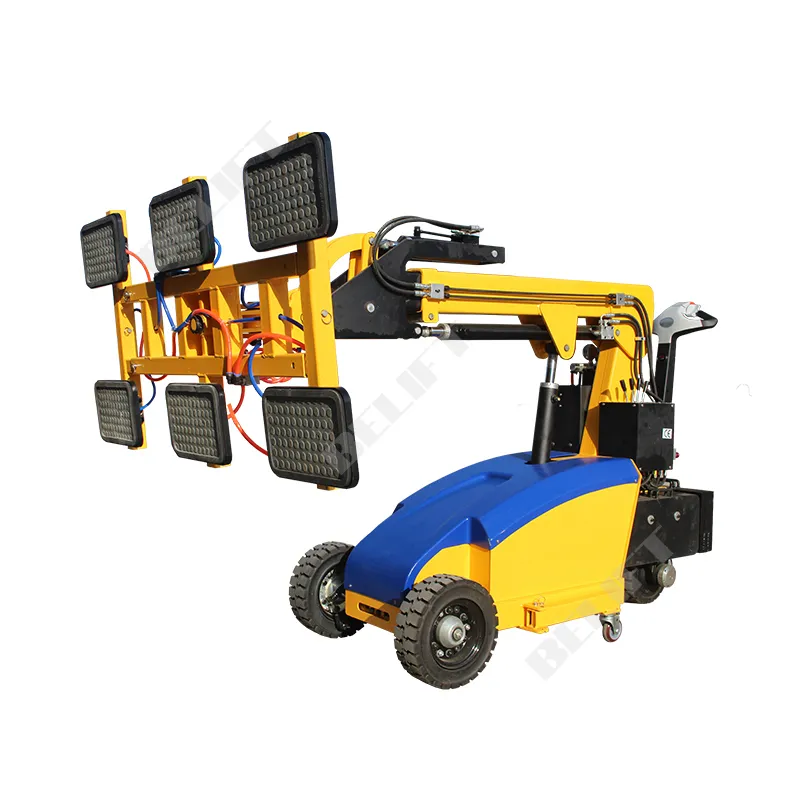

Sponge Sucker Option

Sponge Sucker is optional for lifting products with rough surfaces.

Service & Support

Specializing in Manufacturing Aerial Work Platforms and Material Lift Platforms. Our products are recognized globally for quality and reliability.

Certifications: CE, ROHS, SGS, ISO etc.

After Sales Service

Spare parts provided freely within the quality warranty period.
Complete user manual provided with the machine.
Lifetime technical support.
24-hour online and telephone support services.

Frequently Asked Questions

1. How can customers buy replacement parts? The equipment uses common hardware parts. You can purchase them at local hardware markets or specialized forklift parts shops.

2. How is the repair process handled? The machine has an extremely low failure rate. If an issue occurs, we provide repair guidance through videos and detailed instruction manuals.

3. What is the duration of the quality guarantee? We offer a one-year quality guarantee. Within this year, if any parts fail, we will send replacements to you free of charge.

4. What types of materials can this lifter handle? It is primarily designed for glass, but with the optional sponge suction cups, it can also lift wood, cement, iron plates, and other materials with rough surfaces.

5. Is the equipment customizable for specific needs? Yes, we offer both OEM and ODM services. Parameters such as color, suction cup quantity, and lifting height can be customized.

6. Does the lifter support rotational movement? Standard models feature 360-degree manual rotation. Automatic rotation and left/right turning systems are available as optional upgrades.
