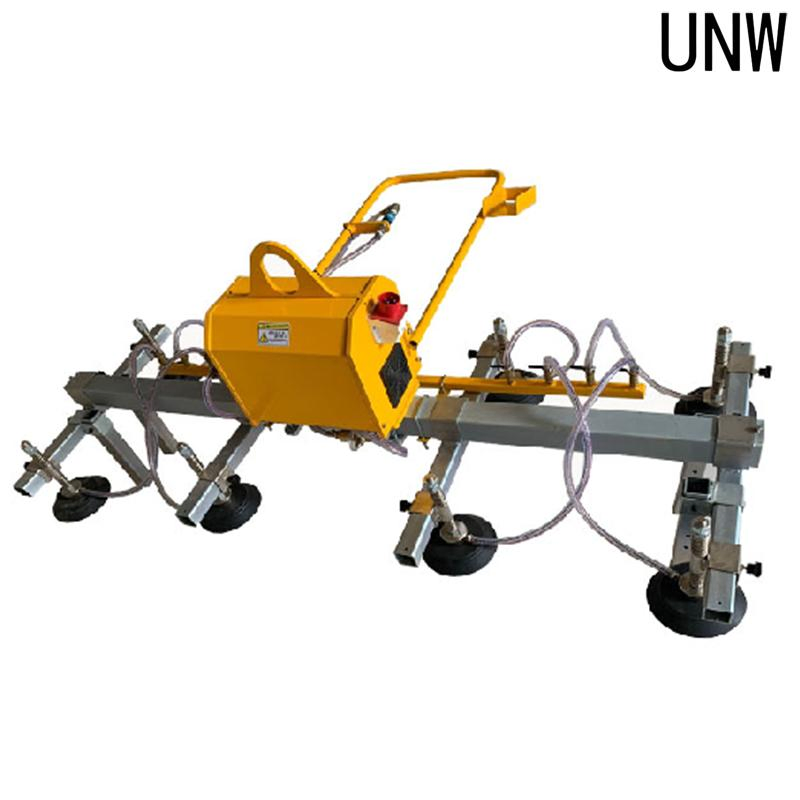

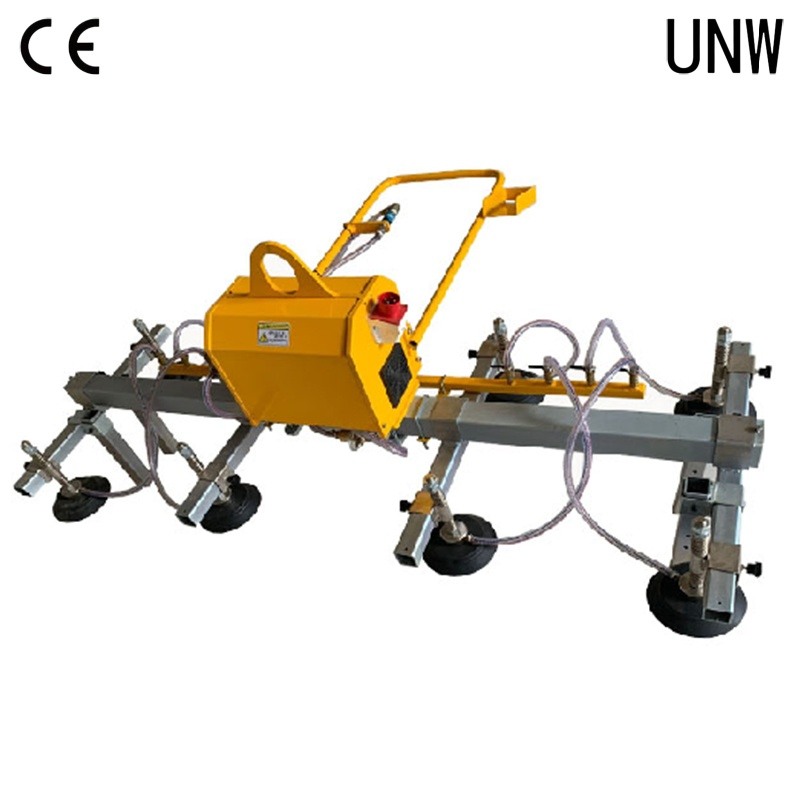

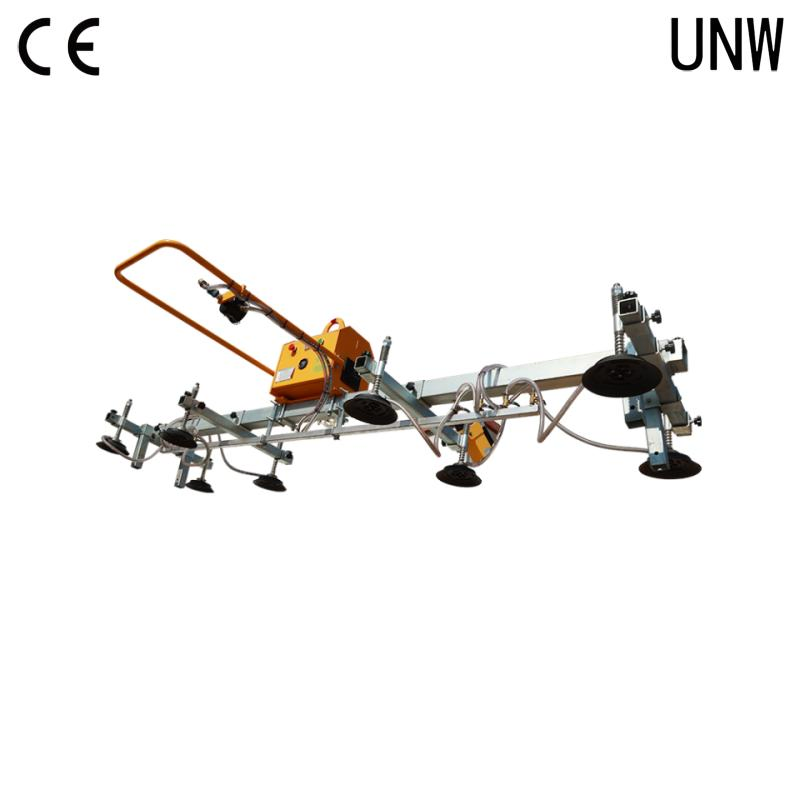

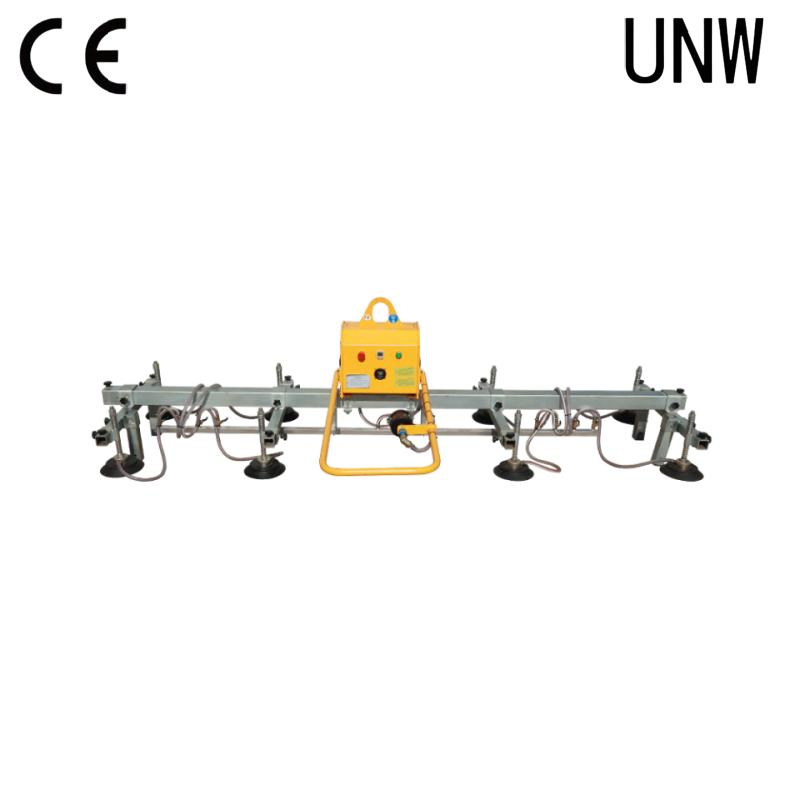

Vacuum Lifter For Steel Plate (100KG-2000KG)

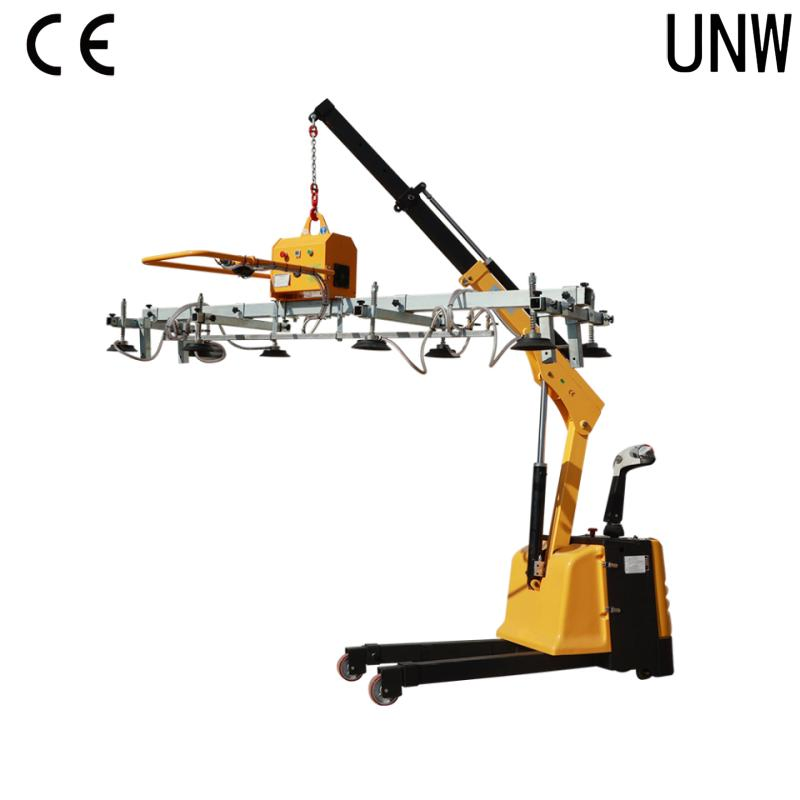

The vacuum lifting machine is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.
| Model | Rated Loading (KG) | Sheet Size (MM) | Beam Length (MM) | Pads Qty | Weight (KG) |
|---|---|---|---|---|---|
| BGL-100M | 100 | 2500 | 1500 | 4 | 80 |
| BGL-200M | 200 | 2500 | 1500 | 6 | 90 |
| BGL-300M | 300 | 2500 | 1500 | 6 | 100 |
| BGL-500M3 | 500 | 3000 | 2000 | 6/8 | 140 |
| BGL-1000M3 | 1000 | 3000 | 2000 | 10 | 160 |
| BGL-2000M | 2000 | 6000 | 2800 | 10/12 | 275 |

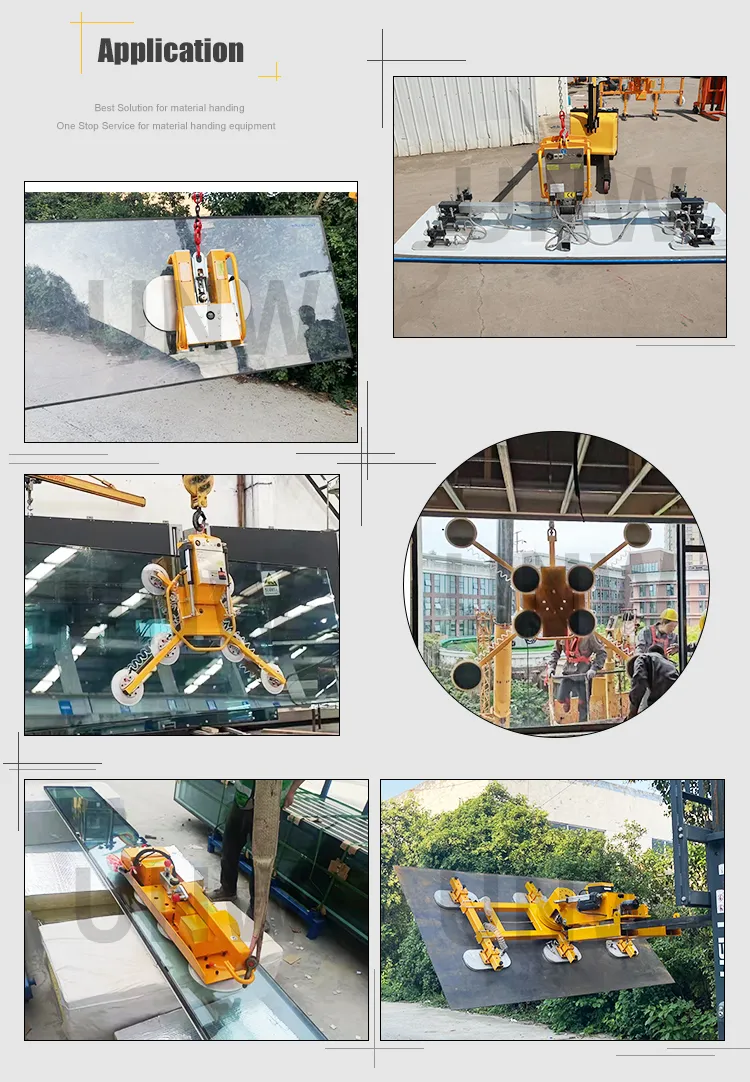

Widely used in glass processing, glass loading and unloading, glass curtain walls, plastic sheets, sandwich panels, composite panels, steel plates, aluminum plates, copper plates, and stone industries. It is suitable for workpieces with relatively flat and dense surfaces and regular shapes.
A leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platforms with more than 10 years of experience. We specialize in intelligent glazing robots, suction cup vacuum glass lifters, sandwich panel lifters, and metal sheet vacuum lifters.
Certifications: CE, ROHS, SGS, ISO etc. We provide high-quality products and excellent after-sales services to ensure customer success.
