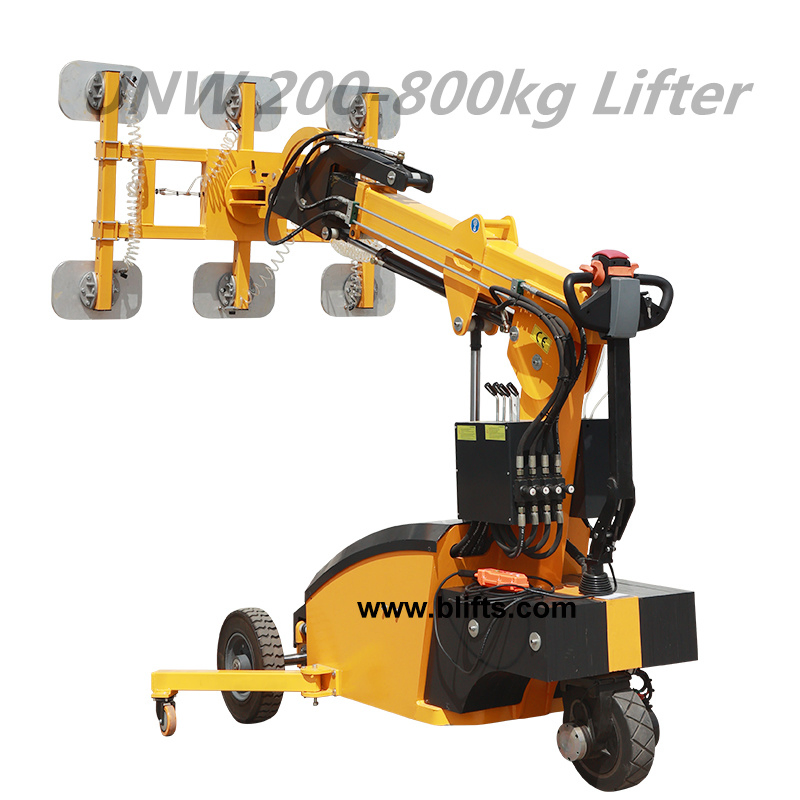

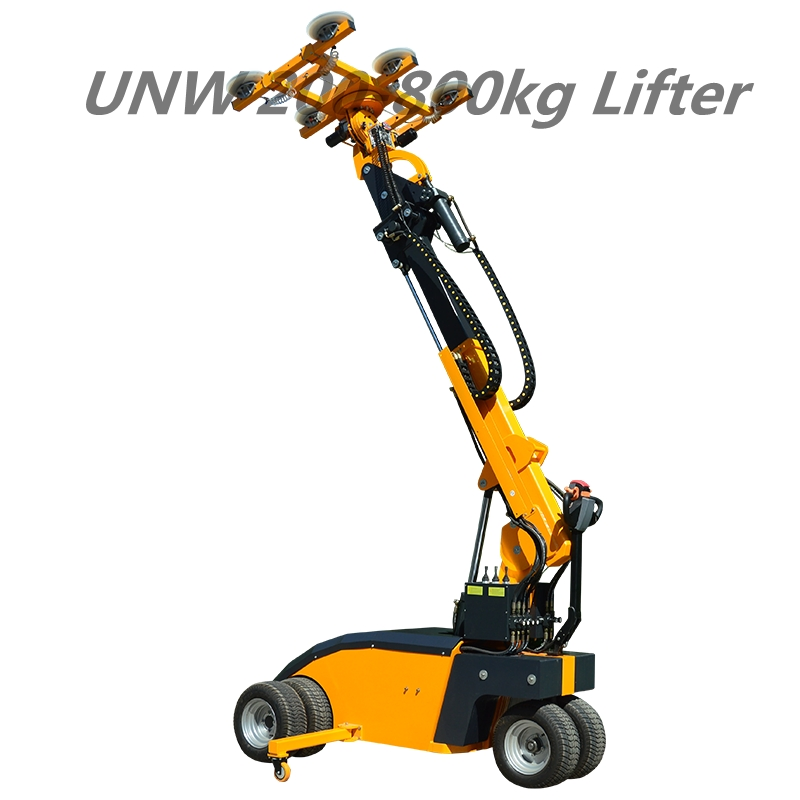

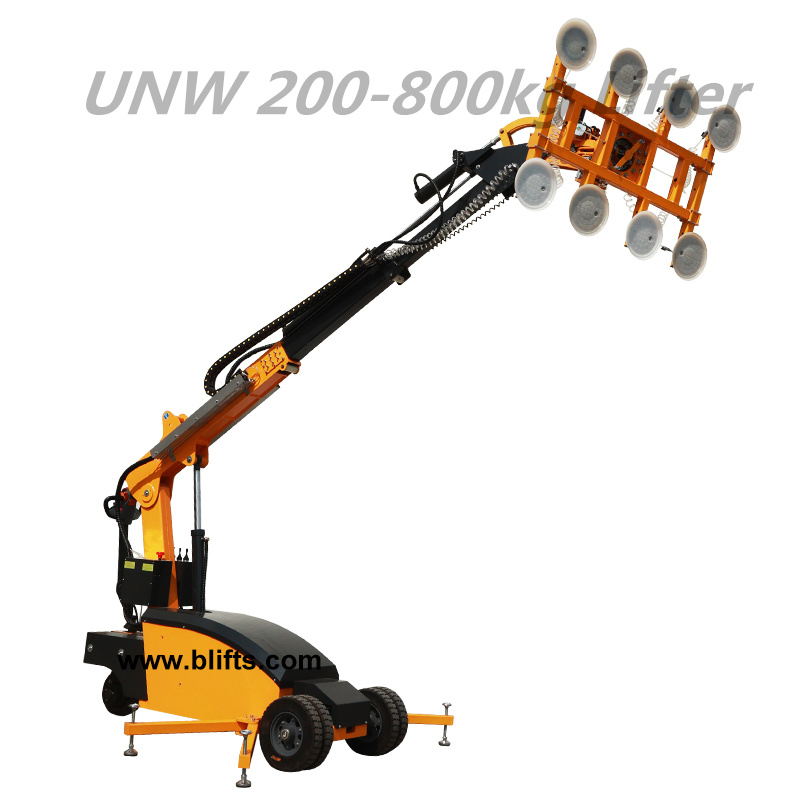

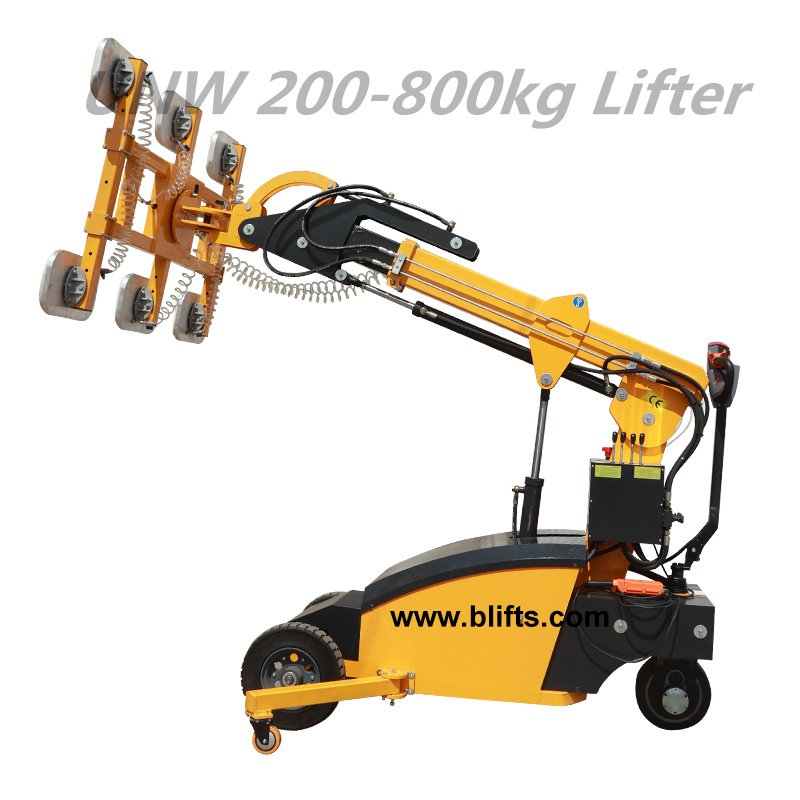

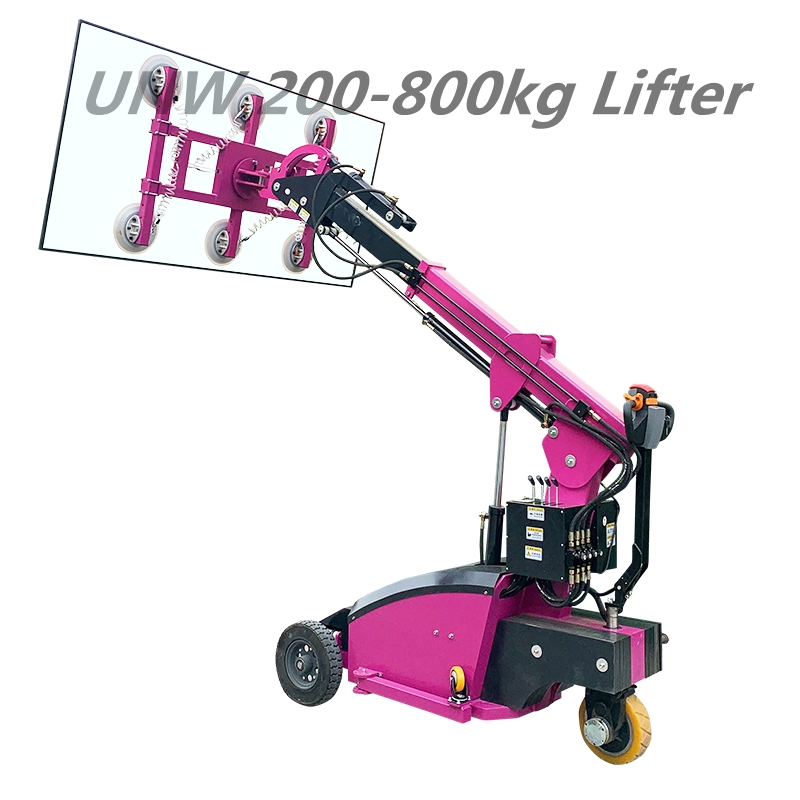

800kg Hydraulic Vacuum Glass Lifter Robot

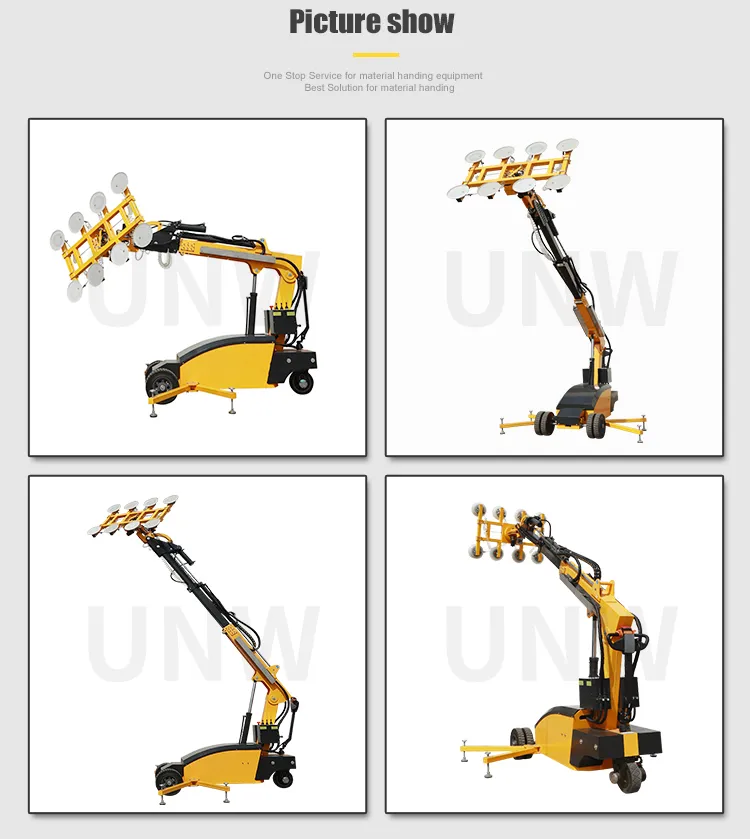

The vacuum lifter LD Series is a fast, safe, and convenient automatic equipment. Utilizing vacuum adsorption principles with a high-performance vacuum pump, it generates a secure hold at the suction cup end. This allows for firm handling of workpieces such as glass and iron plates. The rotatable mechanical arm enables precise transport to designated positions.
Key Features & Advantages:
| Model Type | BGL-LD-300 | BGL-LD-400 | BGL-LD-500 | BGL-LD-600 | BGL-LD-800 |
|---|---|---|---|---|---|
| Load Capacity | 300kg / 150kg | 400kg / 200kg | 500kg / 250kg | 600kg / 300kg | 800kg / 400kg |
| Max Lifting Height | 3880mm | 3880mm | 3880mm | 3880mm | 5000mm |
| Suction Cups | 4 pcs | 4 pcs | 6 pcs | 6 pcs | 8 pcs |
| Battery | 2x12V/100AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Chassis Size | 2660x810mm | 2660x810mm | 2800x810mm | 2800x810mm | 2800x1070mm |

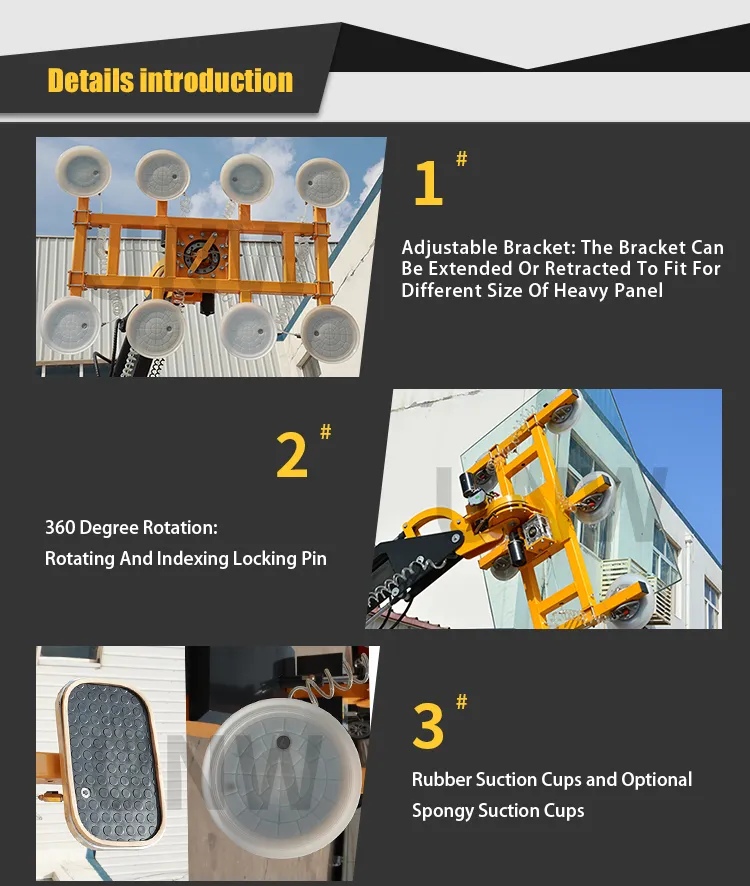

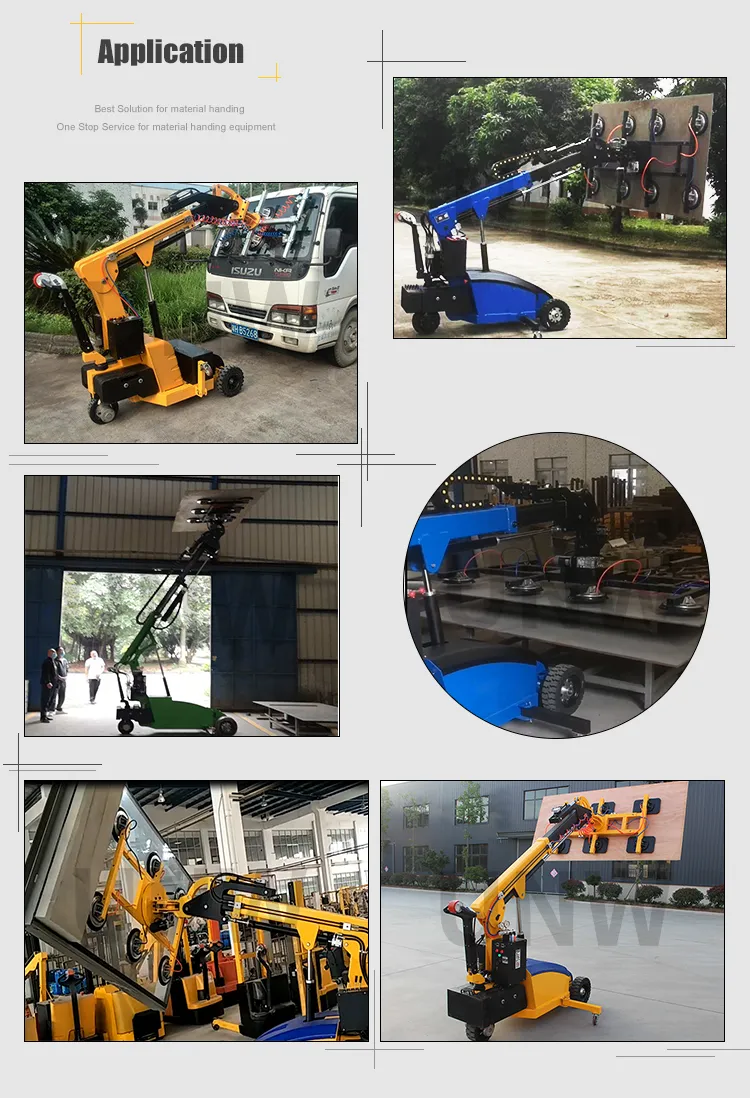

Suitable for the installation and transportation of glass, wood panels, cement slabs, and iron plates. Equipped with adjustable brackets to adapt to various panel sizes.
