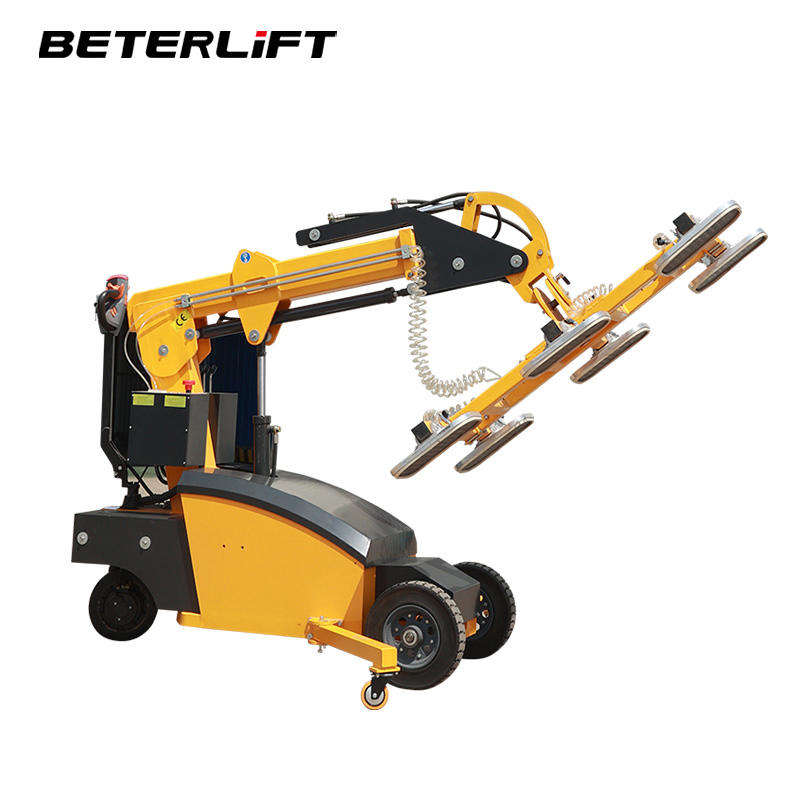

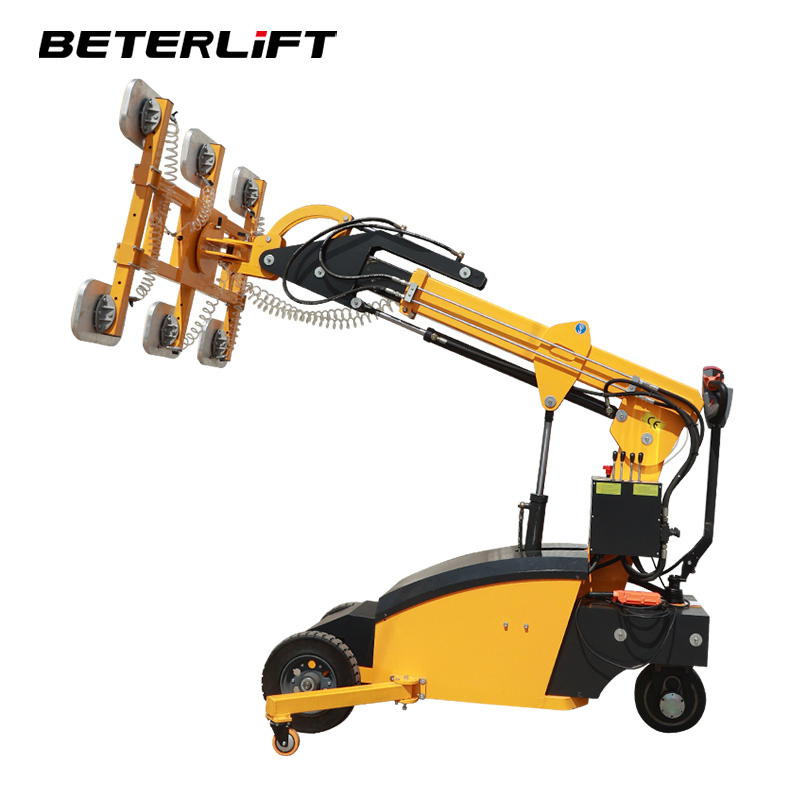

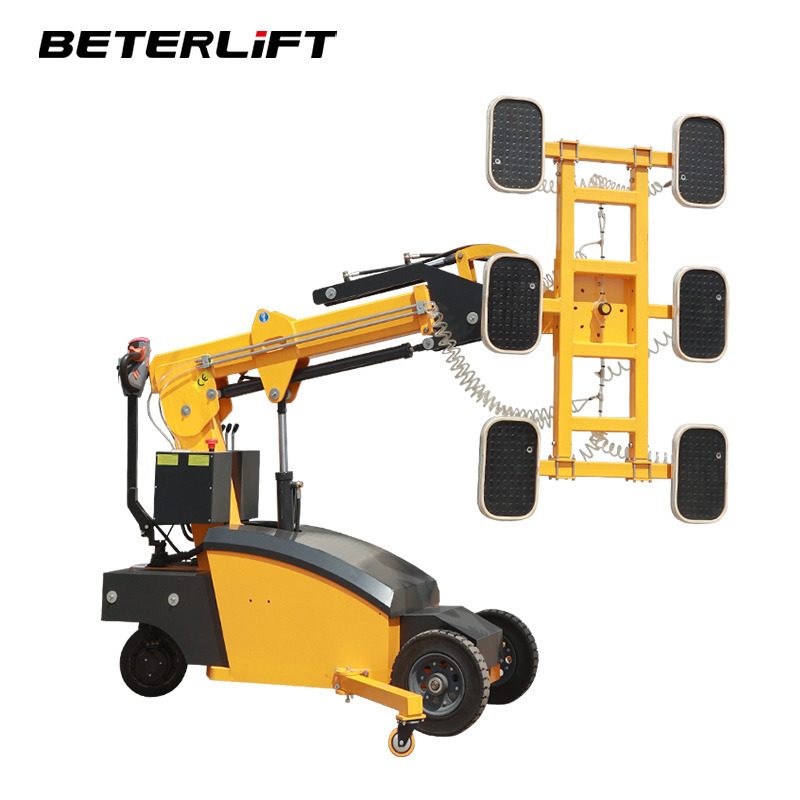

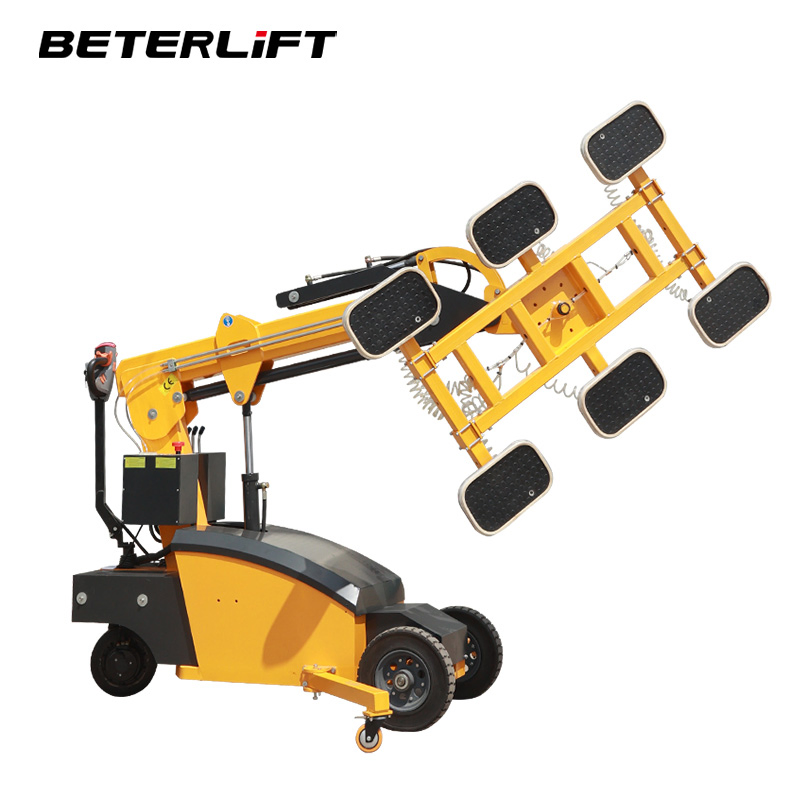

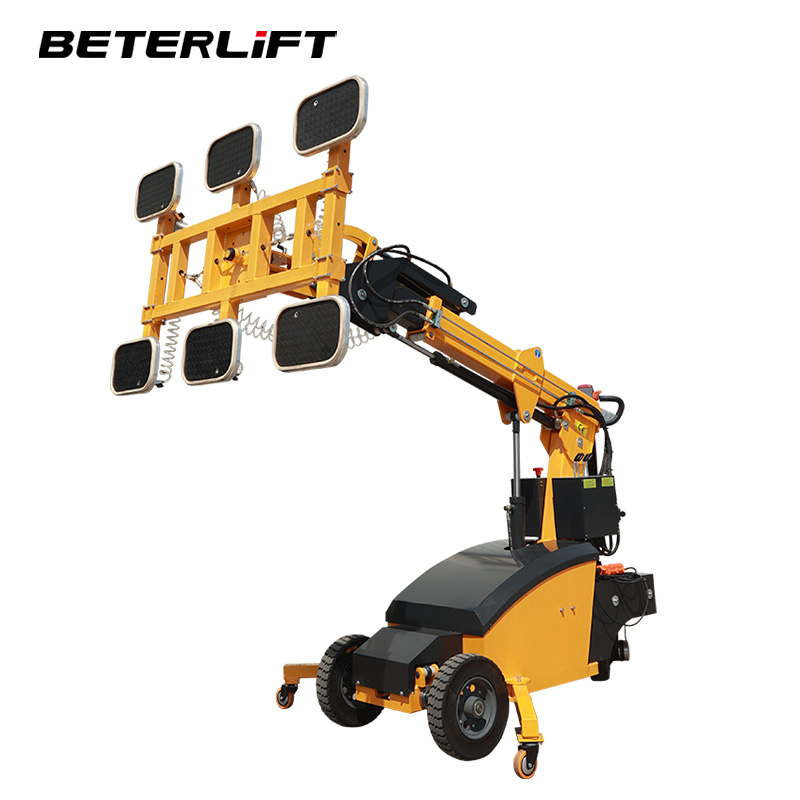

Intelligent Glass Suction Vacuum Lifts Window Lift

Still deciding? Get samples of $ !
Order Sample

Product Description

📋Overview & Basic Info
Model NO.
BGL-LD
Loading Capacity
300-800kg
Cup Quantity
4 - 8 pcs
Rotation
360° Manual Rotation
Power
DC Battery (12V/24V)
Usage
Glass and Board Lifting
Material
High-strength Steel
Package Size
85.00cm * 60.00cm * 30.00cm
⚙️Product Description

300kg-800kg Electric Vacuum Glass Lifting Equipment (OEM & ODM)

The LD Series Vacuum Lifter is a fast, safe, and convenient automatic equipment designed for industrial efficiency. Utilizing vacuum adsorption principles with a high-performance vacuum pump, it generates a secure hold at the suction cup end. This allows for the firm handling of various workpieces such as glass, iron plates, and wood panels, transporting them to designated positions via a rotatable mechanical arm.

Key Features & Advantages:
  • Integrated Control System: Secures quick and automatic positioning vertically and horizontally with a single button push.
  • Reliable Actuators: DC24V actuators for efficient lifting, extension, and tipping.
  • Versatile Movement: Pad frame automatic vertical up/down by 180°, and automatic lateral side shift of 100mm.
  • Optional Upgrades: Automatic 360° rotation and automatic left/right turning are available.
📊Technical Parameters
Model Type BGL-LD-300 BGL-LD-400 BGL-LD-500 BGL-LD-600 BGL-LD-800
Load Capacity (Retract) 300kg 400kg 500kg 600kg 800kg
Lifting Height 3500mm 3500mm 3700mm 3700mm 4500mm
QTY of Suction Cup 4pcs 6pcs 6pcs 6pcs 8pcs
Drive Motor 24V/600W 24V/600W 24V/900W 24V/1200W 24V/1200W
Battery 2x12V/100AH 2x12V/100AH 2x12V/120AH 2x12V/120AH 2x12V/120AH
📸Detailed Photos

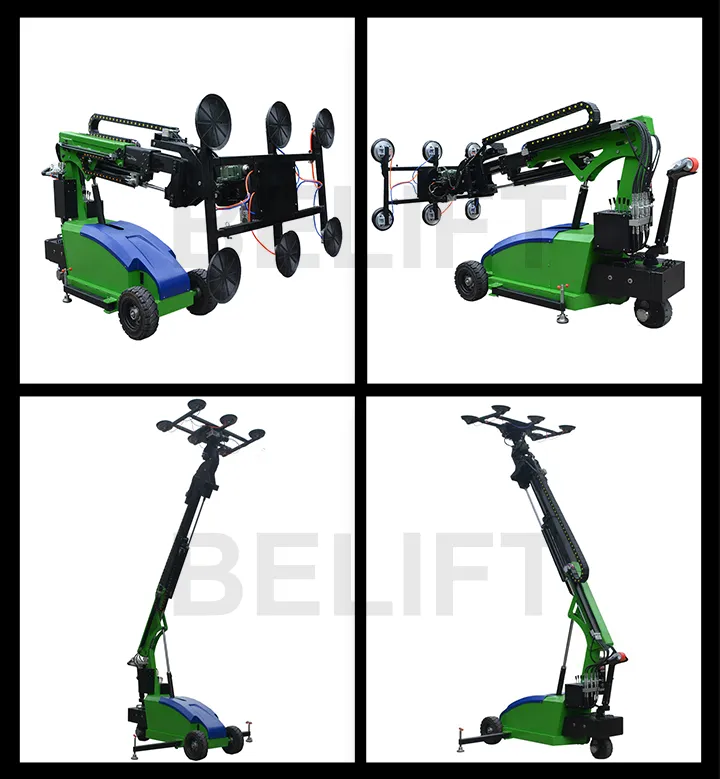

Glass Suction Vacuum Lift

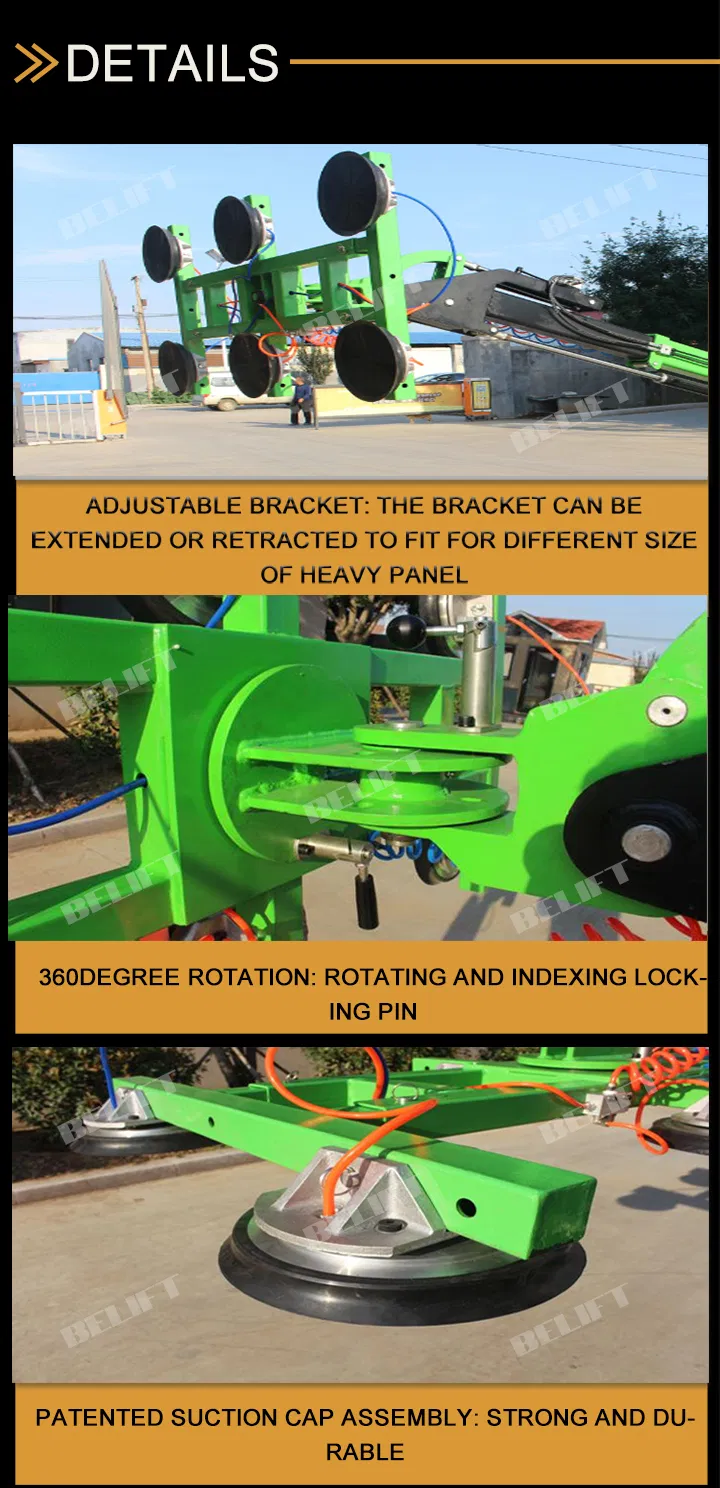

Vacuum Lift Operation

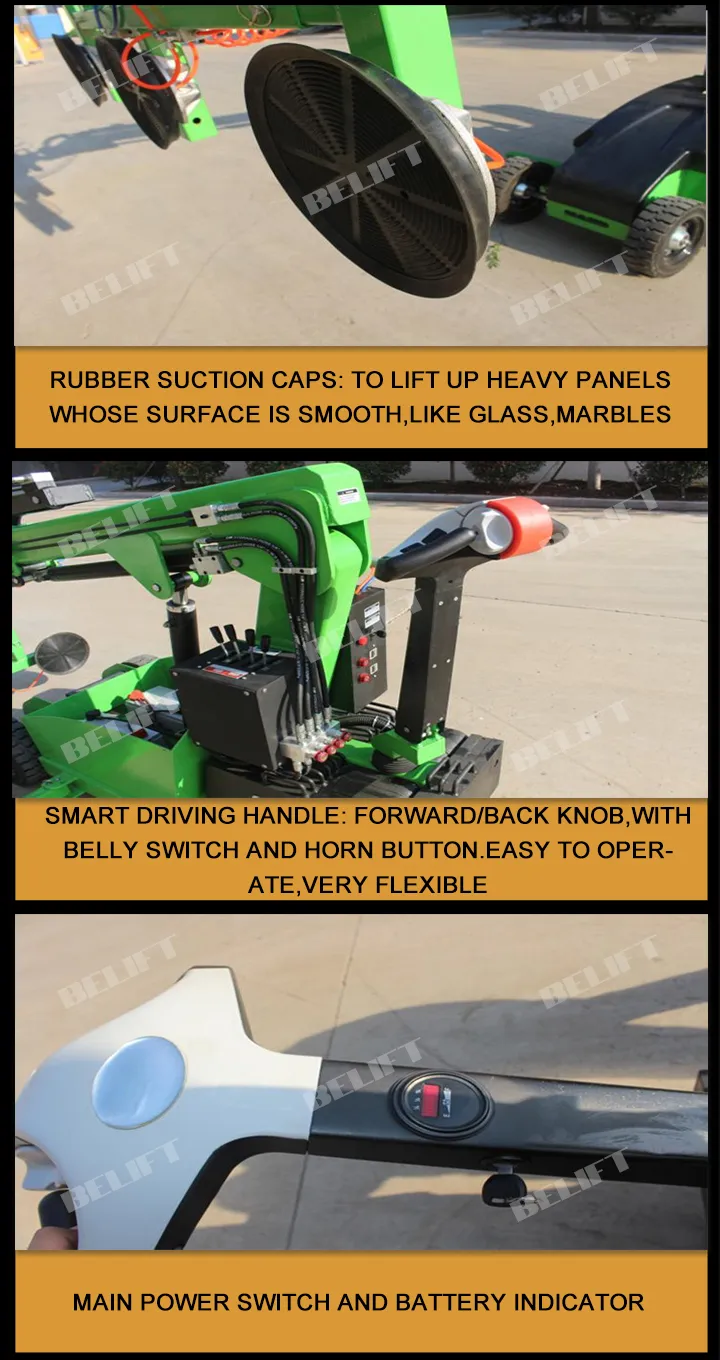

Intelligent Window Lift

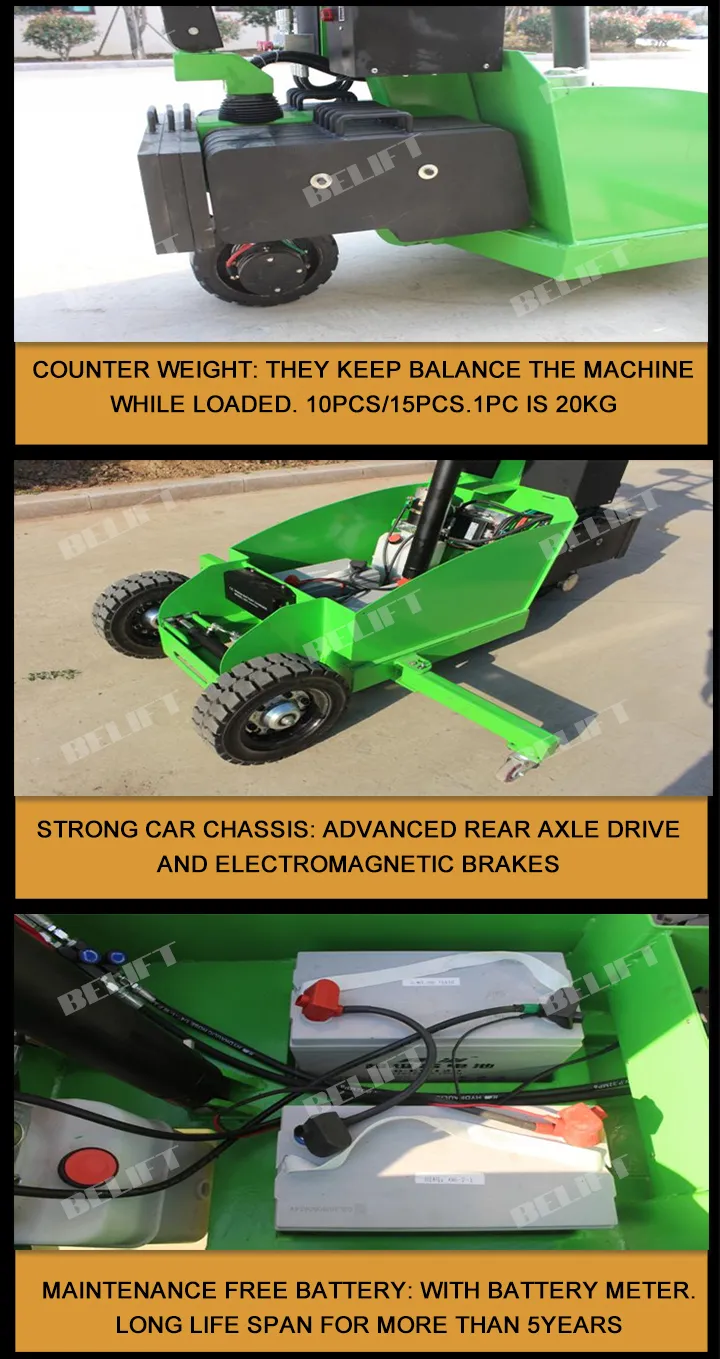

Glass Lifting Equipment

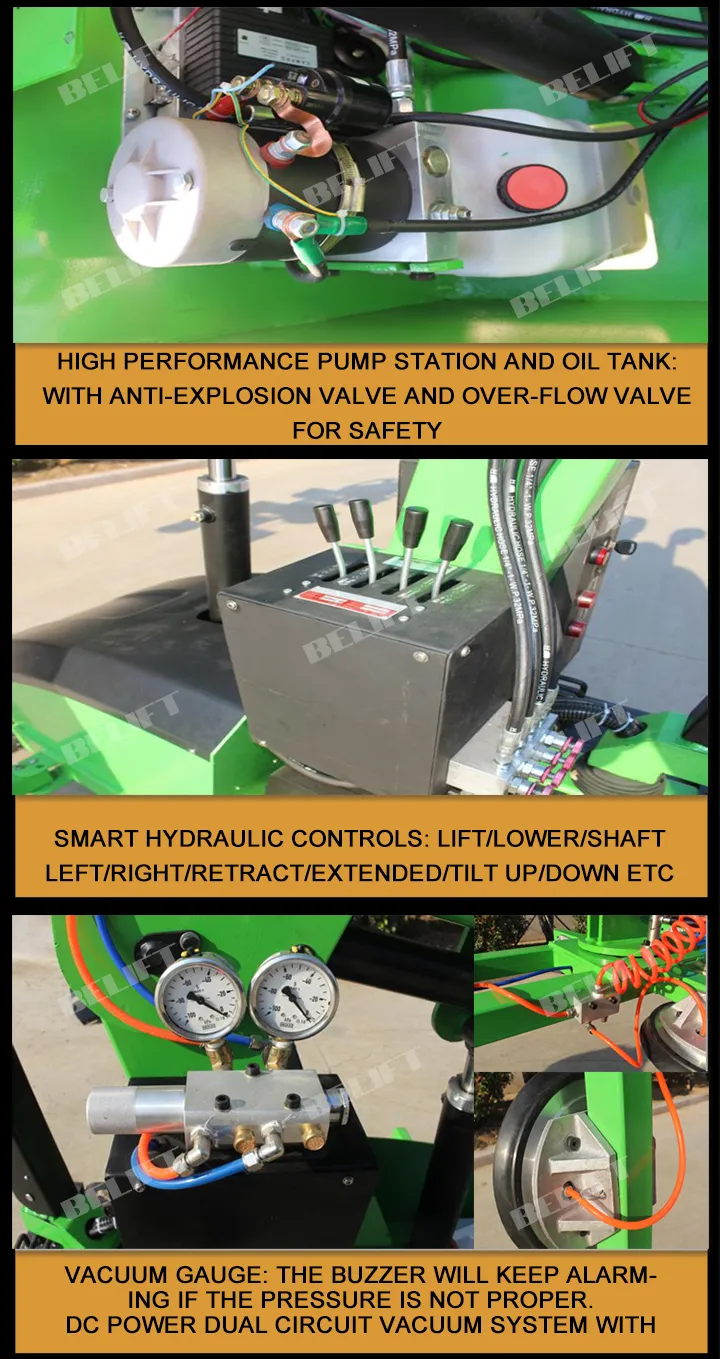

Vacuum Suction Details

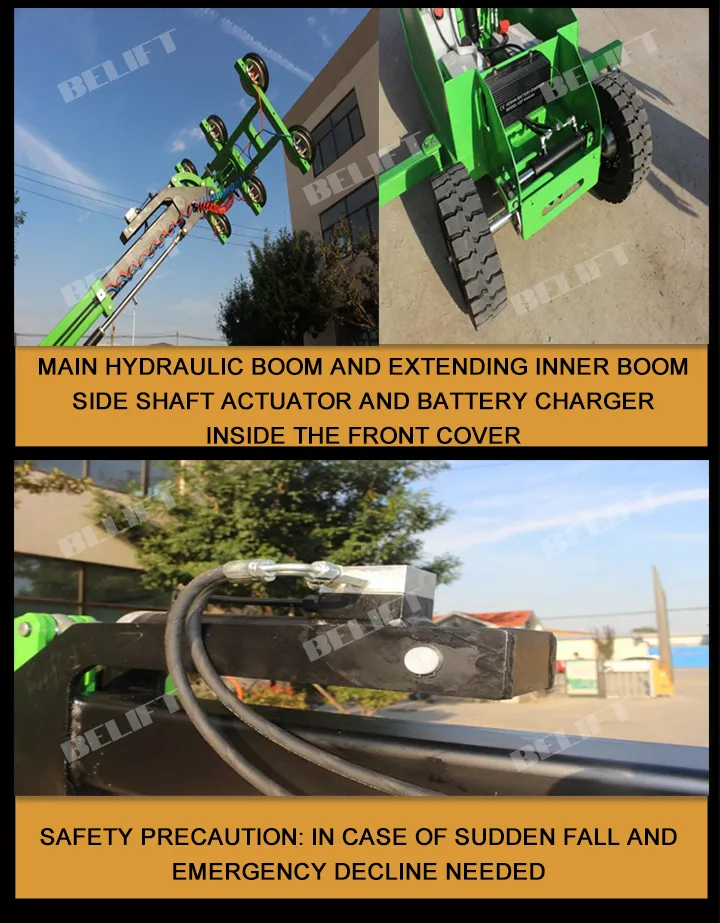

Industrial Lifting Solution

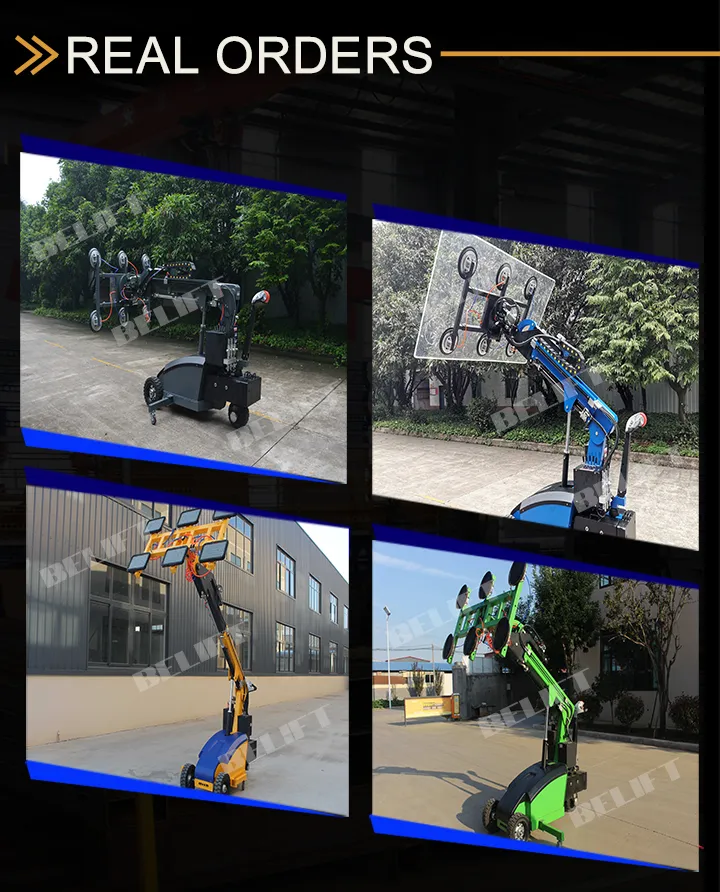

Suction Cup Machine

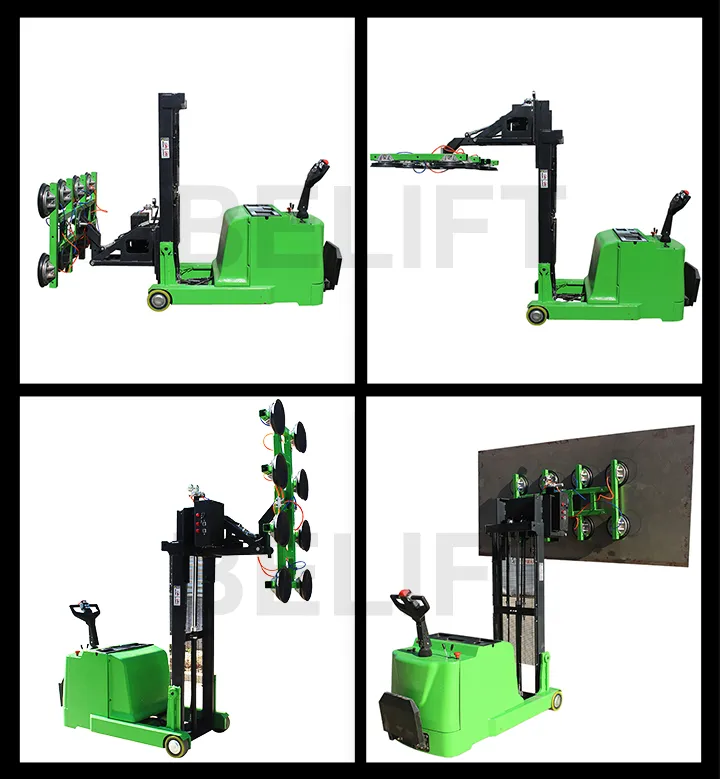

Other Recommendations
🏢Industry Expertise

Specializing in the manufacturing of Aerial Work Platforms and Material Lift Platforms since 2015, our products are trusted by customers worldwide. We maintain rigorous quality standards with certifications including CE, ROHS, SGS, and ISO.

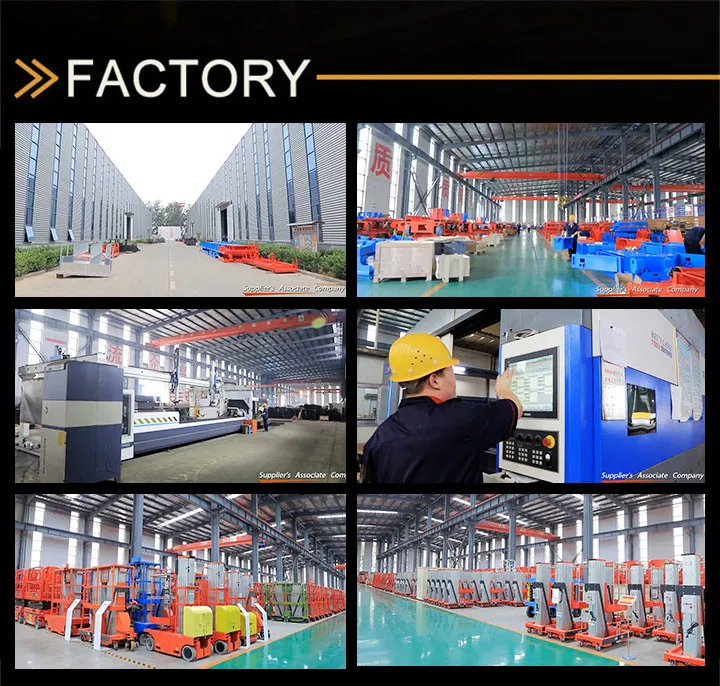

Factory View

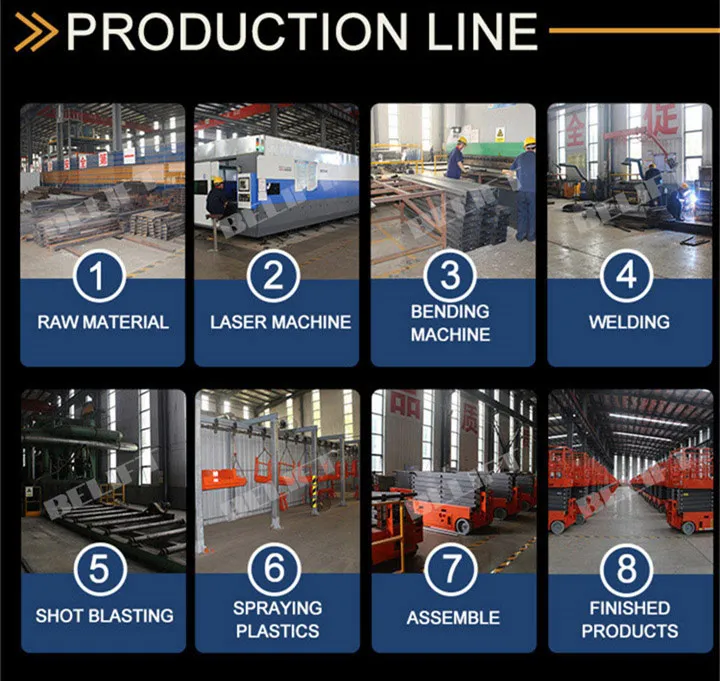

Production Line
After-Sales Support:
  • Free spare parts provided within the quality warranty period.
  • Comprehensive user manuals included.
  • Lifetime technical support.
  • 24-hour telephone and internet service.
Frequently Asked Questions
How can customers buy replacement parts?
The equipment utilizes common hardware parts. You can easily purchase them from local hardware markets or forklift parts shops.
How is the equipment repaired if a fault occurs?
The equipment has an extremely low failure rate. If an issue arises, we provide detailed video guidance and repair instructions to assist you.
What is the duration of the quality guarantee?
We provide a one-year quality guarantee. If the machine breaks down within this period, we will send replacement parts free of charge.
Can this machine lift materials other than glass?
Yes, by replacing the standard suction cups with sponge suction cups, the machine can be used to lift wood, cement, and iron plates.
Is the rotation of the suction frame automatic?
The standard model features 360° manual rotation. However, automatic rotation and automatic left/right turning are available as optional upgrades.
What safety certifications does the equipment have?
Our equipment is fully certified with CE, ROHS, SGS, and ISO standards to ensure international safety and quality compliance.
