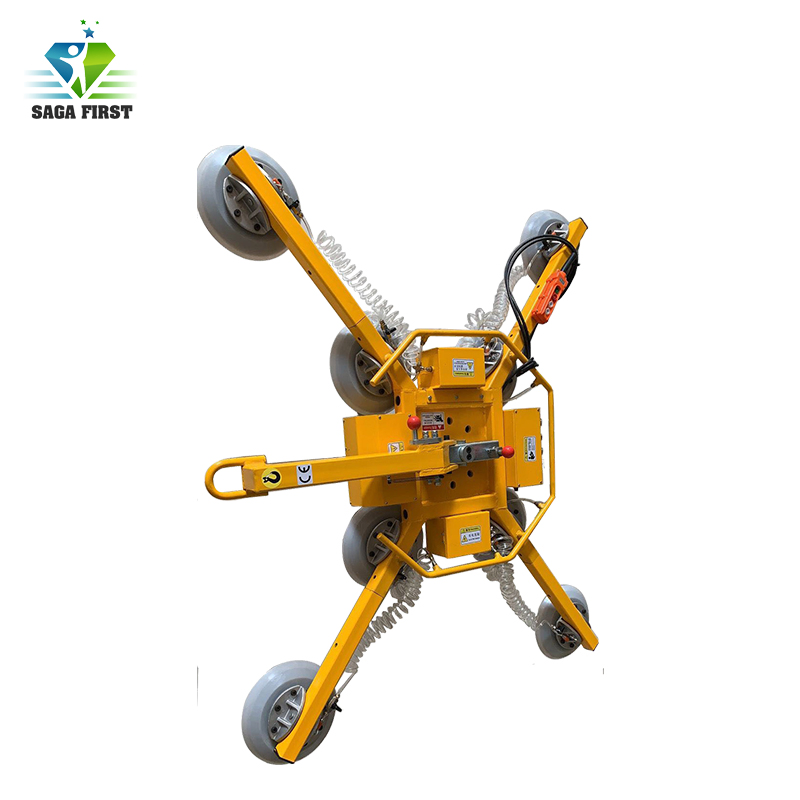

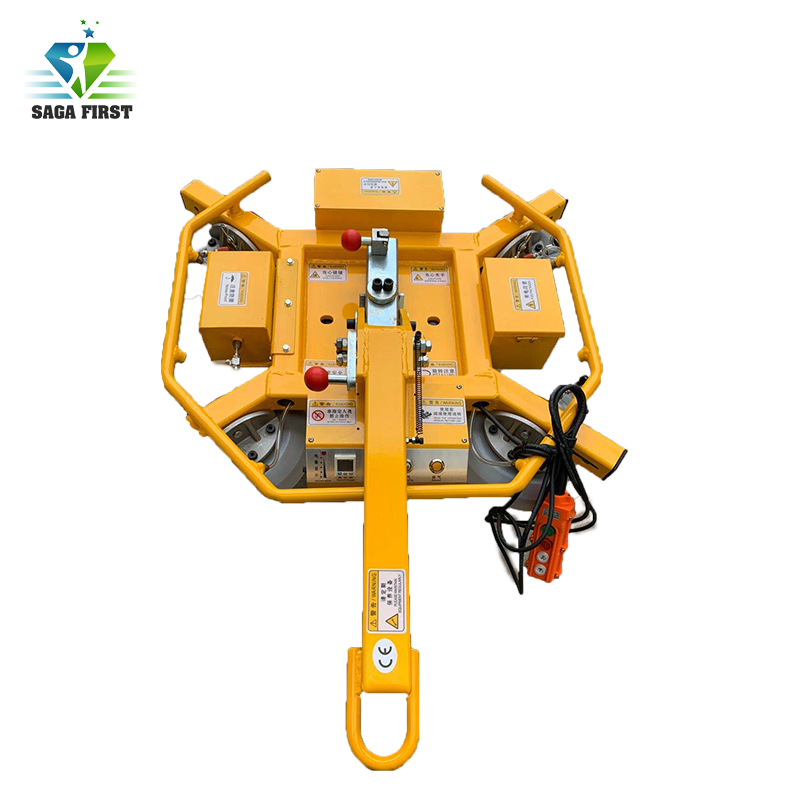

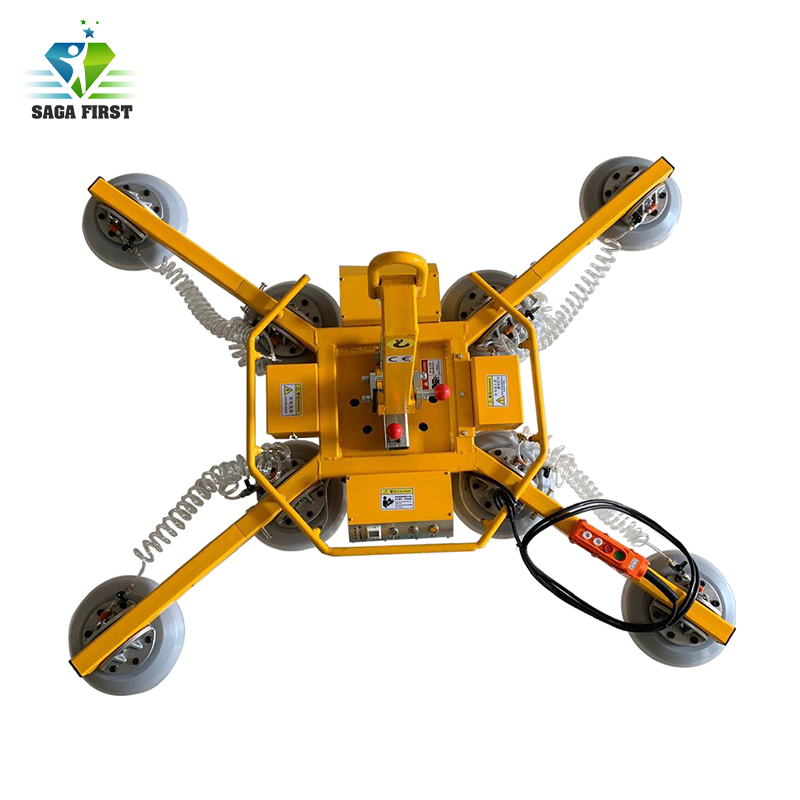

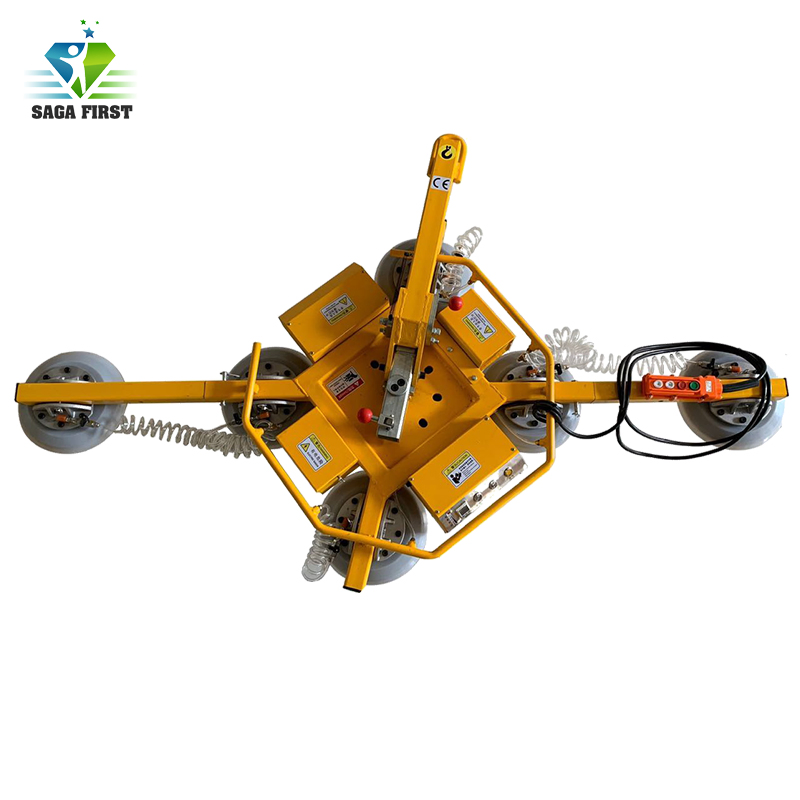

Gl-Sc Series Portable Manual Glass Lift Vacuum Glass Suction Cap for Sale

1 / 5

Gl-Sc Series Portable Manual Glass Lift Vacuum Glass Suction Cap for Sale

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:GL-SC

Carrying Capacity:Weight Level

Driven Type:AC

Certification:GS, CE, ISO 9001

Max Capacity:400kg, 600kg, 1000kg

Cup Qty:4~10

Rotation:360° Manual

Tilting:90° Manual

Control System:Integrated Control & Wired Remote

Feature:Explosion-Proof, Insulating

Product Description

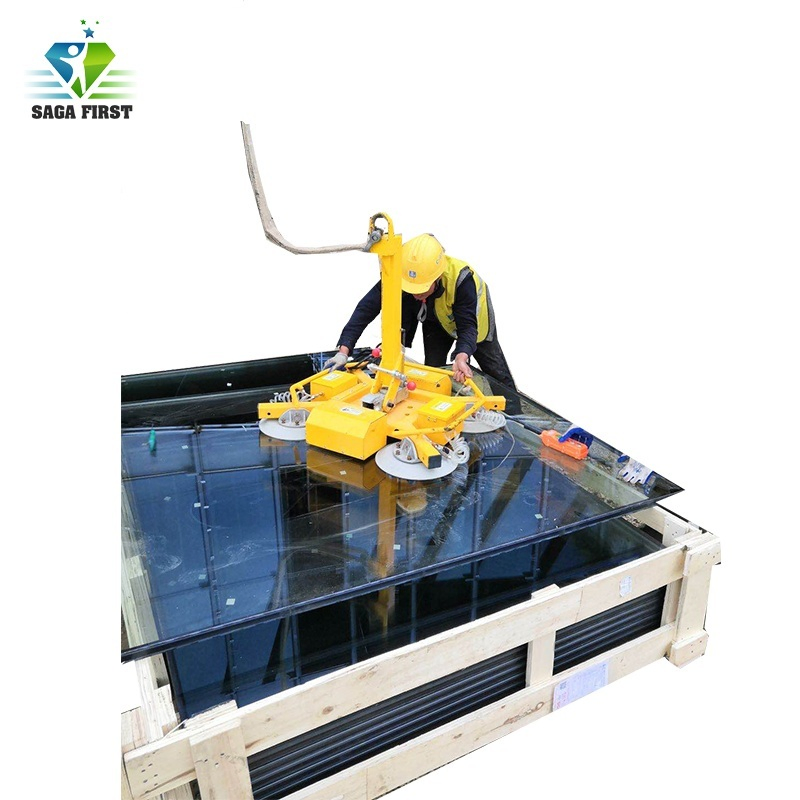

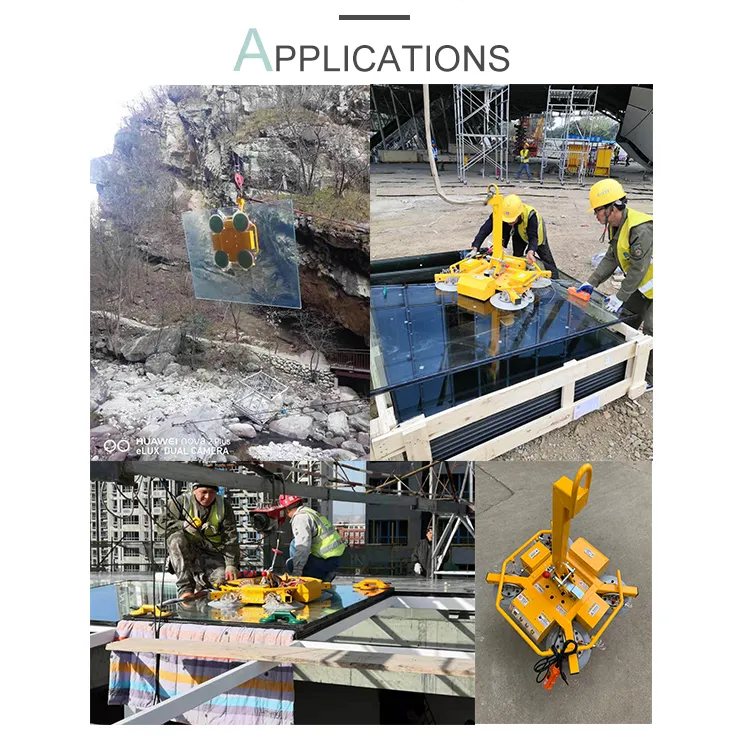

The GL-SC Series Portable Manual Glass Lift is specially designed for handling different kinds of heavy plates, boards, and glass. It is exceptionally useful for installing steel boards and glass walls, as well as moving materials such as granite and marble.

Model	Unit	GL-SC-400	GL-SC-600	GL-SC-800	GL-SC-1000
Lifting Capacity	kg	400	600	800	1000
Cup Qty	/	4	6	8	10
Single Cup Size	mm	300	300	300	300
Rotation / Tilting	/	360° Manual Rotate / 90° Manual Tilt
Voltage / Charger	V	DC12V / AC220/110
Sucker Frame Size	mm	850750300	1800900300	17601460300	19001600300

Key Features & Advantages

★Sealed cover for component protection, safe and reliable for deep processing and curtain wall installation.
★Adjustable suction cup positions to accommodate various glass shapes and sizes.
★360° manual rotation in the vertical side and 90° manual rotation in the horizontal side.
★Equipped with high-quality maintenance-free battery; no external power source required during operation.
★Digital display vacuum pressure switch and battery fuel gauge for real-time safety monitoring.
★Vacuum pressure auto-supply system maintains a constant safety pressure value.
★Pressure-keeping and alarm devices ensure safety even in the event of an accidental power failure.
★Includes a 12V backup battery that can be replaced quickly to ensure project progress.

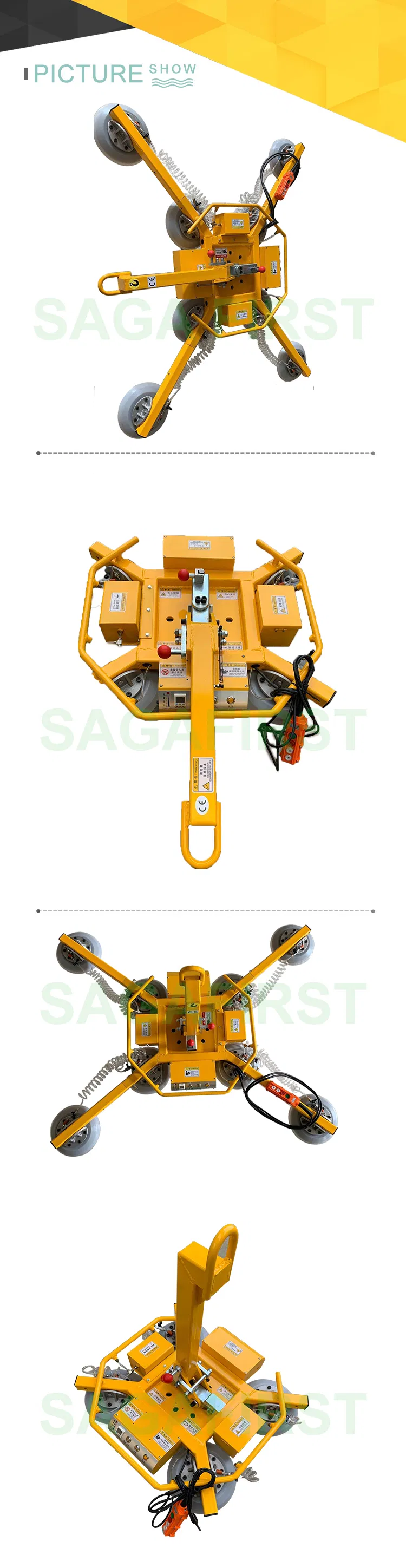

Product Showcase

Frequently Asked Questions

Q1: What materials can the GL-SC vacuum lifter handle?

The lifter is designed for heavy plates, glass, steel boards, granite, and marble with smooth surfaces.

Q2: Does it require a constant power connection during use?

No, it uses a high-quality maintenance-free battery, making it portable and suitable for sites without immediate power access.

Q3: How does the safety alarm system work?

The system monitors vacuum pressure. If the pressure drops below a safe level, the alarm device triggers to warn the operator.

Q4: Can the suction cup layout be customized?

Yes, the position of the suction cups is adjustable to absorb glass of different shapes and sizes.

Q5: What is the rotation and tilting capability?

It features 360° manual rotation in the vertical plane and 90° manual tilting in the horizontal plane.

Q6: What certifications does this equipment hold?

The GL-SC series is fully compliant with CE, ISO 9001, and SGS standards for safety and quality.
