Bendo Lift
1 / 5

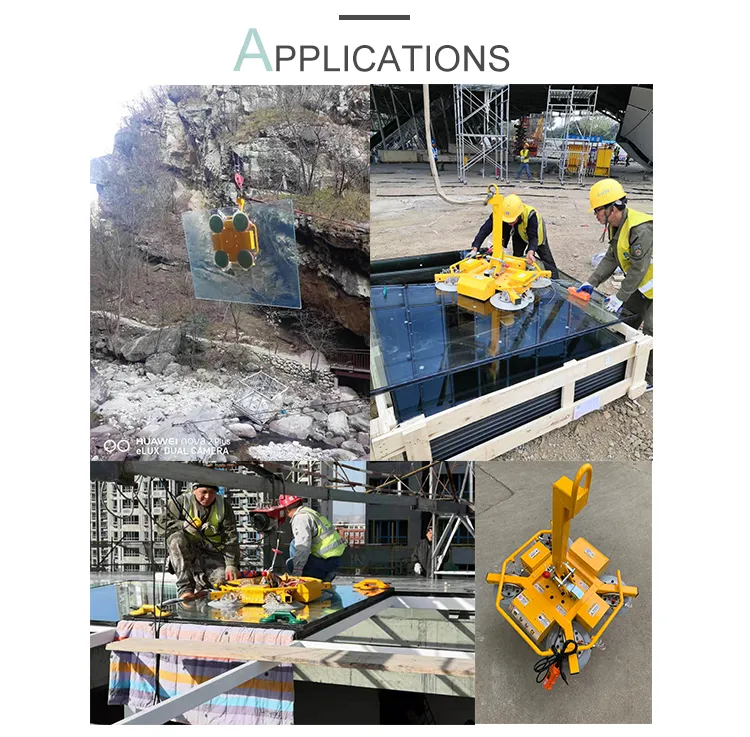

Our suction caps are specially designed for handling different kinds of heavy plates, boards, and glass. They are highly effective for installing steel boards, glass walls, and moving materials such as granite and marble. Widely used in construction for glass wall and window installation, as well as in metal sheet and marble processing workshops.
| Model | Unit | GL-SC-400 | GL-SC-600 | GL-SC-800 | GL-SC-1000 |
|---|---|---|---|---|---|
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 |
| Cup Qty | / | 4 | 6 | 8 | 10 |
| Single Cup Size | mm | 300 | 300 | 300 | 300 |
| Rotation | / | 360° manual rotate | |||
| Tilting | / | 90° manual | |||
| Voltage | V | DC12 | |||
| Charger | V | AC220/110 | |||
| Weight | kg | 70 | 90 | 100 | 110 |
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 |
| Control System | / | Integrated Control Cabinet and Wired Remote Control | |||
Our equipment holds CE, ROHS, ISO, and SGS certifications. All products undergo 3 rounds of 100% inspection before shipping to ensure the highest quality standards.
