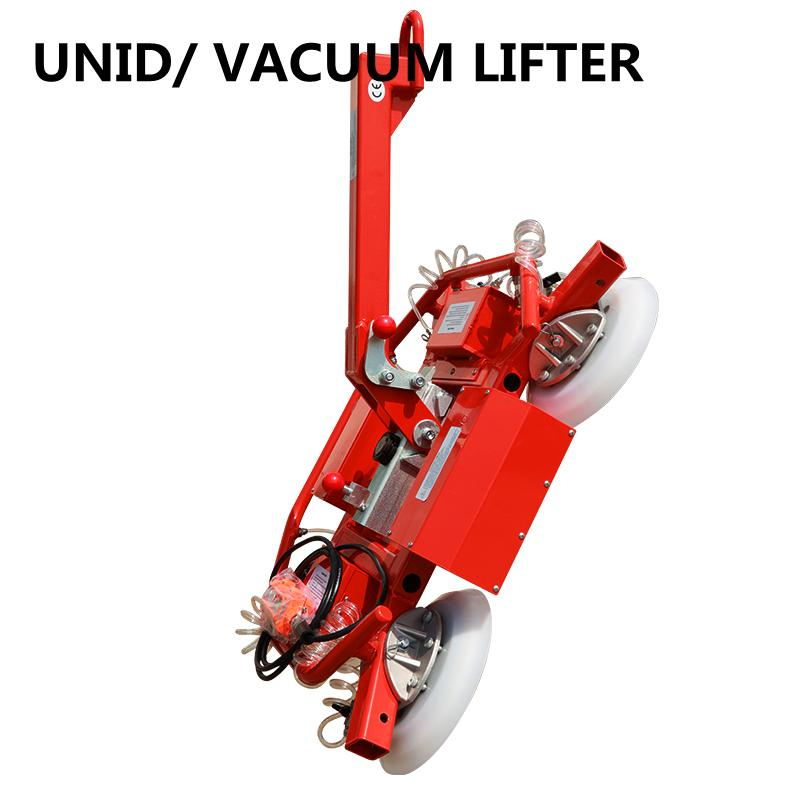

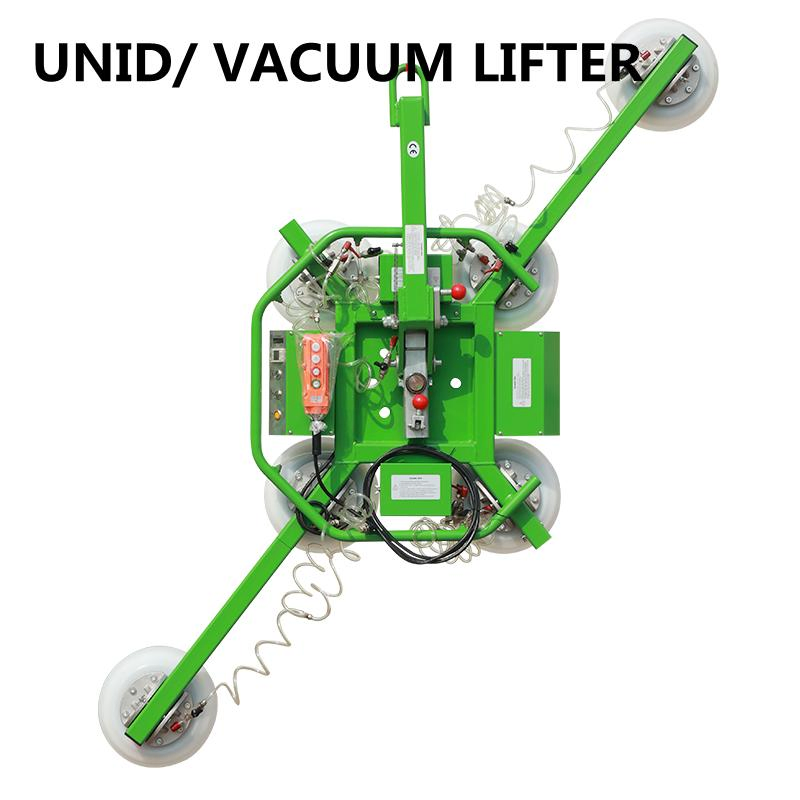

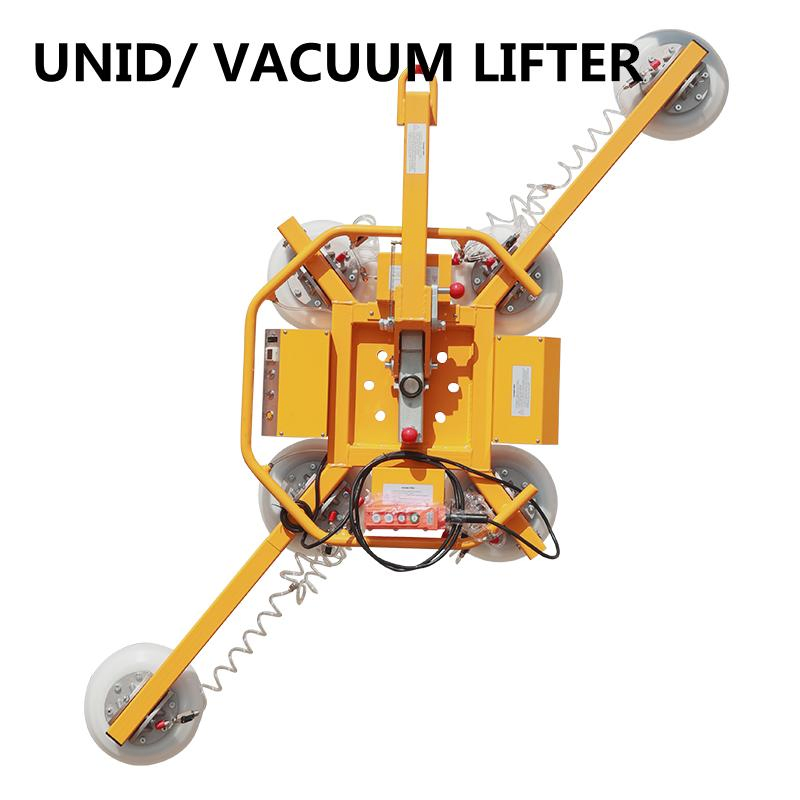

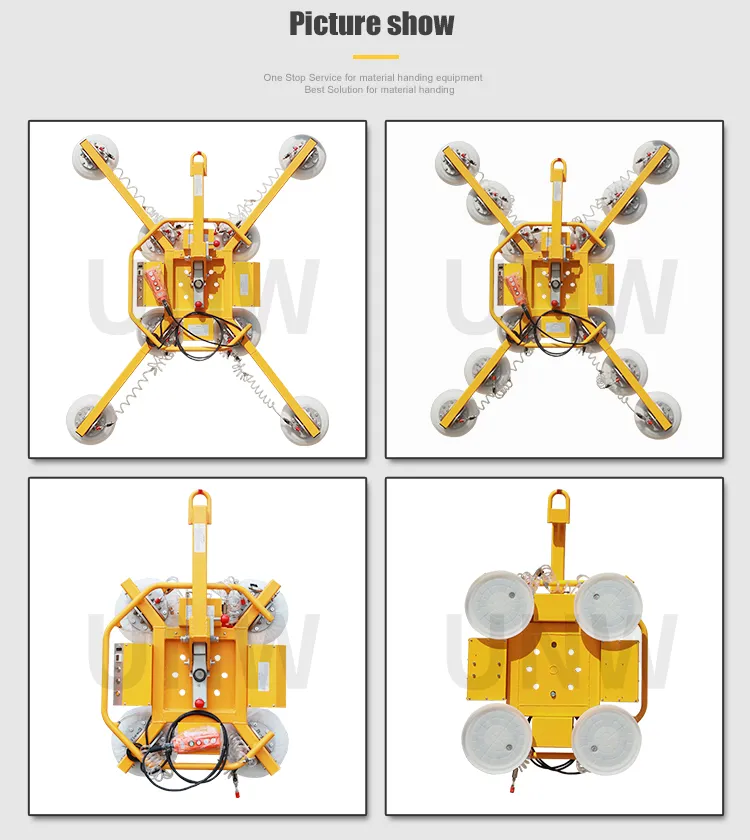

Small Vacuum lifting machine is a fast, safe and convenient automatic equipment. It utilizes the principle of vacuum adsorption, using a vacuum pump as the source to generate suction at the cup end. This allows for firmly holding various workpieces such as glass and iron plates.
| Item | BGL-400X | BGL-600X | BGL-800X | BGL-1000X | BGL-1200X |
|---|---|---|---|---|---|
| Lifting Capacity (kg) | 400 | 600 | 800 | 1000 | 1200 |

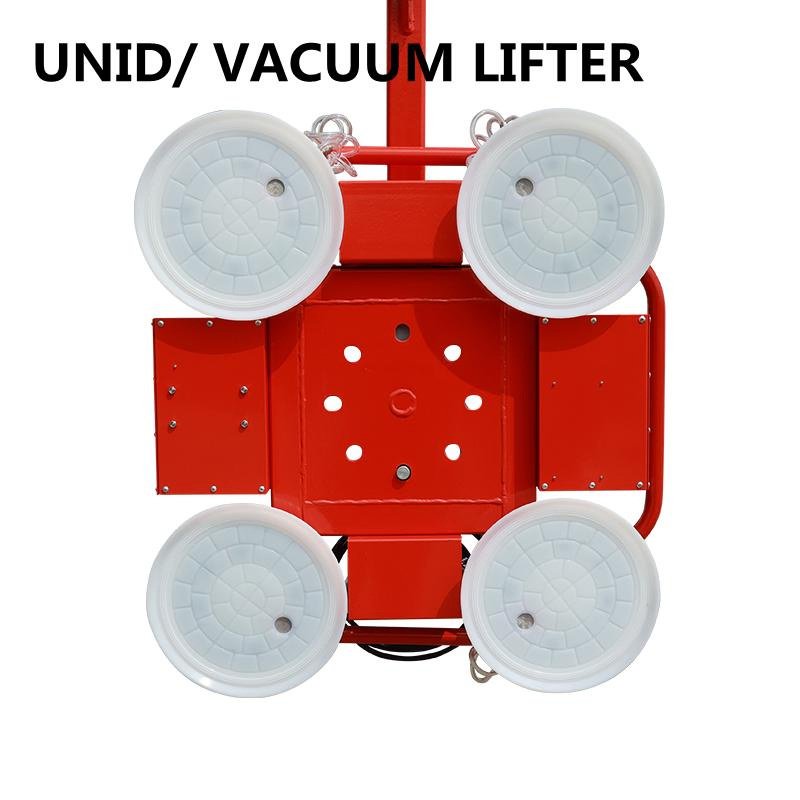

| Cup Qty (pc) | 4 | 6 | 8 | 10 | 12 |
| Single Cup Diameter (mm) | 300 | 300 | 300 | 300 | 300 |

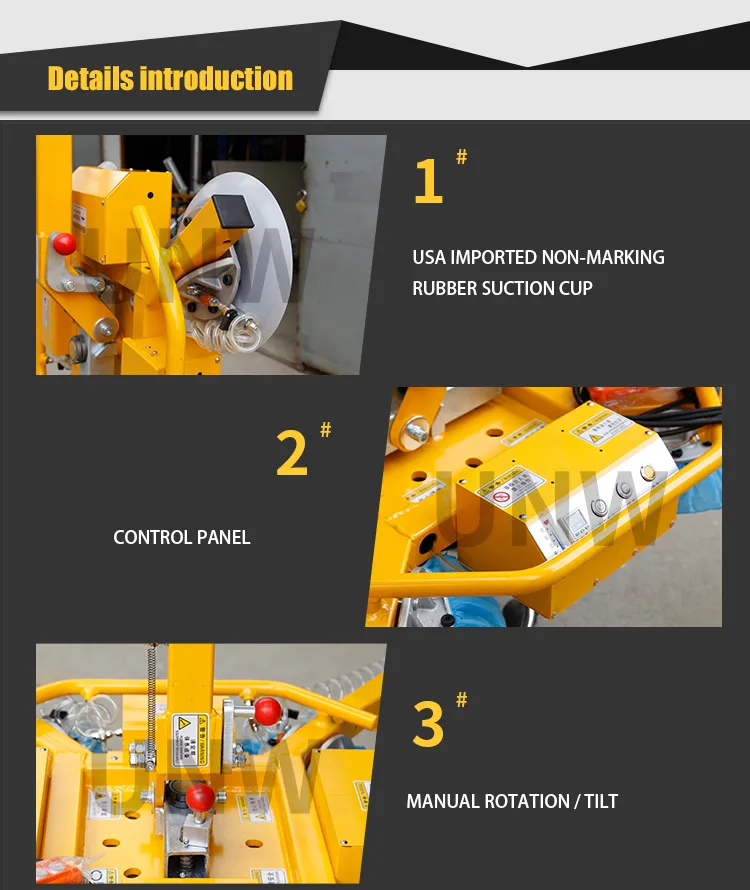

| Rotation | 360° Manual Rotate | ||||
| Tilting | 90° Manual | ||||
| Voltage (V) | DC12 | ||||
| Weight (kg) | 70 | 90 | 100 | 120 | 120 |
| Sucker Frame Size (mm) | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |

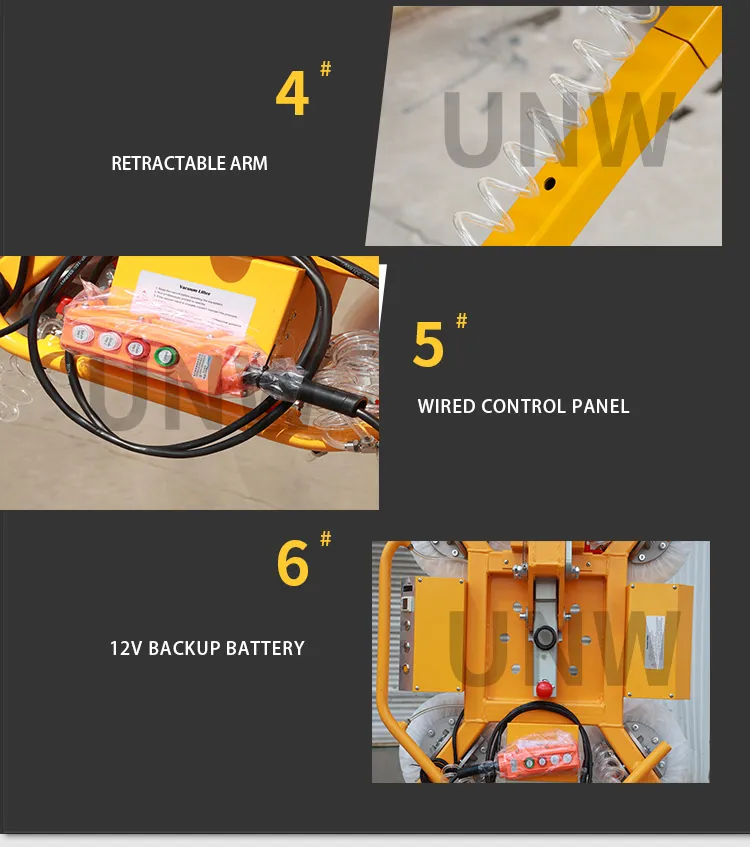

| Control System | Integrated Control Cabinet and Wired Remote Control | ||||

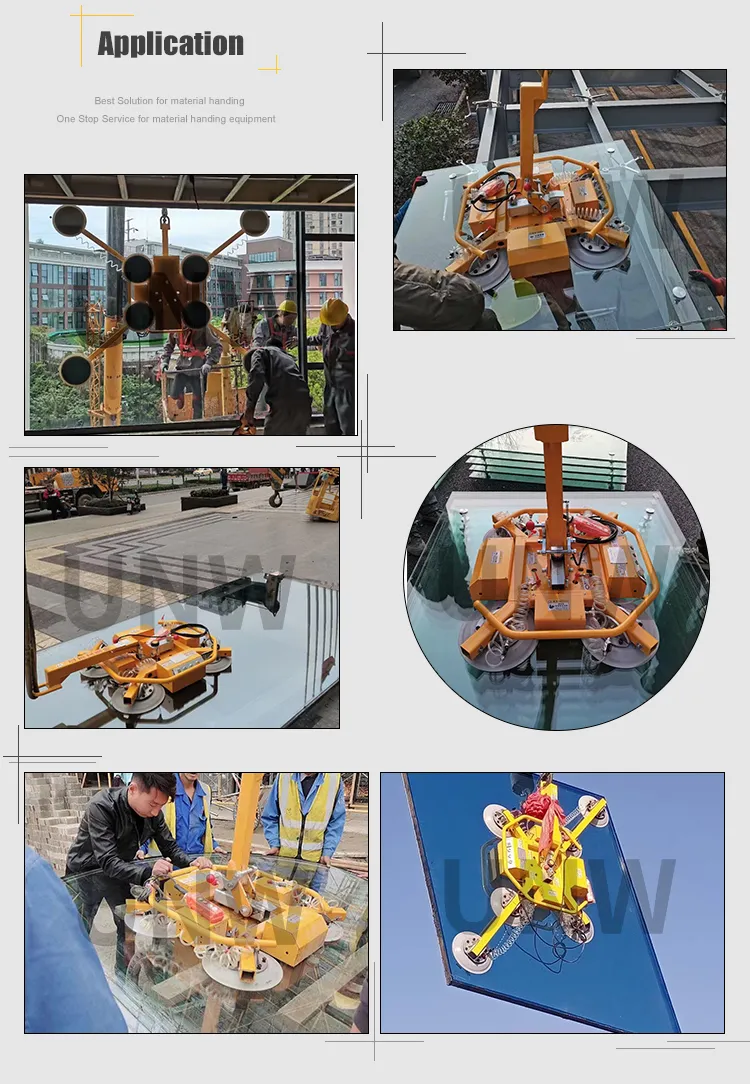

Widely used in glass processing, loading and unloading, glass curtain walls, plastic sheets, sandwich panels, composite panels, steel plates, aluminum plates, copper plates, and stone industries. Suitable for workpieces with flat, dense surfaces and regular shapes.

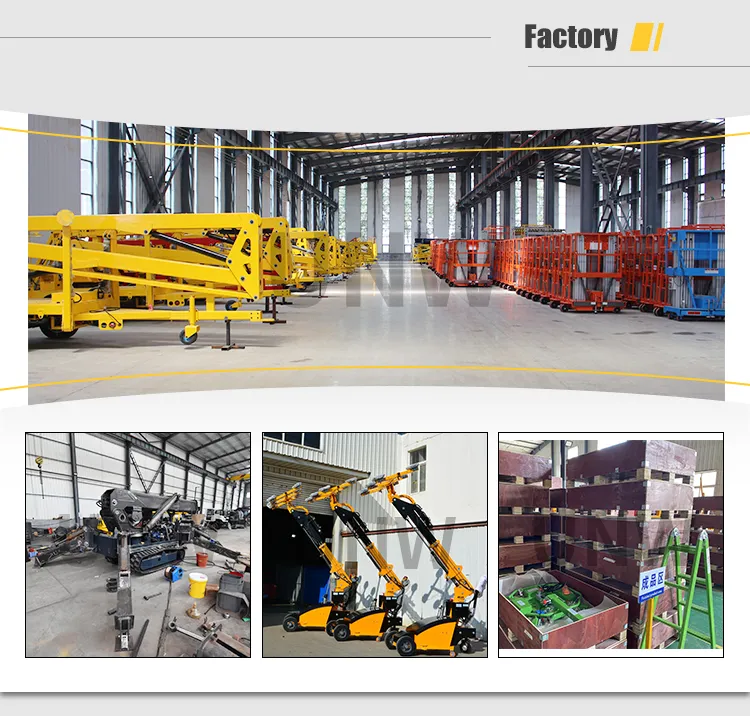

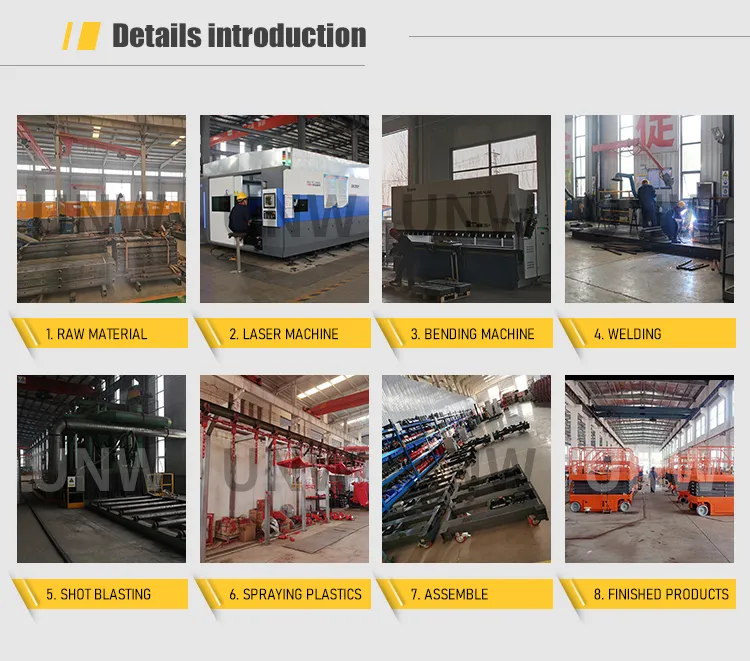

With over 10 years of experience, our manufacturing focuses on hydraulic lifting equipment and aerial work platforms. Our mission is to make construction easier, safer, and more efficient.
Certifications: CE, ROHS, SGS, ISO, etc.
