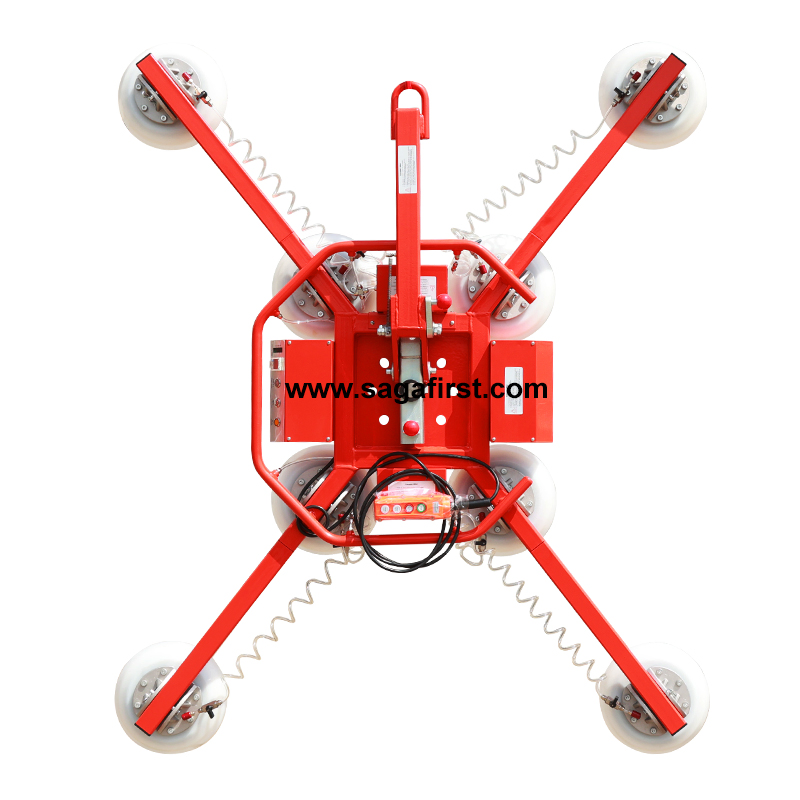

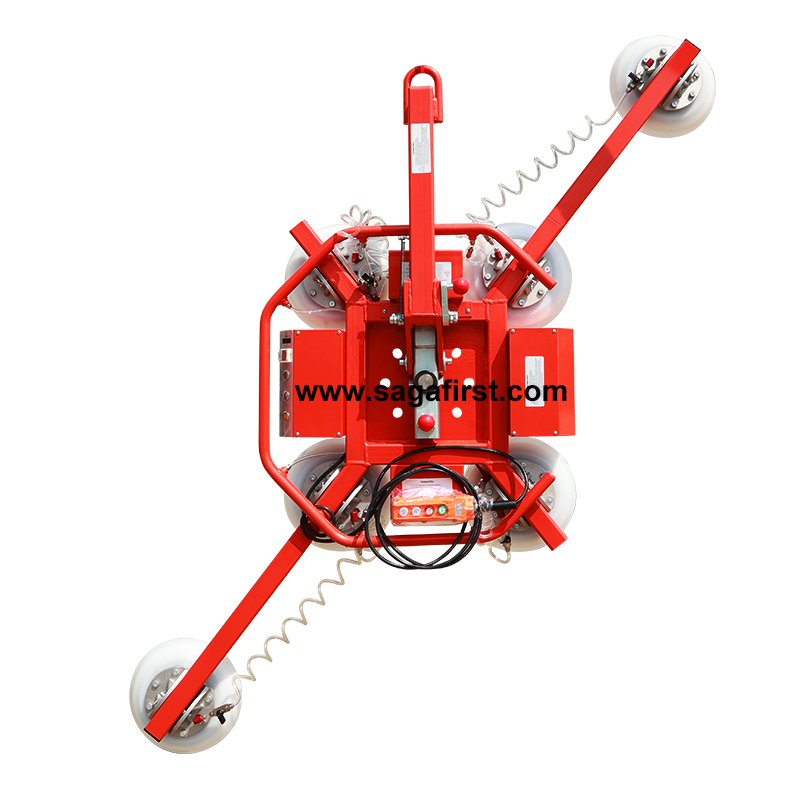

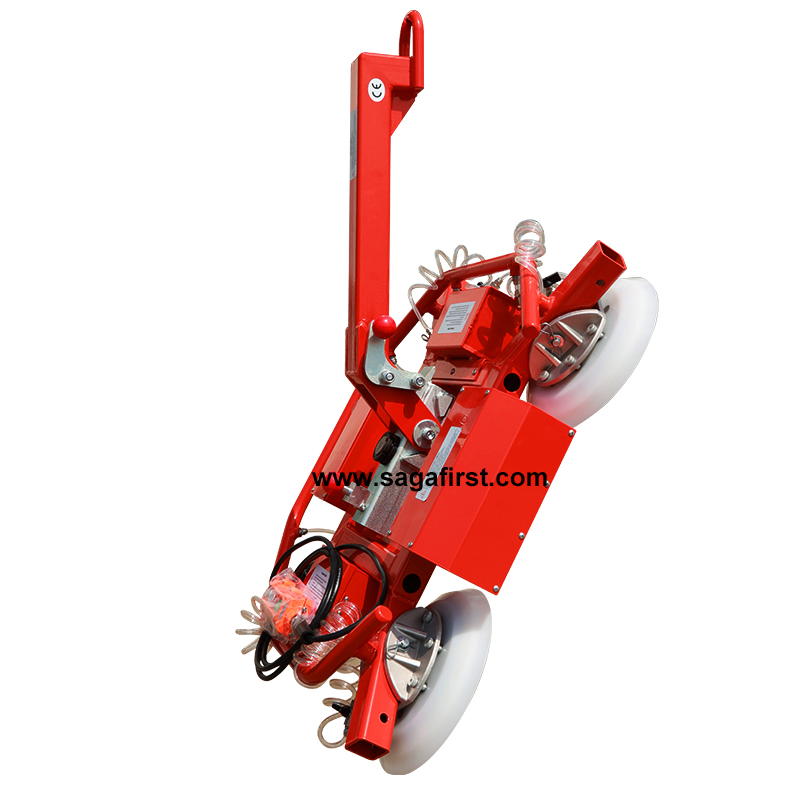

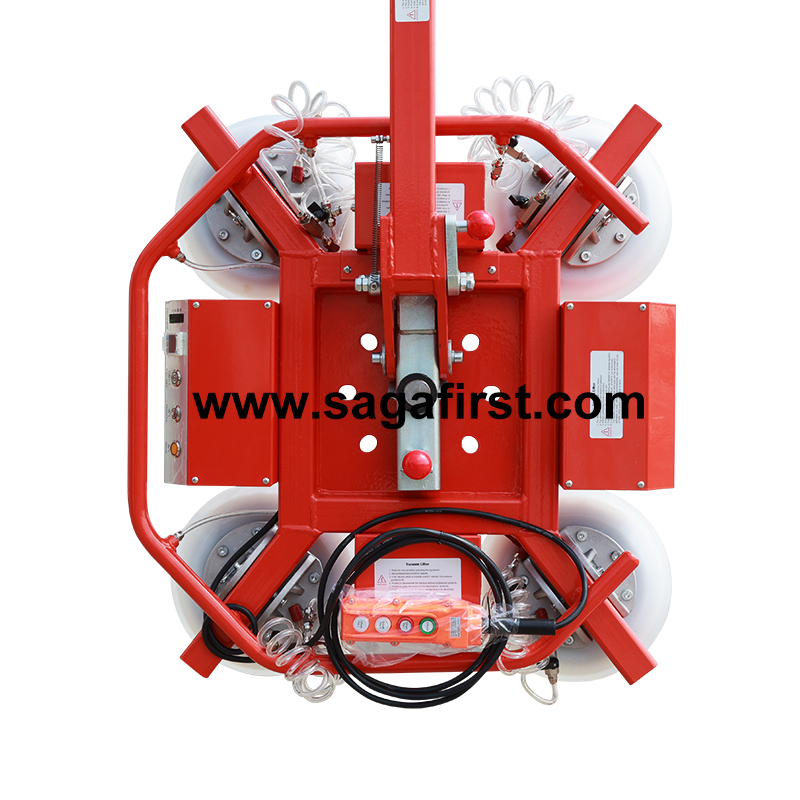

X Type H Type Suction Caps Full Electric Vacuum Lift

1 / 5

X Type H Type Suction Caps Full Electric Vacuum Lift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

GL-SC

Series

Heavy Panel Lifting & Moving

Load Capacity

400kg / 600kg / 800kg / 1000kg

Power Supply

DC12V (Battery) / AC220/110 Charger

Rotation

360° Manual Rotation

Tilting

90° Manual Tilting

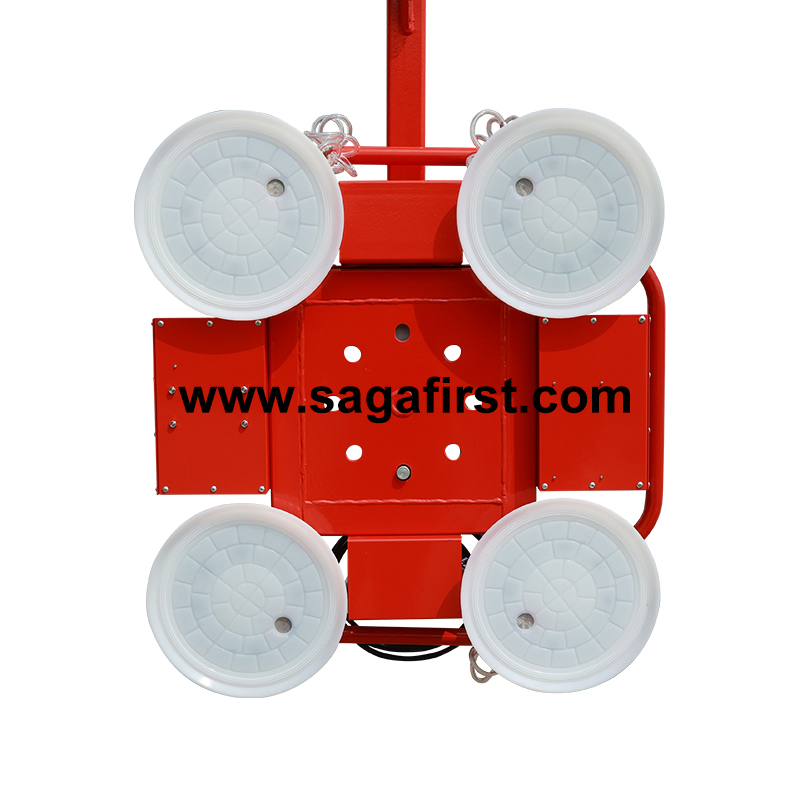

Suction Cup Size

300mm Diameter

Control System

Integrated Cabinet & Wired Remote

Features

Explosion-Proof, Safety Precaution

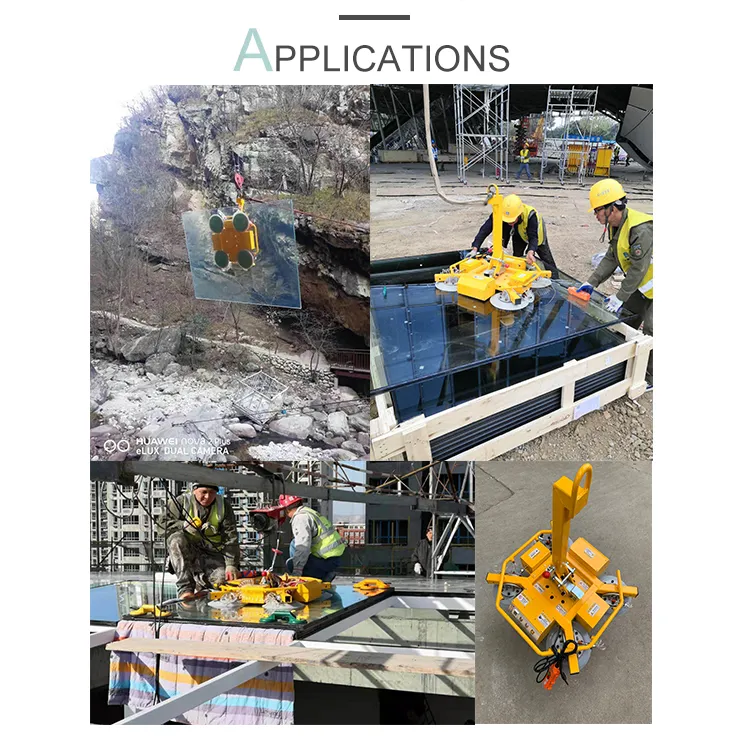

Application

Glass, Wood, Metal, Marble, etc.

Product Description

Our vacuum suction caps are specially designed for handling various types of heavy plates, boards, and glass. They are essential tools for installing steel boards, glass walls, and moving heavy materials like granite and marble. These lifters are widely utilized in construction for glass wall and window installation, as well as in processing workshops for metal sheets and marbles.

Model	Capacity (kg)	Cup Qty	Cup Size (mm)	Weight (kg)	Frame Size (mm)
GL-SC-400	400	4	300	70	850750300
GL-SC-600	600	6	300	90	1800900300
GL-SC-800	800	8	300	100	17601460300
GL-SC-1000	1000	10	300	110	19001600300

Key Features & Advantages

Sealed cover for component protection, ensuring safe and reliable operation.
Adjustable suction cup positions to accommodate different shapes and sizes of materials.
High-quality American THOMAS vacuum pump and maintenance-free battery.
Japan Panasonic digital display vacuum pressure switch for clear safety monitoring.
Vacuum pressure auto-supply system maintains constant safety pressure during handling.
Equipped with pressure-keeping device and alarm system to handle accidental power failures.
360° manual rotation in the vertical side and 90° manual rotation in the horizontal side.

Frequently Asked Questions

What materials can be lifted with this equipment?

It is designed for non-porous surfaces including glass, wooden panels, metal sheets, marble, and granite.

How long does the battery last and is it easy to maintain?

The equipment uses high-quality maintenance-free batteries. We also provide a 12V backup battery to ensure uninterrupted project progress.

What happens if the power fails during a lift?

The lifter is equipped with a pressure-keeping device and an alarm. Even if power fails, the vacuum pressure is maintained to give you enough time to safely lower the load.

Can the suction cup positions be adjusted?

Yes, the cups are adjustable to fit different glass sizes and shapes. Customization is also available based on specific requirements.

Is the equipment easy to repair if parts break down?

Yes, it uses many common hardware parts that can be found locally. We also provide video guidance and instructions for any necessary repairs.

What is the quality guarantee period?

We offer a quality guarantee of up to 24 months, providing free replacement parts if any issues arise within the warranty period.
