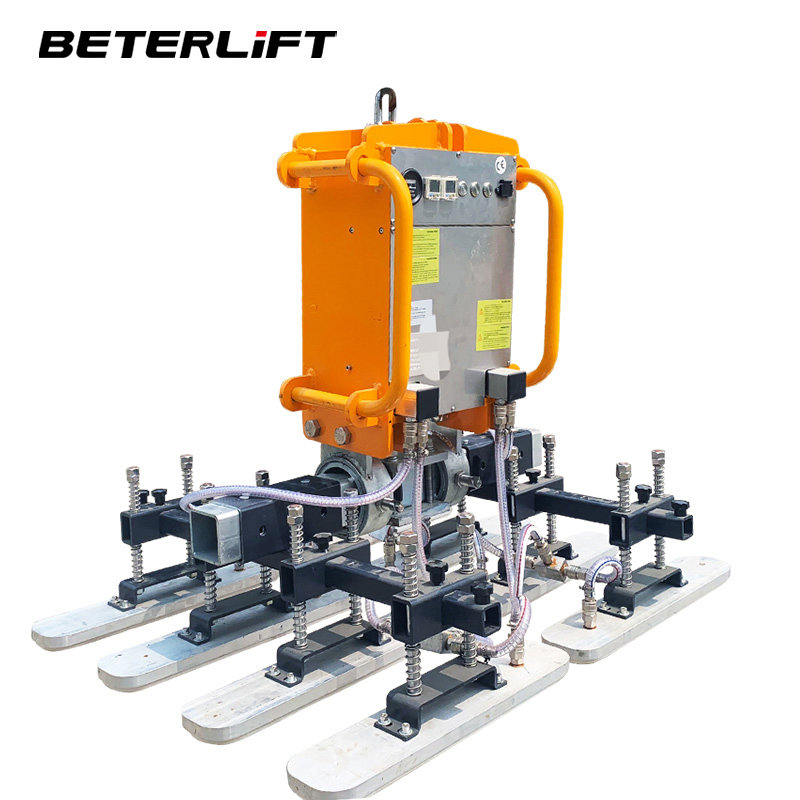

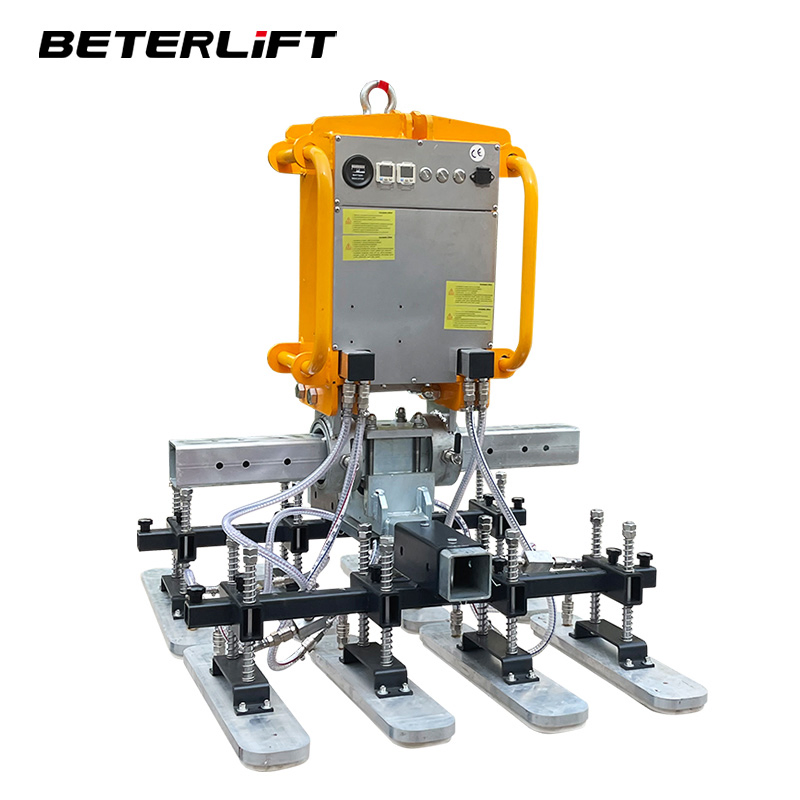

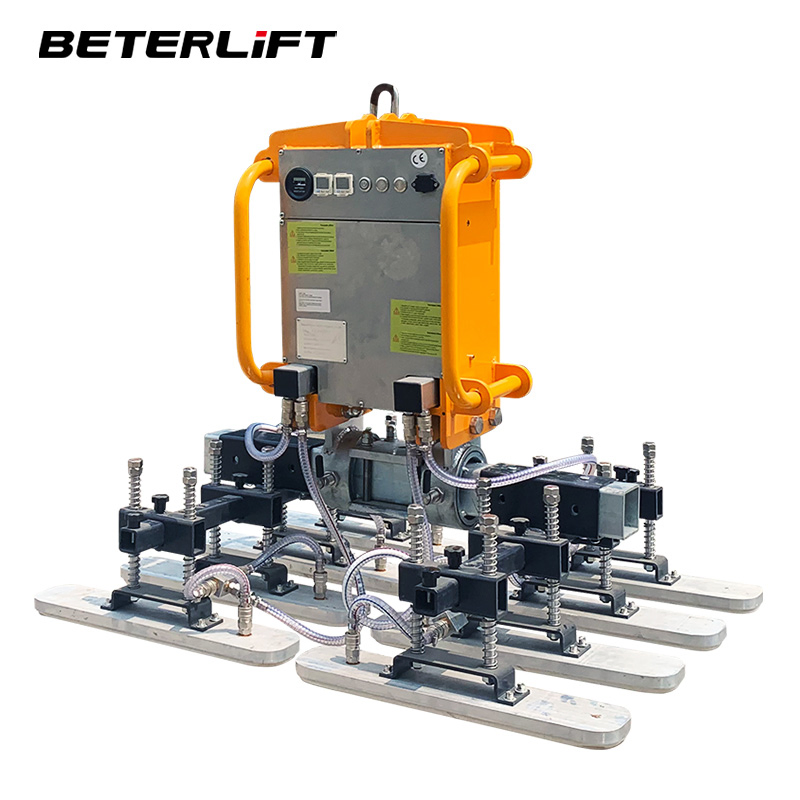

Extending Roof and Wall Panel Vacuum Lift Cup 300kg-800kg

📊 Basic Information

Model

BGL2650

Cup Quantity

4

Color

Yellow

Type

Vacuum Lifter for Sandwich Panels

Power Source

DC Battery 24V/20ah

Loading Capacity

300kg / 400kg

Rotation

360° Manual Rotation

Material

Steel

HS Code

842890

💡 Product Description

300kg-600kg Portable Electric Small Suction Caps Vacuum lifter for Sandwich roof panels

This vacuum lifting machine is a fast, safe, and convenient automatic equipment. It utilizes the principle of vacuum adsorption with a vacuum pump source to firmly hold workpieces like glass and iron plates for precise transport through a rotatable mechanical arm.

Manually rotated 360° vertically and 90° horizontally.

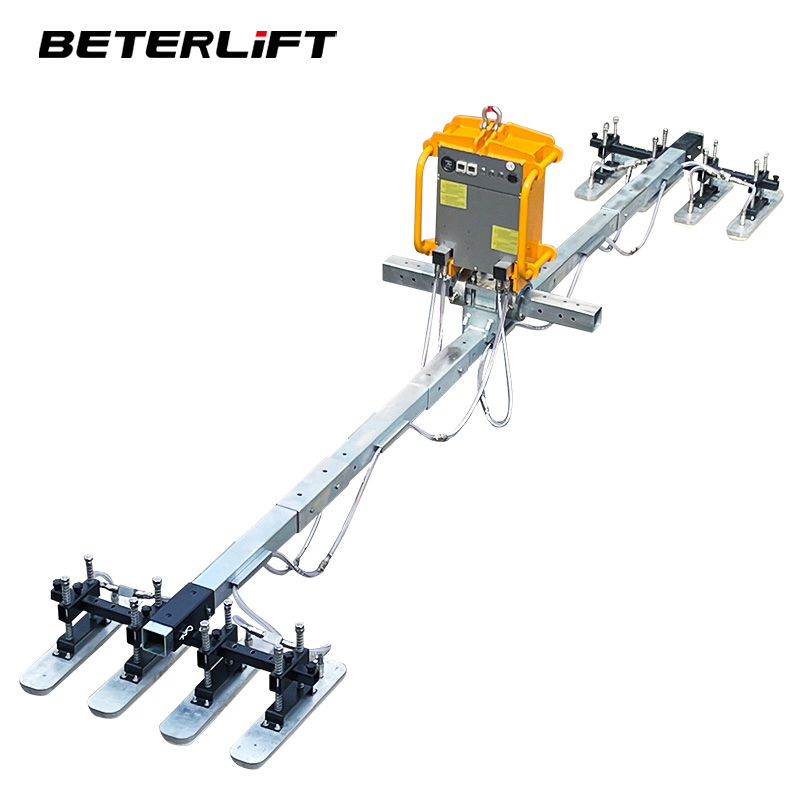

Retractable suction cup holders for various sizes.
Imported oil-free vacuum pump and valve.
Efficient, safe, and labor-saving operation.
Integrated accumulator and pressure detection for maximum safety.
Adjustable suction cups that can be closed manually.

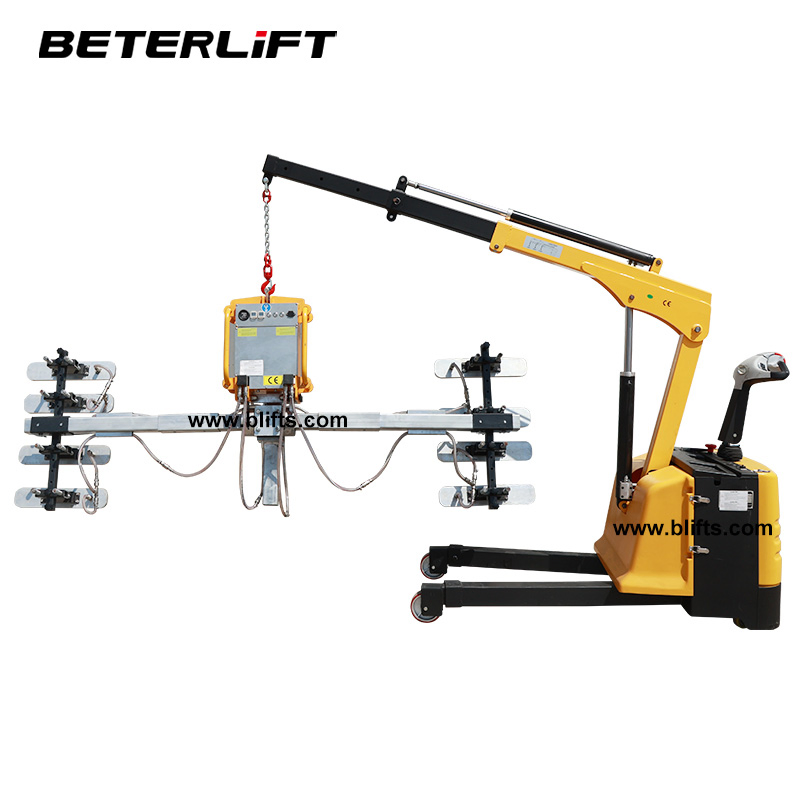

Compatible with bridge cranes or cantilever cranes for glass curtain wall installation.

⚙️ Product Parameters

Model	Lifter Length	Panel Length	Ext Beam Qty	Max Load	Suction Pad Qty	Pad Size/Load
BGL2650	2650	12000	2	300	8	110*530/75kg
BGL4450	4450	14000	4	300	8	110*530/75kg
BGL6250	6250	16000	6	300	8	110*530/75kg
BGL8050L	8050	18000	8	300	8	110*530/75kg
BGL9850L	9850	20000	10	300	8	110*530/75kg
BGL1525LDD	15250	24000	16	500	16	110*530/75kg
BGL850V4	850	12000	0	400	4	150*490/100kg

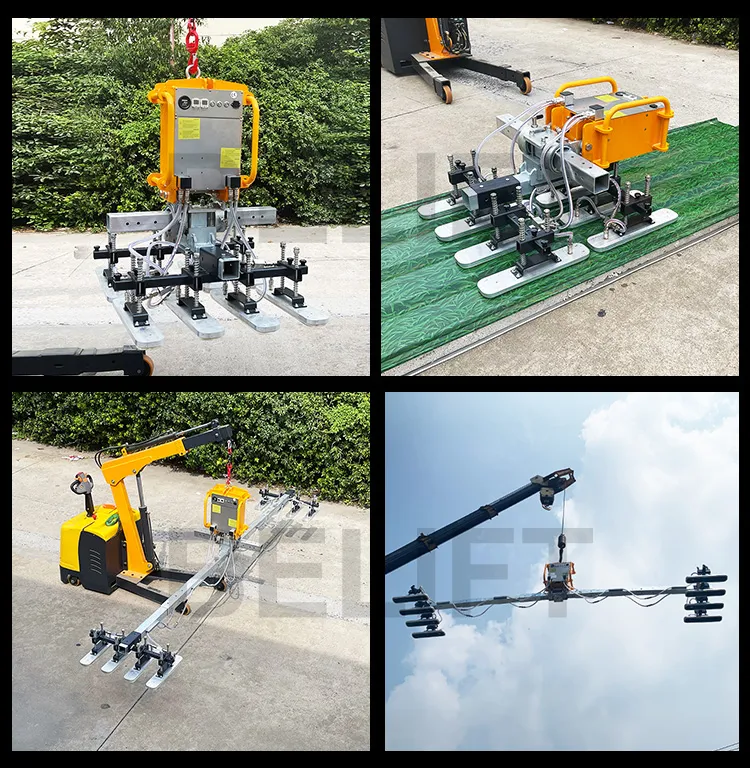

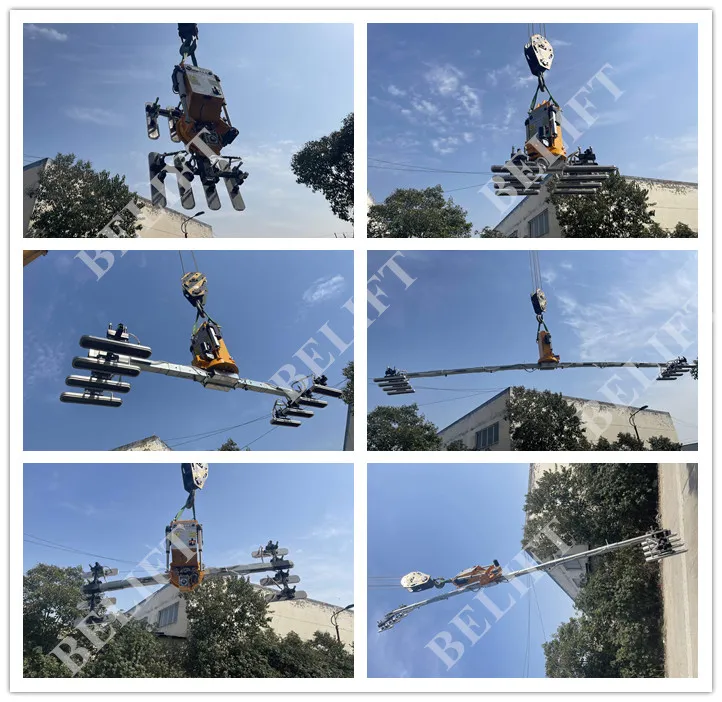

📸 Detailed Photos

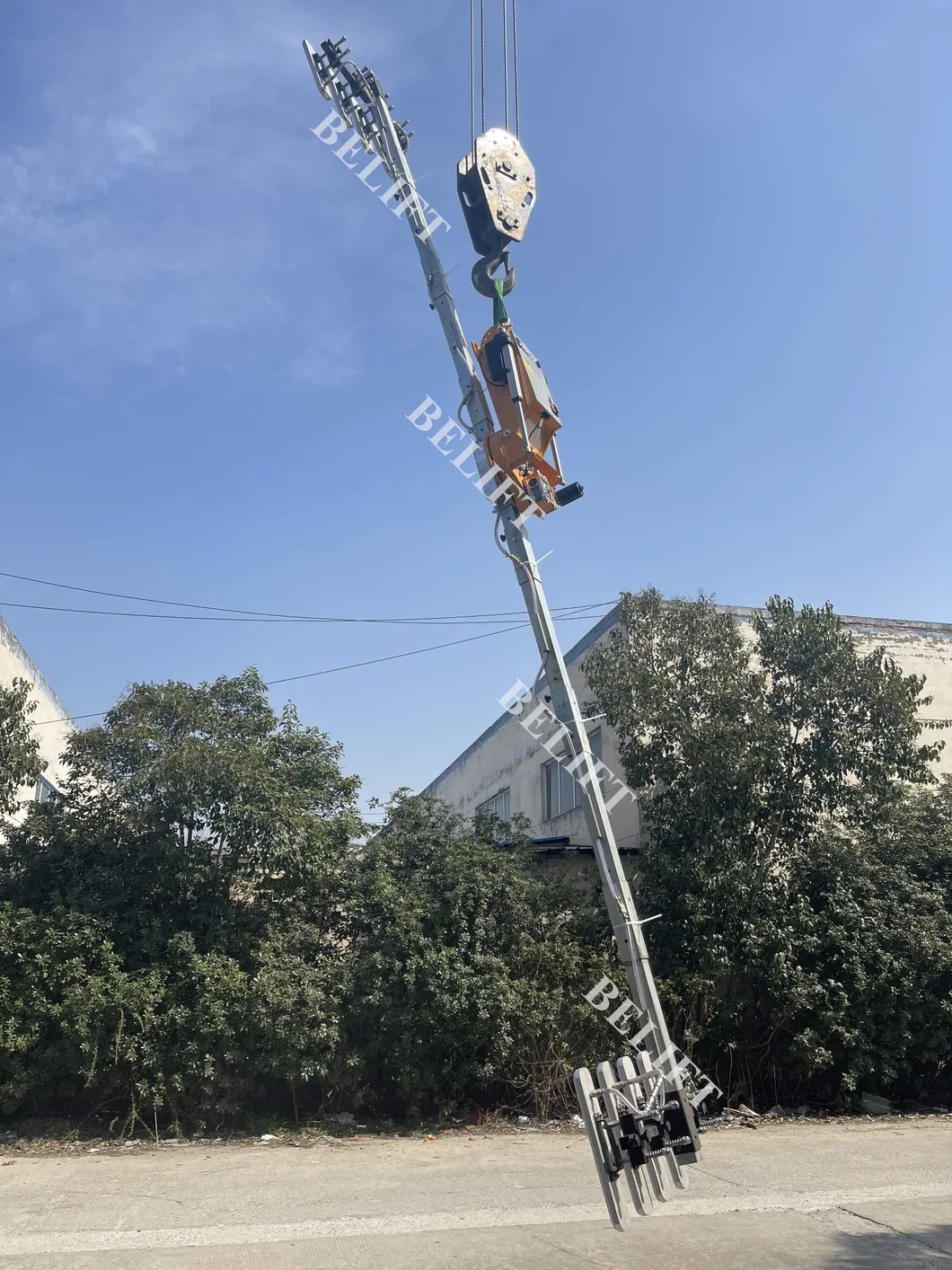

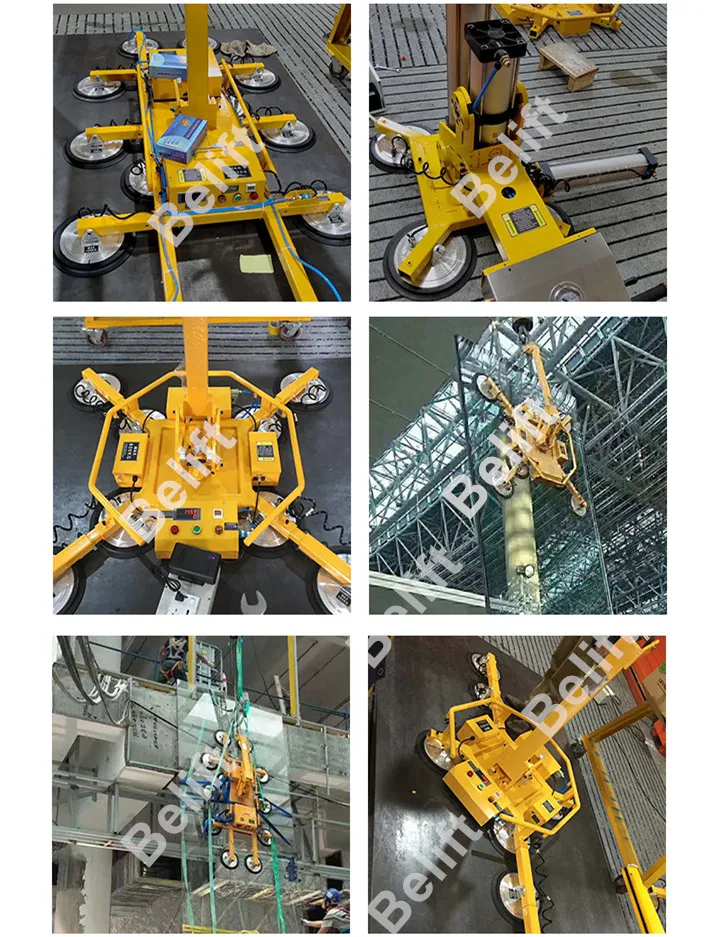

🏗️ Applications

Widely used in glass processing, loading/unloading, glass curtain walls, plastic sheets, sandwich panels, composite panels, steel plates, aluminum, copper, and stone industries. Ideal for flat, dense surfaces and regular shapes.

🏢 Profile & Service

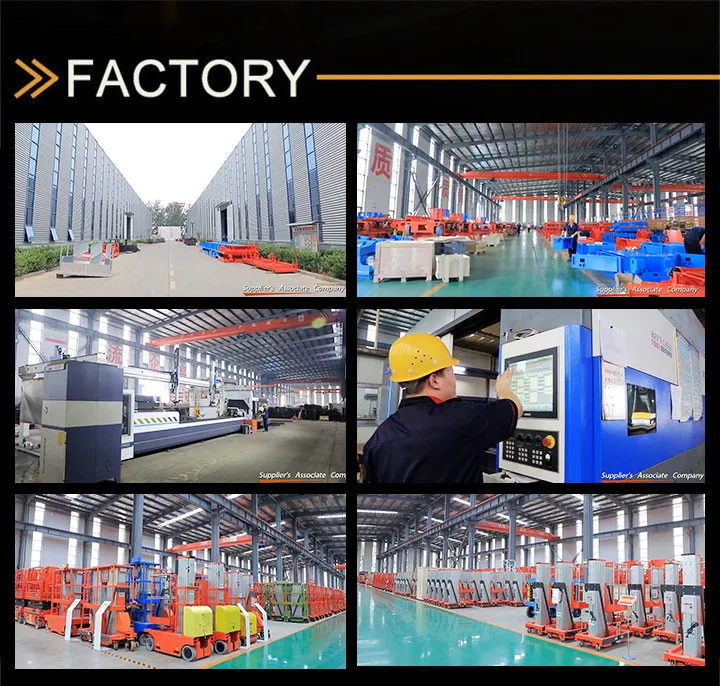

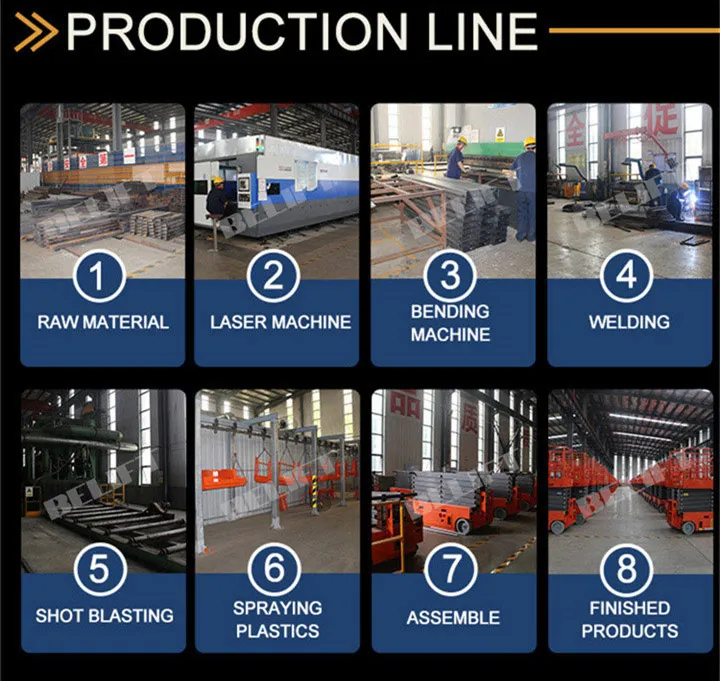

Specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Established in 2015, the products are recognized by customers globally with certifications including CE, ROHS, SGS, and ISO.
