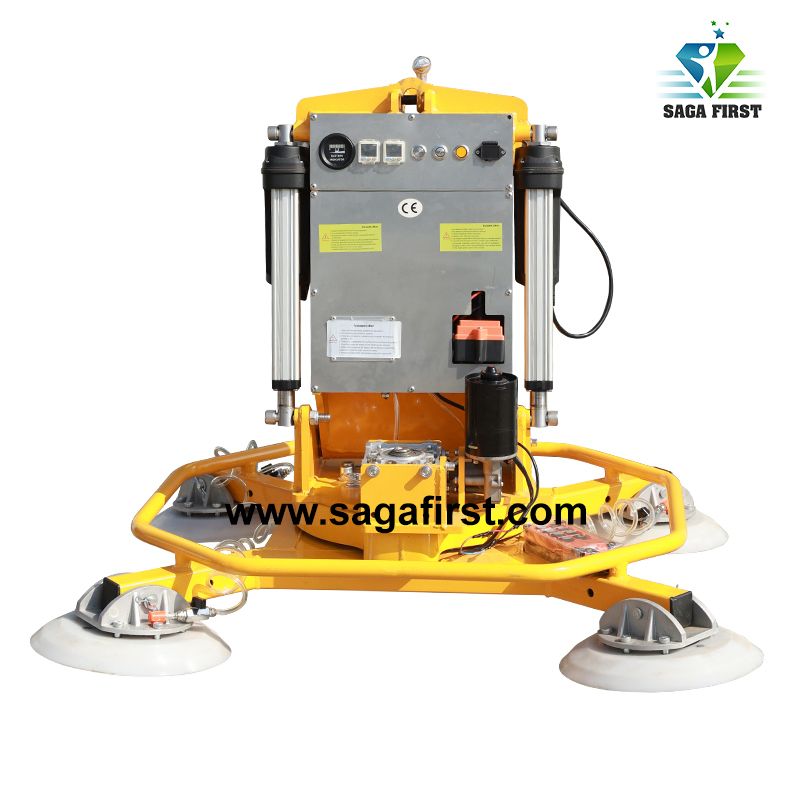

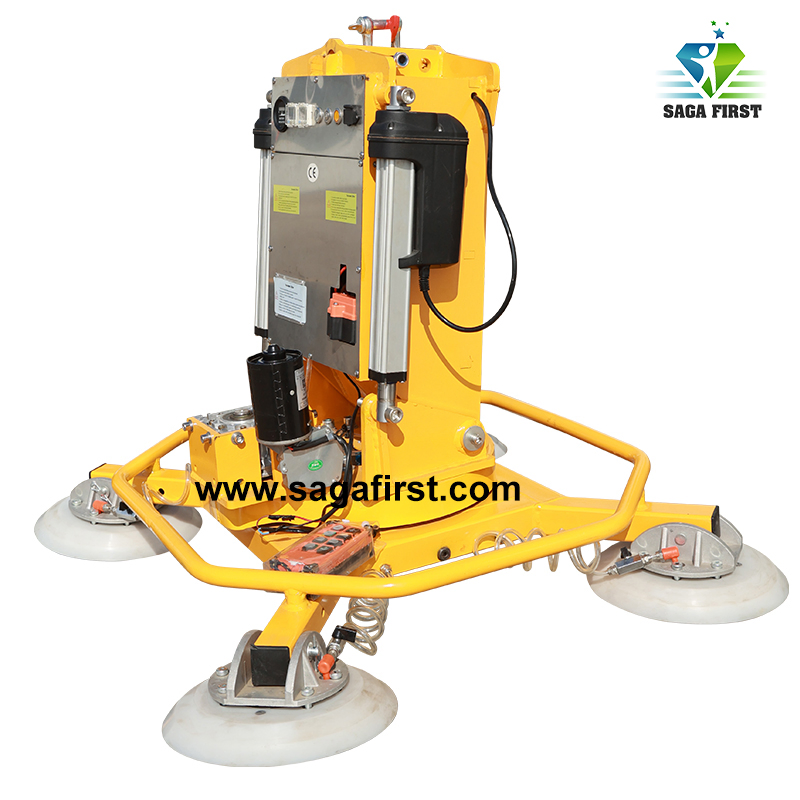

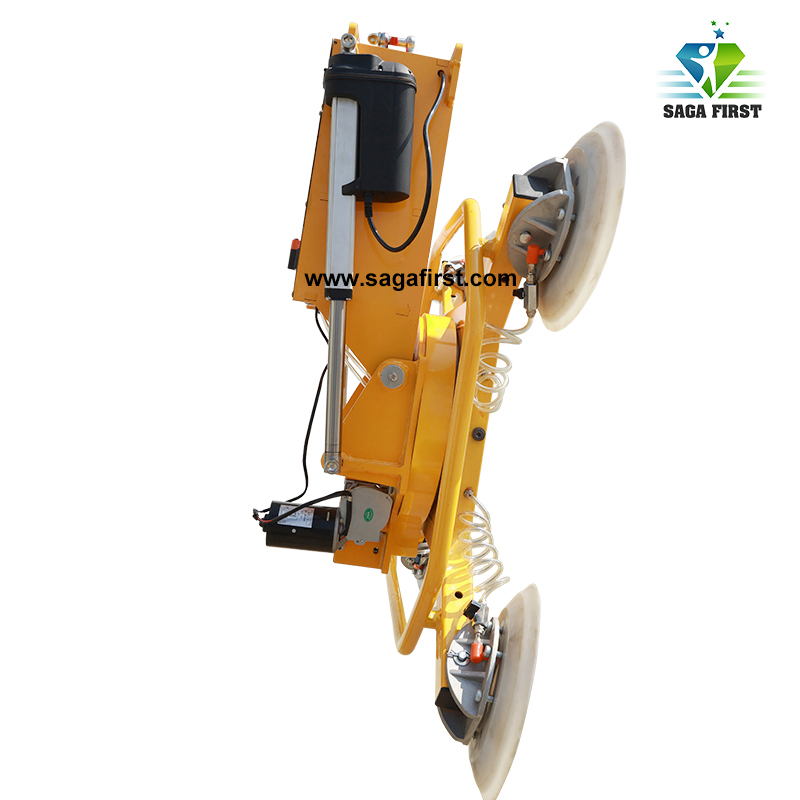

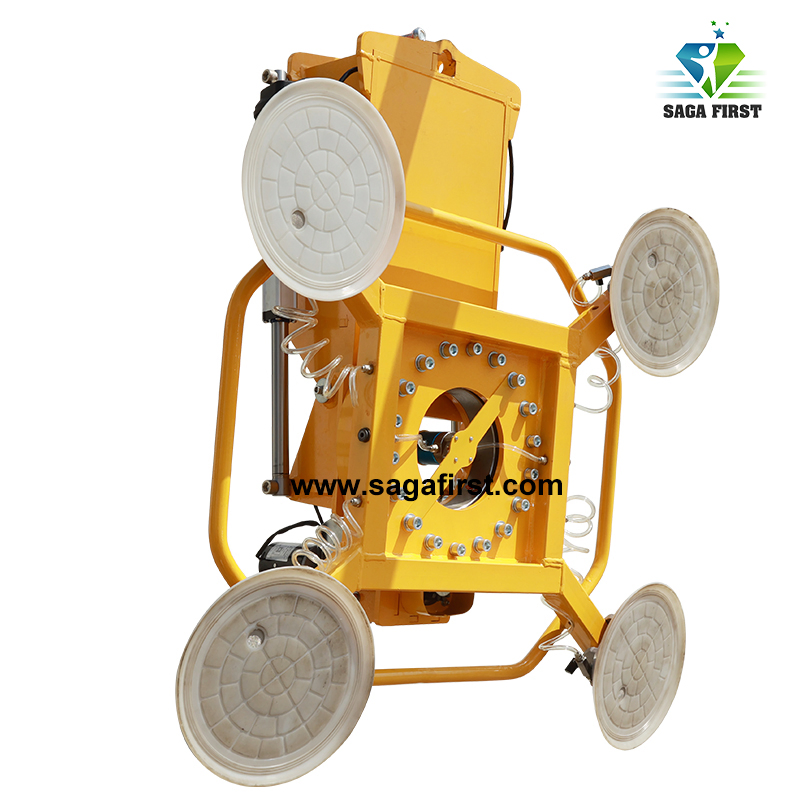

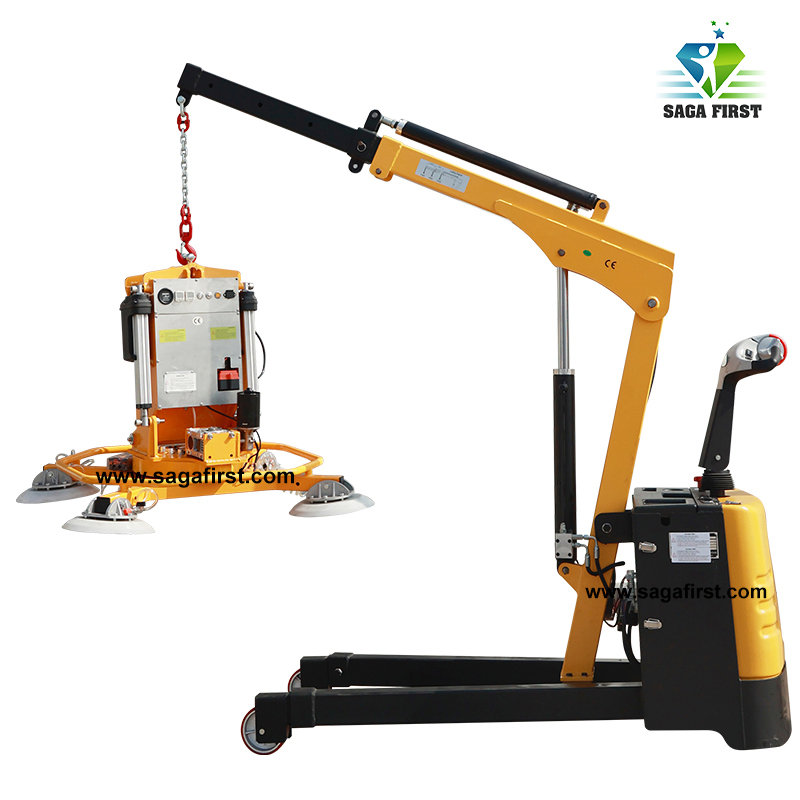

Full Electric X Type Suction Caps X Shape Vacuum Lift for Sale

Still deciding? Get samples of $ !
Request Sample

Product Description

Mini Portable 400~1000kg Capacity Suction Caps
OEM & ODM Service Available

Suction caps are specially designed for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. They are widely used for installing glass wall, windows for construction and metal sheet, marbles process workshop etc.

i

Basic Specifications

Model NO.
GL-SC
Cup Quantity
4
Load Capacity
400kg - 1000kg
Rotation
360 Degrees Manual
Tilting
90 Degrees Manual
Suction Cup Diameter
300mm
Control System
Integrated Control & Wired Remote
Driven Type
DC12V Battery
HS Code
8428909090
Application
Glass, Wood, Metal, Marble
T

Technical Parameters

Model Lifting Capacity (kg) Cup Qty Single Cup (mm) Rotation / Tilting Sucker Frame Size (mm)
GL-SC-400 400 4 300 360° / 90° Manual 850*750*300
GL-SC-600 600 6 300 360° / 90° Manual 1800*900*300
GL-SC-800 800 8 300 360° / 90° Manual 1760*1460*300
GL-SC-1000 1000 10 300 360° / 90° Manual 1900*1600*300

Features & Advantages

  • Sealed cover for components protection, safe and reliable for glass deep processing and installation.
  • Adjustable suction cup positions to accommodate different shapes and sizes of materials.
  • Manual 360° vertical rotation and 90° horizontal rotation with electric taking and releasing.
  • Equipped with high-quality maintenance-free battery and American vacuum pump; no external power needed.
  • Panasonic digital display vacuum pressure switch and battery fuel gauge for safety monitoring.
  • Auto-supply vacuum system ensures constant safety pressure during handling.
  • Pressure-keeping device and alarm system protect against accidental power failure.
P

Product Gallery

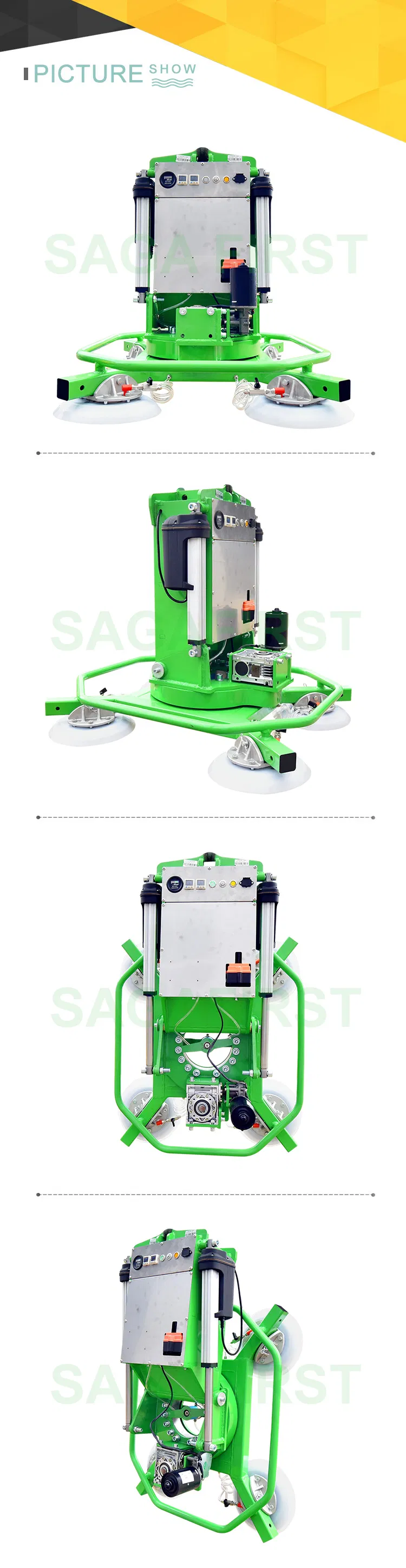

Vacuum Lift Overview

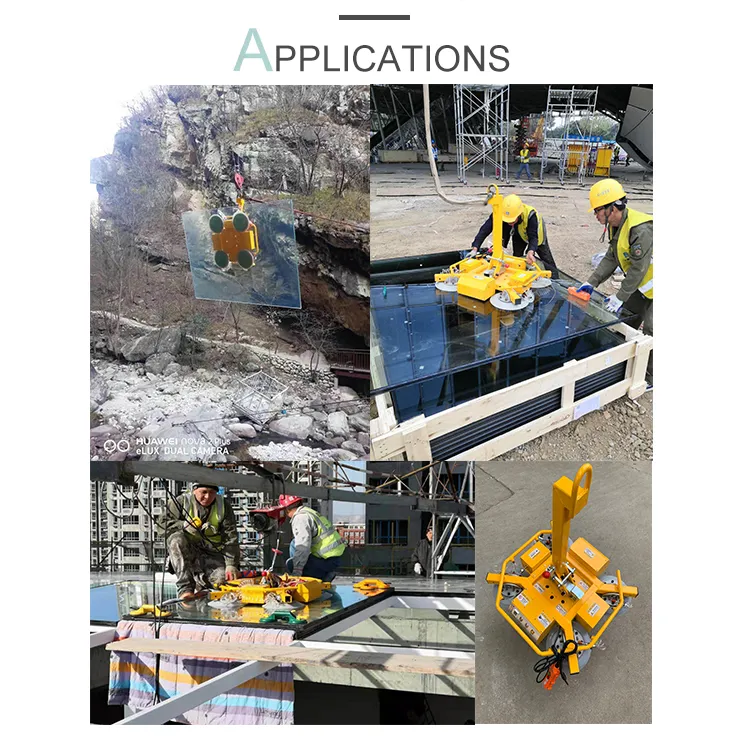

Vacuum Lift Structure
Vacuum Lift Operation
S

Our Services

Customized design based on requirements.
Expert model recommendation.
Operation videos and technical guidance.
Maintenance and user manuals provided.
Fast parts delivery via express within 7 days.
?

Frequently Asked Questions

1. What materials can this vacuum lifter handle?
It is designed for handling heavy plates like glass, wooden panels, metal sheets, granite, and marble.
2. How is the quality guaranteed?
We provide a 24-month quality warranty and offer free replacement parts during this period.
3. What is the rotation and tilting capability?
The equipment features 360° manual rotation and 90° manual tilting for flexible positioning.
4. How do I repair the equipment if a problem occurs?
The failure rate is very low. If issues arise, we provide repair instructions and guidance via video.
5. Does the lifter offer OEM service?
Yes, we provide OEM & ODM services for lifting capacity, platform size, color, logo, and more.
6. What happens if the power fails during operation?
It is equipped with a pressure-keeping device and an alarm that extends handling time to ensure safety.
