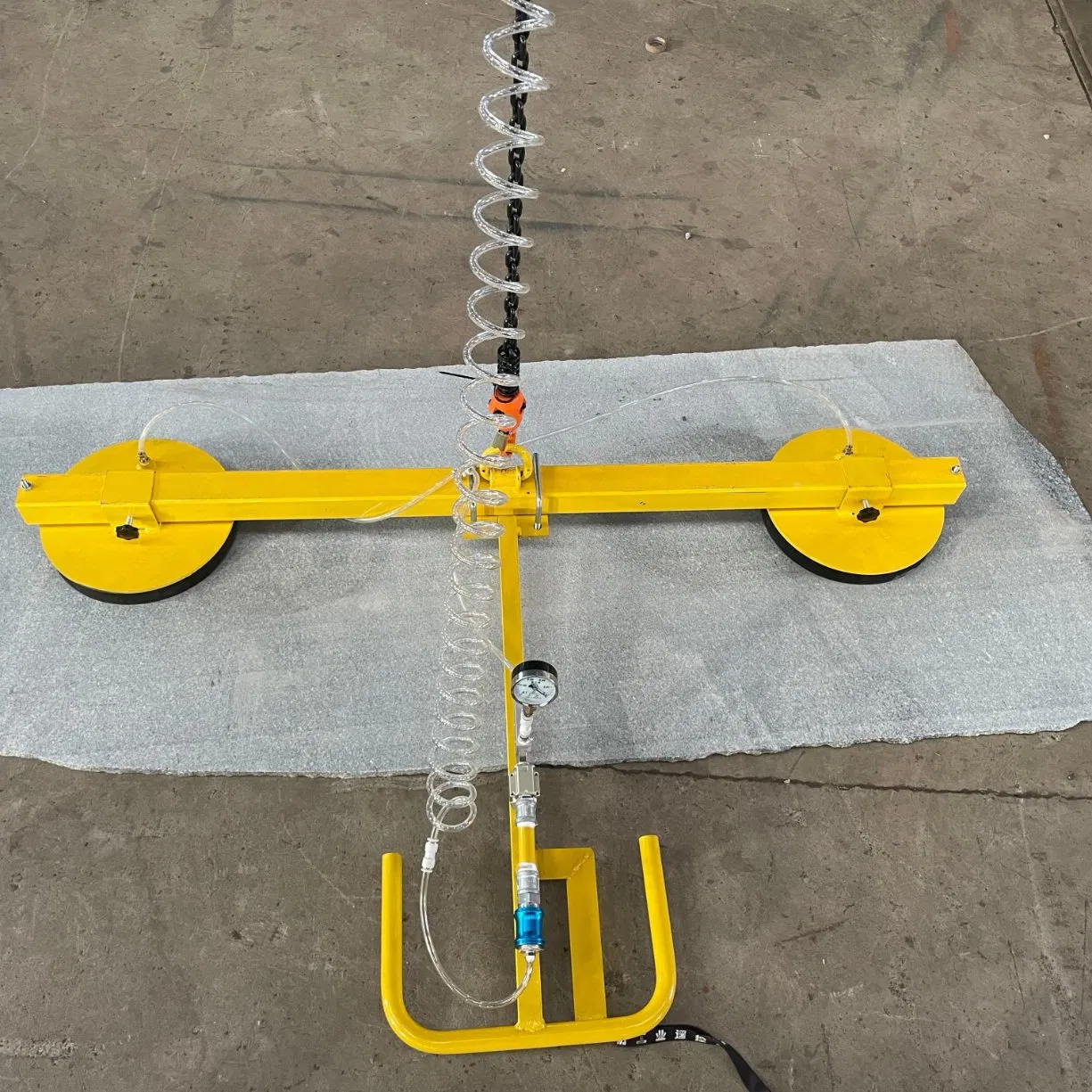

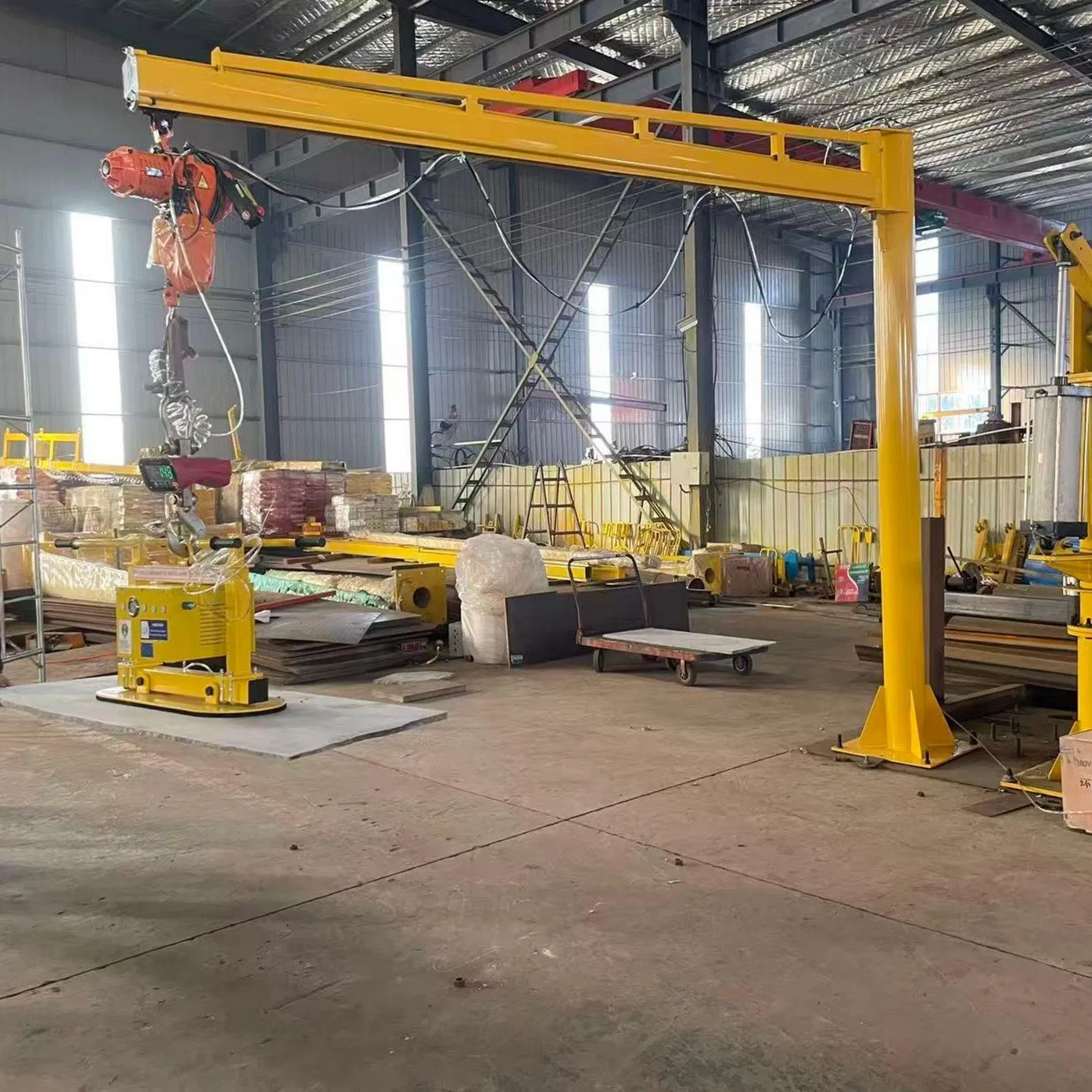

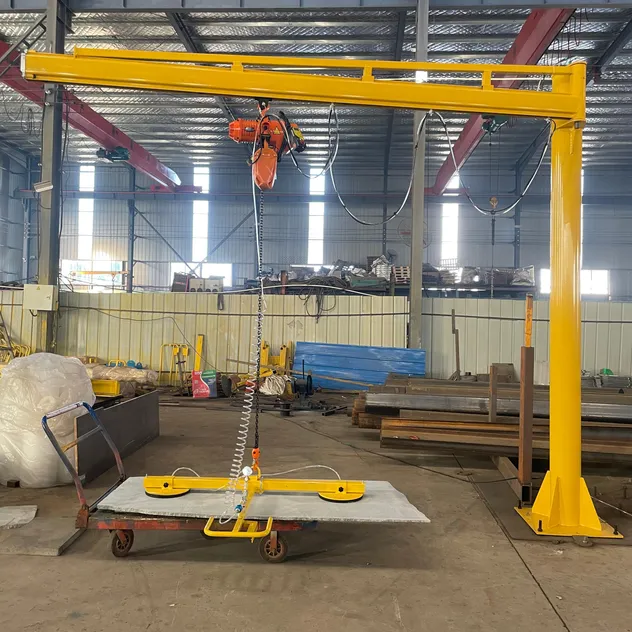

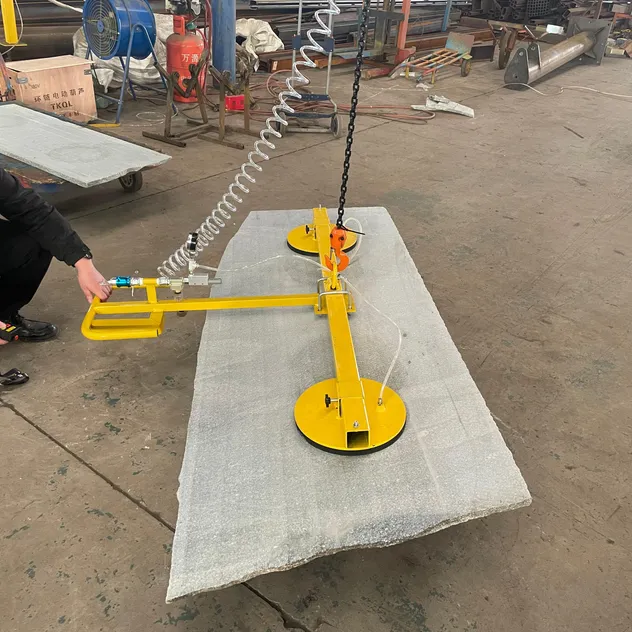

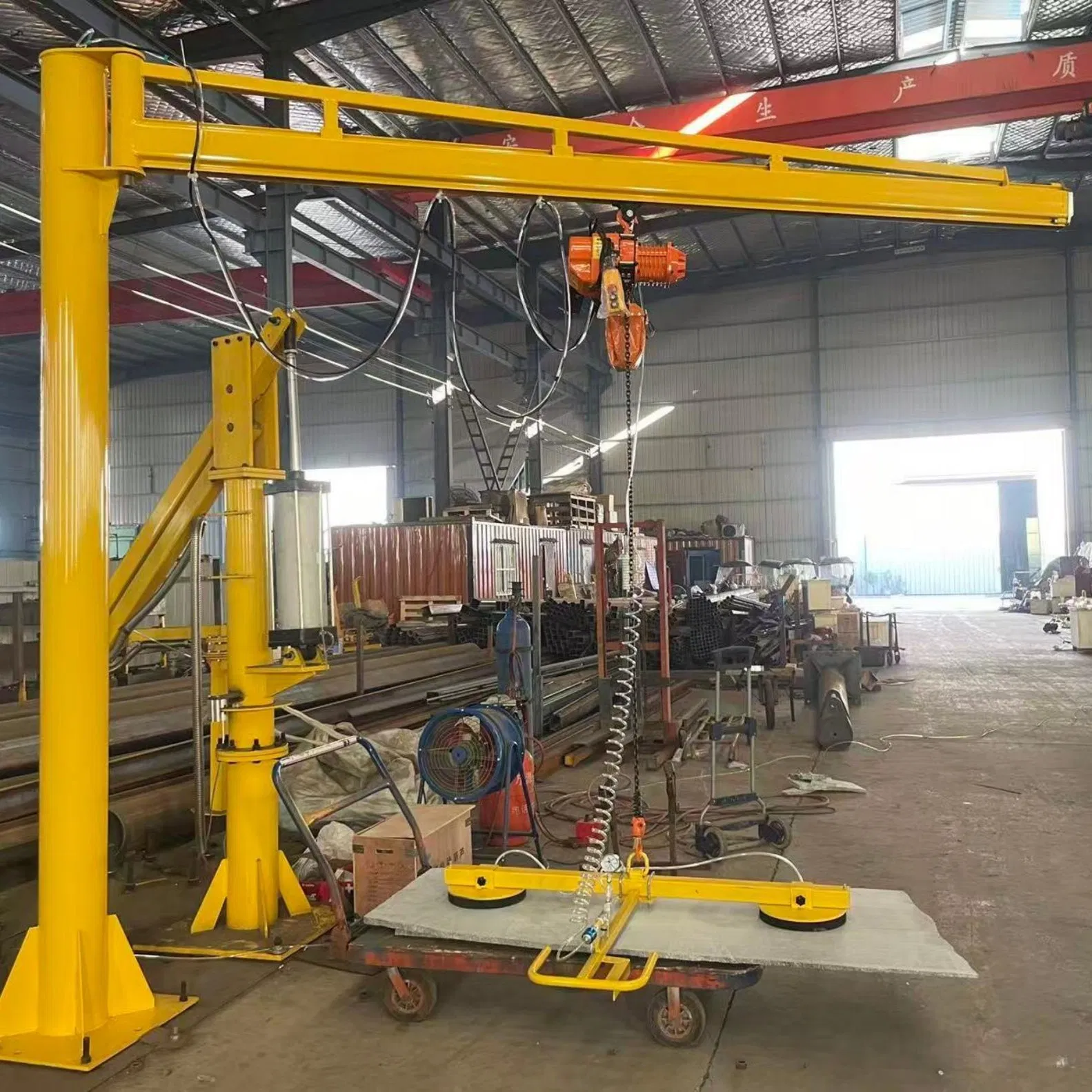

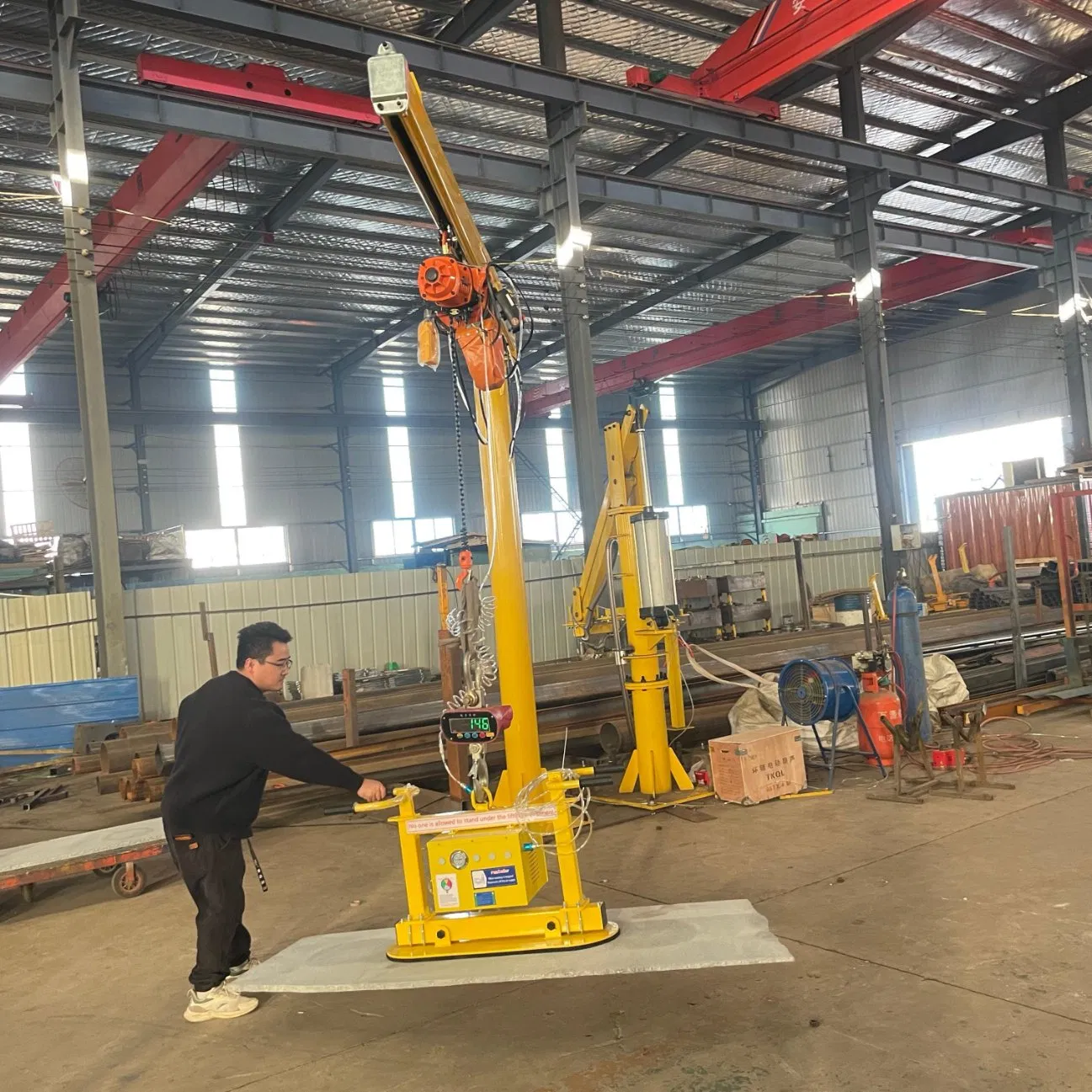

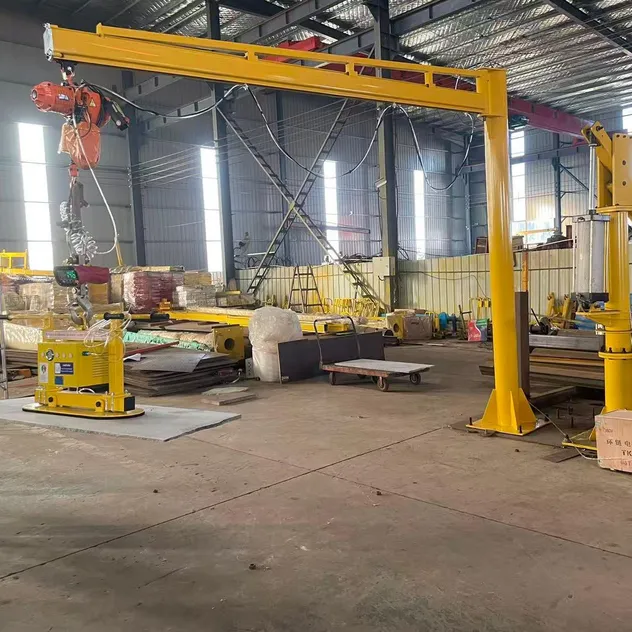

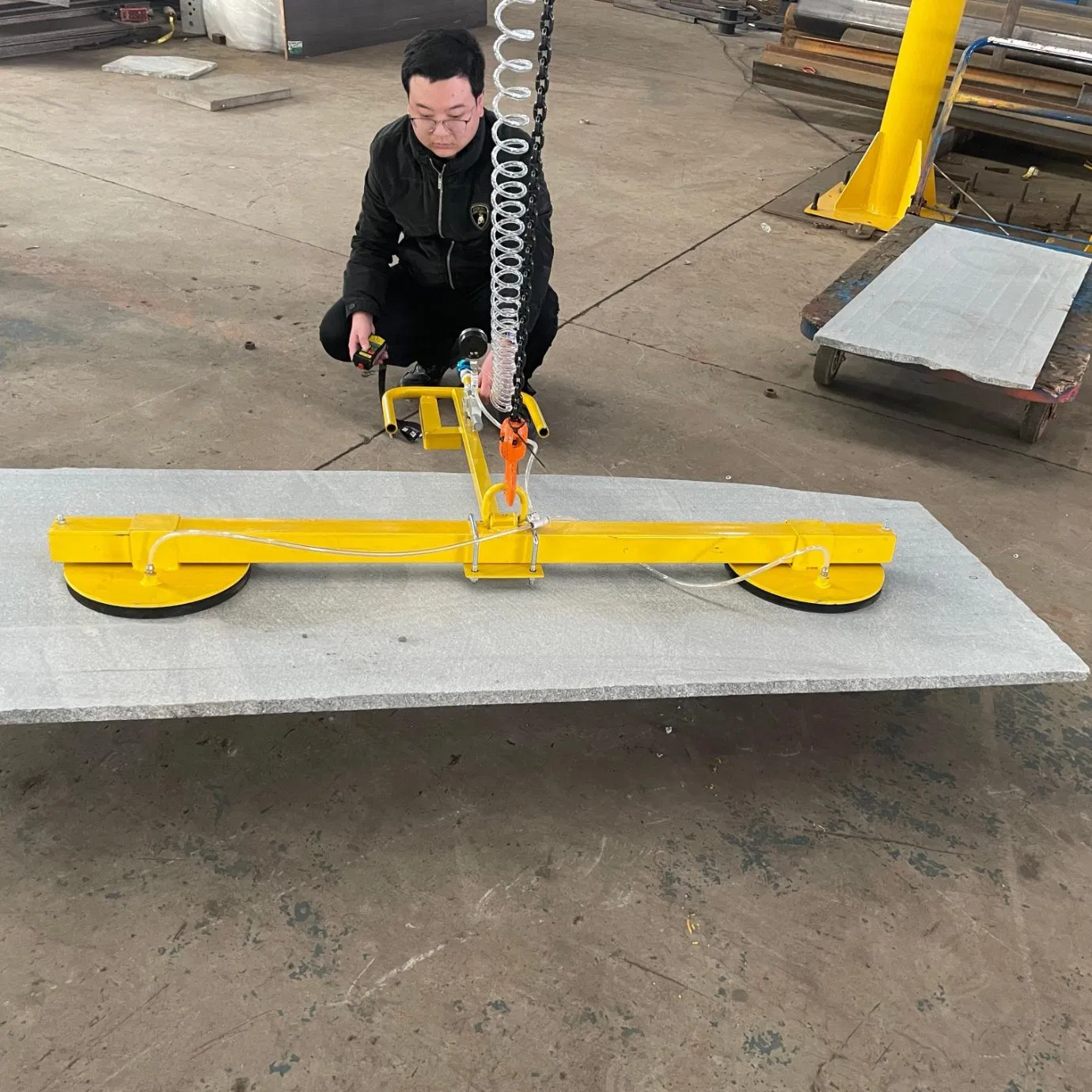

Vacuum Lifts with Jib Crane Cantilever Loader Transports Slate Cement Panels

Customization:	Available
After-sales Service:	Yes
Warranty:	12month

📊

Basic Information

Model NO.

XDL-SCSLJ-1000

Cup Quantity

Customized

Custom Made

Yes

Color

Yellow or Custom

Application

Stone Slabs, Marble, Cement Slabs, Granite

Vacuum Source

Oil-Free Vacuum Pump

Safety System

One-Way Valve / Pressure Holding/Alarm System

Load Capacity

800kg or Customized

Suction Cup

Rubber

HS Code

8428909090

Production Capacity

200 Sets / Wk

🛠️

Product Description

Are you struggling with heavy, dangerous, and inefficient material handling? Traditional methods are time-consuming and pose significant safety hazards. Our multi-functional vacuum loading machine conquers all kinds of challenging materials with powerful suction and an intelligent system.

Suitable Materials:

Stone & Composites: Marble, granite, artificial stone, ceramic slabs
Metals: Steel, aluminum, copper plates, and sheets
Building Materials: Glass, giant tiles, precast concrete slabs
Industrial: Wood panels, OSB boards, plastic sheets

🎯

Core Application Scenarios

Automated Loading/Unloading: Seamless integration with laser cutting, CNC punching, or bending machine lines.
Precise Palletizing: One operator can precisely position and release materials, protecting surfaces from scratches.
Material Transfer: Quickly transfer large sheet materials between workstations to optimize production layout.

⭐

Why Choose Our Vacuum Loaders?

🚀 Exceptional Power & Safety: Utilizes high-efficiency vacuum pumps. Equipped with a redundancy safety system; even during power outages, the safety valve maintains vacuum to prevent material falls.

🧠 Intelligent Control: Ergonomic design with an intuitive handle for one-button operation. Millimeter-level precise positioning via adjustable speeds.

🔧 Adaptability: Modular suction cup assembly allows for flexible configuration. Specialized cups available for rough stones or mirrored glass.

🏗️ Industrial Durability: Main structure built from high-strength aluminum alloy and steel, meeting international CE safety standards.

📋

Specifications

MODEL	LOAD CAPACITY	SUCTION CUPS	CONTROL TYPE
XDL-SCSLJ-800	800KG	8 PCS	MANUAL/REMOTE
XDL-SCSLJ-1000	1000KG	10 PCS	MANUAL/REMOTE
XDL-SCSLJ-1500	1500KG	10 PCS	MANUAL/REMOTE
XDL-SCSLJ-2000	2000KG	12 PCS	MANUAL/REMOTE
XDL-SCSLJ-2500	2500KG	12 PCS	MANUAL/REMOTE

📦

Packing & Delivery

Layer 1: Inner Damage Protection

Precision wrapping with anti-static and moisture-proof stretch film. Sensitive components like valves and sensors are reinforced with custom foam.

Layer 2: Sturdy Structural Protection

Custom sturdy wooden crates with internal frames to prevent shifting. High-strength bolts and shockproof high-density foam are used to absorb vibrations.

📜

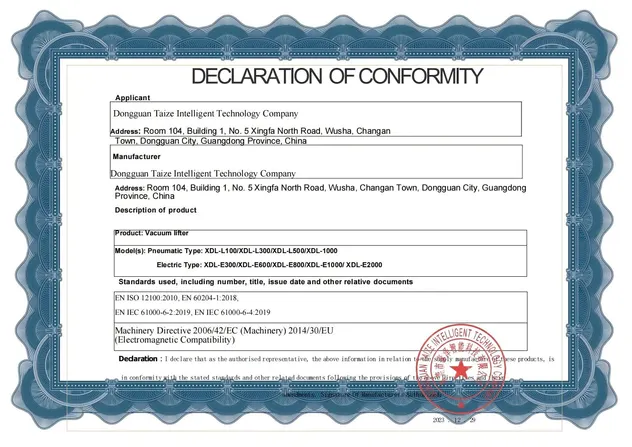

Certifications

❓

Frequently Asked Questions

1. Are the suction cups easy to replace?

Very easy. Most of our suction cups use a quick-change connector design, allowing for quick disassembly and replacement without tools. We maintain a long-term supply of spare parts for all models.

2. Is vacuum adsorption effective for rough-surfaced materials like granite?

Absolutely. We offer specialized solutions including high-flow vacuum pumps and sponge-like sealing lip suction cups (made of silicone or polyurethane) that conform to uneven surfaces and compensate for leaks.

3. How is safety ensured during a sudden power outage?

The equipment is equipped with a vacuum redundancy safety system and a one-way safety valve. If power is lost, the system detects the leak and maintains the vacuum automatically to ensure materials do not fall.

4. How do I determine the required suction force?

This depends on the sheet weight, dimensions, material type, and surface condition. Our engineers will assist you in calculating the exact requirements and safety factors.

5. Can the equipment be integrated with existing CNC lines?

Yes. Our system is flexible and can be installed on fixed hangers, rail-mounted gantry cranes, robot arms, or forklifts. We can customize the frame layout to fit your specific loading points.

6. What types of materials can be handled?

Our loaders are designed for any material with a relatively smooth or semi-porous surface, including stone, metal plates (steel/aluminum), glass, large ceramic tiles, wood panels, and plastic sheets.
