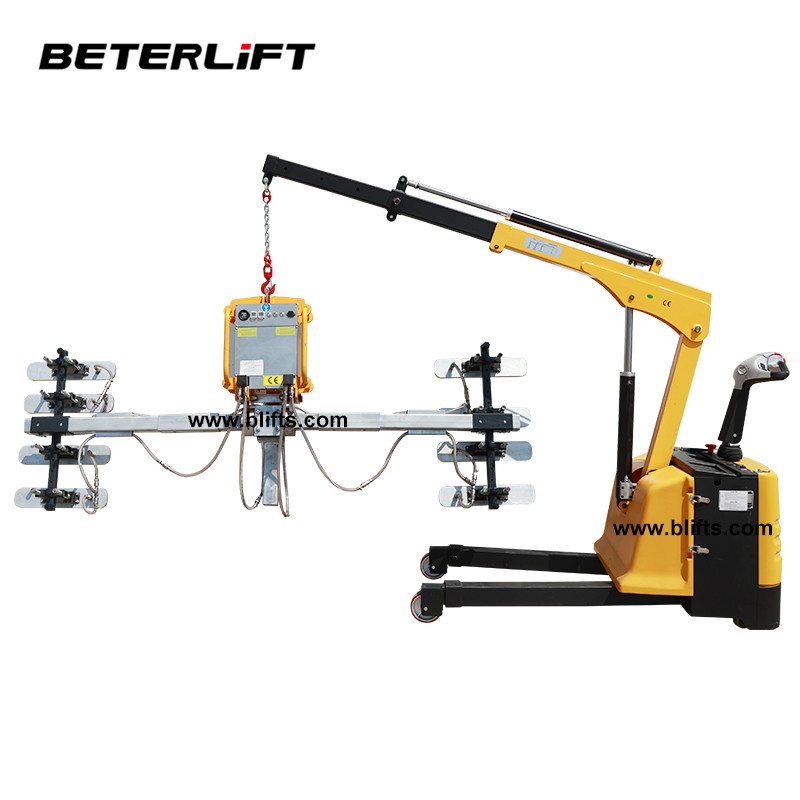

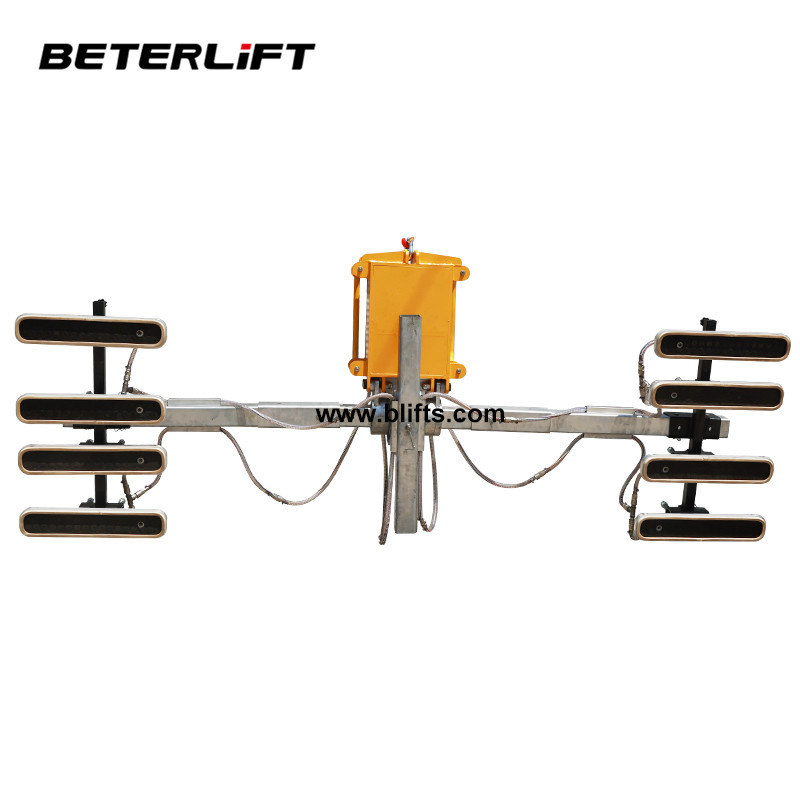

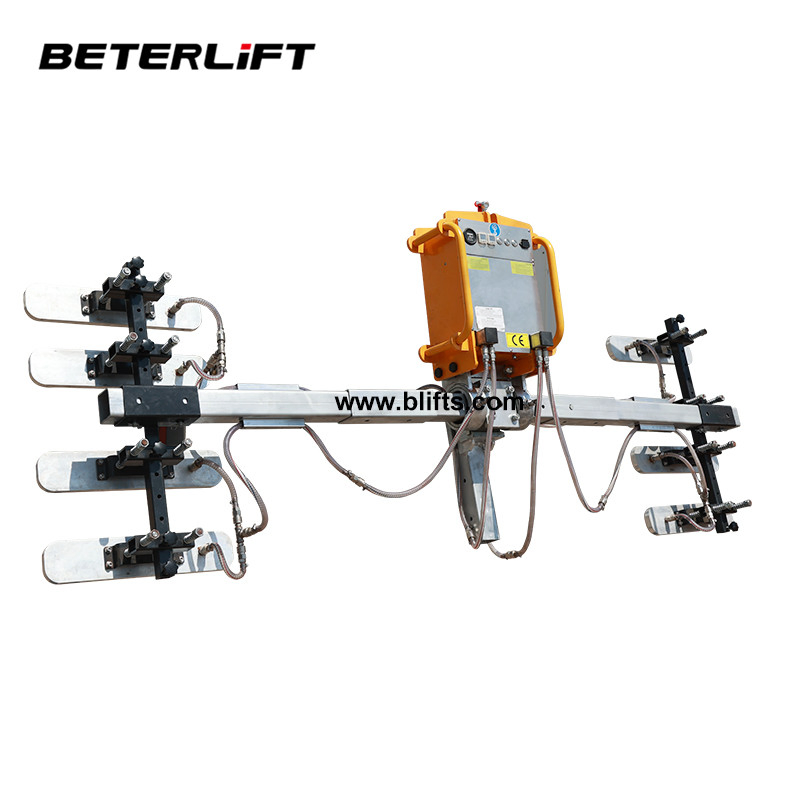

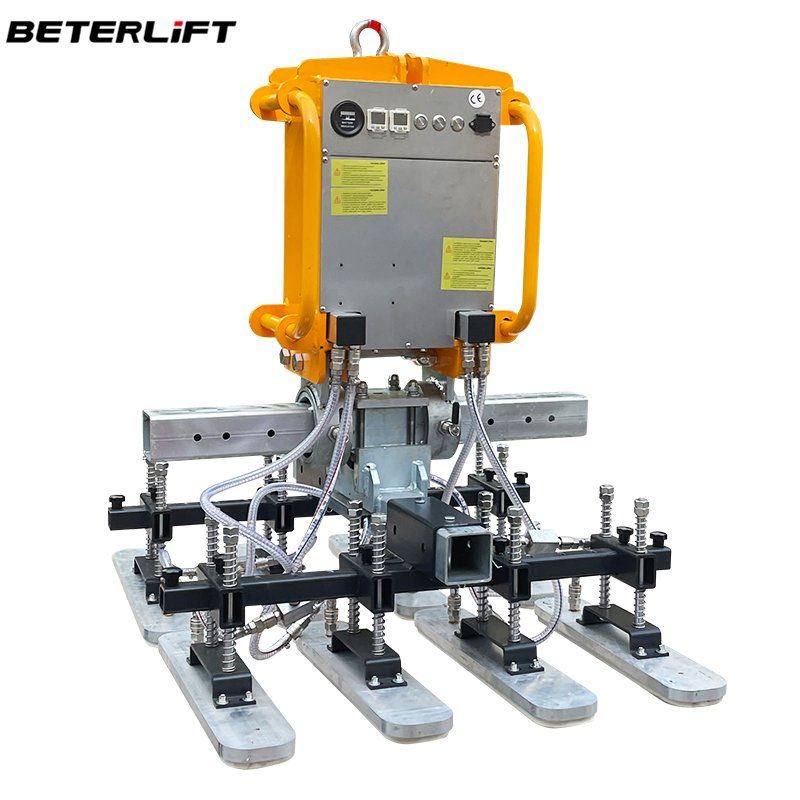

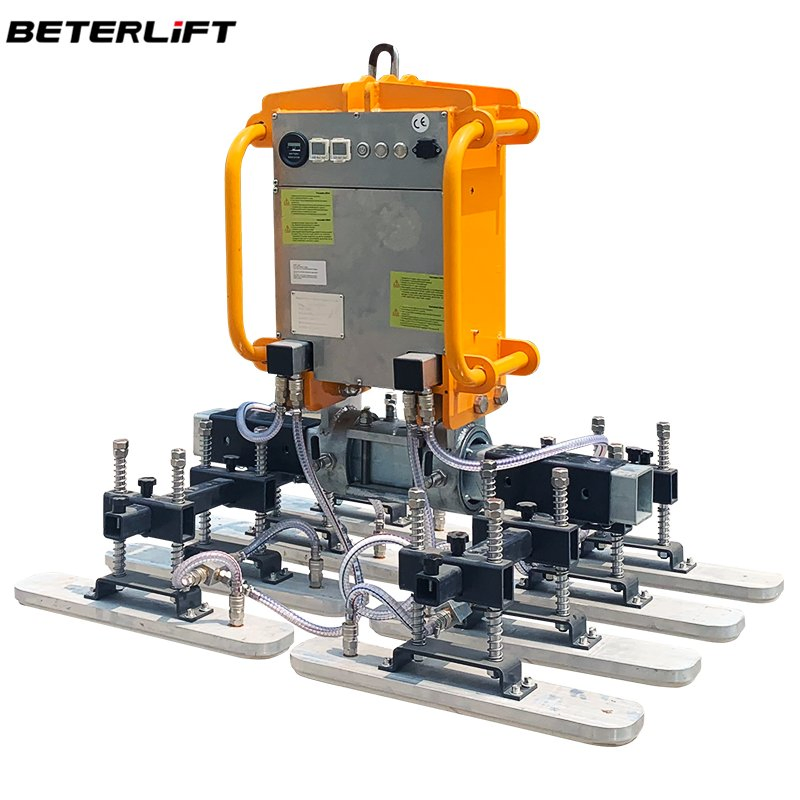

Vacuum Glass Sucker Lifter (400kg - 1200kg)
The vacuum chuck operates by connecting to a vacuum pump via a guide pipe. Upon contacting the workpiece (such as glass or steel plates), the equipment generates negative pressure within the chuck, absorbing the object firmly for safe movement. By using a hand slide valve, the vacuum pressure can be released to zero or slight positive pressure to safely detach the workpiece at its destination.
Wide Application Range:

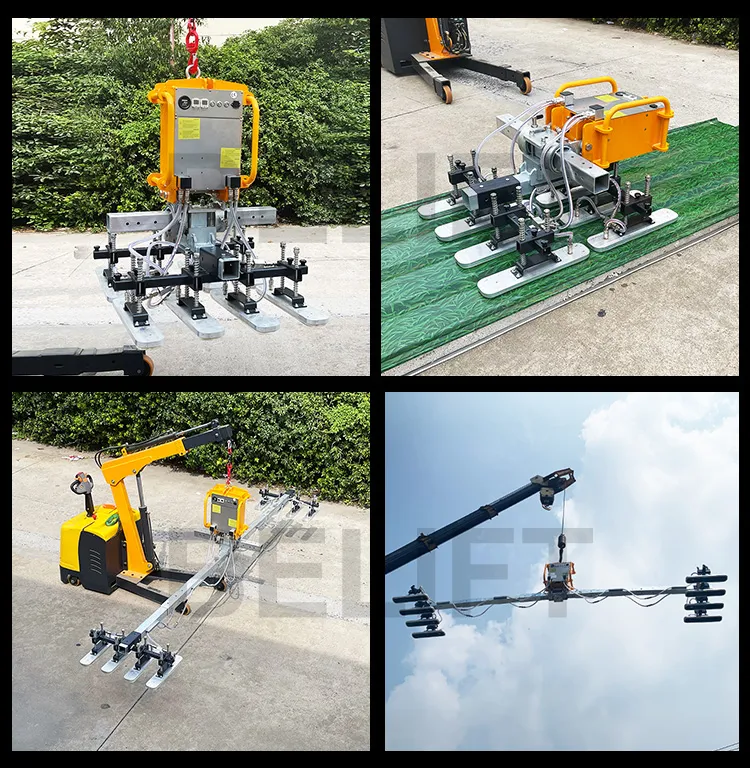

This equipment is widely used for glass processing, glass loading/unloading, curtain walls, plastic plates, sandwich panels, composite plates, steel, aluminum, copper plates, and stone. It is suitable for all workpieces with smooth, compact surfaces and regular shapes.
| Model | Lifter Length (mm) | Max Panel Length (mm) | Beam Qty | Max Load (kg) | Pad Qty | Pad Size/Load |
|---|---|---|---|---|---|---|
| BGL2650 | 2650 | 12000 | 2 | 300 | 8 | 110*530 / 75kg |
| BGL4450 | 4450 | 14000 | 4 | 300 | 8 | 110*530 / 75kg |
| BGL6250 | 6250 | 16000 | 6 | 300 | 8 | 110*530 / 75kg |
| BGL8050L | 8050 | 18000 | 8 | 300 | 8 | 110*530 / 75kg |
| BGL9850LD | 9850 | 20000 | 10 | 450 | 12 | 110*530 / 75kg |
| BGL850V4 | 850 | 12000 | 0 | 400 | 4 | 150*490 / 100kg |
| BGL2950C | 2950 | 15000 | 2 | 400 | 4 | 150*490 / 100kg |
Our products are manufactured according to strict quality standards and have obtained multiple international certifications, including CE, ROHS, SGS, and ISO, ensuring safety and compliance for global industrial use.
