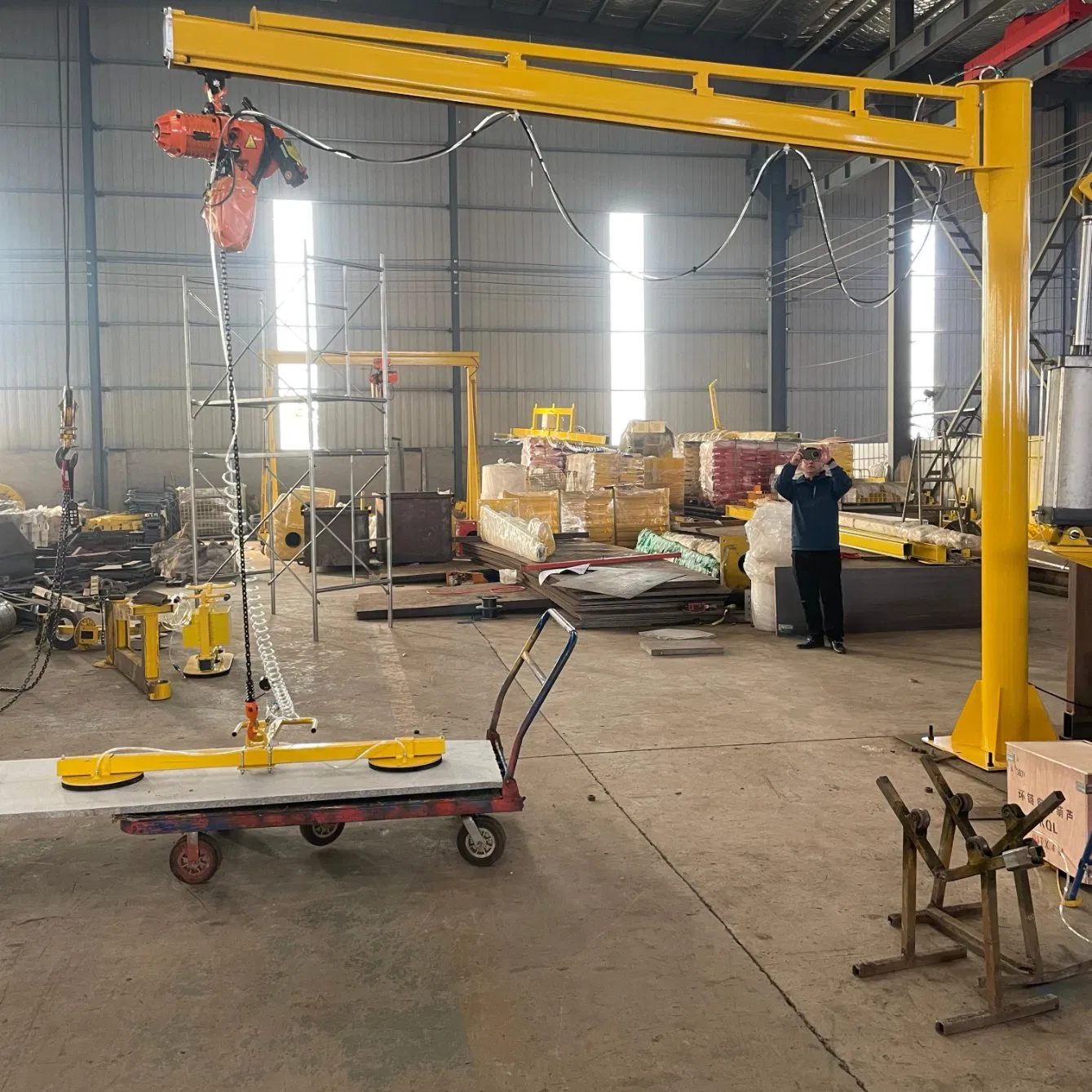

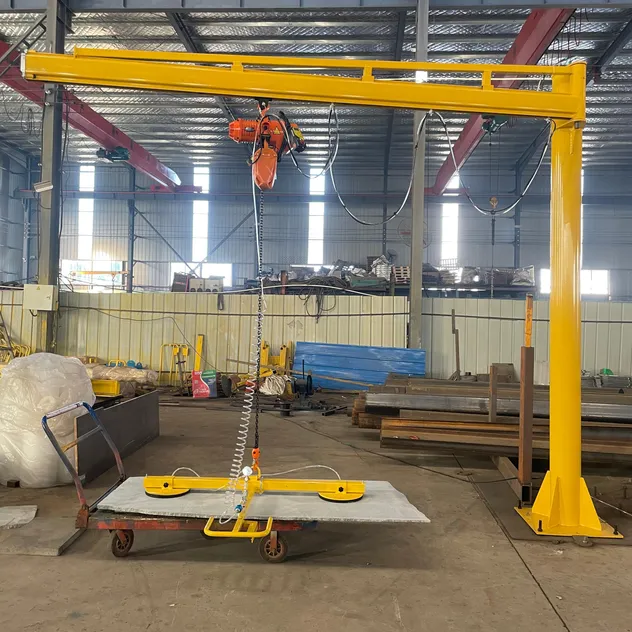

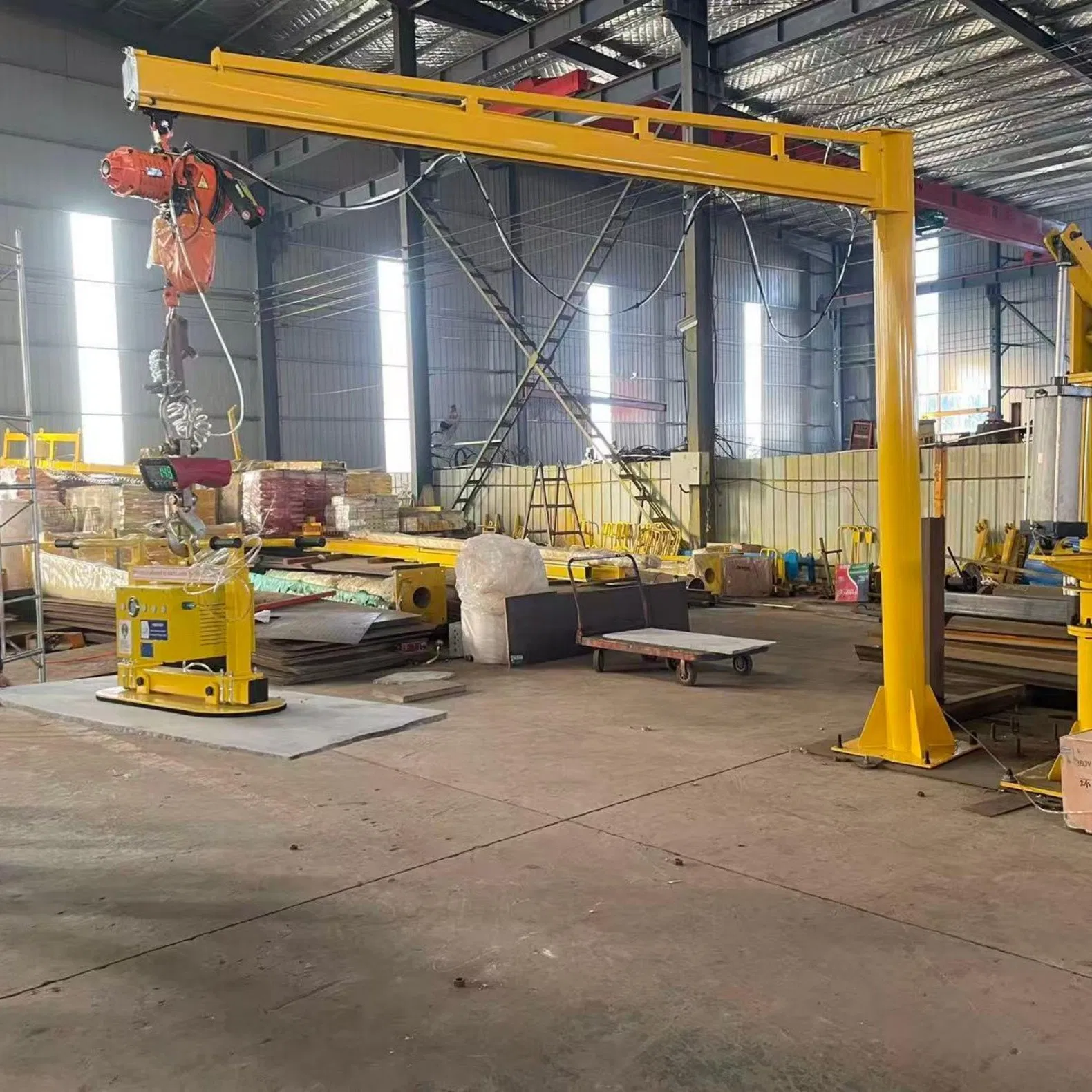

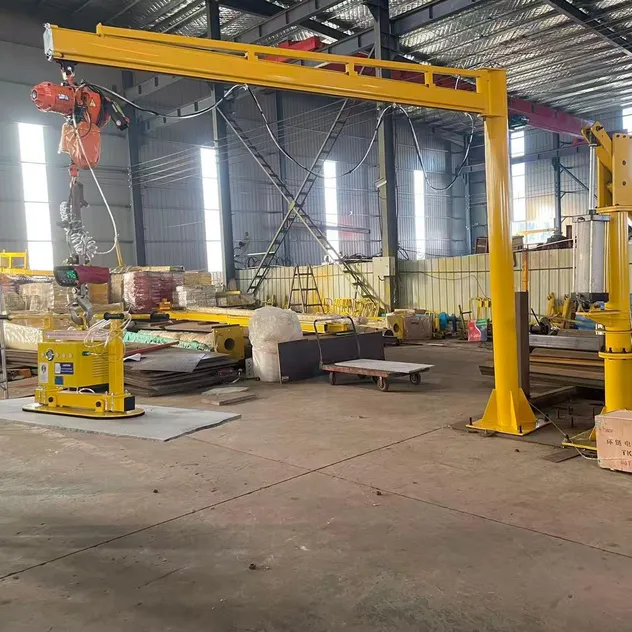

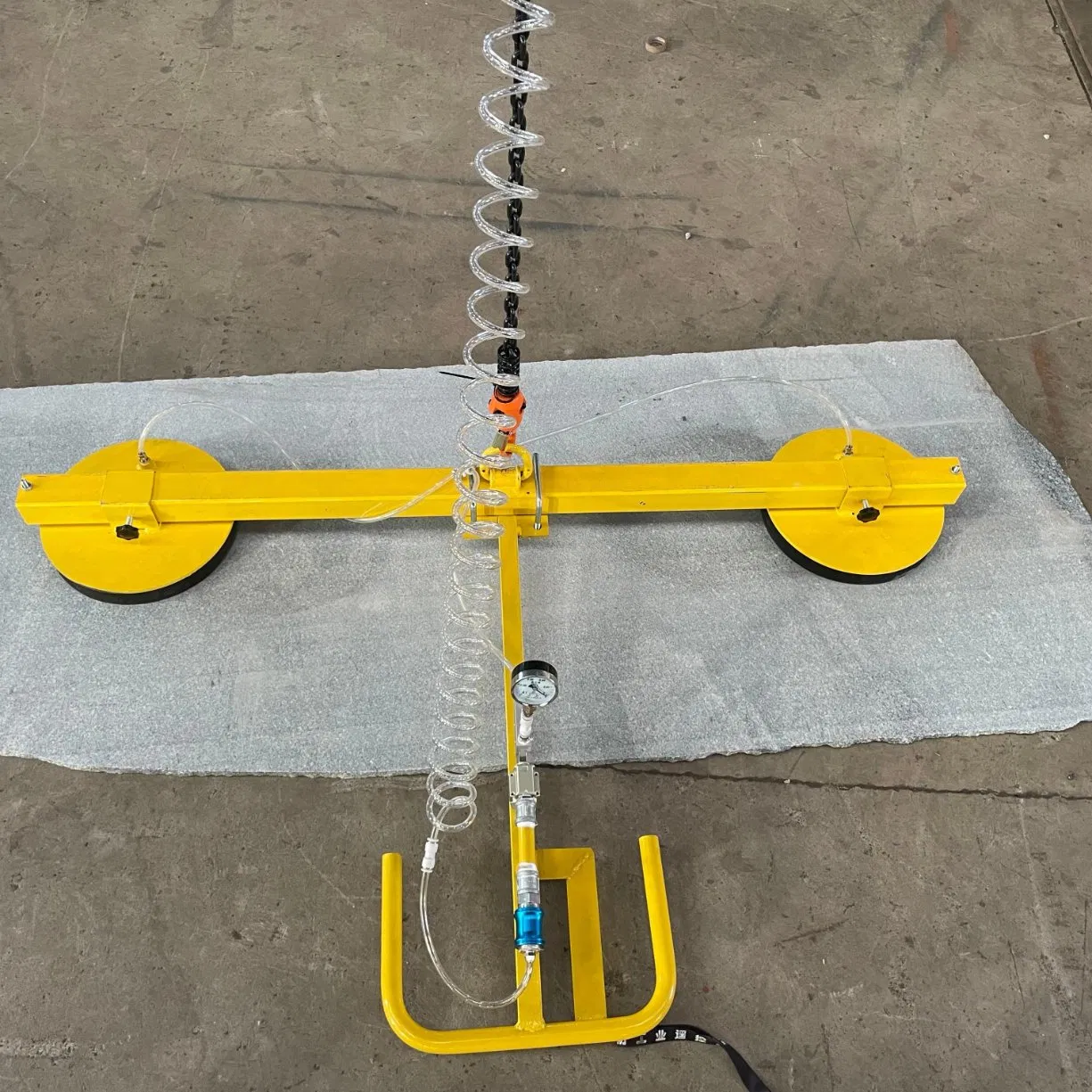

The Jib Crane Vacuum Loading Machine Lifts Various Glass Panels and Panels

Customization:	Available
After-sales Service:	Yes
Warranty:	12month

📋

Basic Specifications

Model NO.XDL-SCSLJ-1000

Cup QuantityCustomized

ColorYellow or Custom

ApplicationStone, Marble, Cement, Granite

Load Capacity800kg - 2500kg

Vacuum SourceOil-Free Vacuum Pump

HS Code8428909090

Safety SystemOne-Way Valve / Alarm

🚀

Product Description

Are you struggling with heavy, dangerous, and inefficient material handling? Traditional methods for loading laser cutting machines or stacking stone slabs are time-consuming and pose safety hazards. Our vacuum loading machine offers a powerful, intelligent solution for handling smooth-surfaced materials.

Materials Handled:

Stone: Marble, granite, artificial stone, ceramic slabs.
Metal: Steel, aluminum, copper plates, and sheets.
Building: Glass, giant tiles, precast concrete slabs.
Industrial: Wood panels, OSB boards, plastic sheets.

Key Advantages:

Redundancy safety system for power outages.
Millimeter-level precise positioning.
Modular suction cup assembly.
High-strength aluminum alloy & steel structure.

📊

Technical Specifications

MODEL	LOAD	SUCTION CUPS	CONTROL
XDL-SCSLJ-800	800KG	8 PCS	MANUAL/REMOTE
XDL-SCSLJ-1000	1000KG	10 PCS	MANUAL/REMOTE
XDL-SCSLJ-1500	1500KG	10 PCS	MANUAL/REMOTE
XDL-SCSLJ-2000	2000KG	12 PCS	MANUAL/REMOTE
XDL-SCSLJ-2500	2500KG	12 PCS	MANUAL/REMOTE

📦

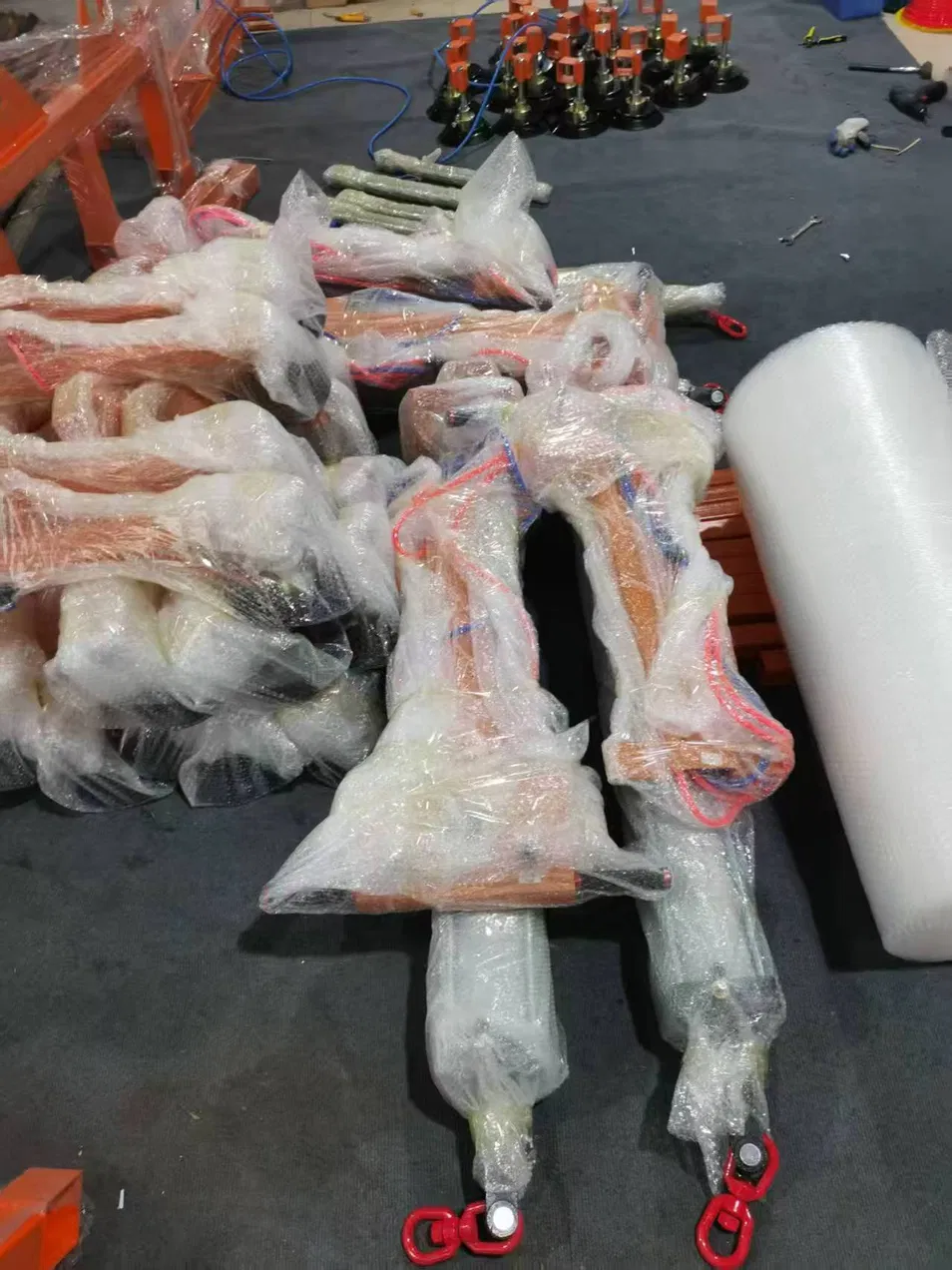

Packing & Delivery

First Layer: Inner Damage Protection

Fully wrapped in anti-static and moisture-proof stretch film. Precision components like sensors and valves are reinforced with custom foam.

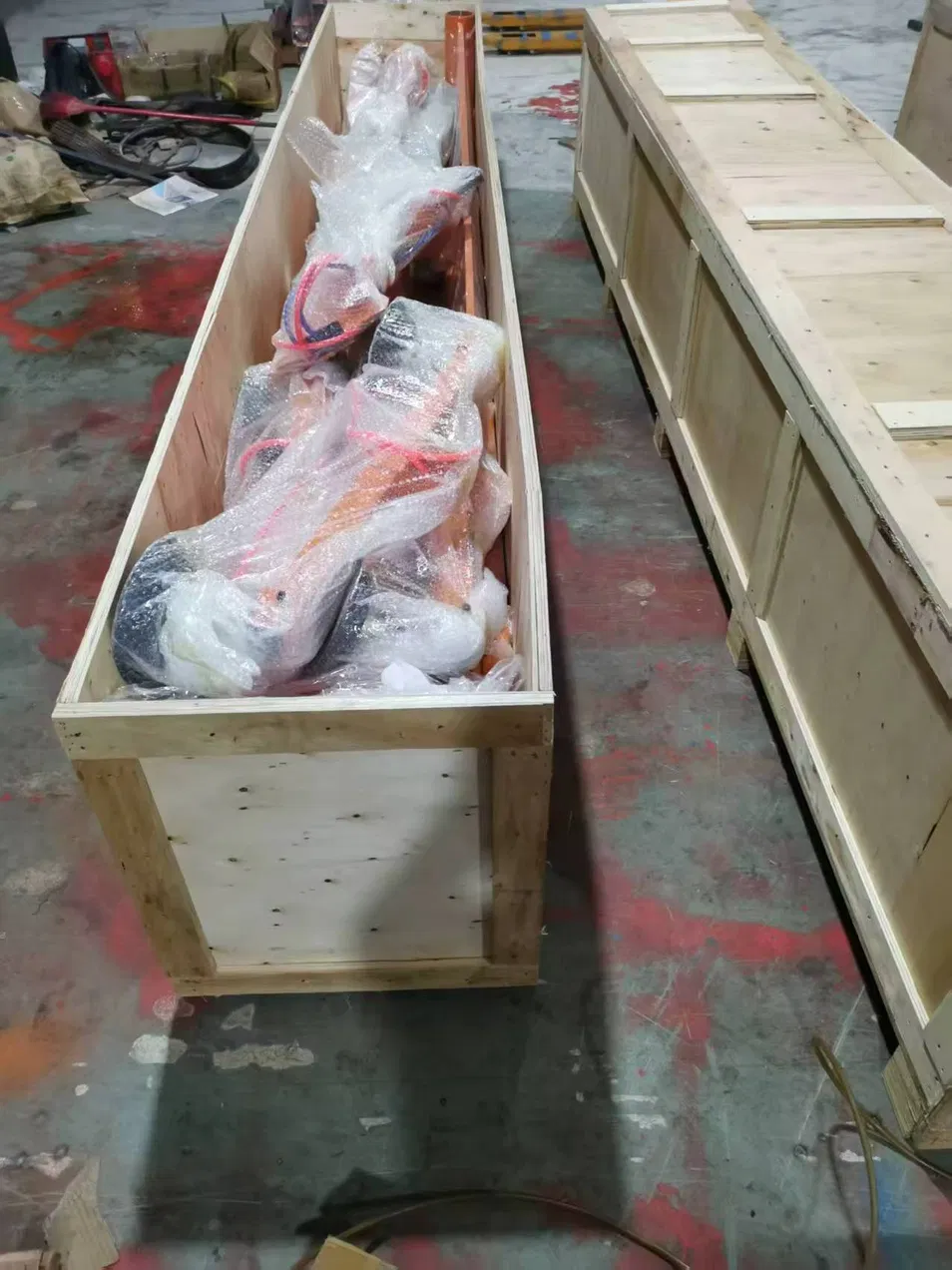

Second Layer: Sturdy Structural Protection

Custom wooden crates with shockproof design. High-strength bolts secure the equipment to the base to prevent shifting.

📜

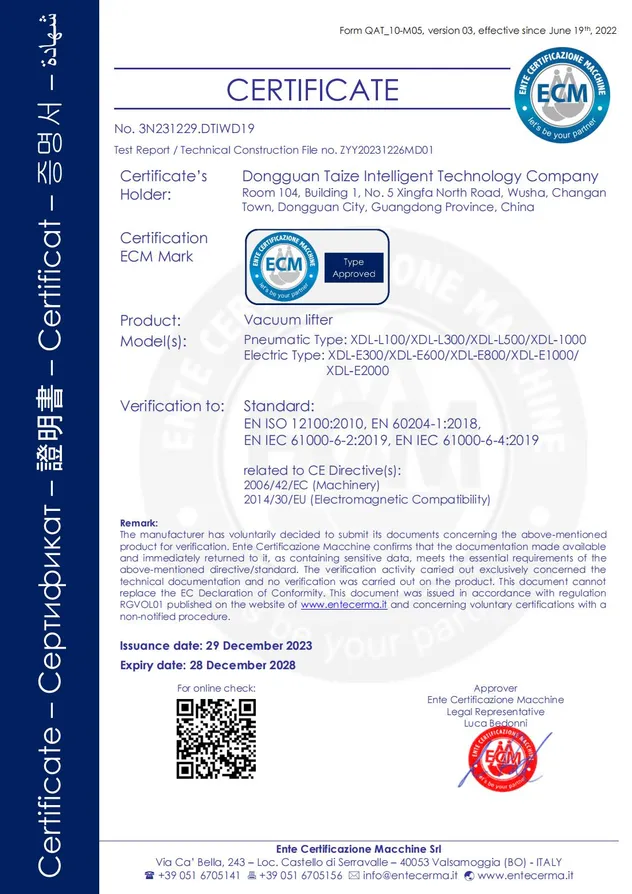

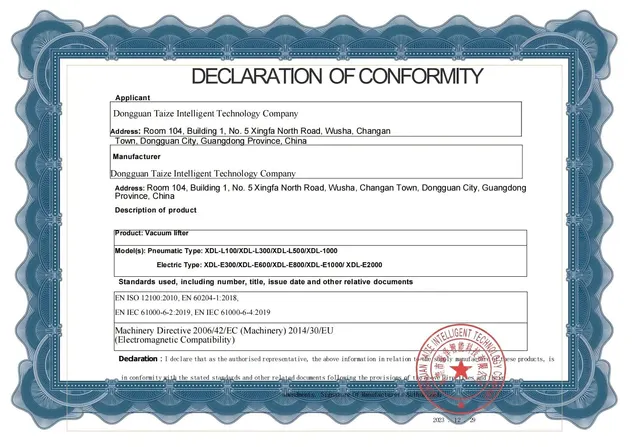

Certifications

❓

Frequently Asked Questions

Are the suction cups easy to replace?

Yes, very easy. Most of our suction cups feature a quick-change connector design, allowing for tool-free disassembly and replacement.

Does it work for rough-surfaced materials like granite?

Absolutely. We offer specialized solutions including high-flow vacuum pumps and sponge-like sealing lip suction cups designed specifically for porous or uneven surfaces.

What happens in case of a sudden power outage?

The system is equipped with a vacuum redundancy safety system and a one-way valve. This ensures the vacuum is maintained to prevent materials from falling, protecting both personnel and equipment.

How can this equipment be integrated into my production line?

Our systems are flexible. They can be installed on fixed hangers, rail-mounted gantry cranes, industrial robot arms, or even forklifts.

What materials can be handled by this machine?

It can efficiently handle various smooth or slightly rough materials including marble, steel plates, aluminum, glass, wood panels, and composite materials.

What is the maximum load capacity available?

Standard models support up to 2500KG, but we also offer customized solutions for heavier industrial requirements.
