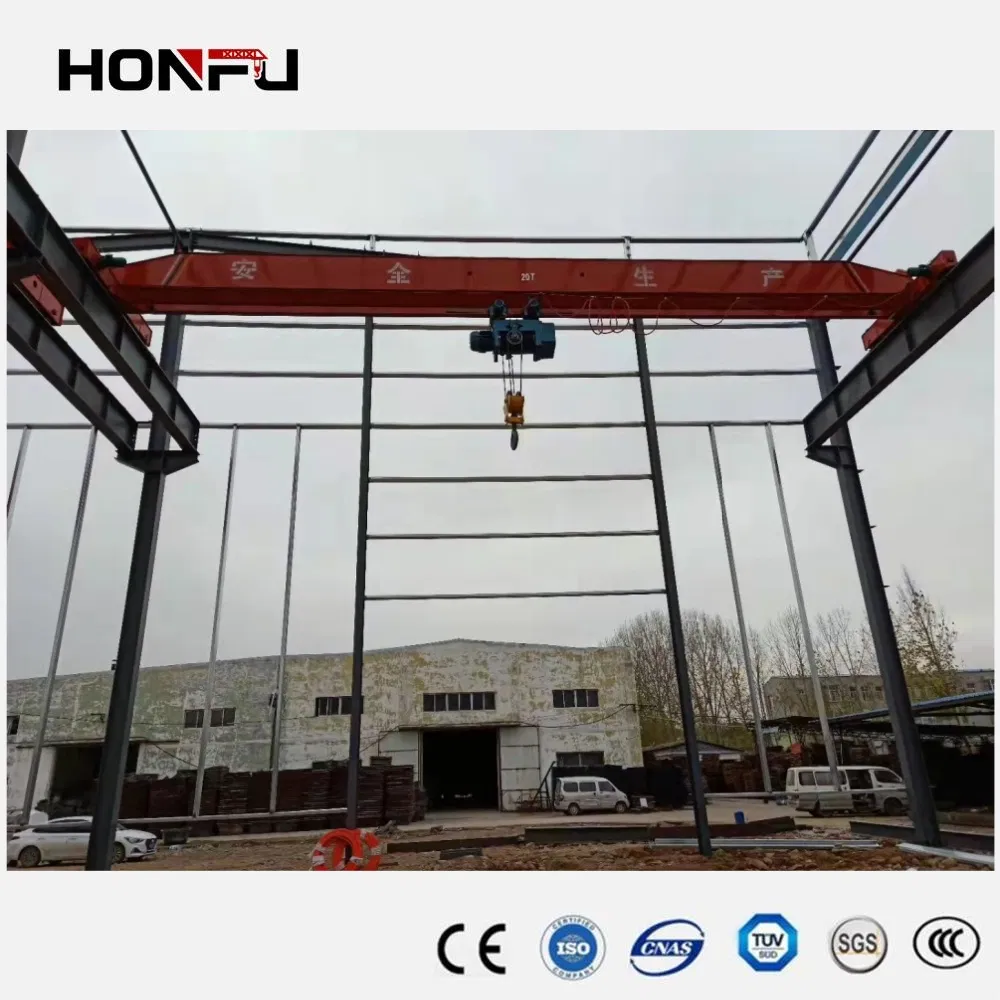

Bridge Model Remote Control Single Beam Overhead Gantry Crane with Chain Hoist

1 / 5

Bridge Model Remote Control Single Beam Overhead Gantry Crane with Chain Hoist

Customization:	Available
After-sales Service:	12-24 Months
Warranty:	12-24 Months

Send Inquiry

Product Description

Basic Information

Model NO.

LD001

Condition

New

Operation Form

Air + Ground Operation

Max Lifting Height

15-20m

Max Lifting Weight

>200t

Main Girder Form

Single Girder

Power Source

Electricity (3p 380V AC)

Spans

7.5m-28.5m

Surface

Anti-Rust Painting

Production Capacity

3000 Units/Year

★

Product Description

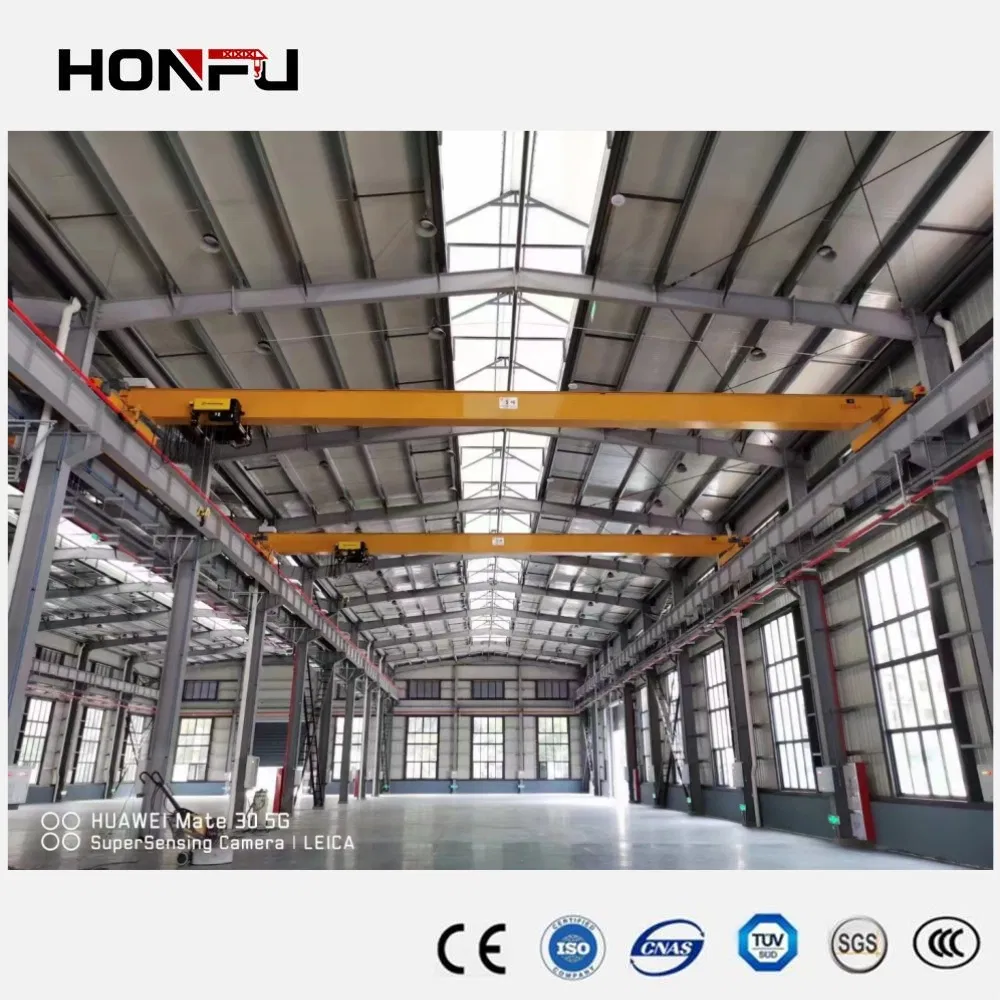

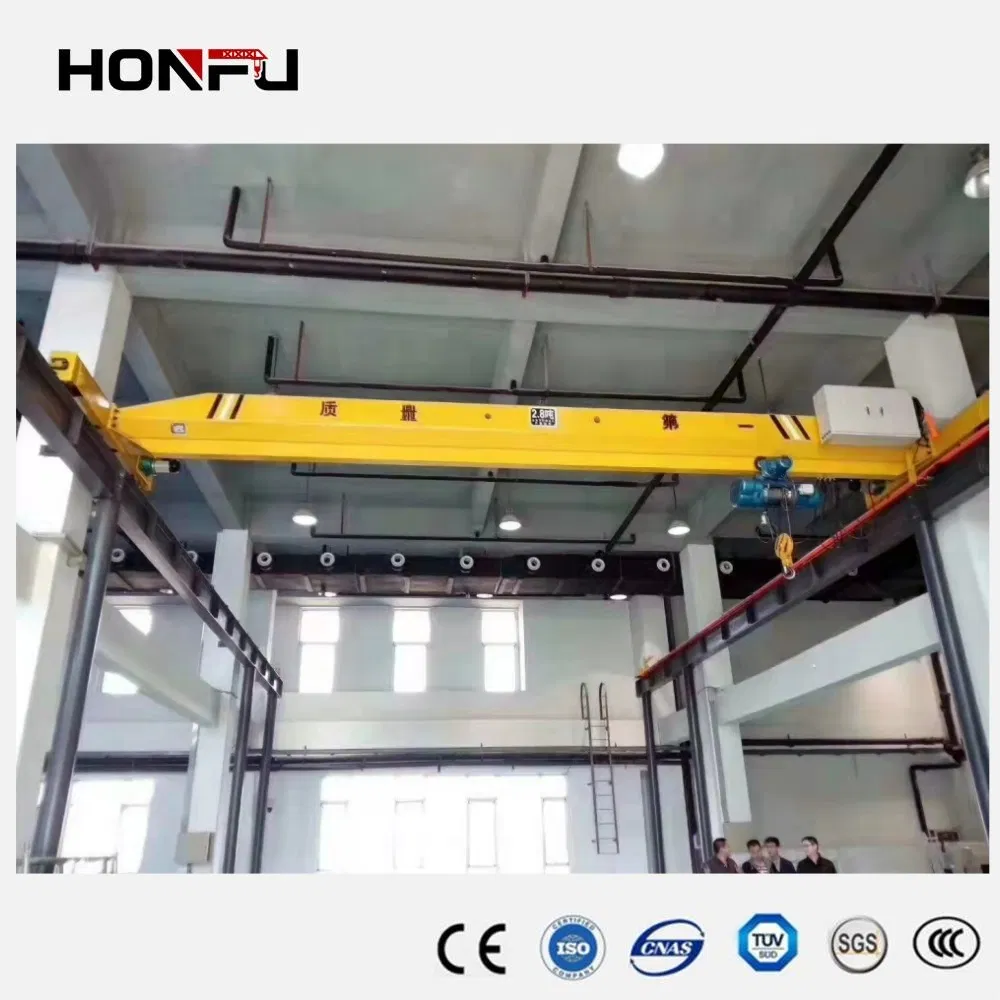

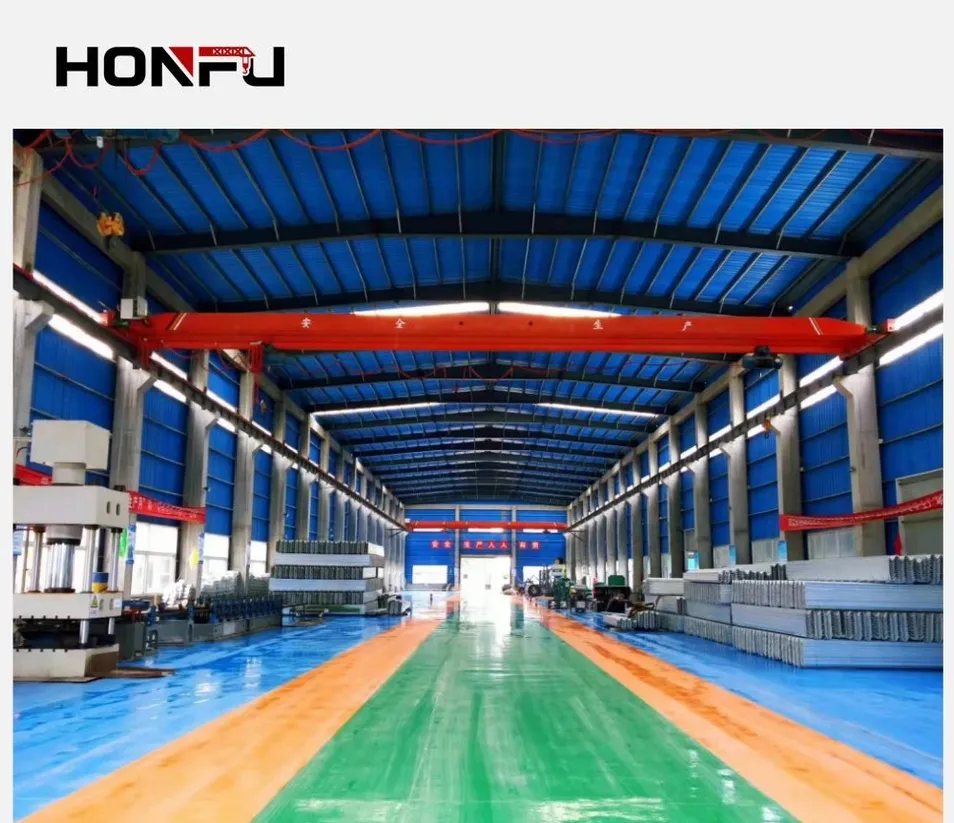

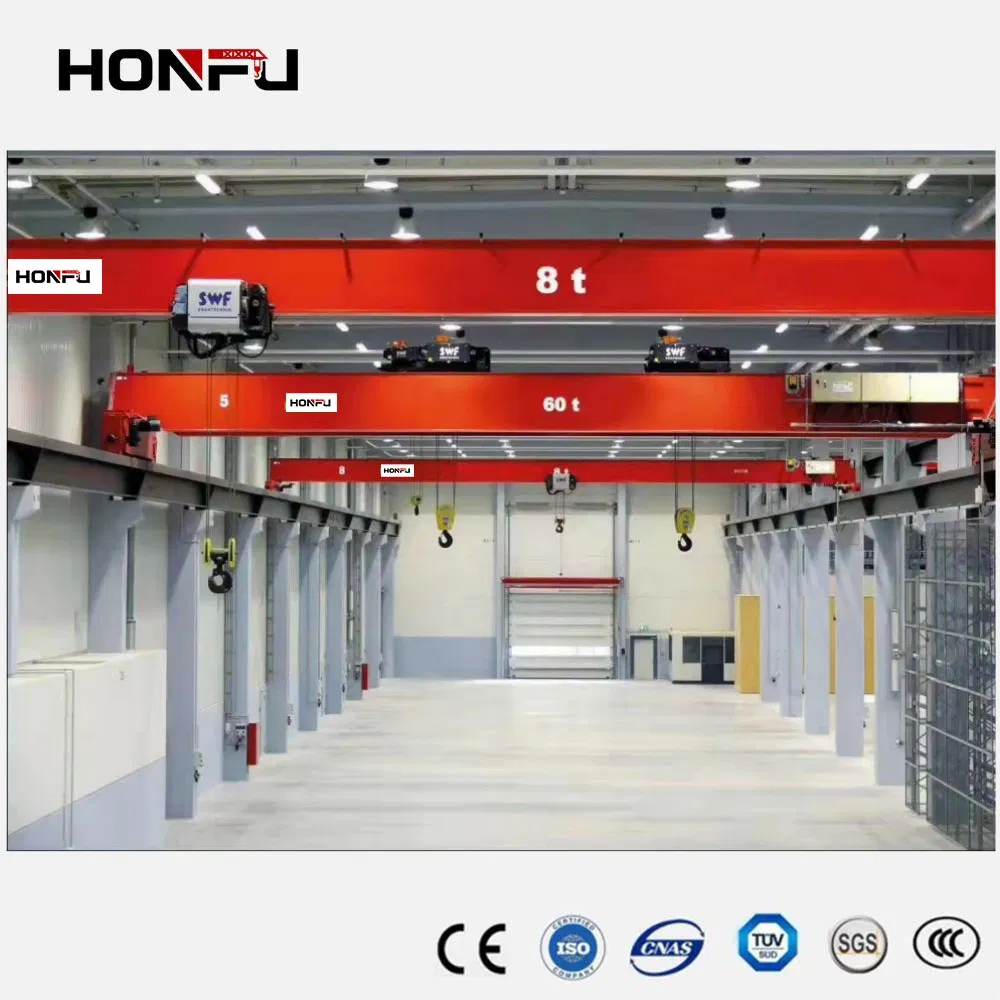

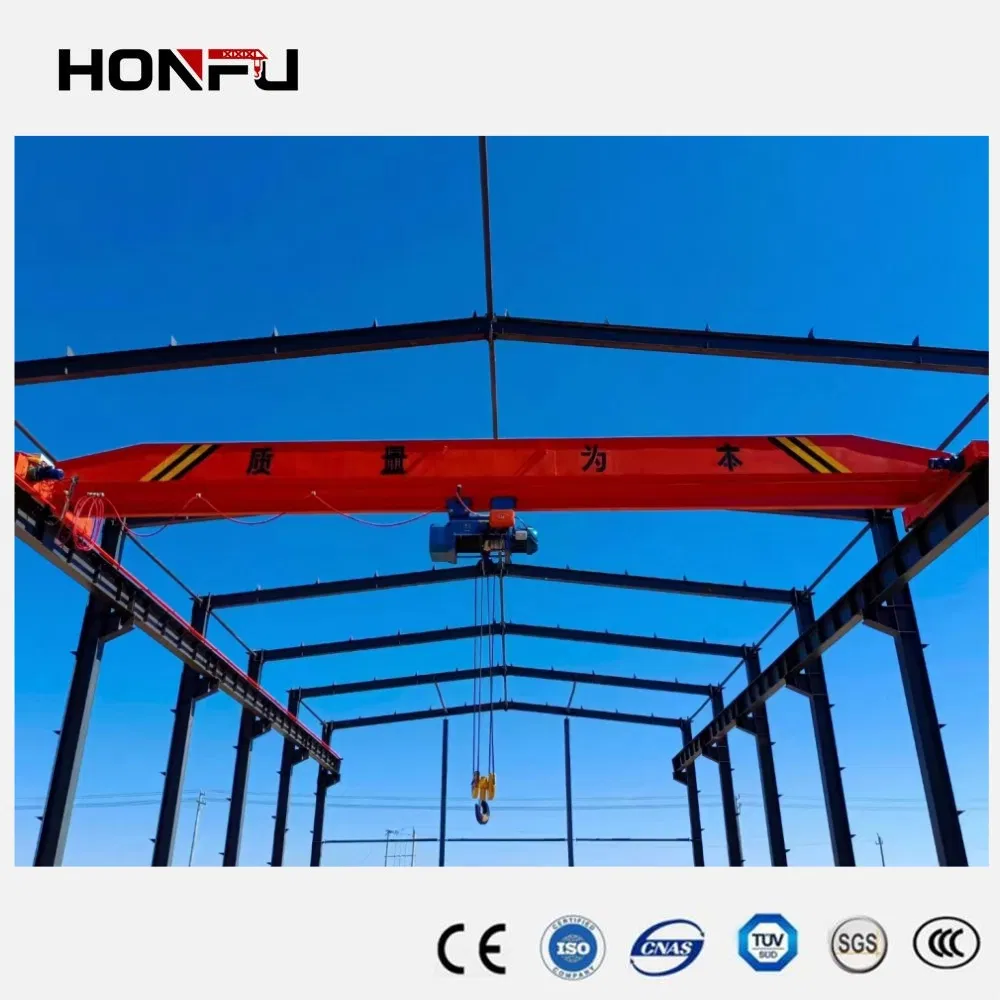

Brief Introduction:

The LD model single girder overhead crane features a reasonable structure and high-strength steel. It is the typical choice for lifting capacities under 20T. Used with CD1 or MD1 electric hoists, it serves as a light-duty crane with capacities from 0.5 to 32 tons.

Widely utilized in steel mills, warehouses, hydropower stations, and assembly lines, this crane supports spans from 7.5m to 22.5m and operates in temperatures from -25°C to 40°C.

⚙

Technical Specifications

Mechanism Item		Parameters / Details
Traveling Speed	m/min	20, 30, 45, 60
Motor Type	Hoist/Travel	Cone Squirrel - Cage
Lifting Capacity	Tons	0.5 - 32
Lifting Height	m	6, 9, 12, 18, 24, 30
Span	m	7.5 - 22.5 (Customizable)
Power Supply	V/Hz	380V 50HZ 3P
Work Duty	Class	Intermediate Jc=25%

✔

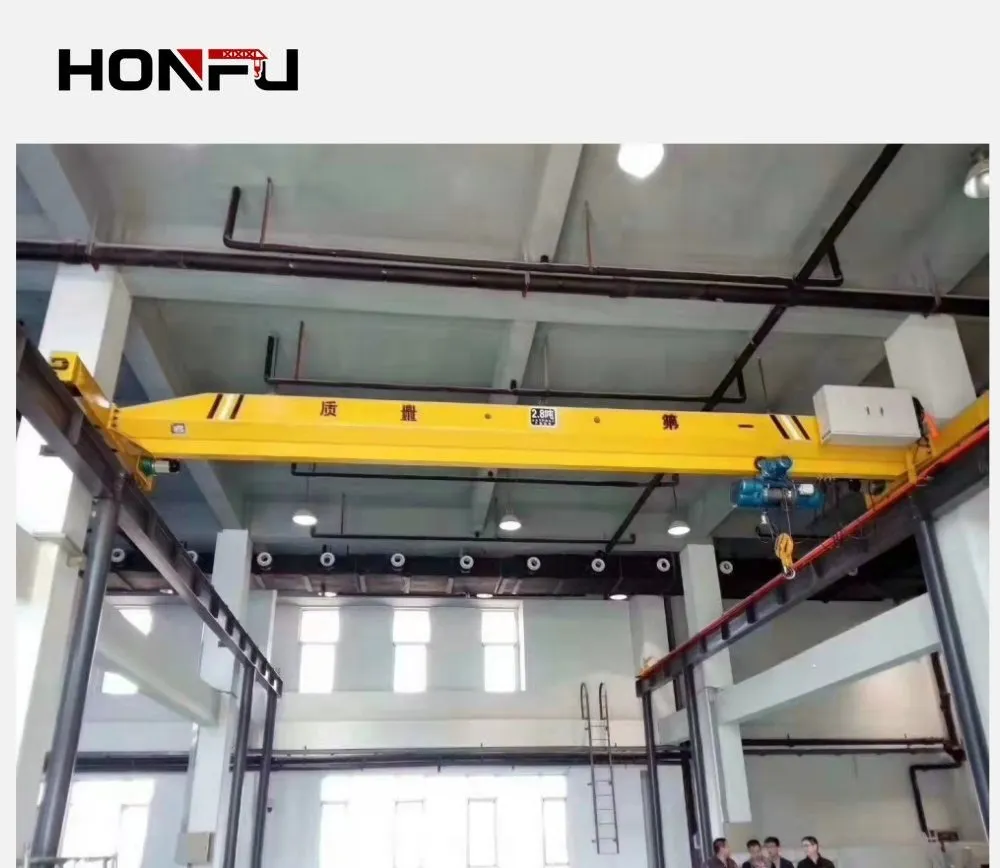

Core Components & Safety

Main Girder: Rigid welded box type, Q235/345 material.
Electric Hoist: CD/MD or European type wire rope hoist.
Safety Devices: Overload limit switches, rubber buffers, and emergency stop systems.
Control System: Schneider/Siemens/ABB electrical components.
Operation: Pendant control + Radio remote control options.
Protection: Voltage lower protection and current overload protection.

🏢

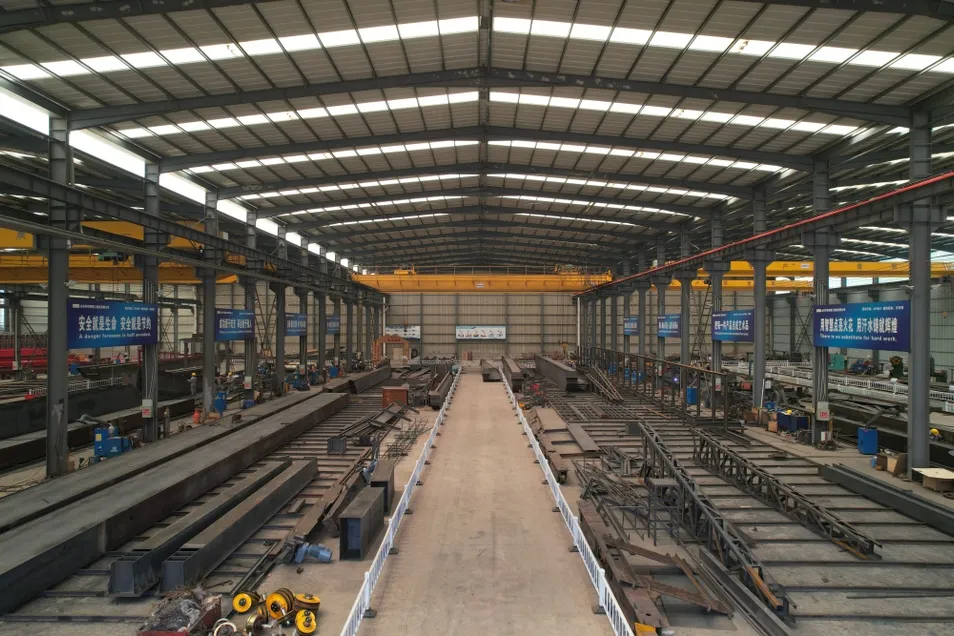

Professional Manufacturing

We are a professional manufacturer specializing in lifting equipment, including bridge cranes, gantry cranes, and metallurgical cranes. With a strong technical force, 80% of our employees hold technical degrees, ensuring advanced processing technology and product reliability.

Our research institute cooperates with leading machinery institutes to develop European standard cranes that meet international quality benchmarks. Our products are exported to over a dozen countries, including Brazil, Pakistan, Nigeria, and Tanzania.

📦

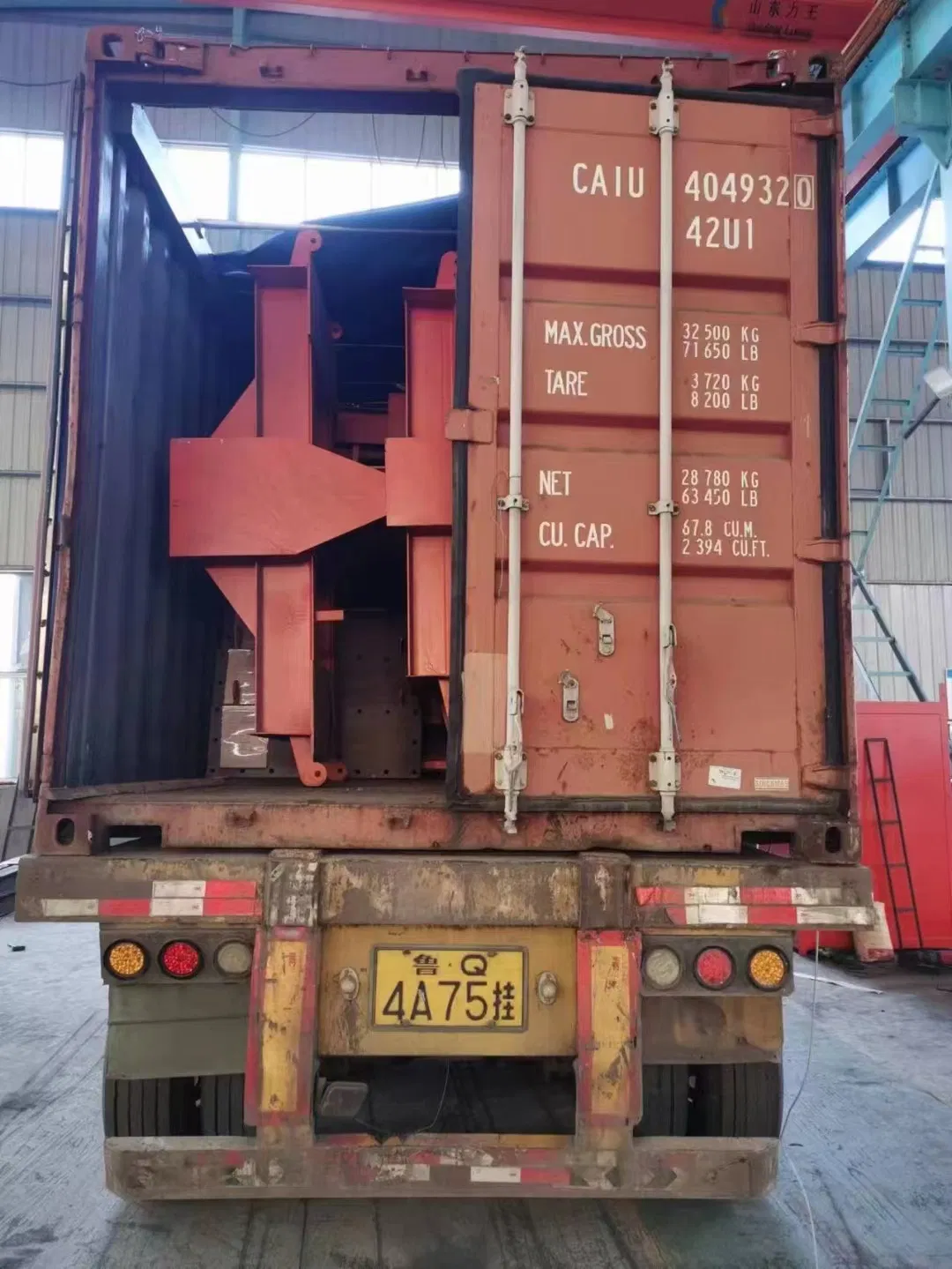

Packing & Delivery

Frequently Asked Questions

Can the cranes be customized?

Yes, every customer's working condition is different. All of our products can be customized based on specific requirements including capacity, span, and lifting height.

How many operation methods are available?

We provide three main options: pendent controller with push buttons, remote control, or cabin control. You can choose the one that best fits your operational needs.

I have low headroom in my workshop; can I still install a crane?

Yes, we have specialized products designed for low headroom environments. Our engineers will provide the best design based on your workshop dimensions.

What lifting tools do you supply?

We can provide various lifting tools such as hooks, electromagnetic lifters, grab buckets, and more, depending on the material you need to handle.

What information is needed for a quote?

To provide an accurate solution, please provide: 1. Lifting capacity, 2. Span length, 3. Lifting height, 4. Power supply voltage, and 5. Working environment details.

What is the typical working temperature for these cranes?

Our standard single girder cranes are designed to operate efficiently within a temperature range of -25ºC to 40ºC.
