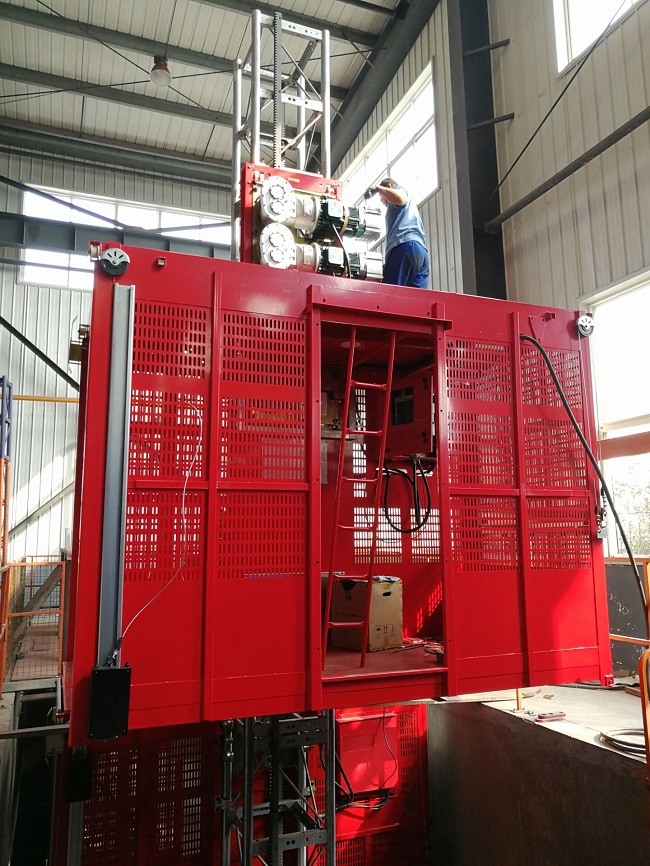

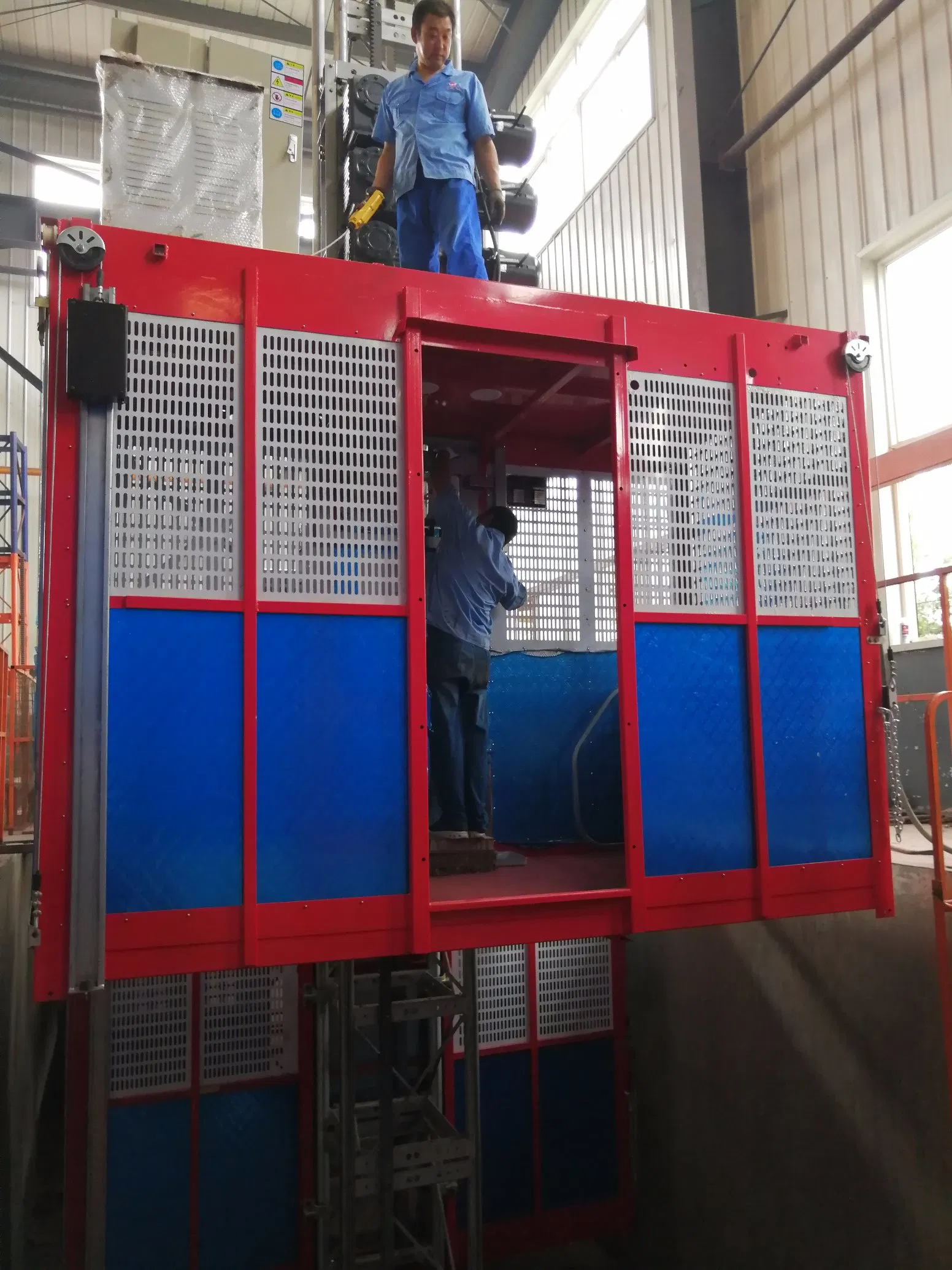

Ce Approved Sc200/200td Construction Hoist / Building Hoist/Lift

1 / 5

Ce Approved Sc200/200td Construction Hoist / Building Hoist/Lift

Customization:	Available
Type:	Rack and Gear
Load Capacity:	＜1T

Send Inquiry

Product Description

Basic Specifications

Model NO.

SC100, SC200, SC150, SC100/100, SC200/200, SC150/150

Speed

40M/Min - 60M/Min

Usage

Construction Hoist

Sling Type

Chain

Lift Drive

Electric Motor

Lift Mechanism

Rack and Gear

Attendant

With Attendant

Deceleration

With Deceleration Device

Elevator Door

Straight Fractional Door

Cage

Double Cage (with Operation Cabin or No Cabin)

Dimension

3*1.5*2.2m, 3*1.3*2.2m, 3.2*1.5*2.2m (Changeable)

Max Height

250m

Motor Power

2X13kw Per Cage

Mast Section

650X650X1508mm or 800X800X1508mm

Electrical System

Schneider (Can Be Equipped with PLC Fault Sensor)

Origin

China

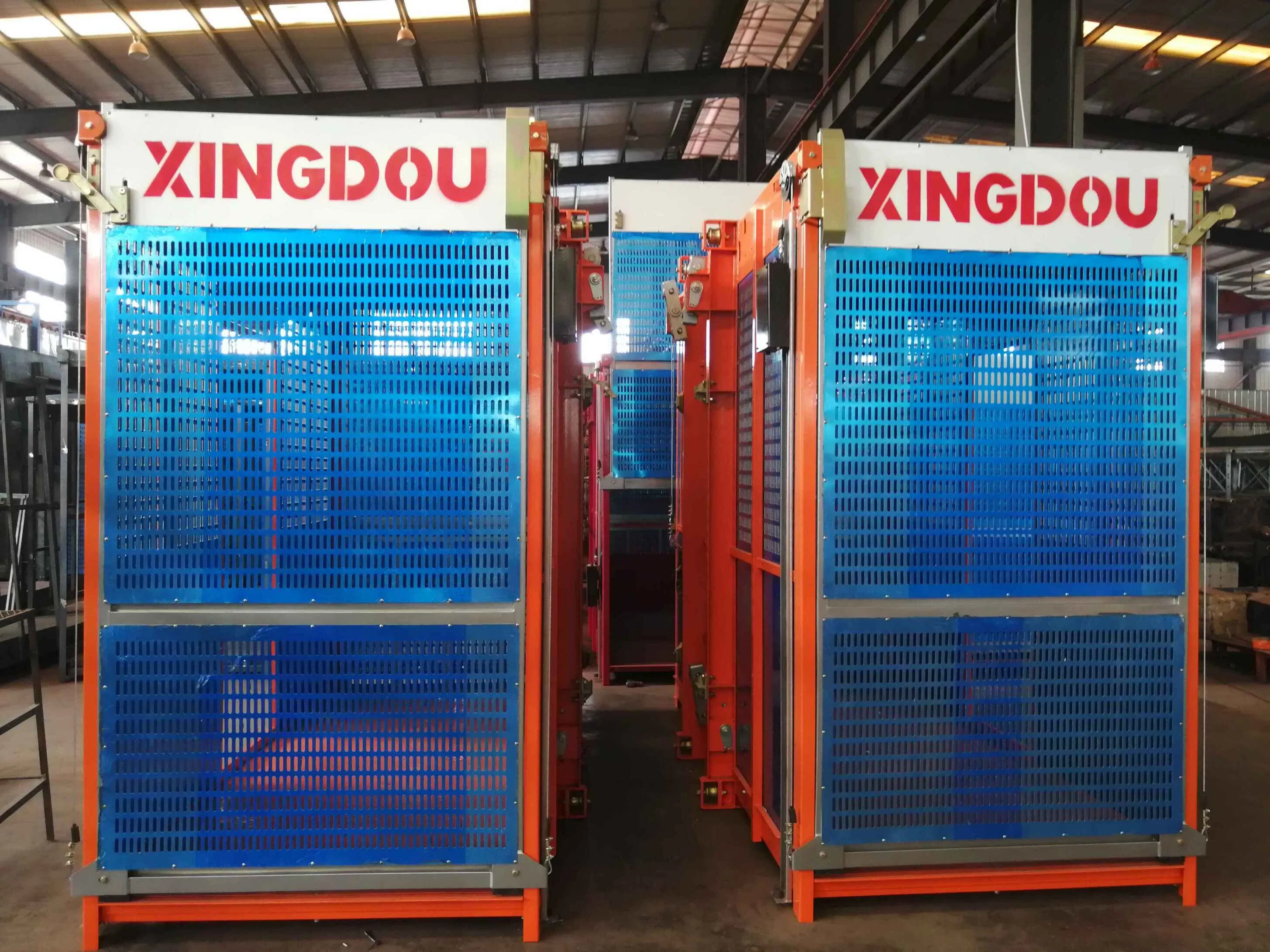

Ce Approved Construction Hoist / Building Lift

Focusing on all kinds of rack and pinion driving vertical access machinery, providing comprehensive designs and vertical solutions. Our range covers 500kg-3000kg loading capacity passenger and material construction site lifts.

Main Product Range

PLC construction lifts.
Low, medium, and high-speed variable frequency (VFD) lifts.
Special purpose lifts: cold water tower, mini rack for tower cranes, and mine lifts.
Inclined and small rack observation lifts.
High-level test bed maintenance lifts and OEM rack and pinion solutions.

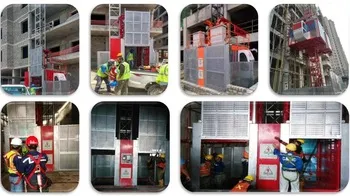

Successful Projects Worldwide

Our rack and pinion construction building hoists have been deployed in more than 30 countries with excellent performance feedback.

Technical Data & Performance

SC Common PLC Hoist (33m/min)

Specification	Type	Capacity	Speed	Motor Power	Safety Device
Single cage	SC100	1000Kg	33m/min	2*11Kw	SAJ 30-1.2
Single cage	SC150	1500Kg	33m/min	2*13Kw	SAJ 40-1.2
Single cage	SC200	2000Kg	33m/min	3*11Kw	SAJ 40-1.2
Twin cages	SC100/100	1000Kg×2	33m/min	2*11Kw×2	SAJ 30-1.2
Twin cages	SC200/200	2000Kg×2	33m/min	3*11Kw×2	SAJ 40-1.2

SC Low Speed VFD Hoist

Type	Capacity	Speed	Motor Power	VFD	Safety Device
SC100L	1000Kg	0~40m/min	2×11Kw	30Kw	SAJ 30-1.2
SC150L	1500Kg	0~46m/min	2×13Kw/15Kw	30Kw/37Kw	SAJ 40-1.2
SC200L	2000Kg	0~46m/min	2×15Kw/3×11Kw	37Kw	SAJ 40-1.2

SC Medium & High Speed VFD Hoist

Type	Capacity	Lifiting Speed	Motor Power	VFD	Safety device
SC 100 M	1000Kg	0~60m/min	3×13Kw	45Kw	SAJ 30-1.4
SC 200 M	2000Kg	0~75m/min	3×23Kw	75Kw	SAJ 50-1.6
SC 200 H	2000Kg	0~96m/min	3×18.5(87Hz)	110Kw	SAJ 50-2.0

Structural Features

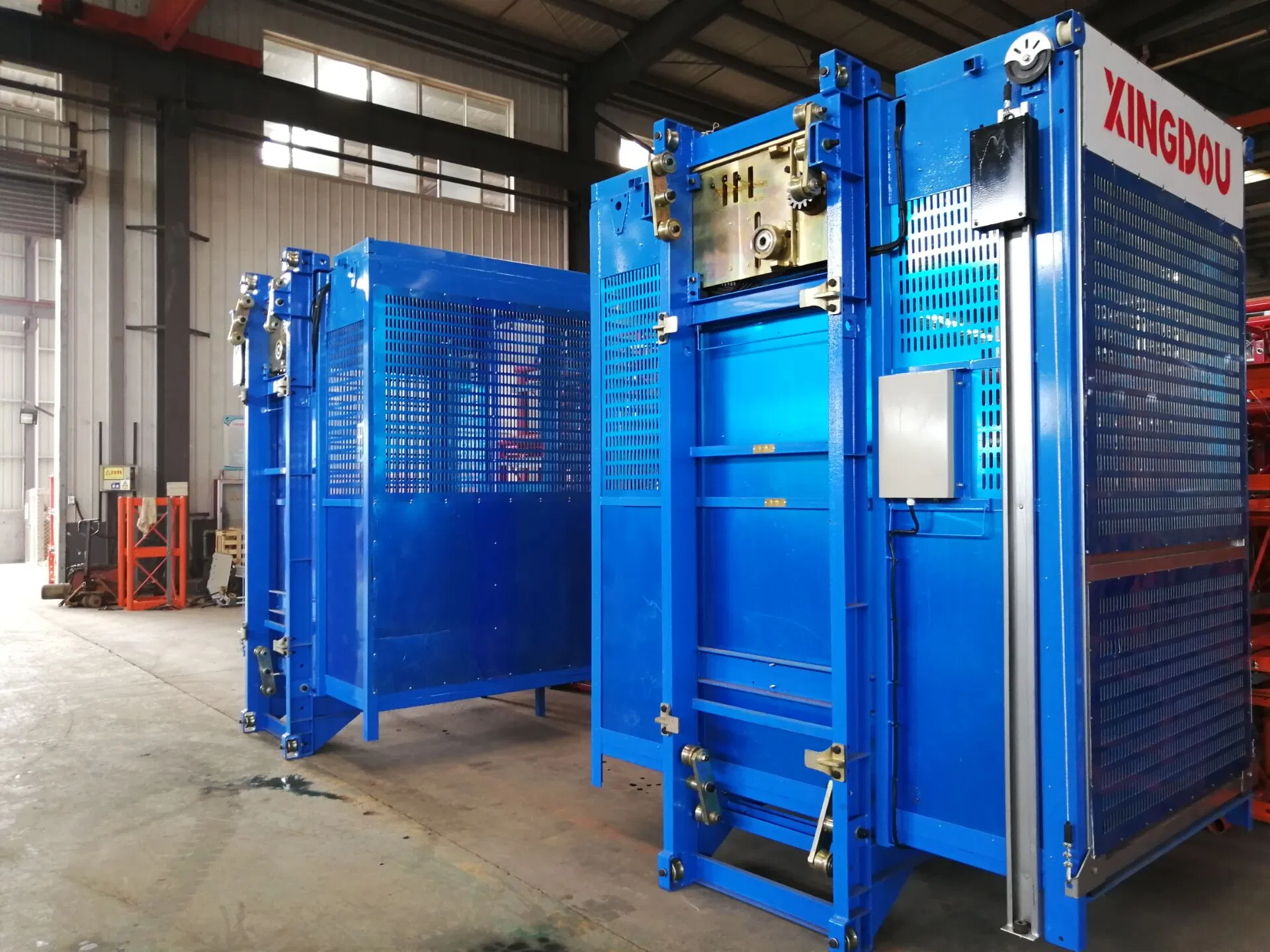

Cage & Mast

Cage: Customizable sizes (Small/Big) based on project requirements. Steel frames are welded inside a Jig for precision.

Mast Sections: Available in multiple sizes: 650*650*1508mm, 800*800*1508mm, 450*450*1508mm, and more.

Safety Measures

Anti-falling safety device governor
Electrical and Mechanical interlocks
Safety hook & Limit switches
Overload protector & Bottom Buffer
Auto leveling device (Optional)

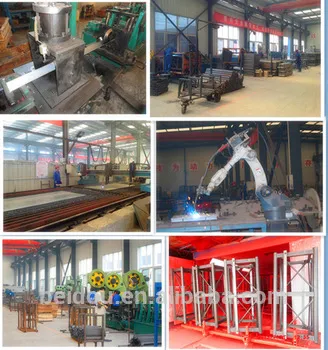

Production & Certification

Certifications

Full range of building hoist certificates available to ensure smooth importation and compliance with local regulations.

Professional Service Support

Professional service team for installation and commissioning.
6-month warranty period post-installation for all major components.
2-hour rapid response for maintenance inquiries.
Full lifecycle support: maintenance, repair, and technical upgrades.
Regular follow-up visits to ensure equipment performance.

Frequently Asked Questions (FAQ)

Q: What is the maximum lifting capacity of your construction hoists? A: Our hoists support a loading capacity ranging from 500kg up to 3000kg per cage.

Q: Can the cage size be customized? A: Yes, we provide various dimensions such as 3x1.5x2.2m or 3.2x1.5x2.2m, and can customize the size based on specific client requirements.

Q: What are the available lifting speeds? A: We offer common speeds of 33m/min, VFD low speed (up to 46m/min), medium speed (up to 75m/min), and high speed options reaching up to 96m/min.

Q: What safety features are included? A: Standard features include anti-falling safety governors, mechanical interlocks, safety hooks, limit switches, and overload protectors.

Q: Do you provide installation support? A: Yes, we have professional engineers available for installation and commissioning, along with detailed installation techniques and drawings.

Q: What electrical systems do you use? A: Our main electrical systems are from Schneider and can be equipped with PLC fault sensors for enhanced monitoring.
