Product Description

Basic Specifications
Model NO.
EPFC
Sling Type
Chain
Lift Speed
2~8m/min
Max Lifting Height
3.7m
Chain Falls
1
Certification
CE, ISO9001:2000
Power Support
Hydraulic System
Battery Type
Lead Acid (Maintenance Free)
Moving Type
Electric Moving
Safety Valves
Anti Explosion Valve
Net Weight
680kg
Production Capacity
500set Per Month
Product Description

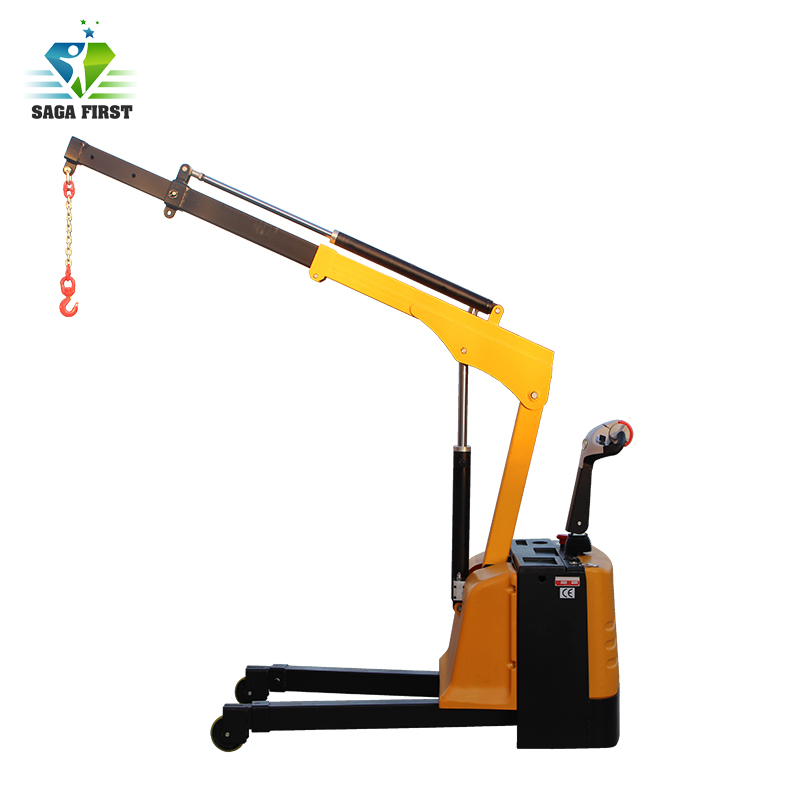

Fully Powered Mobile Small Lift Crane

OEM and ODM Service Available - Hot Sale Mini Portable Lifting Solution

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. The 24V DC drive and lift motor handle heavy-duty jobs with ease. Features an ergonomic handle with throttle for infinite speed adjustment, emergency reverse function, and an electromagnetic disc brake for safety.
Safety Precautions
  • Explosion-proof valves
  • Spillover valve
  • Emergency decline valve
  • Check valve
  • Adjustment valve
  • Gradienter
Model Type EPFC-25 EPFC-25-AA EPFC-CB-15
Capacity (Retracted)1000kg1000kg650kg
Capacity (Extended)250kg250kg150kg
Max Lifting Height2220/3310mm2260/3350mm2250/3340mm
Max Crane Extension813mm1220mm813mm
Net Weight500kg480kg770kg
Visual Display

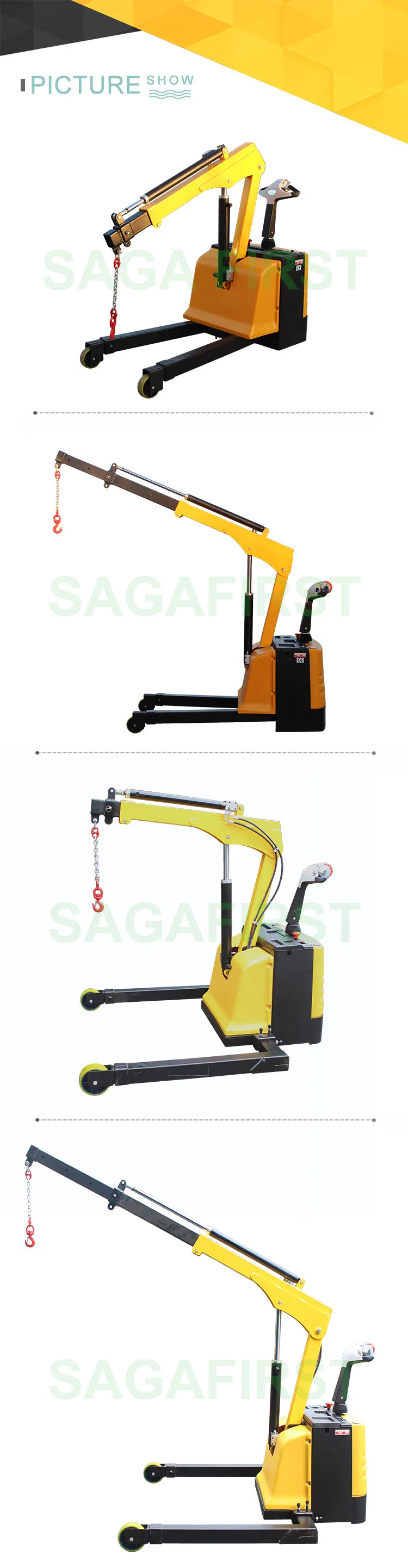

Lift Crane 1

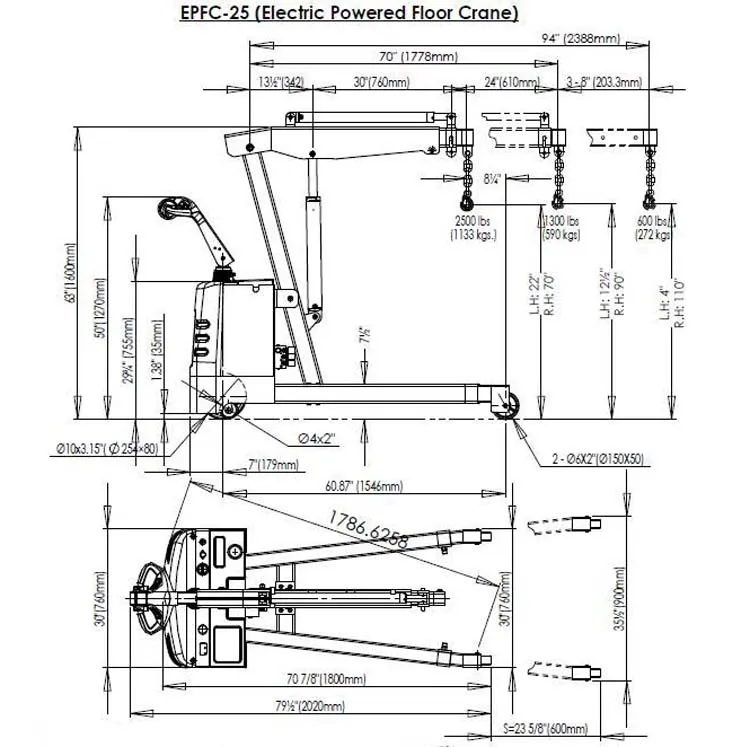

Lift Crane 2

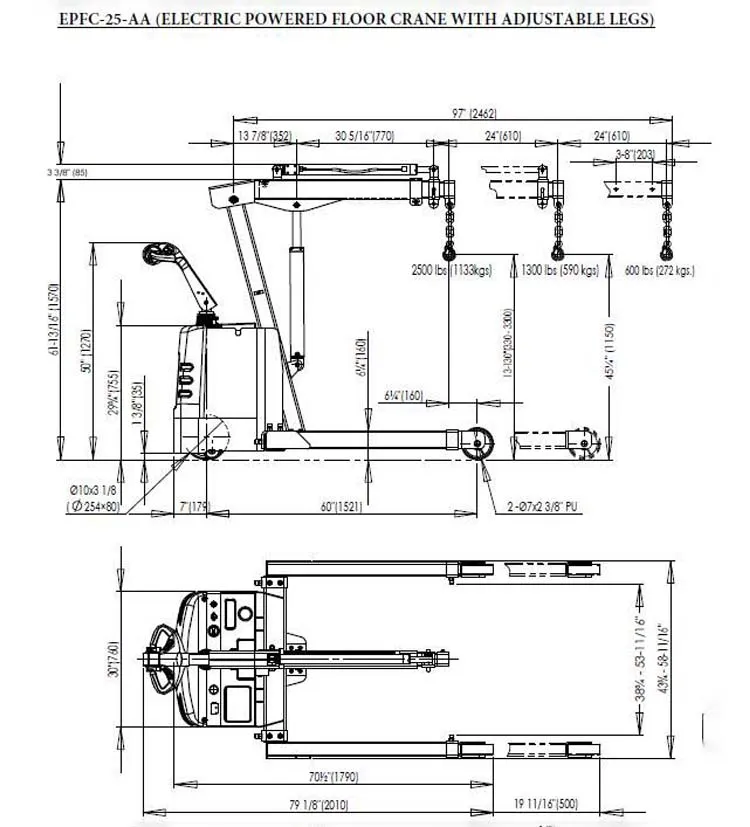

Lift Crane 3

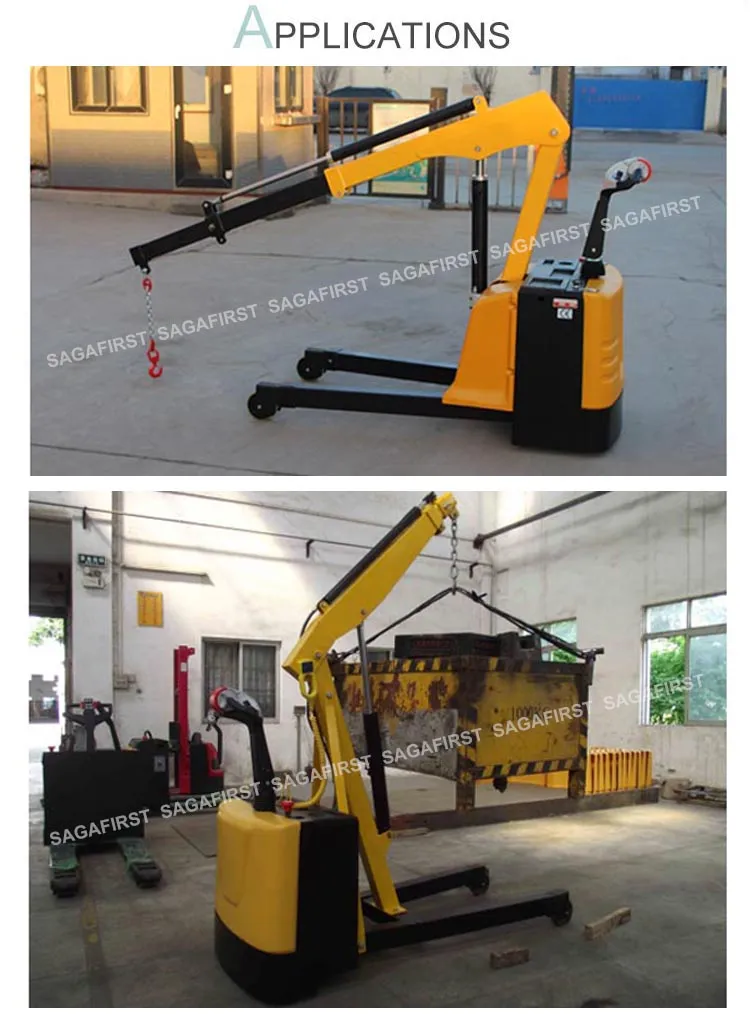

Lift Crane 4
Lift Crane 5
Our Service
  • Customized design based on specific lifting requirements.
  • Expert model recommendations following requirement analysis.
  • Global shipment arrangements from port to destination.
  • Comprehensive operation videos, manuals, and technical guidance.
  • Fast express delivery for replacement parts within 7 days.
Frequently Asked Questions
How can I purchase replacement parts?
The lift uses common hardware parts available in most local hardware markets or forklift parts shops. We can also provide them directly.
What is the quality guarantee period?
We provide a one to two-year quality guarantee depending on the model, offering free parts for replacement during this period.
Is OEM & ODM service available?
Yes, we offer full customization including lifting capacity, height, platform size, color, and manual branding.
What is the typical delivery time?
Standard delivery time is approximately 15 to 20 days after receiving the initial payment.
How do you handle repairs and maintenance?
Our equipment has a very low failure rate. If an issue occurs, we provide detailed video instructions and technical guidance for easy repair.
What are the payment terms?
We accept TT in advance for smaller orders, and 30% deposit with balance before shipment or Irrevocable L/C for larger orders.
