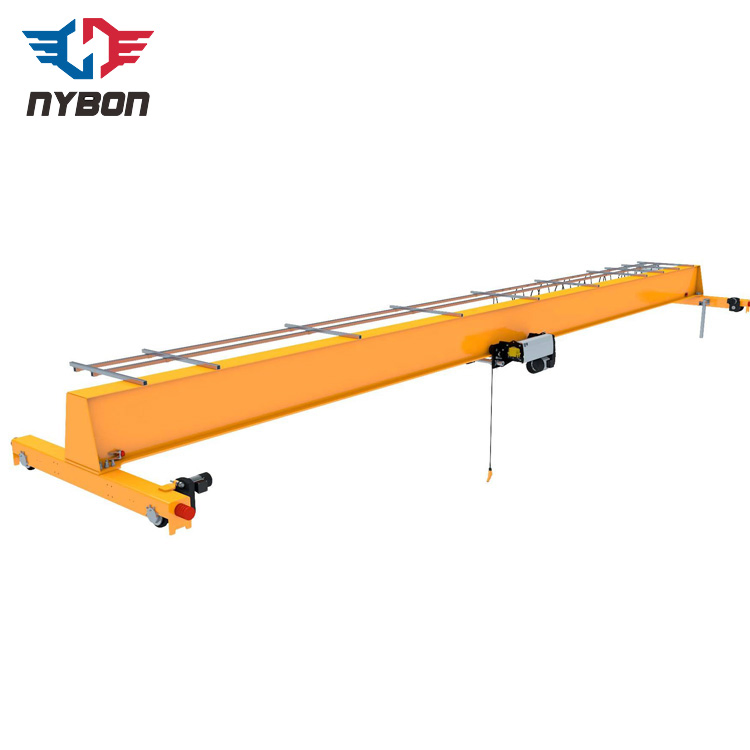

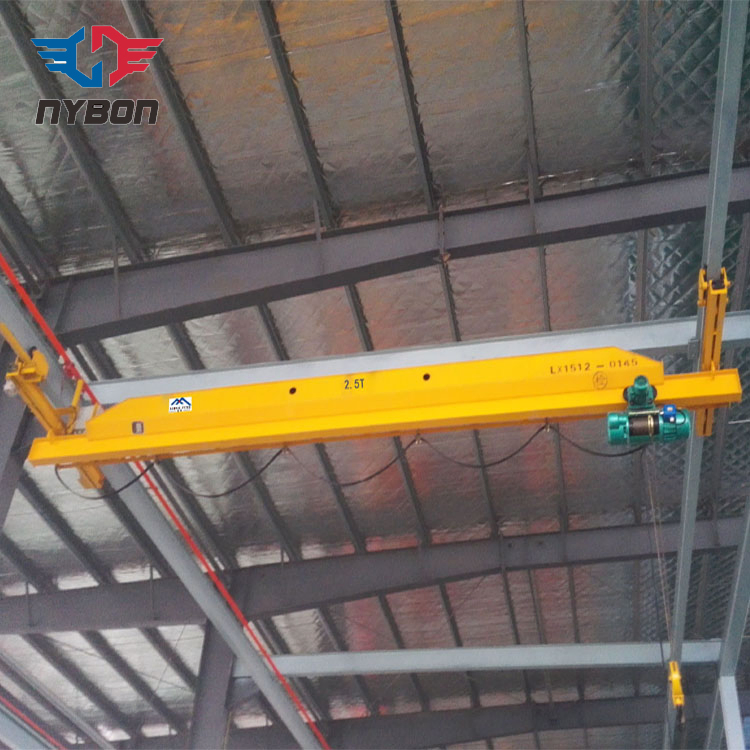

Light Duty Single Girder Overhead Bridge Crane to Lift Glass or Mould

Customization:	Available
After-sales Service:	Online Instruction/Engineers Available to Service
Warranty:	2 Year

i

Basic Information

Model NO.

LD

Certification

GS, RoHS, CE, ISO9001

Condition

New

Operation Form

Air Operation+Ground Operation

Max Lifting Height

25-30m

Max Lifting Weight

<20t

Main Girder Form

Single Girder

Power Supply

3pH AC

Lifting Speed

7-8m/Min

Working Class

A3-A5

Lifting Mechanism

Wire Rope Hoist

Specification

5Ton/10 Ton/16 Ton/20 Ton/32Ton

★

Product Description

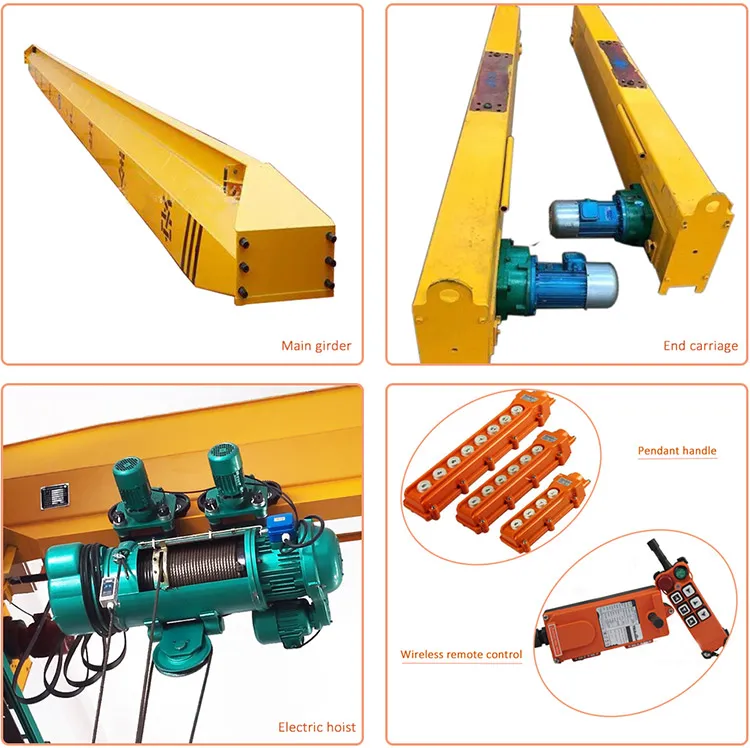

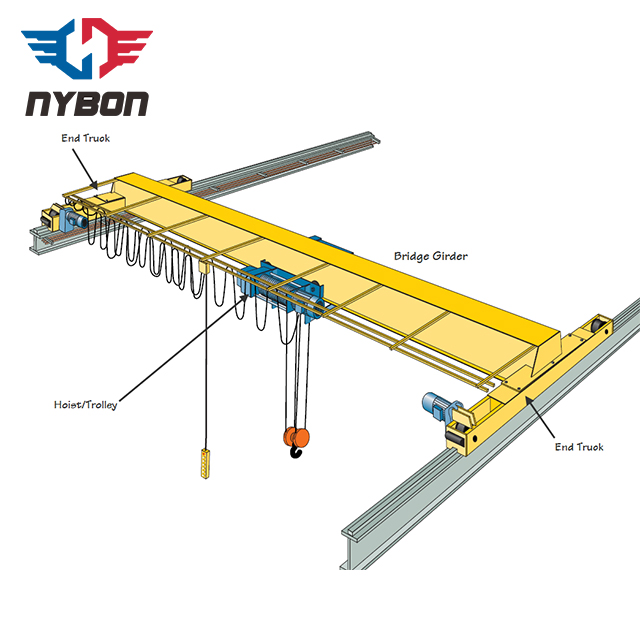

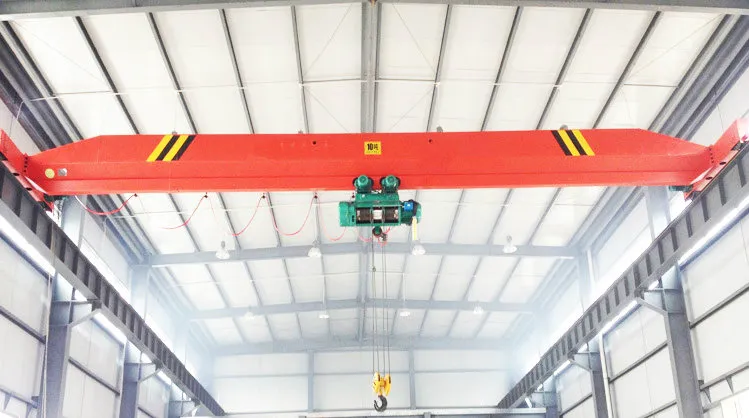

Single beam overhead crane consists of the main beam, end beam, electric hoist, travelling mechanism, hand controller, and electrical control system. The electric hoist can move horizontally on the rail fitted under a beam.

This type of crane features a light structure, is easy to install and maintain, and is typically used for manufacturing or maintenance applications where efficiency is critical, such as plants, warehouses, or material stocks.

Other Accessories: Equipments like air-conditioning, buzzer, and interphone can be configured according to client requests. The travelling motor can be a standard motor, soft start motor, or work with a frequency controller to meet different speed requirements.

✔

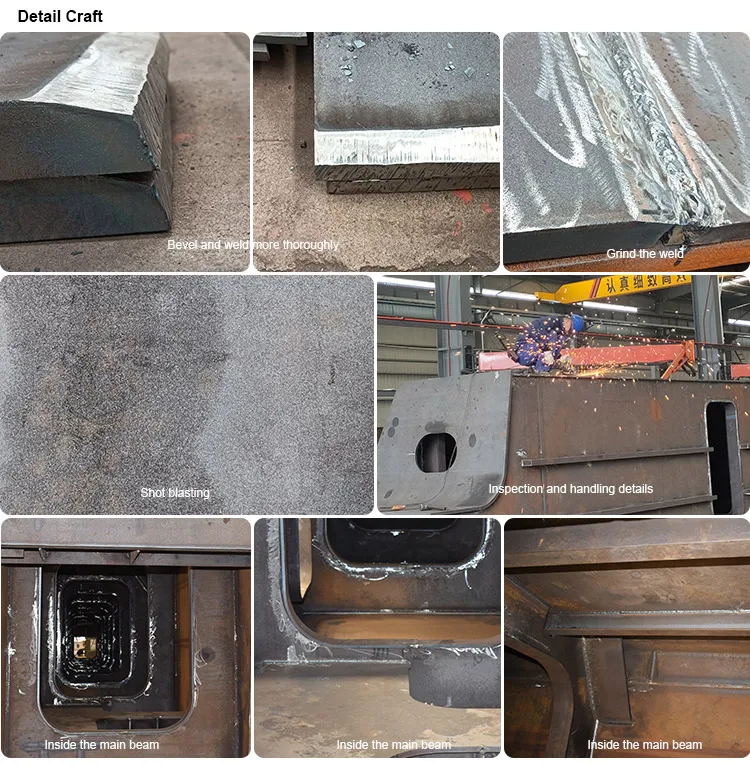

Product Features

Lightweight structure, excellent performance, advanced design concept.
Made of high quality steel, durable and corrosion resistant.
Complete standard configuration, stable running, fast positioning.
Simple maintenance, low installation costs, and long service life.

⚙

Main Technical Parameters

Item	Unit	Parameters 1	Parameters 2
Capacity	t	1, 2, 3, 5, 10	16, 20
Span	m	7.5 - 22.5
Lifting Height	m	6, 9, 12, 18, 24, 30	12, 18, 24, 30
Lifting Speed	m/min	8, 8/0.8, 7/0.7	3.5, 3.5/0.35
Cross Travel Speed	m/min	20, 30	20, 30
Long Travel Speed	m/min	20, 30, 45, 60, 75
Electric Hoist Type	-	CD / MD	CD / MD / HC
Working Duty	-	A3	A3
