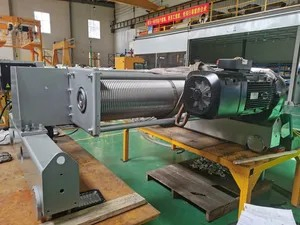

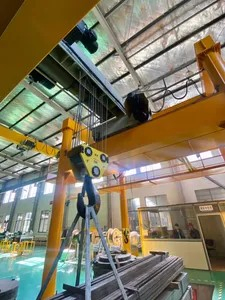

M5 Working Duty Double Girder European Type Wire Rope Hoist for Double Beam Overhead and End Carriage

1 / 5

M5 Working Duty Double Girder European Type Wire Rope Hoist for Double Beam Overhead and End Carriage

Customization:	Available
After-sales Service:	Provided
Warranty:	Include

Send Inquiry

Product Description

Basic Information

Model NO.

KSSL

Application

Double Beam Crane, Gantry Crane, Bridge Crane

Type

Electric Hoist

Sling Type

Wire Rope

Lift Speed

>8m/min

Maximum Lifting Height

>20m

Certification

CE, ISO9001:2000, GS/EAC

Power Source

Electric

Material

Light Weight Cast Aluminum

Protection Class

IP54/55

Product Description

HIGH-EFFICIENCY EUROPEAN ELECTRIC WIRE ROPE HOIST

FEM STANDARD | VFD CONTROL

This European electric hoist is designed with a modular structure, offering high performance in a compact frame. It features low energy consumption, quiet operation (<80 dB), and precise positioning capabilities.

Core Advantages:

Modular Design: Interchangeable components meet diverse needs and reduce maintenance costs.

High Performance: Powerful driving force with compact dimensions for efficient space utilization.

Safety First: Imported high-tensile steel wire rope (≥160 N/mm²) and instant overload cutoff.

Precision Control: Dual-speed/frequency conversion enables positioning accuracy of ±10mm.

Maintenance Free: IP55 electromagnetic disc brake and lifetime lubrication gearbox.

Technical Specifications

Model	Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Hoist Motor (Kw)	Travel Speed (m/min)	Working Class (FEM/ISO)
LFT3.2D	3.2	6-18	5/0.8	3.2/0.45	20/5	2M/M5
LFT5D	5.0	6-18	5/0.8	6.1/1	20/5	2M/M5
LFT10D	10	6-18	5/0.8	9.5/1.5	20/5	2M/M5
LFT16D	16	6-18	4/0.6	16/2.6	20/5	2M/M5
LFT32D	32	6-18	3.3/0.8	20/5	20/5	2M/M5
LFT50D	50	6-18	0~3	38	20/5	2M/M5

Main Product Features

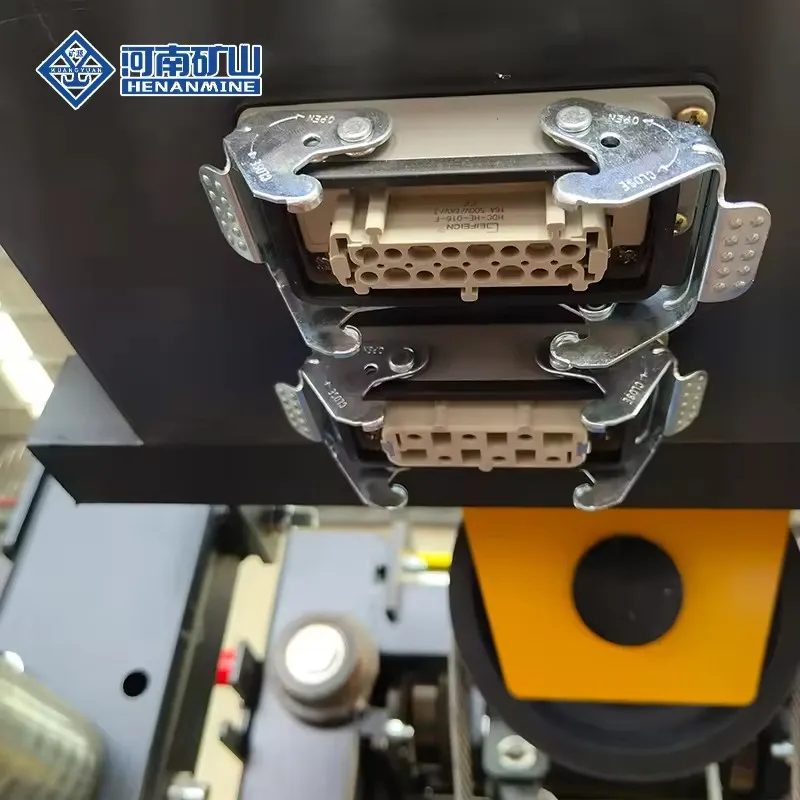

High Efficiency Lifting Motor

Ip55 protecting level, F level insulation
Double speed motor with 6:1 ratio
Aluminum alloy shell for superior heat dissipation
Maintenance-free gearbox design
DC brake with over one million operations

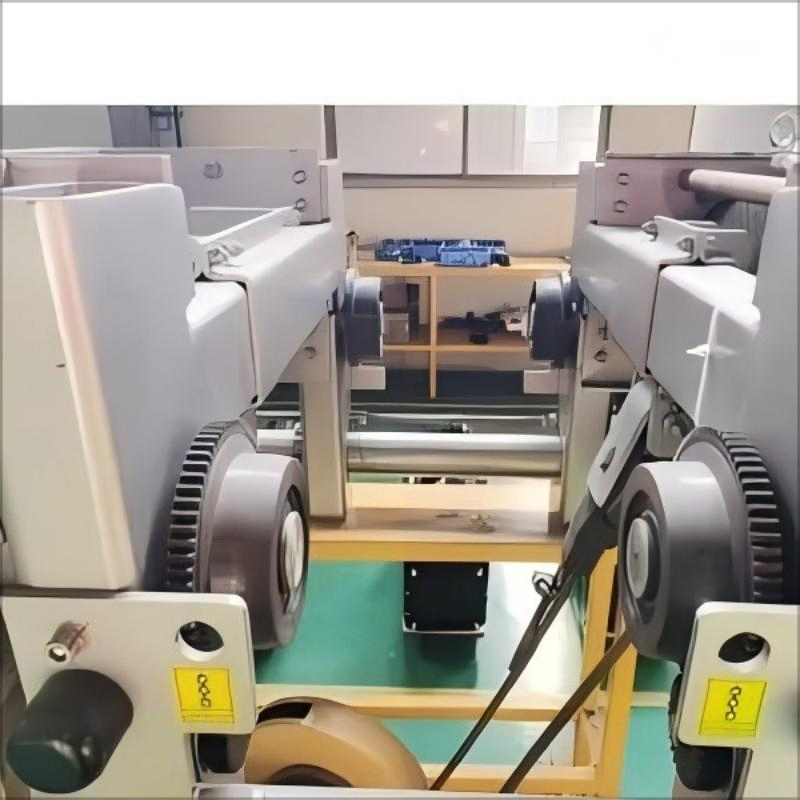

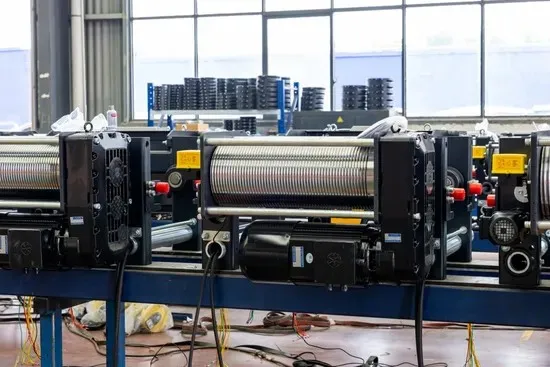

Three-in-One Traveling Motor

Motor, gearbox, and brake integrated into one unit
Direct drive flexible design for stable torque
30% higher efficiency than traditional couplings
Variable frequency control for smooth movement

High-Strength Wire Rope

2160N/mm² tensile strength galvanized rope
40% smaller diameter than traditional ropes
Superior flexibility and extended service life
Special press rope block to prevent loosening

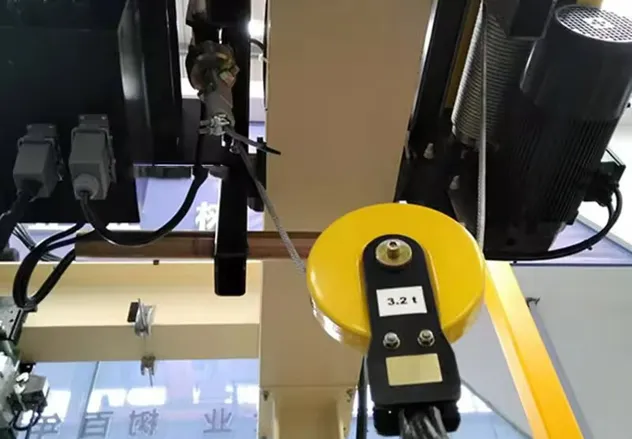

Forged Hook Assembly

DIN15400/15401 standard high-strength alloy steel
360° horizontal and 180° vertical rotation
Safety latch for secure load handling
High-finish pulley grooves to reduce rope friction

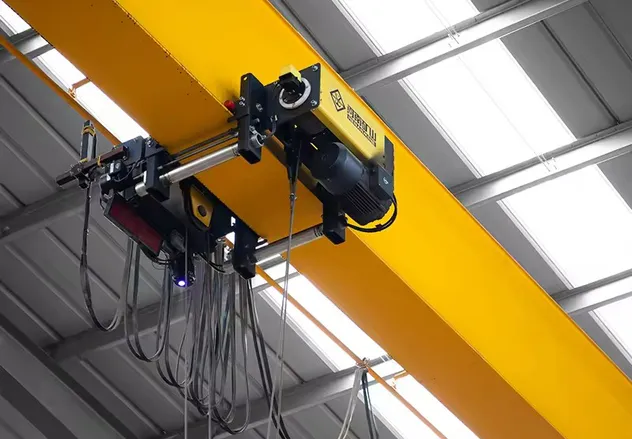

Core Applications

Our European Electric Hoist is trusted across global industries for its reliability and precision:

Manufacturing: Automotive lines, die casting, and assembly.

Logistics: Automated warehouses and distribution centers.

Energy: Wind turbine maintenance and petrochemical zones.

Construction: Steel structures and bridge infrastructure.

Professional Capability

Founded in 2002, the facility covers 1.62 million square meters with over 5,100 employees. Specializing in R&D, design, and production of over 210 types of cranes and hoists. As a professional supplier, we provide comprehensive lifting solutions across the full life cycle, ensuring high-quality and environmentally friendly development in the lifting industry.

Frequently Asked Questions

What information is needed for an inquiry?

Please provide lift capacity, span, lift height, power source, and the type of material the crane will handle for a precise quote.

What lifting solutions do you provide?

We design and manufacture overhead cranes, gantry cranes, port cranes, electric hoists, and winches tailored to customer requirements.

How do you handle installation?

Our senior engineers provide worldwide installation guidance and training to ensure your equipment is set up safely and efficiently.

Can your hoists work in hazardous environments?

Yes, we can customize equipment with acid-proof or explosion-proof features for specialized industrial environments.

Do you provide additional lifting tools?

Certainly. We offer various tools including lift sling belts, clamps, grabs, magnets, and other custom-engineered attachments.

What makes your hoists different?

Our hoists utilize European FEM standards, featuring a modular design, maintenance-free components, and high-precision frequency control.
