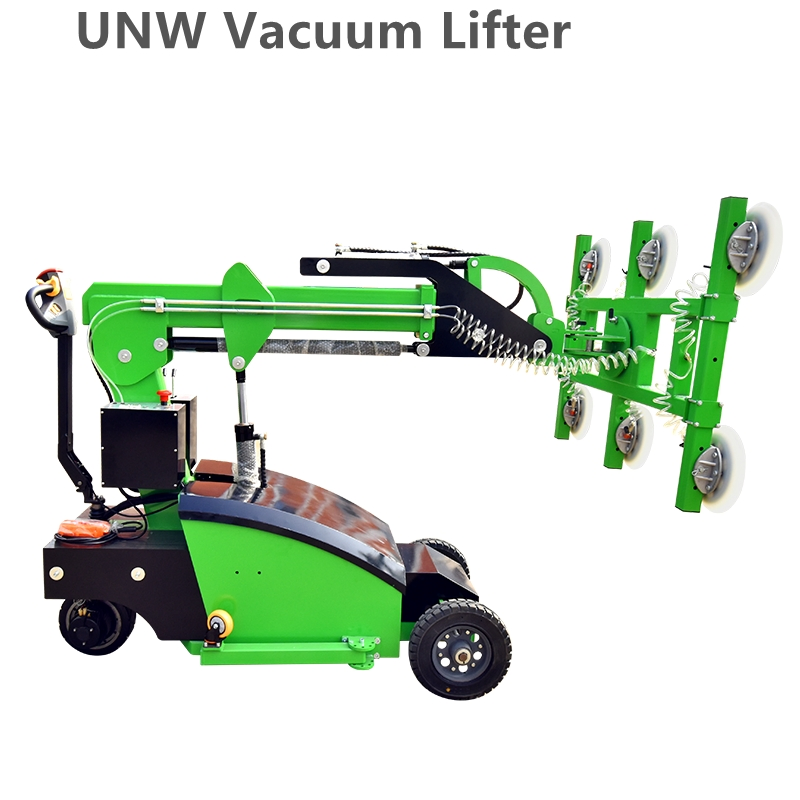

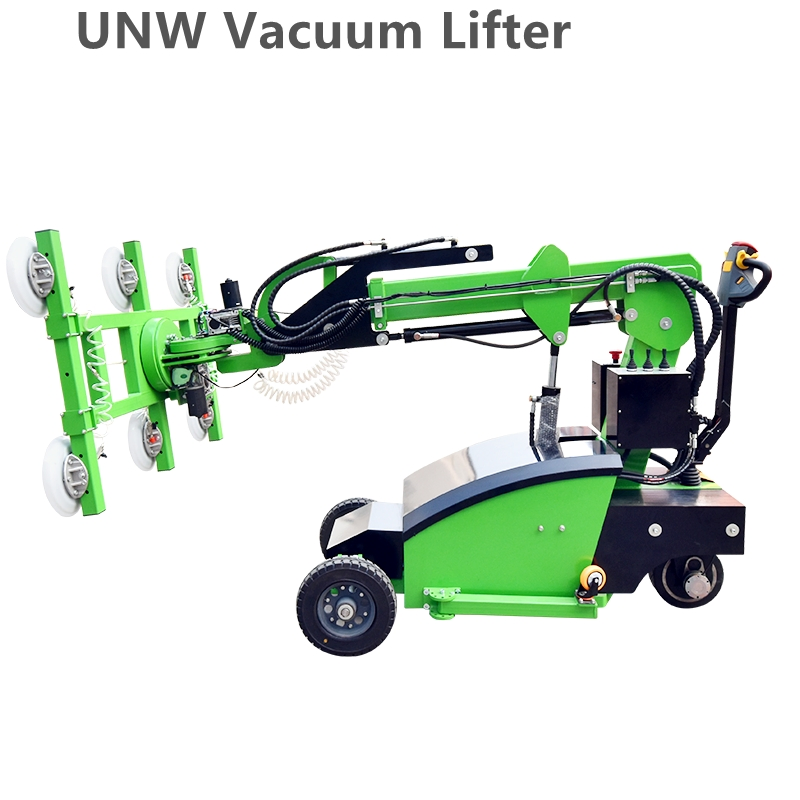

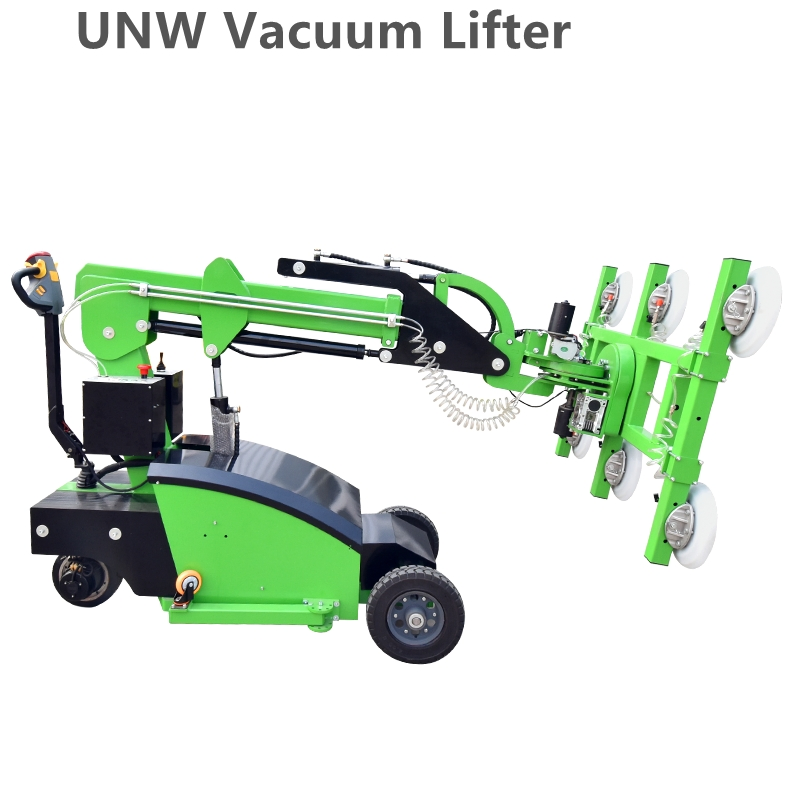

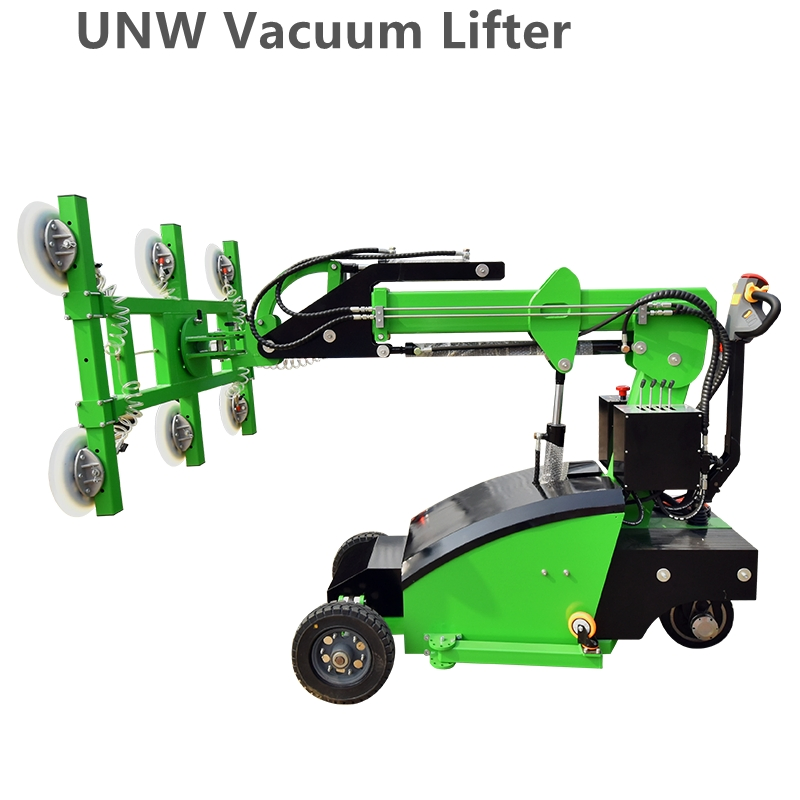

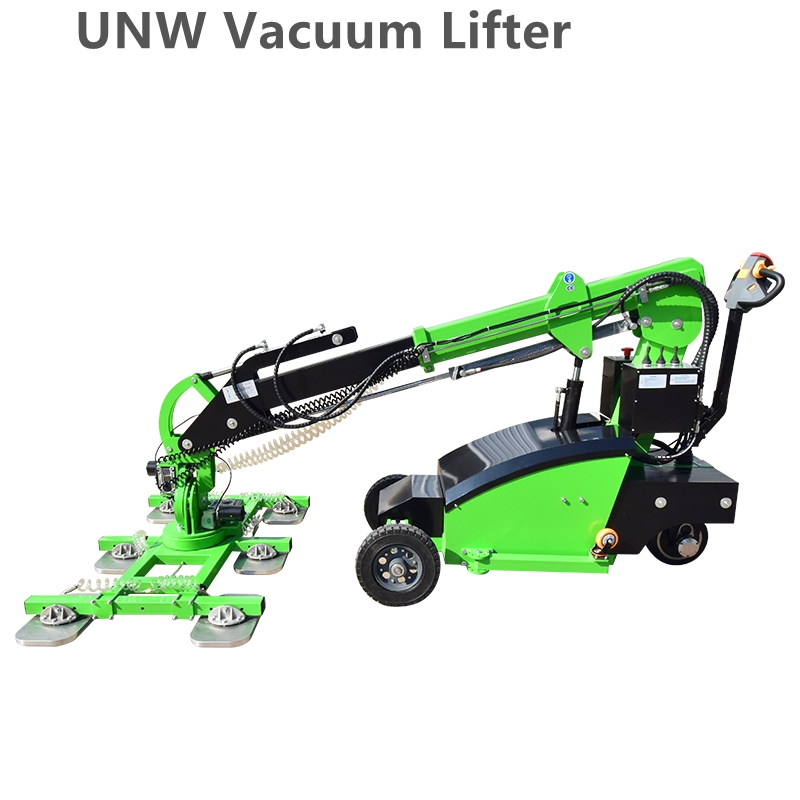

Full Electric Vacuum Glass Lift with Long Lifespan Maintenance-Free Battery

iBasic Information

Model

BGL-LD Series

Load Capacity

600kg - 800kg

System

Hydraulic

Power Source

Maintenance-Free Battery (2X12V/120ah)

Movement

360° Rotation / 90° Tilt

Lifting Height

Up to 3880mm - 5000mm

Vacuum System

Dual Circuit with Check Valve

Application

Glass, Door, Window Installation

★Product Description

The LD Series Vacuum Lifter is a fast, safe, and convenient automatic equipment designed for industrial lifting. It utilizes vacuum adsorption principles with a high-performance vacuum pump to securely hold workpieces like glass and iron plates. The rotatable mechanical arm allows for precise transport and positioning.

Key Features & Advantages:

Integrated control system for vertical and horizontal positioning at the push of a button.
Reliable DC24V actuators for efficient lifting, extension, and tipping.
Automatic 180° vertical up/down pad frame movement.
100mm automatic lateral side shift for fine adjustments.
Self-propelling design with smart driving handle (forward/back, horn, belly switch).

⚙Product Parameters

Model Type	BGL-LD-300	BGL-LD-400	BGL-LD-600	BGL-LD-800
Load Capacity	300kg	400kg	600kg	800kg
Max Lifting Height	3880mm	3880mm	3880mm	5000mm
Suction Cups QTY	4 pcs	4 pcs	6 pcs	8 pcs
Battery	2x12V/100AH	2x12V/100AH	2x12V/120AH	2x12V/120AH
Driving Motor	24V/600W	24V/600W	24V/1200W	24V/1200W

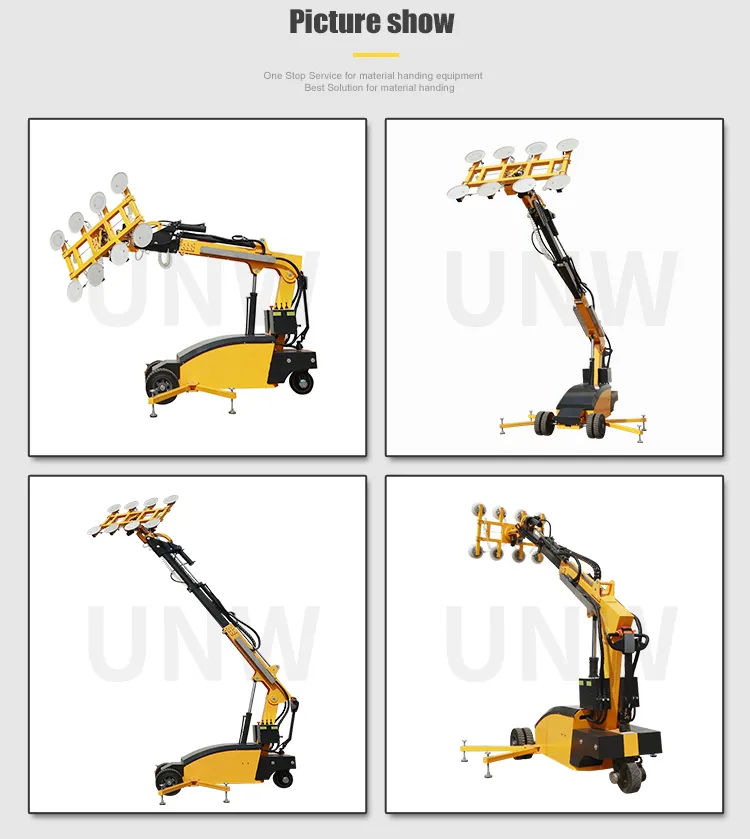

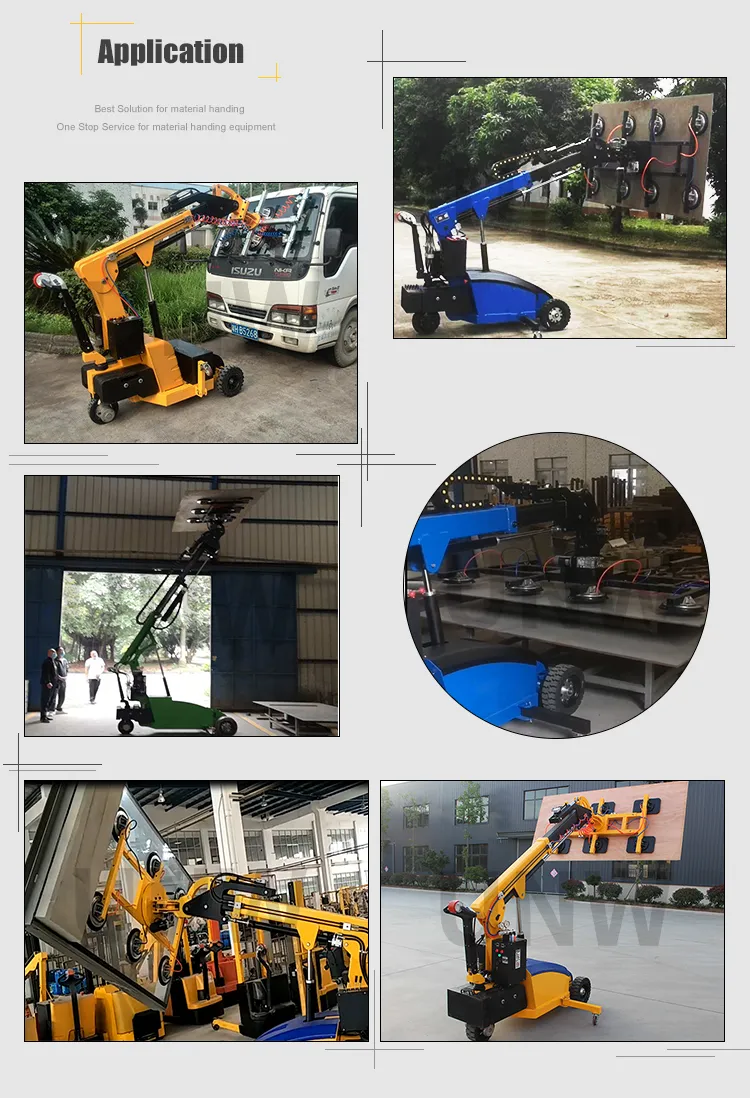

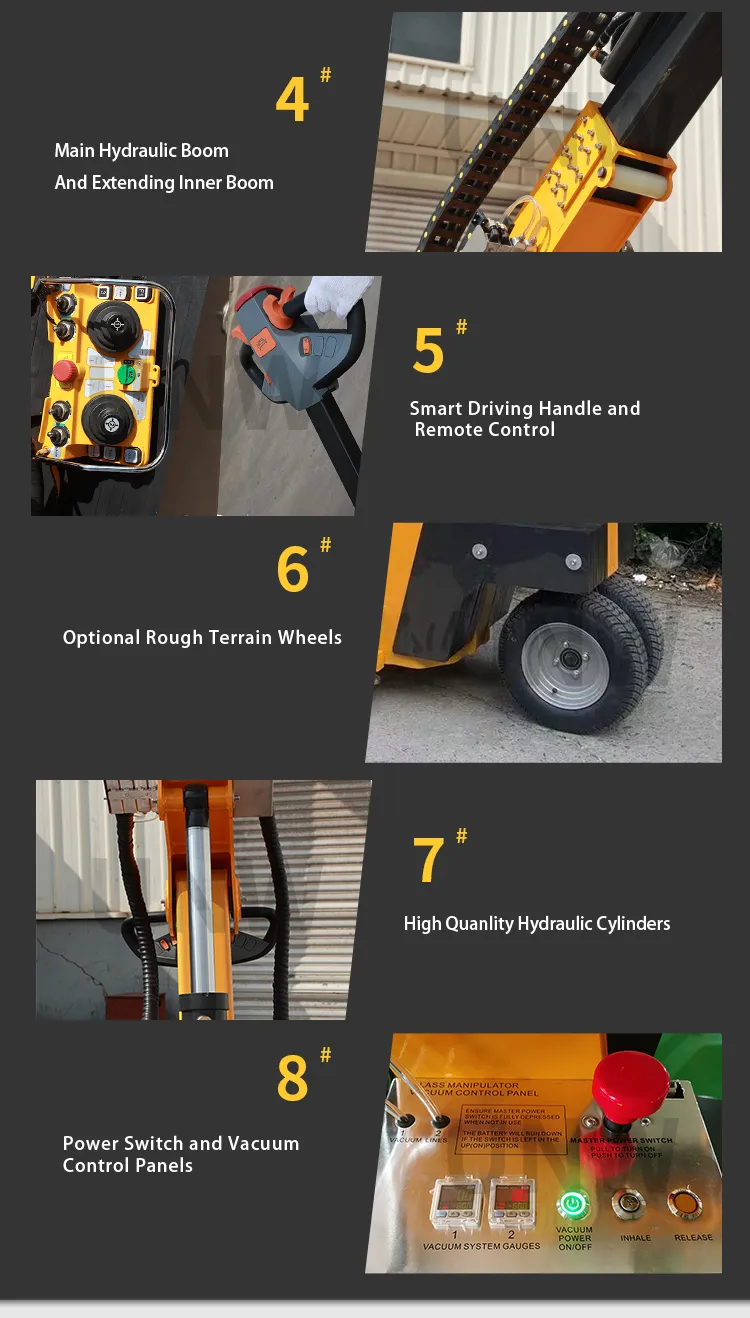

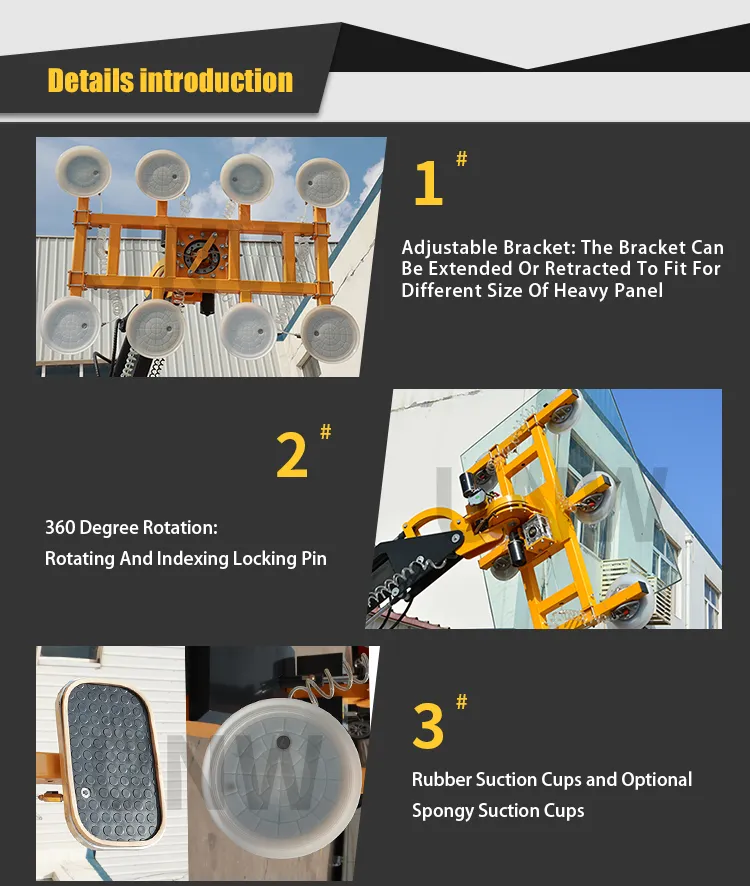

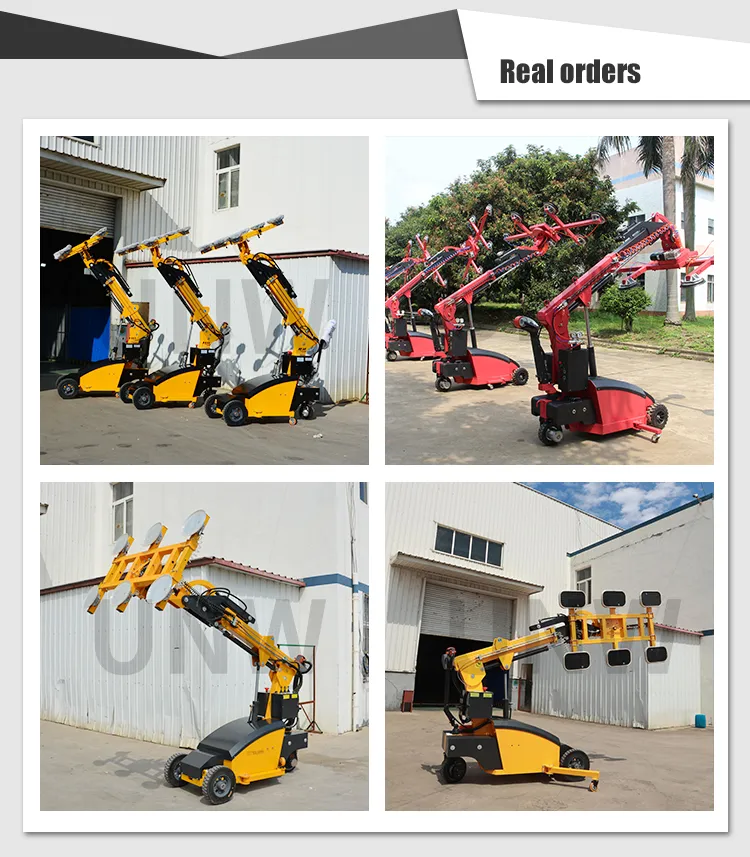

📷Detailed Photos & Real Application

✔Service & Reliability

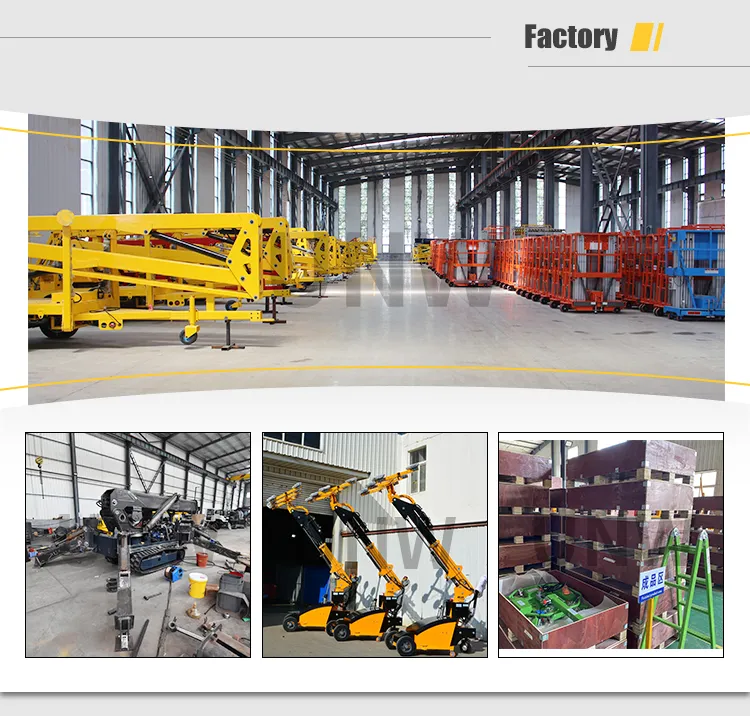

With over 10 years of experience in hydraulic lifting and aerial work platforms, we specialize in intelligent glazing robots and vacuum lifters for glass, sandwich panels, and metal sheets. Our equipment carries CE, ROHS, SGS, and ISO certifications.

After-Sales Support:

Free spare parts provided within the quality warranty period.
Comprehensive user manuals provided with every unit.
Lifetime technical support.
24-hour online and telephone service availability.

?FAQ

How can I purchase replacement parts?

The equipment uses standard hardware and hydraulic parts. You can purchase them at local hardware markets or specialized forklift parts shops.

How do I handle repairs if a fault occurs?

The equipment has a very low failure rate. If an issue arises, we provide detailed video guides and technical instructions to assist your maintenance team.

What is the warranty period?

We offer a one-year quality guarantee. During this period, any necessary replacement parts are provided free of charge.

Can this machine handle materials other than glass?

Yes. By replacing the standard rubber cups with sponge suction cups, the machine can handle wood, cement, and textured iron plates.

Is the battery easy to maintain?

The unit is equipped with maintenance-free batteries (2x12V/120ah) and a smart charger, requiring minimal upkeep.

Is it suitable for outdoor installation?

Yes, it is widely used for installing windows and doors on construction sites thanks to its self-propelling capability.
