China Superior Low Price Portable 1000kg Load Mobile Vacuum Lift

1 / 5

China Superior Low Price Portable 1000kg Load Mobile Vacuum Lift

Customization:	Available
Glass Suction Cups Size:	200*1000mm
Sucker Diameters:	200mm

Send Inquiry

Product Description

Basic Info.

Model NO.

VLNE1200

Sucker Number

Power System

380V/DC12V

Lifter Remote Control

Electric/Manual

Safety Loading Capacity

800kg

Maximum Safety Factor

3 times

Dead Load

180kg

Lifter Charge

AC220V

Suction Cups Function

Flip 90 Degree, Rotate 360 Degree

Certification

ISO, CE

Drive Mode

Electric

Condition

New

Application

Load, Glass Factory, Copper Plate Factory

After-sales Service

Solution within 6 Hours

Warranty

1 Year

Control Mode

Electric/Manual

Transport Package

Wooden Package

Production Capacity

5000sets/Month

Product Description

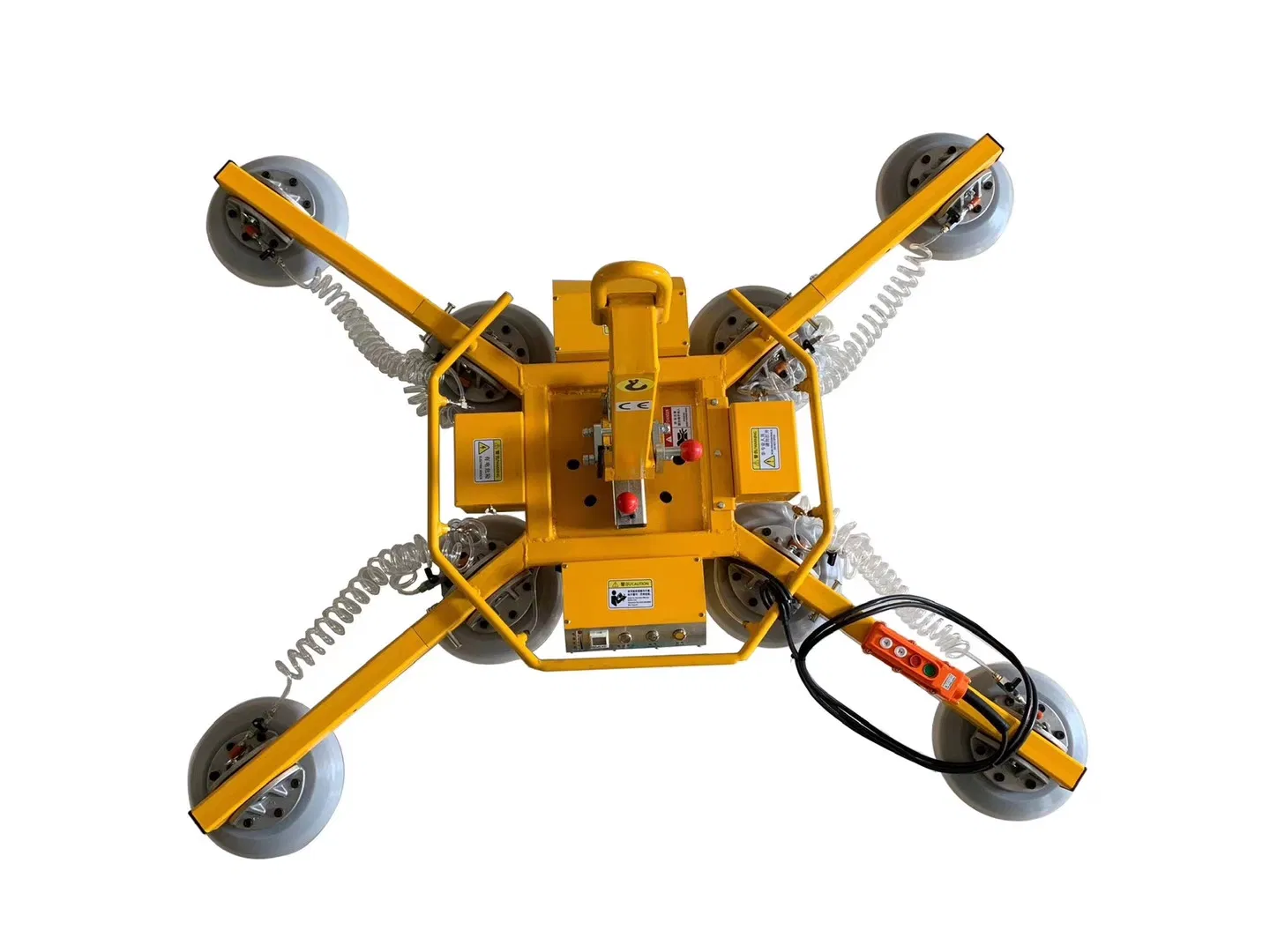

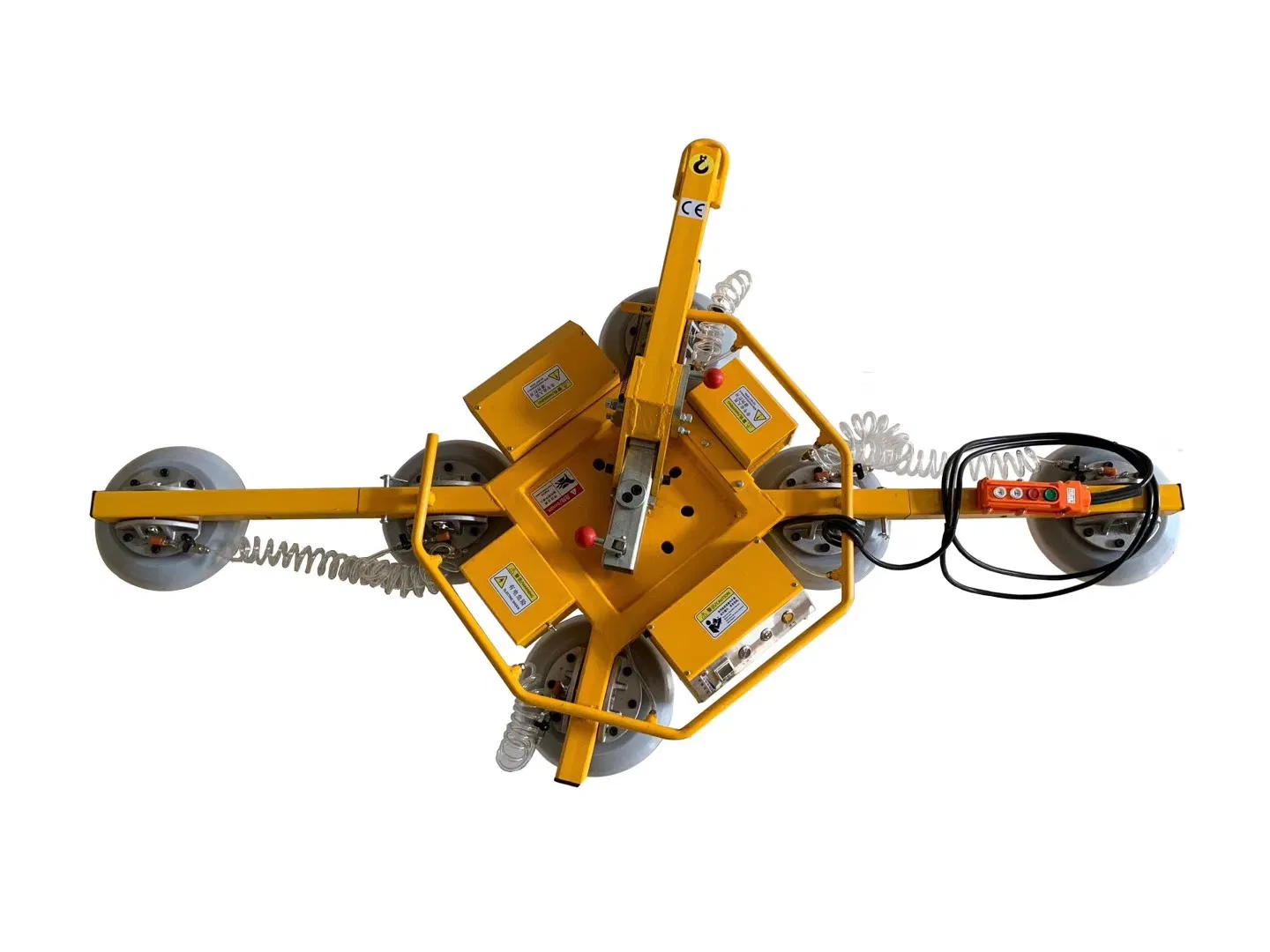

Superior Portable 1000kg Load Mobile Vacuum Lift

Working principle of vacuum lifter:

The vacuum chuck is connected to the vacuum equipment (such as vacuum pump) through the guide pipe, and then it contacts the workpiece to be lifted (such as glass, steel plate, etc.), starts the vacuum equipment suction, so as to generate negative pressure in the chuck, so that the workpiece to be lifted can be absorbed firmly, and then the workpiece to be lifted can be moved. When the workpiece reaches the destination, through the hand slide valve, the vacuum chuck pressure is released, completing the task.

Main parameters of glass vacuum lifter

Product & Model	Size	Sucker Diameter	Sucker Number	Power System	Control Model	Safety Loading	Dead Load
HN-NE400-6S	200*1000MM	200mm	6	380/DC12V	electric/manual	400kg	100kg
HN-NE600-8S	200*1000MM	200mm	8	380/DC12V	electric/manual	600kg	100kg
HN-NE800-10S	250*1000mm	200mm	10	380/DC12V	electric/manual	800kg	120kg
HN-NE1000-6S	200*1000mm	300mm	6	380/DC12V	electric/manual	1000kg	150kg
HN-NE1500-8S	200*1000mm	300mm	8	380/DC12V	electric/manual	1500kg	180kg
HN-NE2000-10S	250*1000mm	300mm	10	380/DC12V	electric/manual	2000kg	250kg

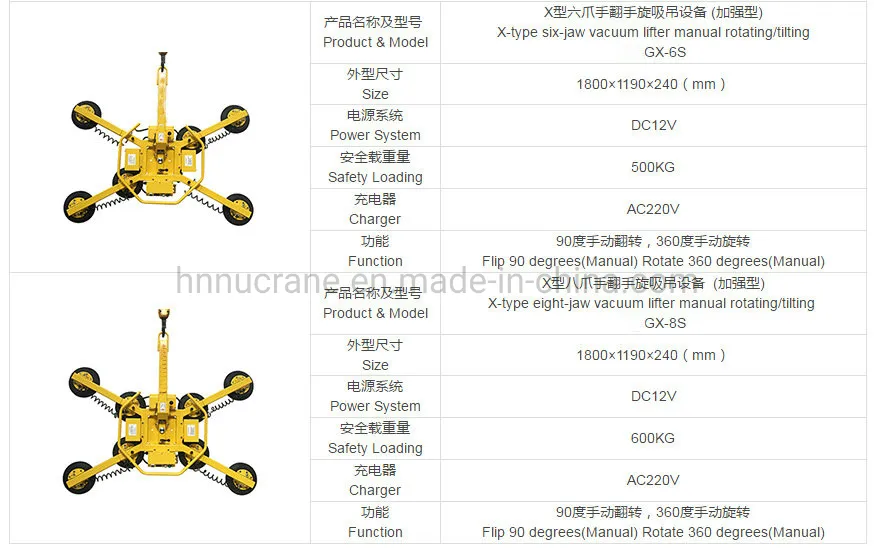

Selection of vacuum spreader

Workpiece Quality: Determines the size and number of suction cups needed.
Shape & Surface: Select the specific type of chuck suitable for the surface state.
Environment: Working temperature determines the suction cup material.
Surface Height: Determines the necessary buffer distance for safe operation.
Connection Mode: Options include suction cup seat, rod, spring, and sliding sleeve.

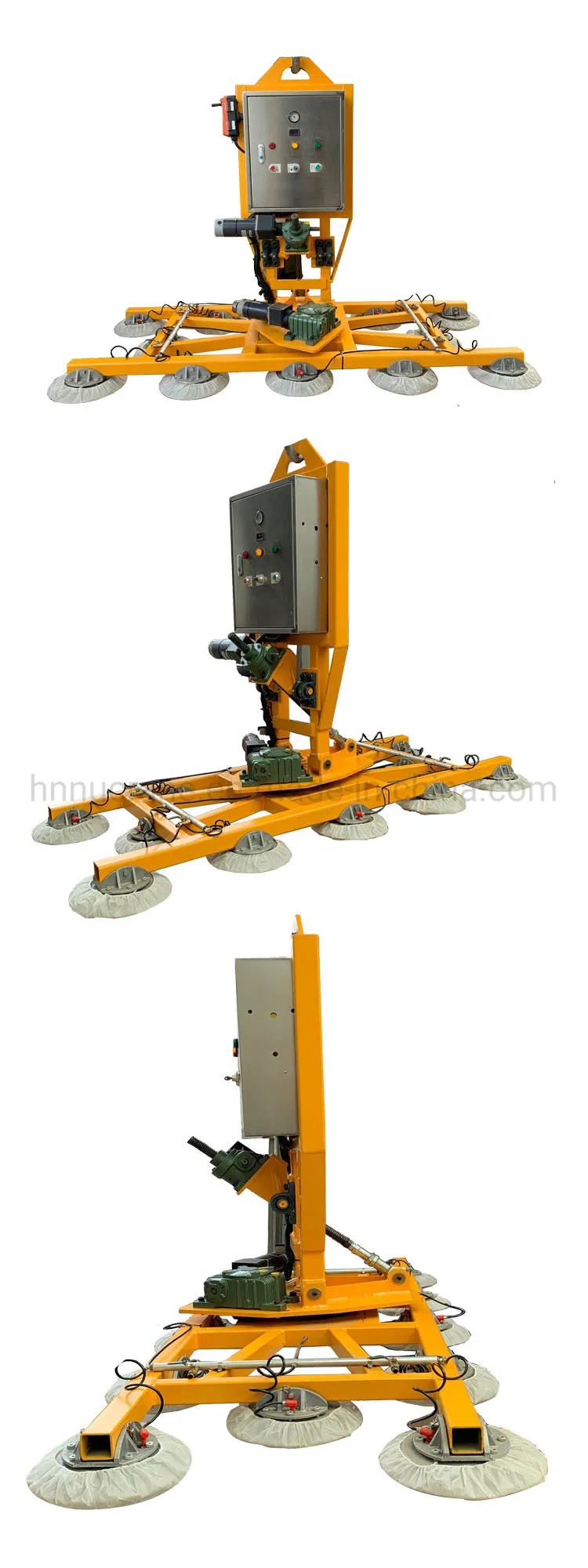

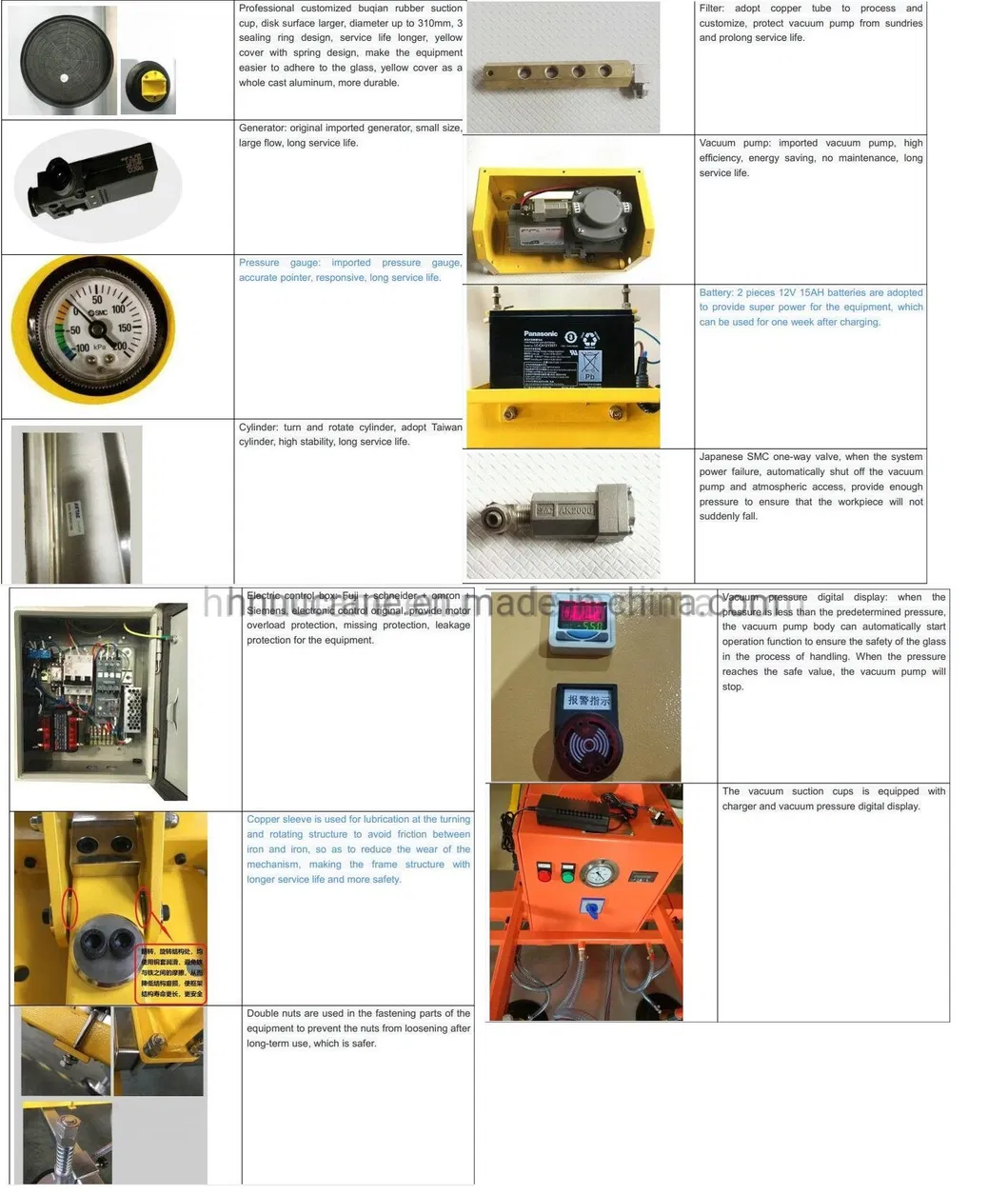

Detail parts of glass vacuum lifter

Key Advantages

Save time, labor, and cost; Easy to use, small and light for single operator use. Features non-destructive moving parts and imported oil-free vacuum pumps. Ergonomic design includes sound and light alarm systems and energy storage for high safety and long service life.

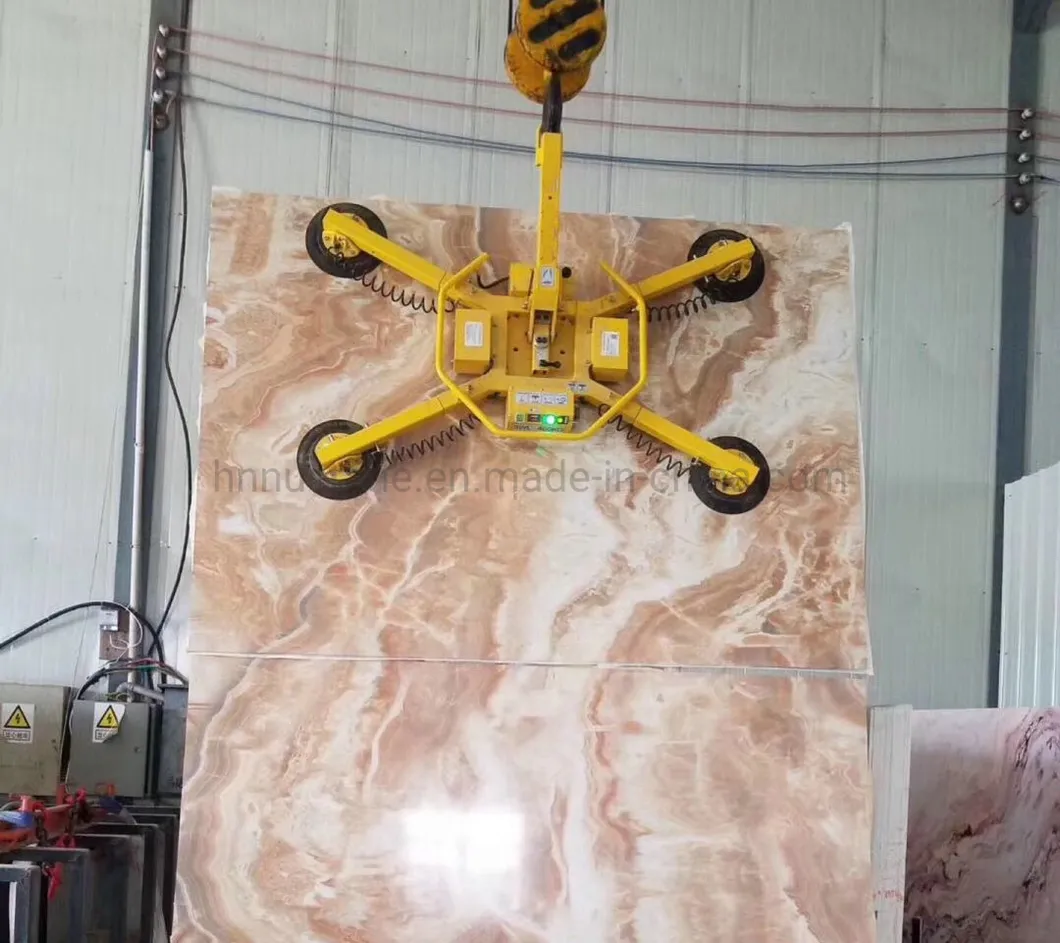

Wide Applications

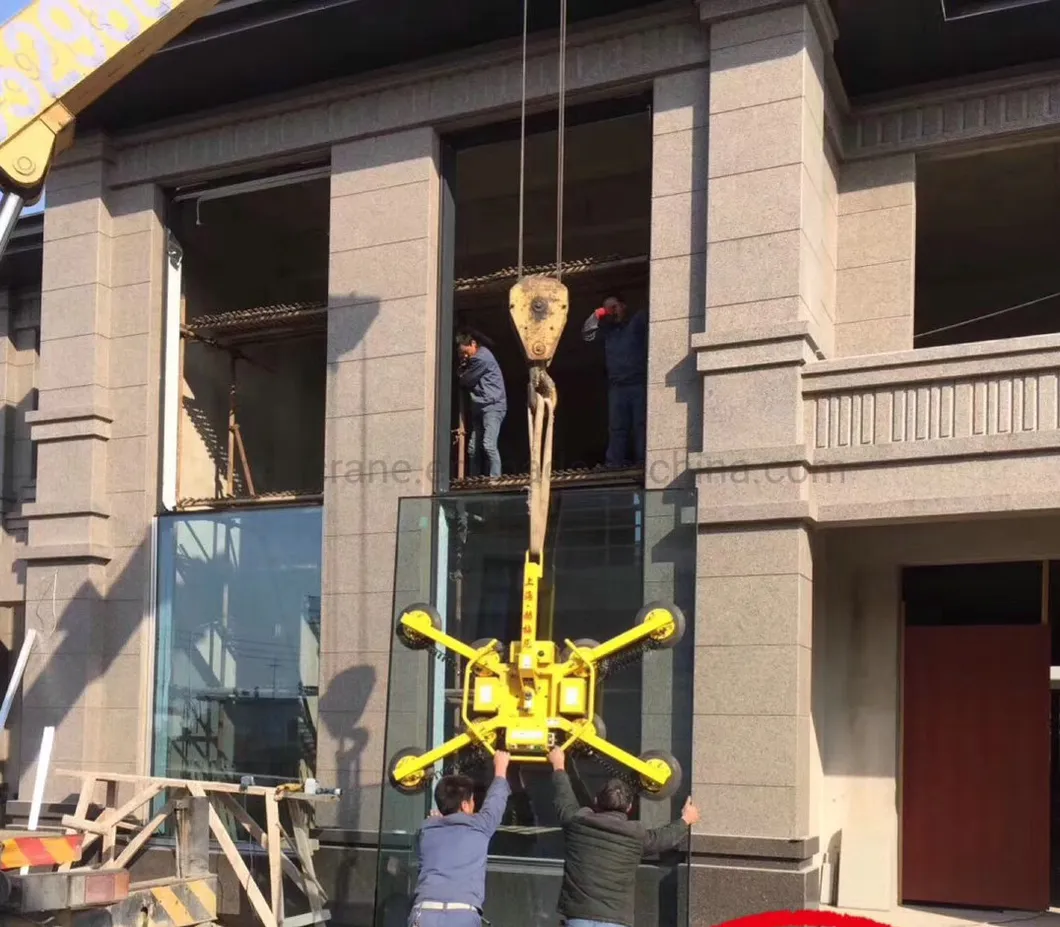

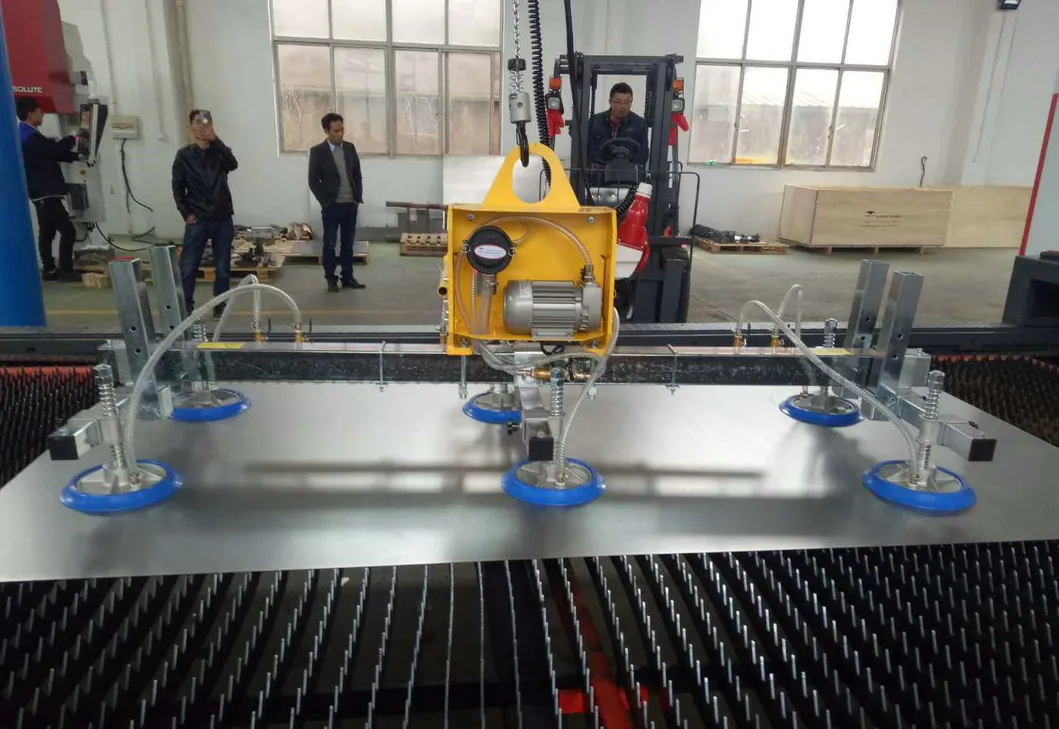

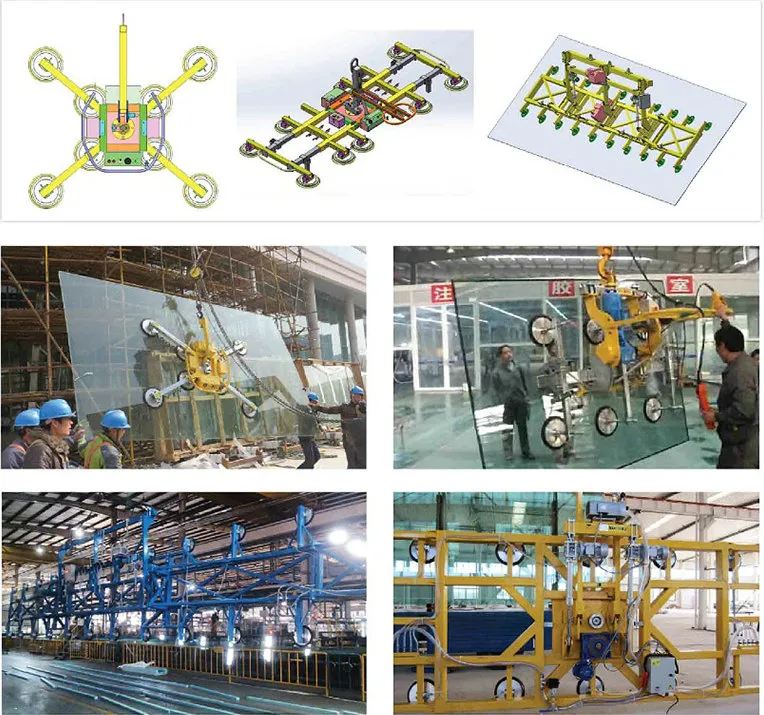

Ideal for glass processing, loading/unloading, curtain walls, plastic plates, sandwich/composite plates, steel, aluminum, copper, and stone. Suitable for any workpiece with a smooth, compact surface and regular shape.

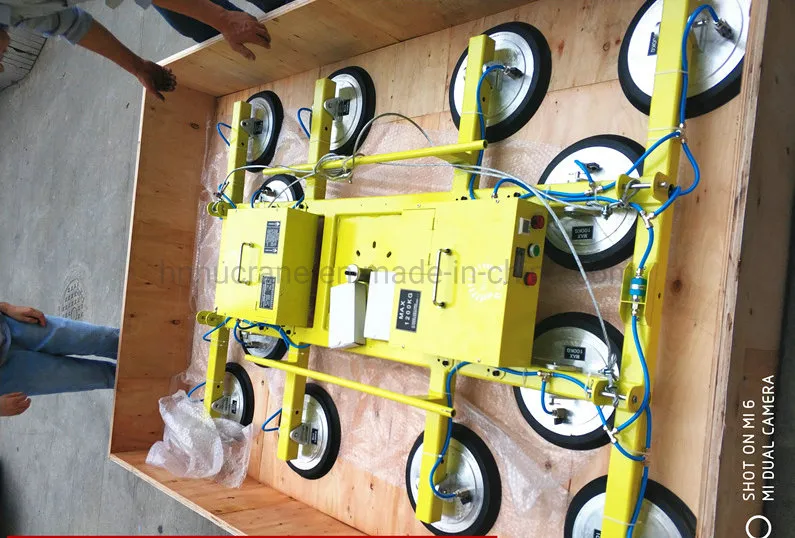

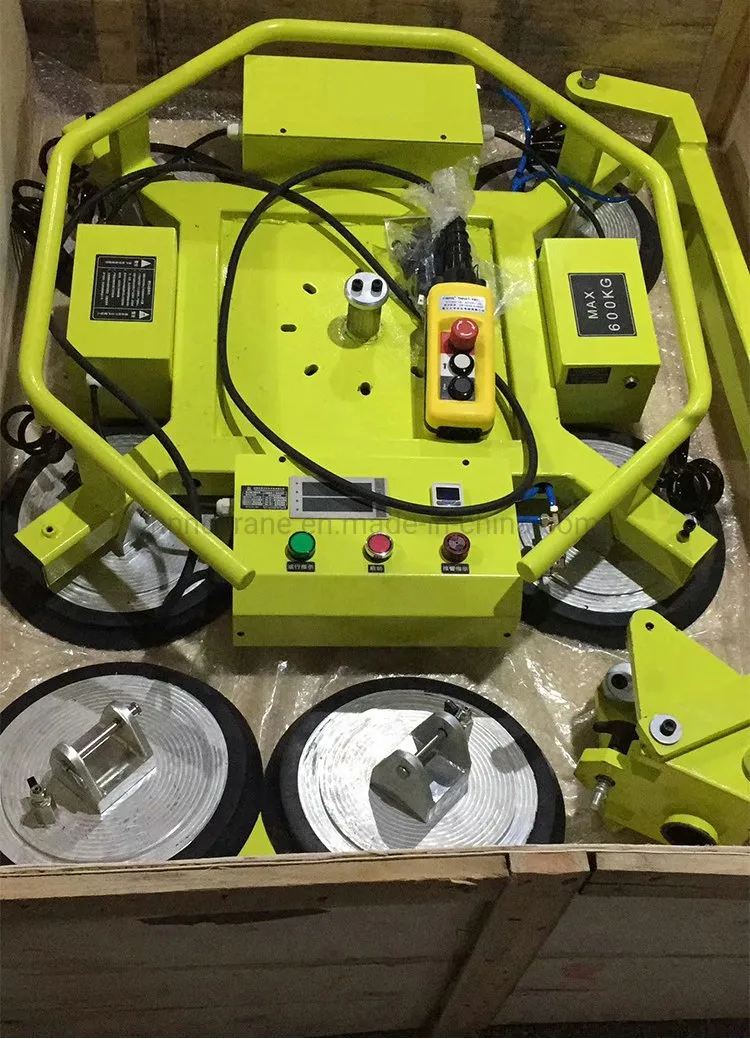

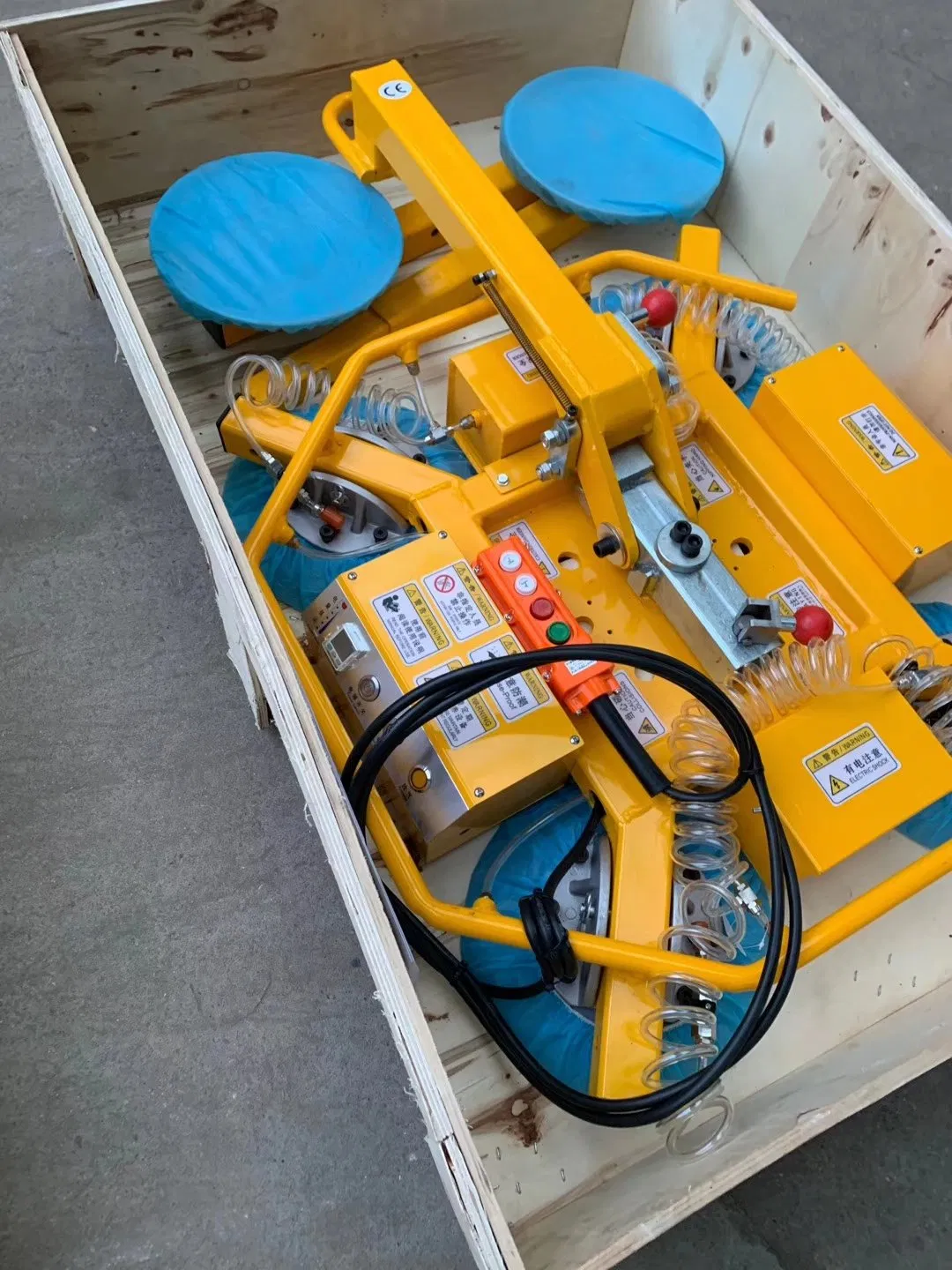

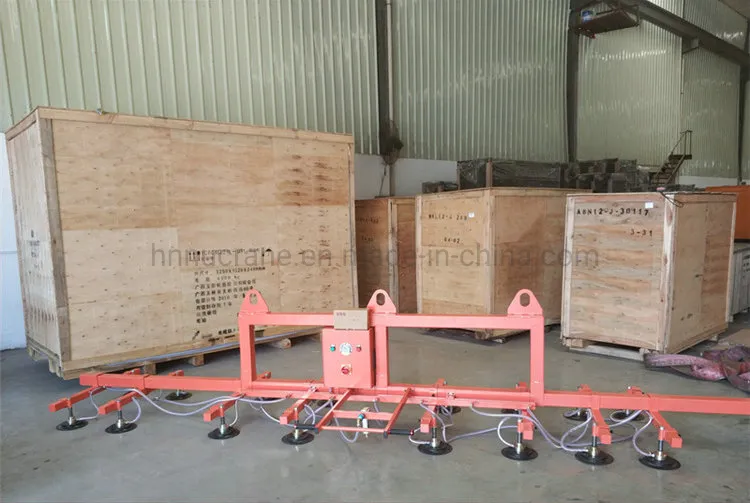

Packaging & Delivery

Frequently Asked Questions

What is the maximum loading capacity?

The system is designed for various scales, with the HN-NE2000-10S model supporting a maximum safety load of up to 2000kg.

Does the vacuum lifter require an external power supply during operation?

The system utilizes a DC12V power system with a rechargeable battery and an imported oil-free vacuum pump, making it portable and flexible for mobile use.

What safety features are included?

It includes a sound and light alarm system, an energy storage device to maintain suction during power failure, and a safety factor of 3 times the rated load.

Can the suction cups be adjusted?

Yes, the suction cups feature a flip 90-degree and rotate 360-degree function to handle workpieces in different orientations.

What materials can be lifted with this equipment?

It is suitable for materials with smooth and compact surfaces, such as glass, steel plates, aluminum plates, copper plates, stones, and composite panels.

How long is the warranty period?

We provide a 1-year warranty on the vacuum lifter along with technical solutions within 6 hours.
