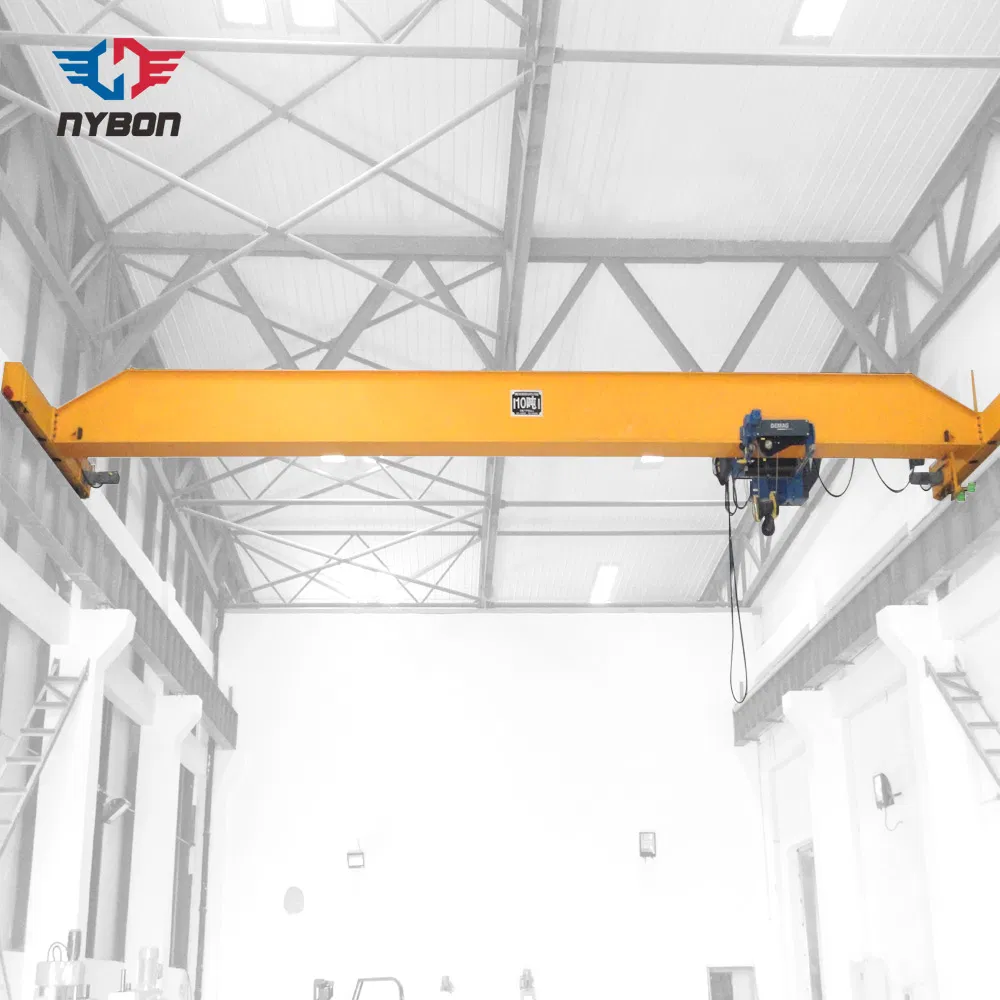

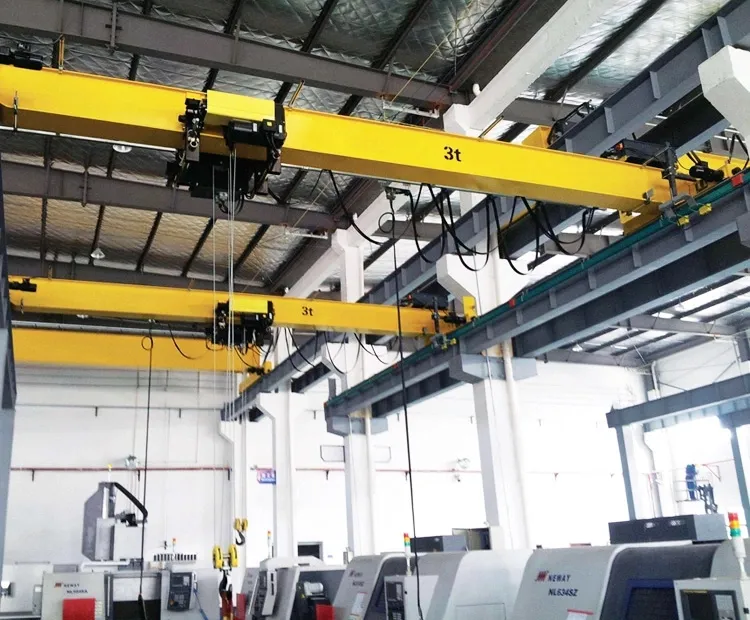

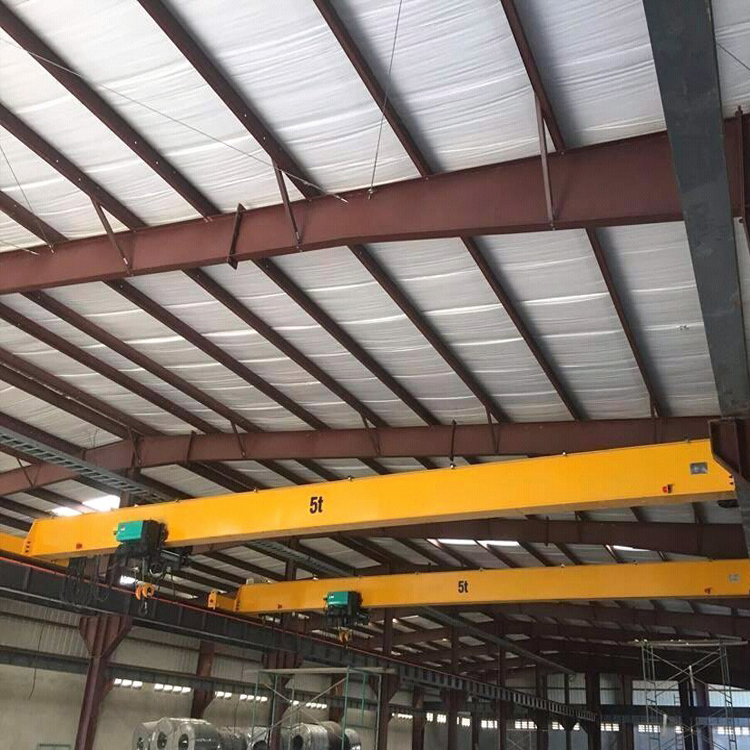

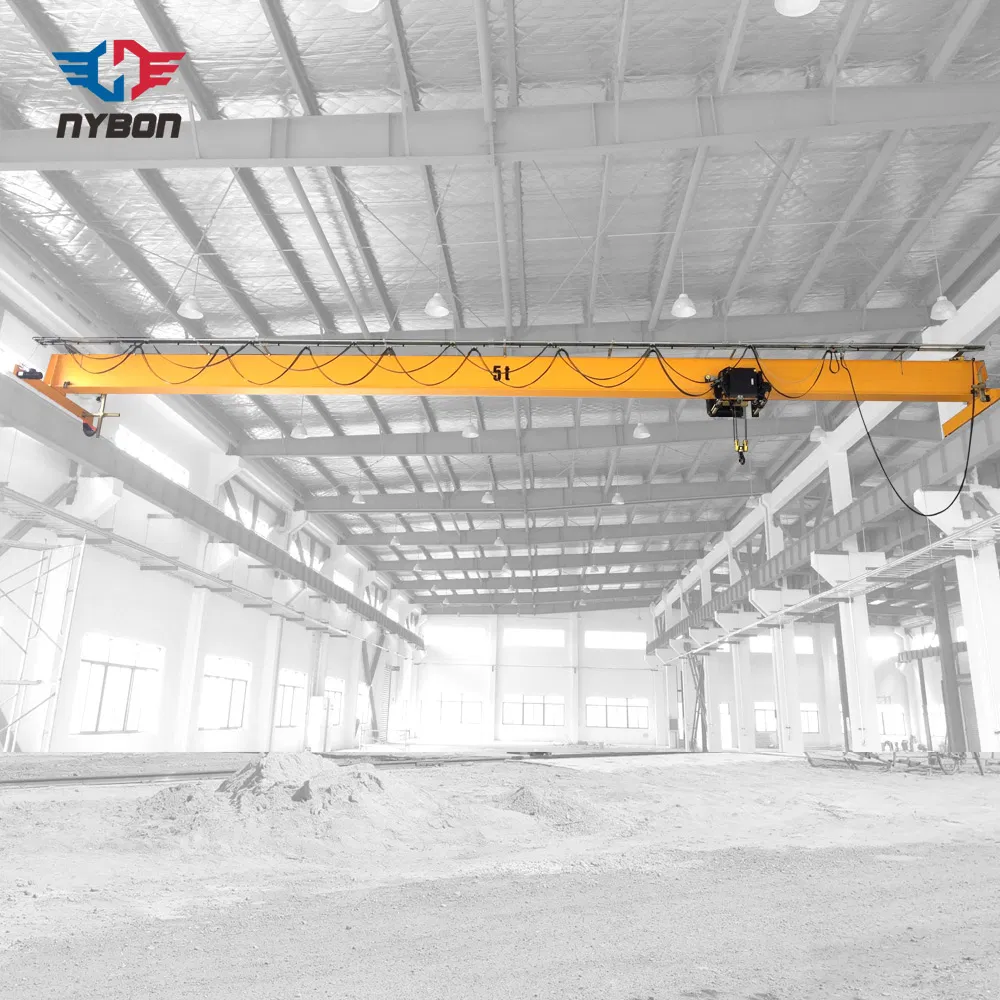

The Metal Workshop Single Girder Electric Travelling Overhead Crane is designed according to FEM standards, featuring a European standard wire rope electric hoist. This crane offers advantages such as light weight, small volume, low operation and maintenance costs, and high performance.

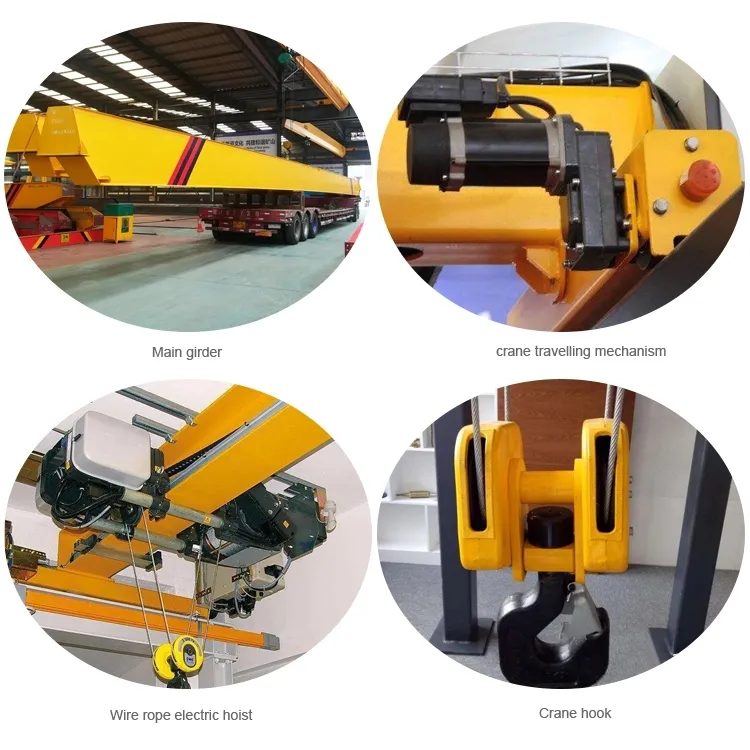

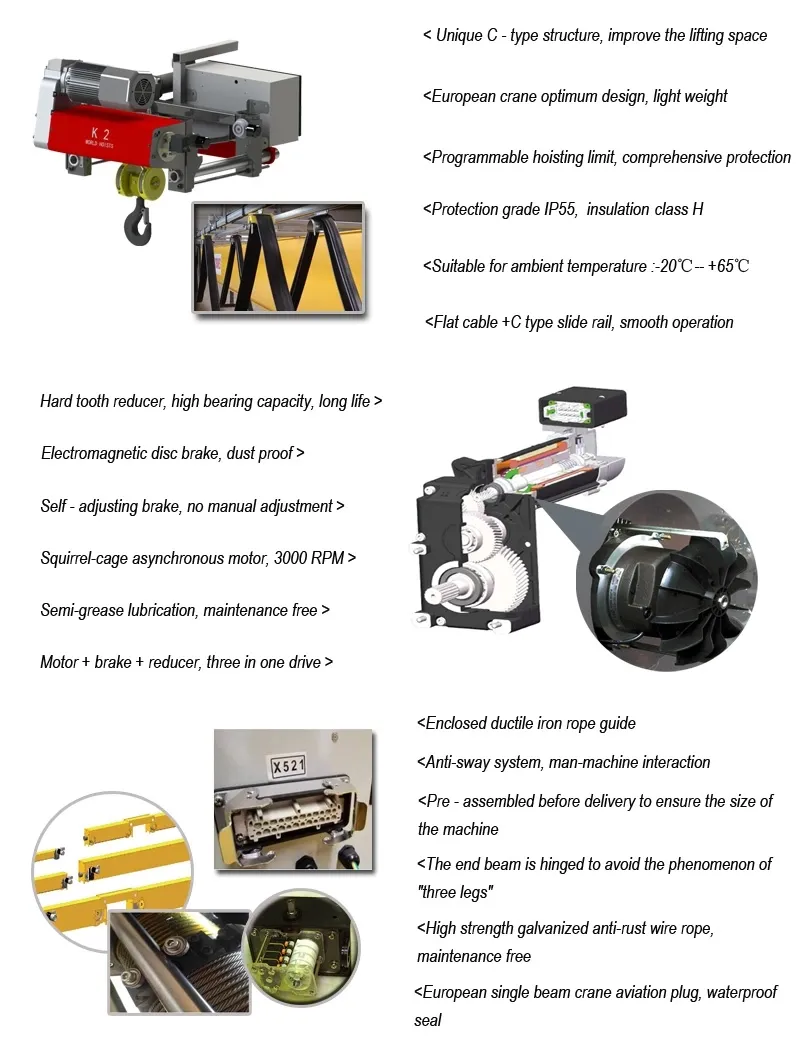

The system consists of a main beam, European standard electric hoist, long travelling mechanism, and electrical control system.
| Parameter | Unit | Standard Range | High Capacity | |
|---|---|---|---|---|
| Capacity | t | 1, 2, 3, 5, 10 | 16, 20 | |
| Span | m | 7.5 - 22.5 | ||
| Lifting Height | m | 6, 9, 12, 18, 24, 30 | 12, 18, 24, 30 | |
| Speed | Lifting | m/min | 5 / 0.8 | 4 / 0.64 |
| Cross travel | m/min | 20 / 5 | 20 / 5 | |
| Long travel | m/min | 20 / 5 | ||
| Electric Hoist | type | ND Series | ||
| Working Duty | - | A5 | ||
| Power Supply | AC | 3AC 220~480V 50/60Hz | ||
