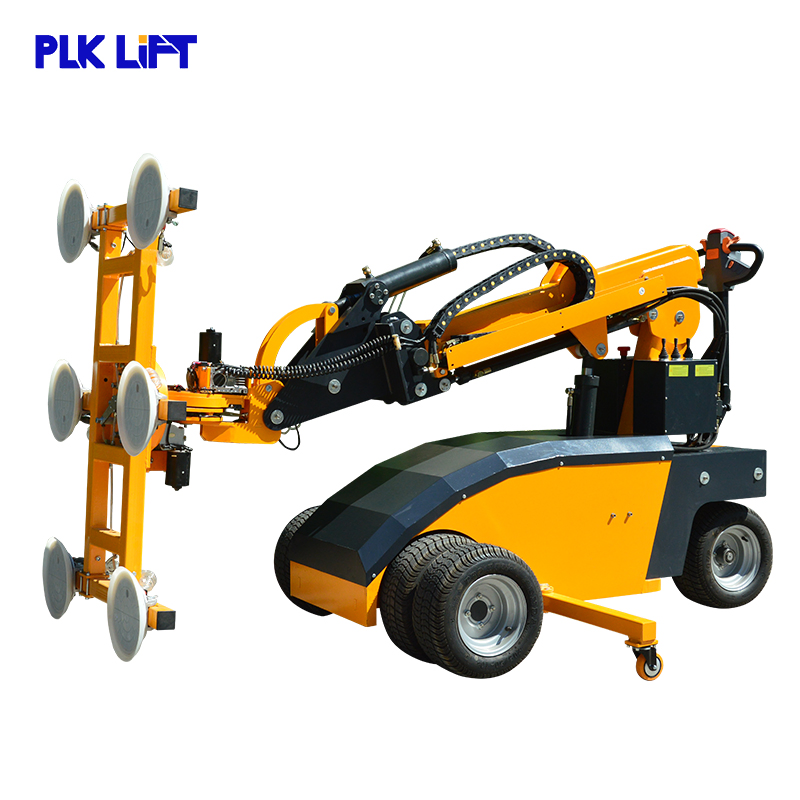

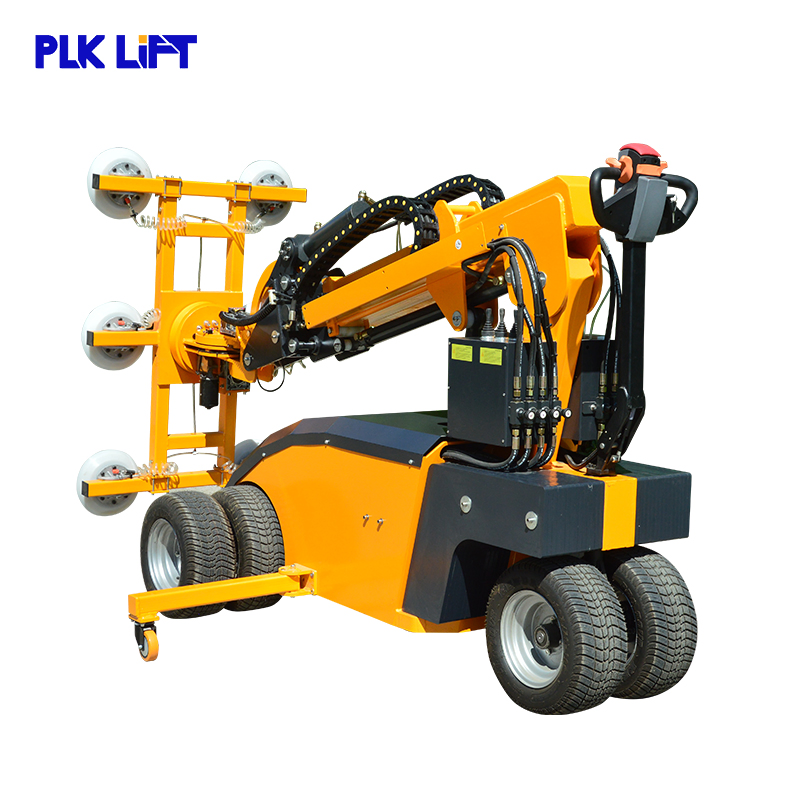

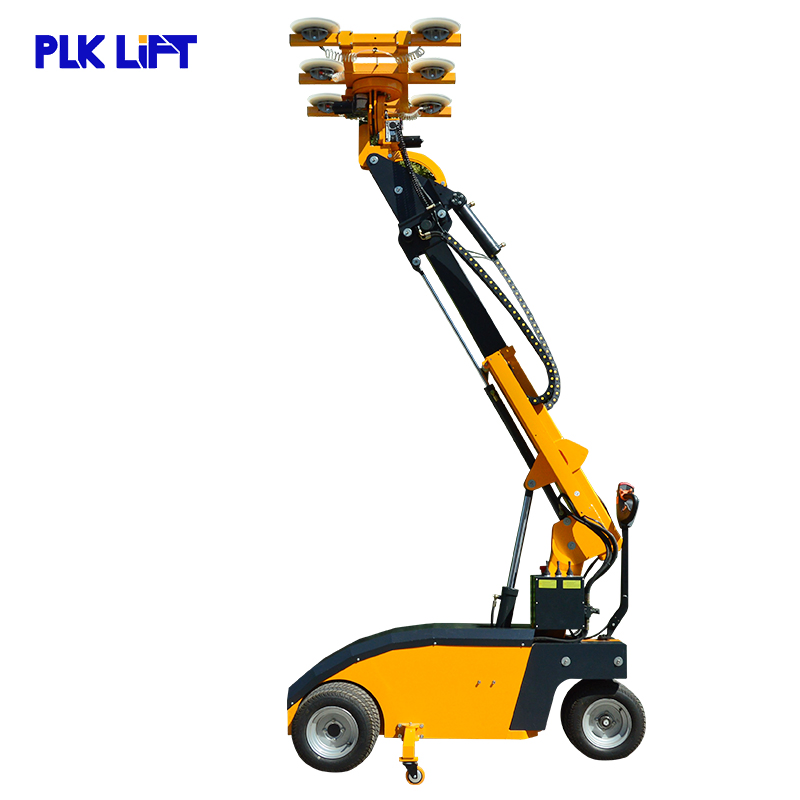

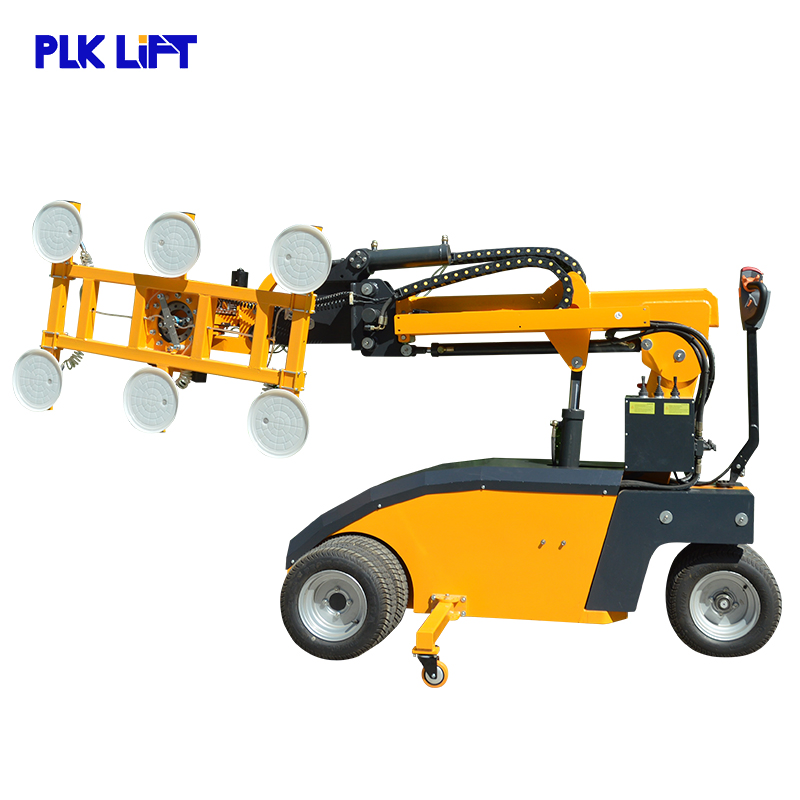

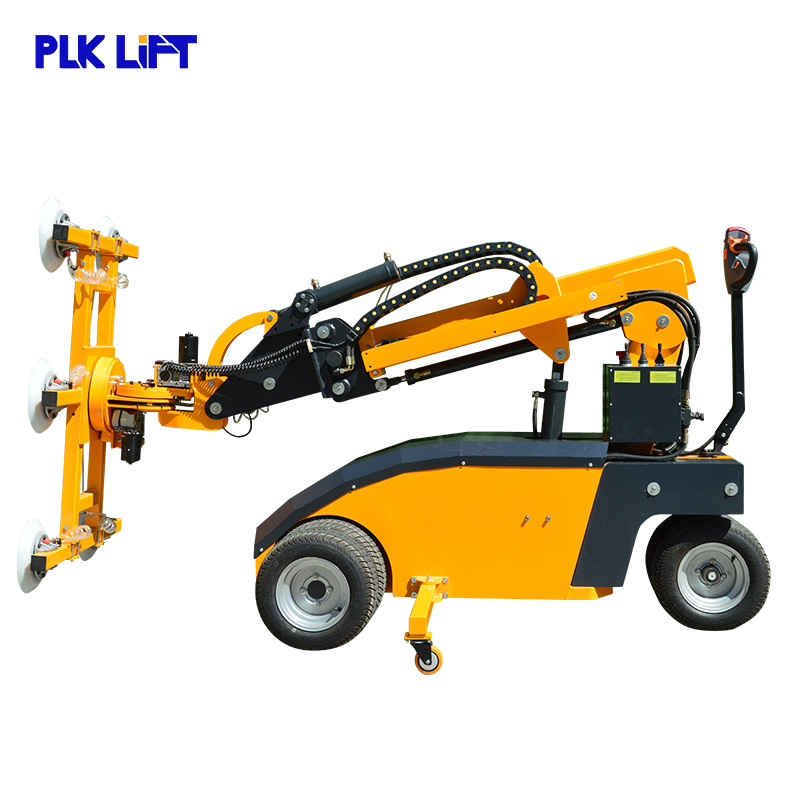

The hydraulic vacuum lifter is specially designed for handling different kinds of heavy plates, such as steel, glass, granite, and marble, using high-performance vacuum suction caps. It features a dual vacuum system for maximum safety—one for normal operation and one as a spare.

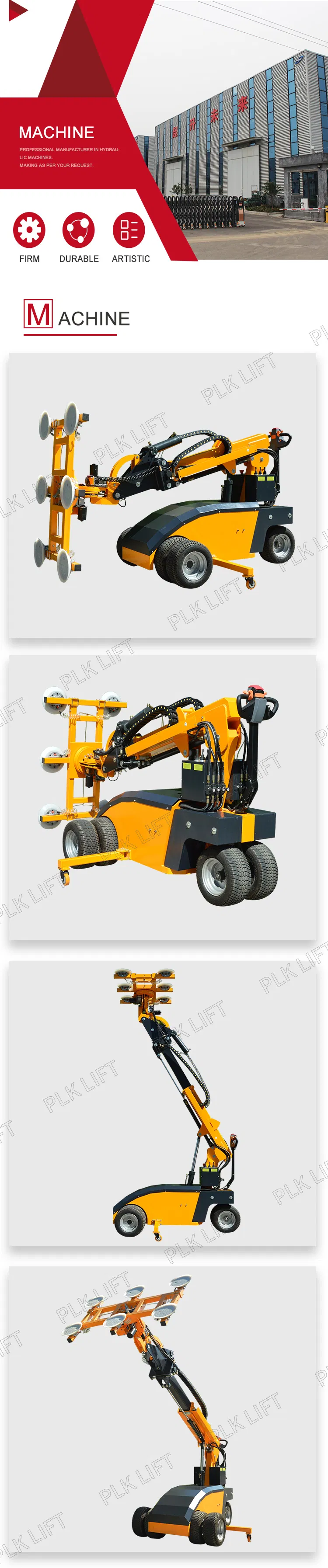

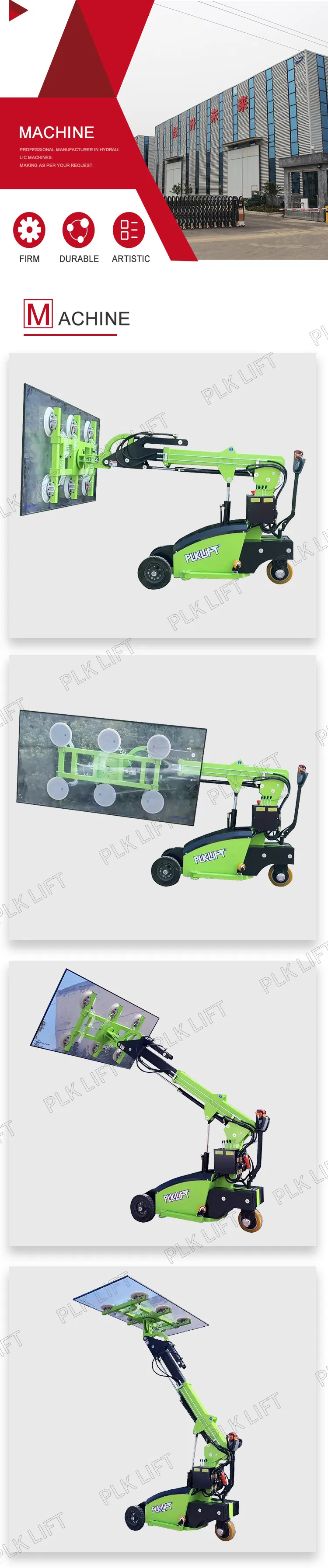

GL-LD Series: Reaches heights up to 4m. Features a flexible boom arm with 360° rollover and 180° tilt frame pad. Ideal for installing windows, doors, and heavy panels.

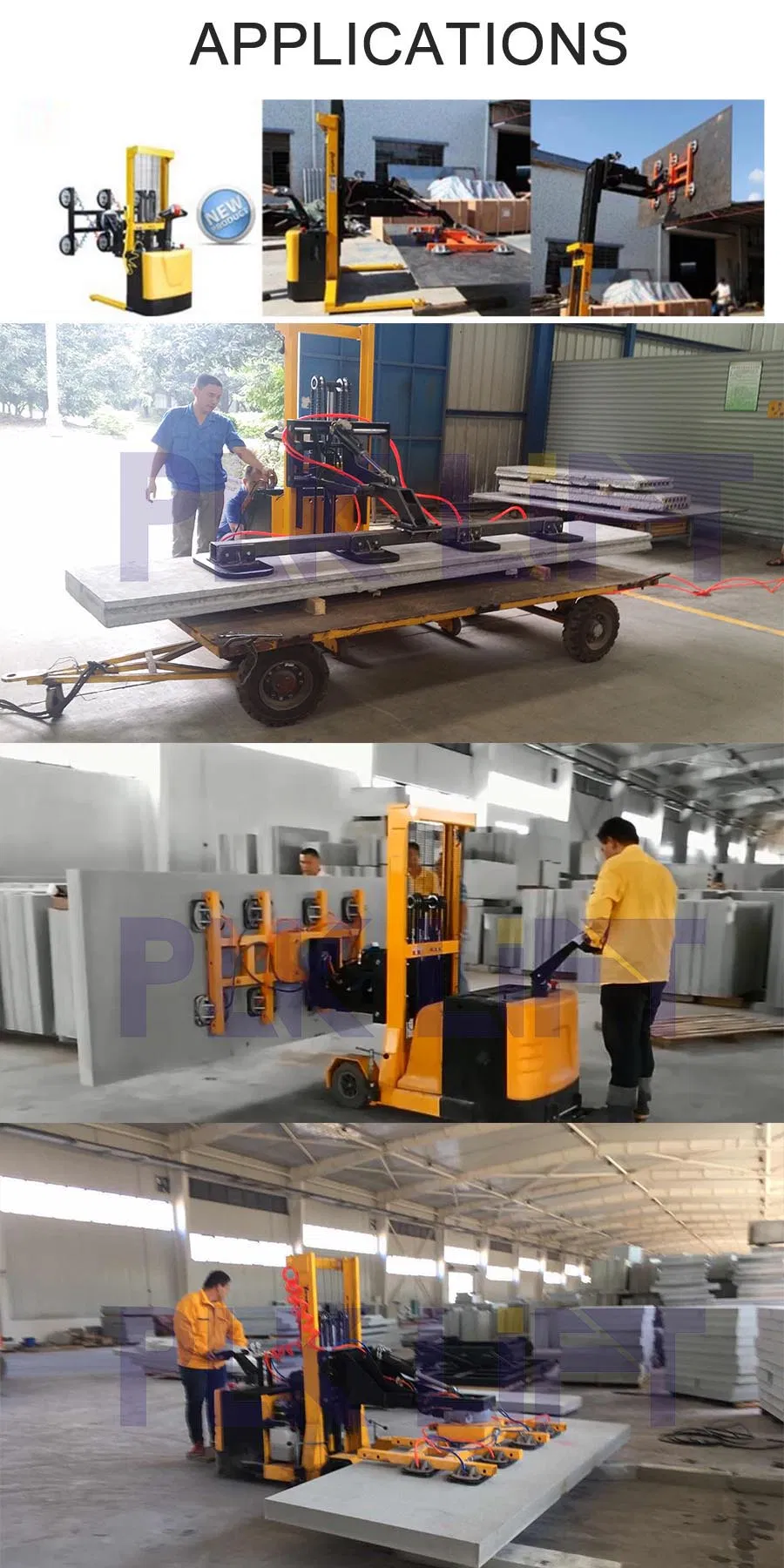

GL-HD Series: Floor crane chassis design. Max lifting height 1.6m to 2.6m with 90° vertical movement. Perfect for workshop marble handling and CNC machine feeding.
| Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 |
|---|---|---|---|---|---|
| Load Capacity (Retract) | 300kg | 400kg | 500kg | 600kg | 800kg |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| QTY of Suction Cap | 4 pcs | 4 pcs | 6 pcs | 6 pcs | 8 pcs |
| Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Drive Motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W |

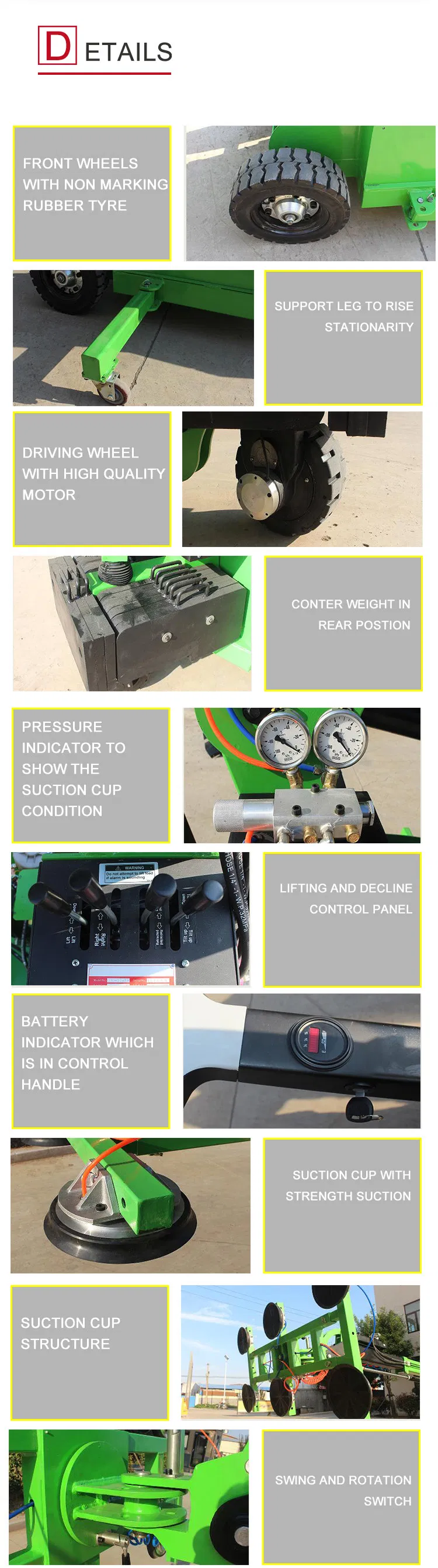

Shot blasting and stoving varnish treatment for high anti-corrosion performance.
Heavy duty cylinders with drainage systems and check valves to prevent hose burst drops.
Flow control valves allow for adjustable descent speeds and overload prevention.
