Bendo Lift
1 / 5

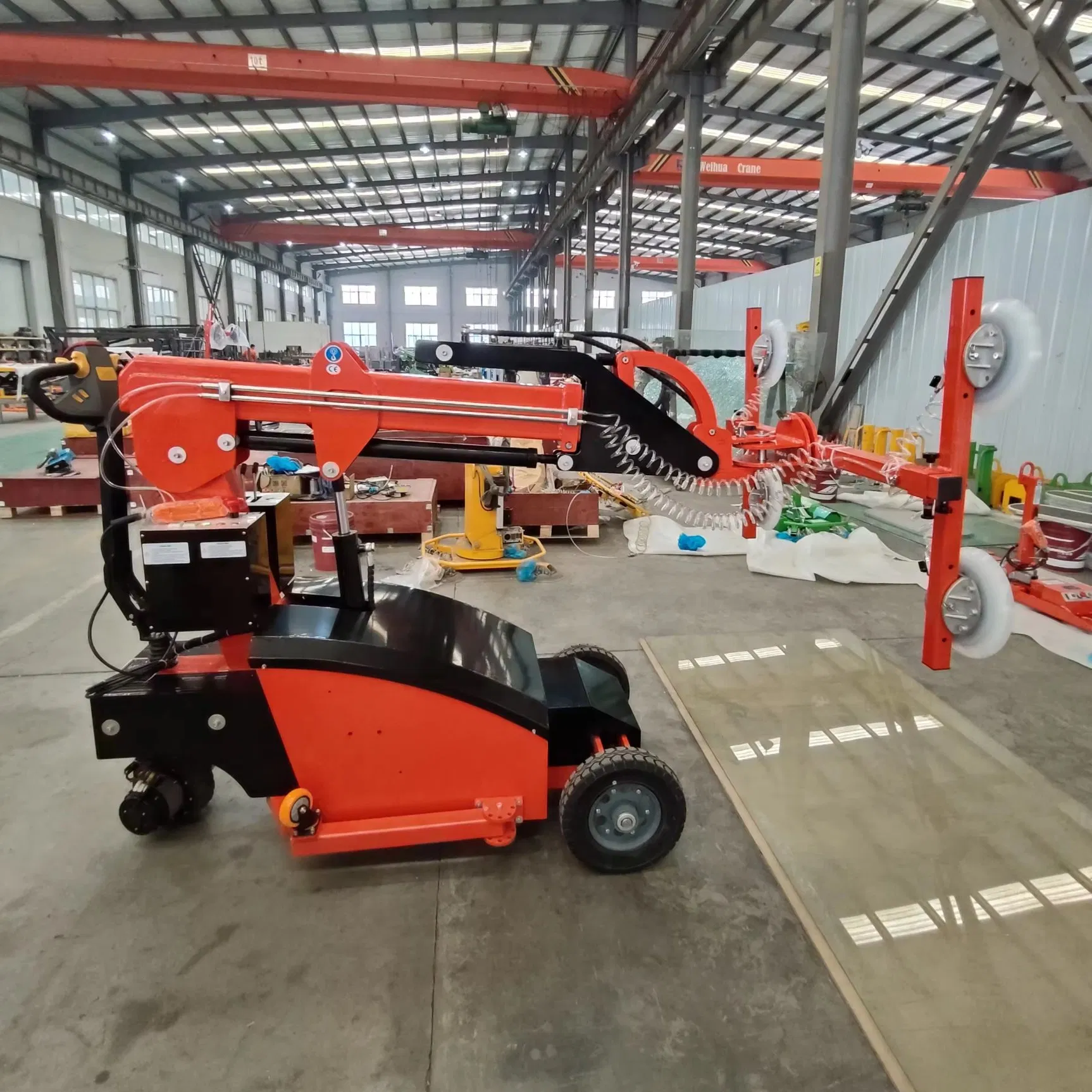

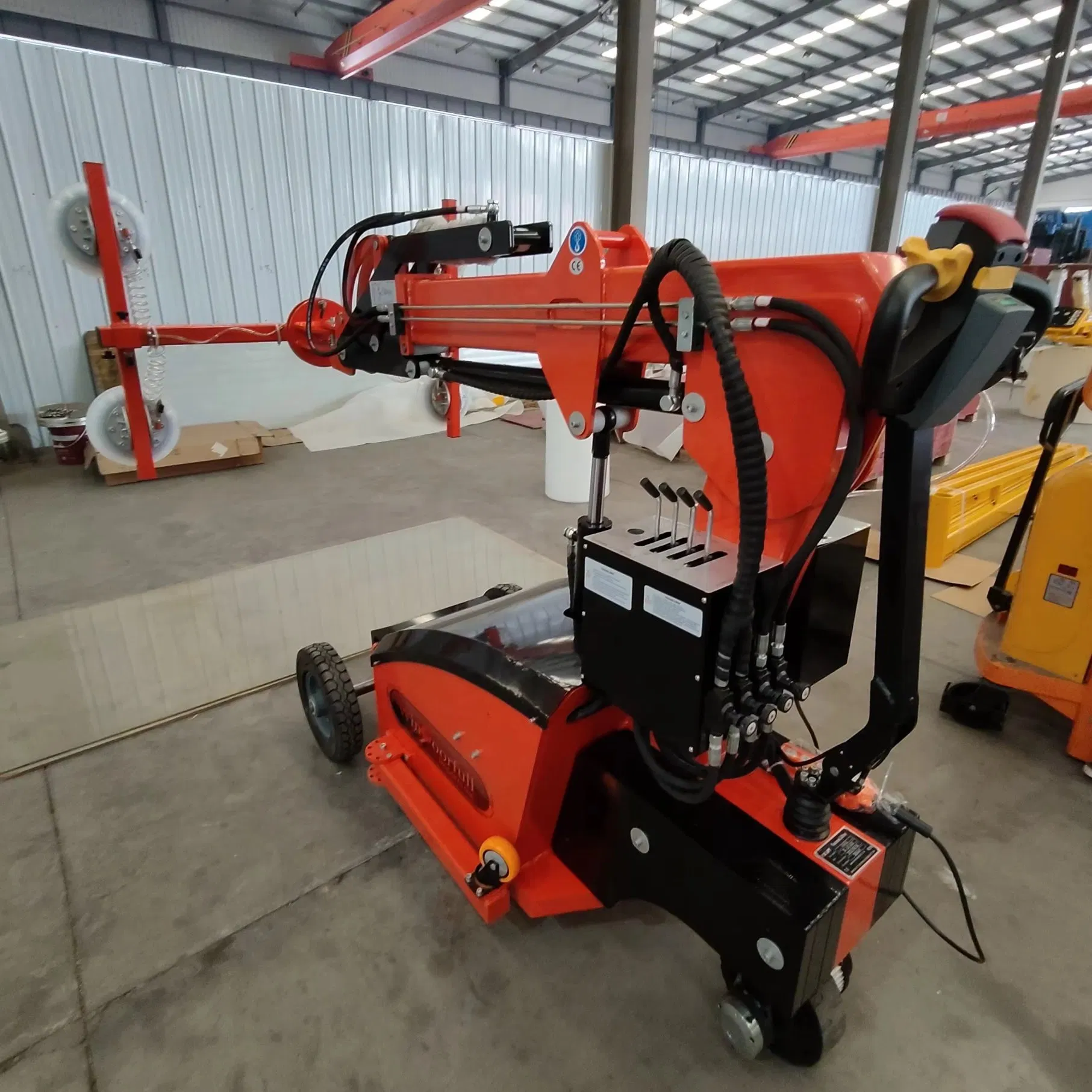

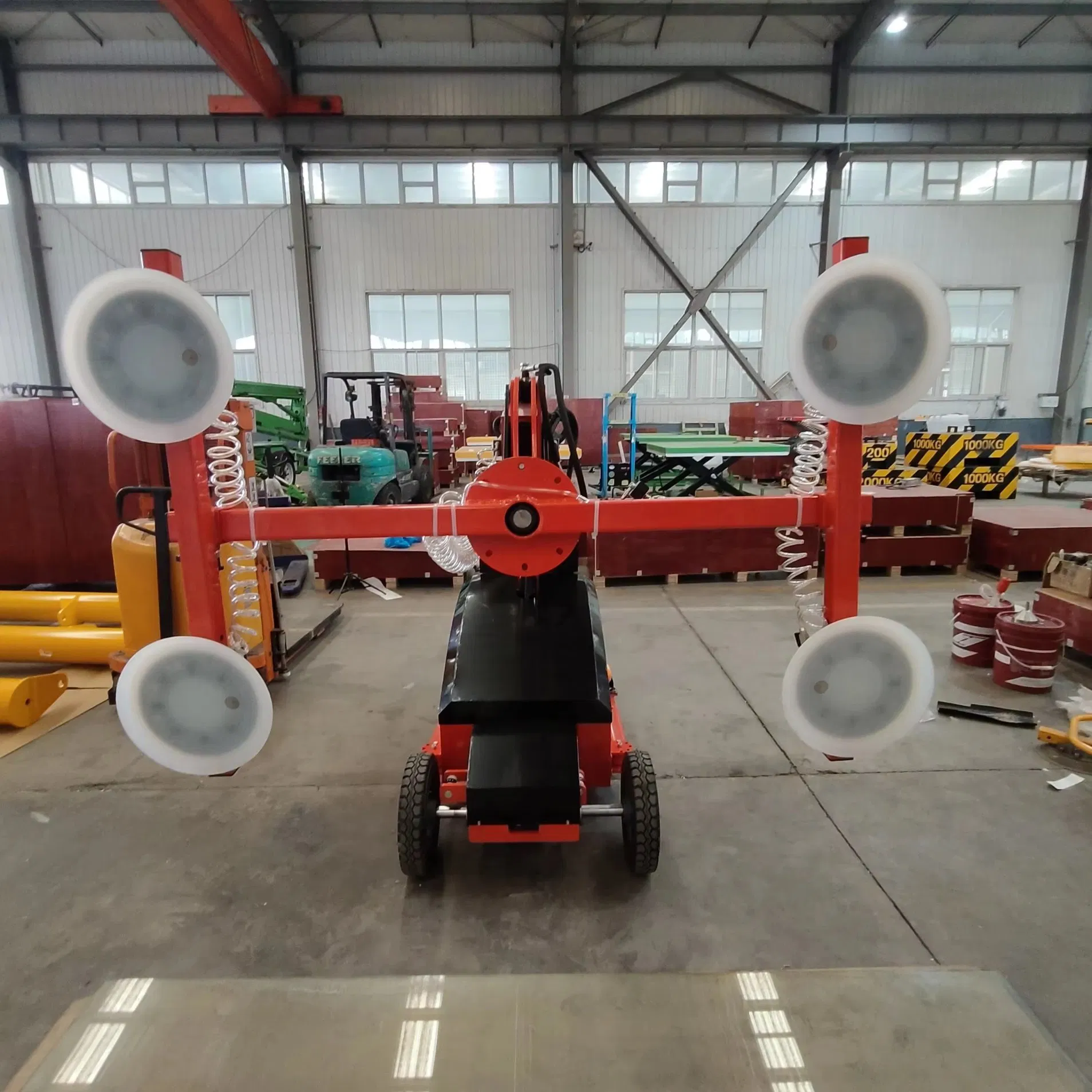

The hydraulic vacuum lifter is specially designed for handling various types of heavy plates, such as steel, glass, granite, and marble. Featuring a dual vacuum system (one for operation, one spare) and reliable DC24V actuators, it ensures efficient and precise lifting, extension, and tipping.
GL-LD Series: Reach heights up to 3.6m (customizable to 4m). Features a highly flexible boom arm widely used for installing windows, doors, and heavy panels.
GL-HD Series: Floor crane chassis design. Ideal for workshop and warehouse use, such as moving marble to CNC machines. Vertical lifting range 1.6m to 2.6m.
| Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 |
|---|---|---|---|---|---|
| Load Capacity | 300kg (150kg ext) | 400kg (200kg ext) | 500kg (250kg ext) | 600kg (300kg ext) | 800kg (400kg ext) |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| Suction Caps | 4 pcs | 4 pcs | 6 pcs | 6 pcs | 8 pcs |
| Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Drive Motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W |
| Chassis Size | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm |
