Passenger Elevator (MRL)
With the advancement of science and technology, the MRL elevator was created, which was added to the interior without destroying the original appearance of ancient buildings. This technology has achieved permanent magnet gearless traction MRL elevator after several trials and experiments.
Energy-saving & Space-saving: Adopting VVVF control technology and permanent magnet synchronous motor technology, saving energy and protecting the environment without occupying space.
| Capacity (Kg) | Person | Speed (m/s) | Car Dimension (mm) | Hoistway Dimension (mm) | Pit Depth (mm) | Overhead Height (mm) |
|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 - 1.5 | 1200x1100 | 1800x1800 | 1500/1600 | 4400/4500 |
| 630 | 8 | 1.0 - 1.5 | 1400x1100 | 2000x1800 | 1500/1600 | 4400/4500 |
| 800 | 10 | 1.0 - 2.0 | 1400x1350 | 2000x2050 | 1500-1800 | 4400-4700 |
| 1000 | 13 | 1.0 - 4.0 | 1600x1450 | 2200x2200 | 1500-3800 | 4400-5900 |

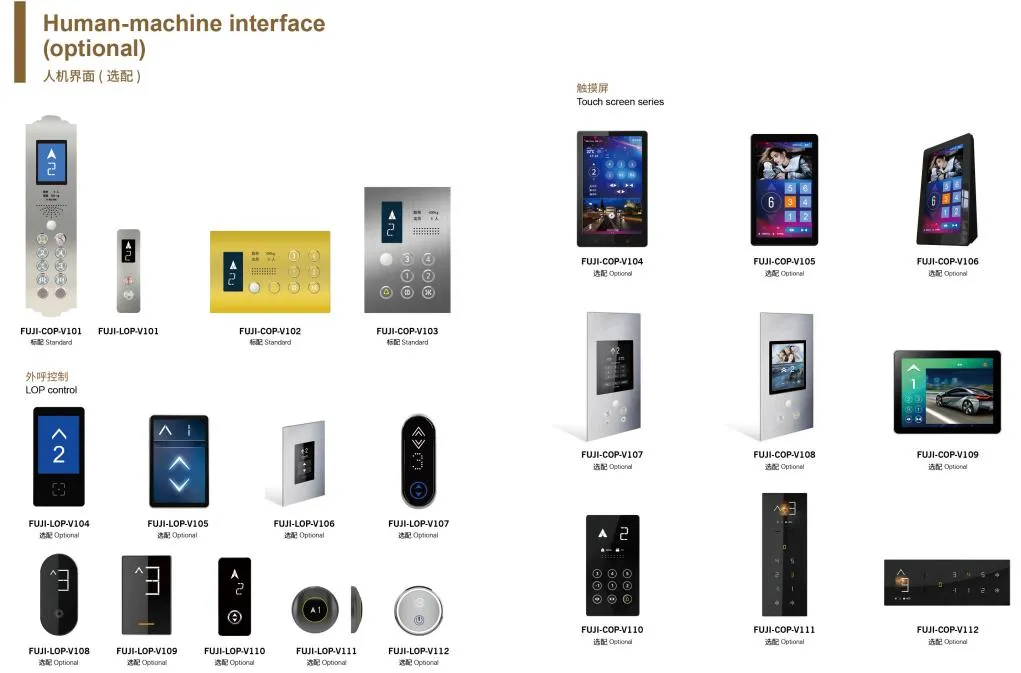

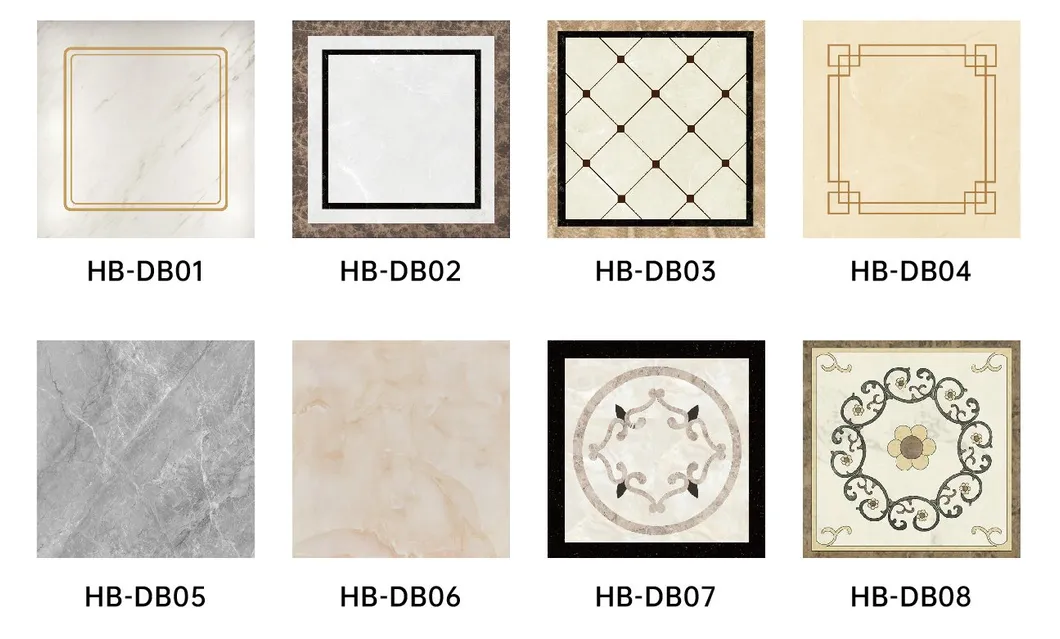

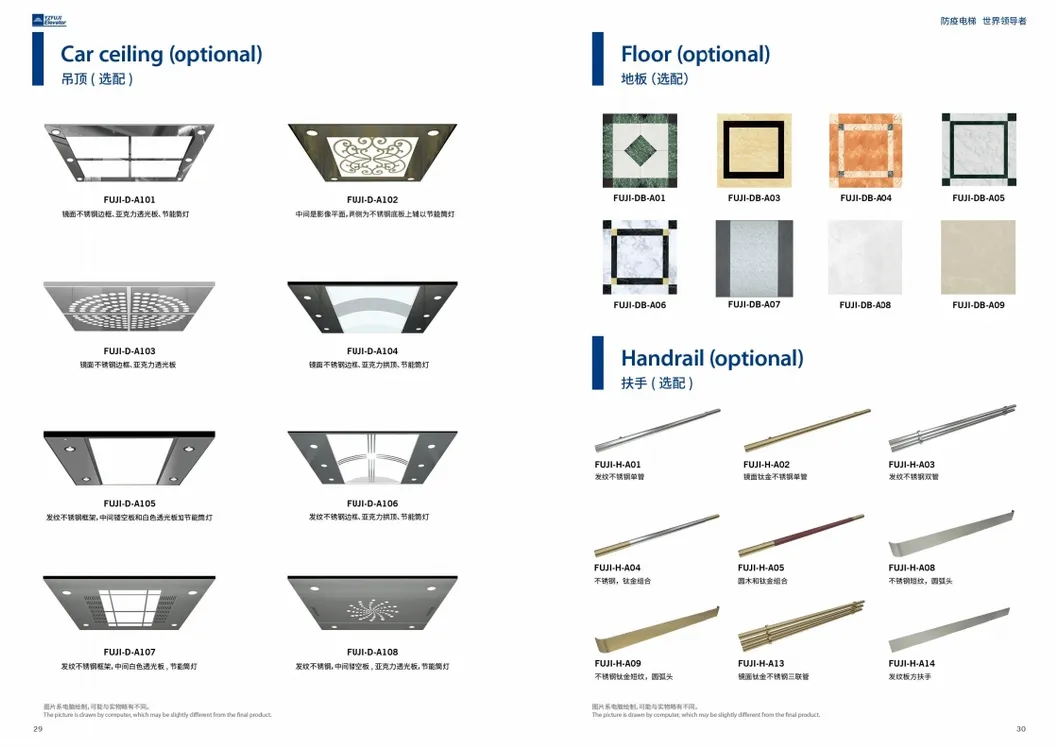

We provide specialized customized decoration according to customer requests to cater to building aesthetics:

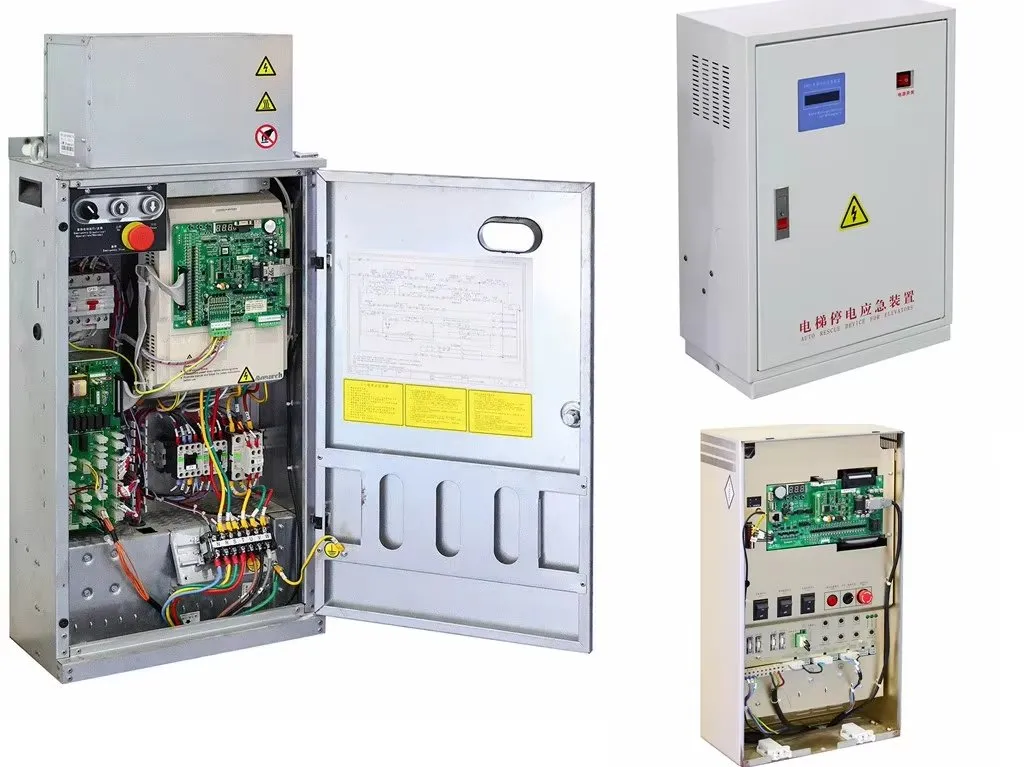

Adopts VLSI and microcomputer control systems to greatly reduce cabinet size. Integrated with high-performance vector control technology for digital direct parking.

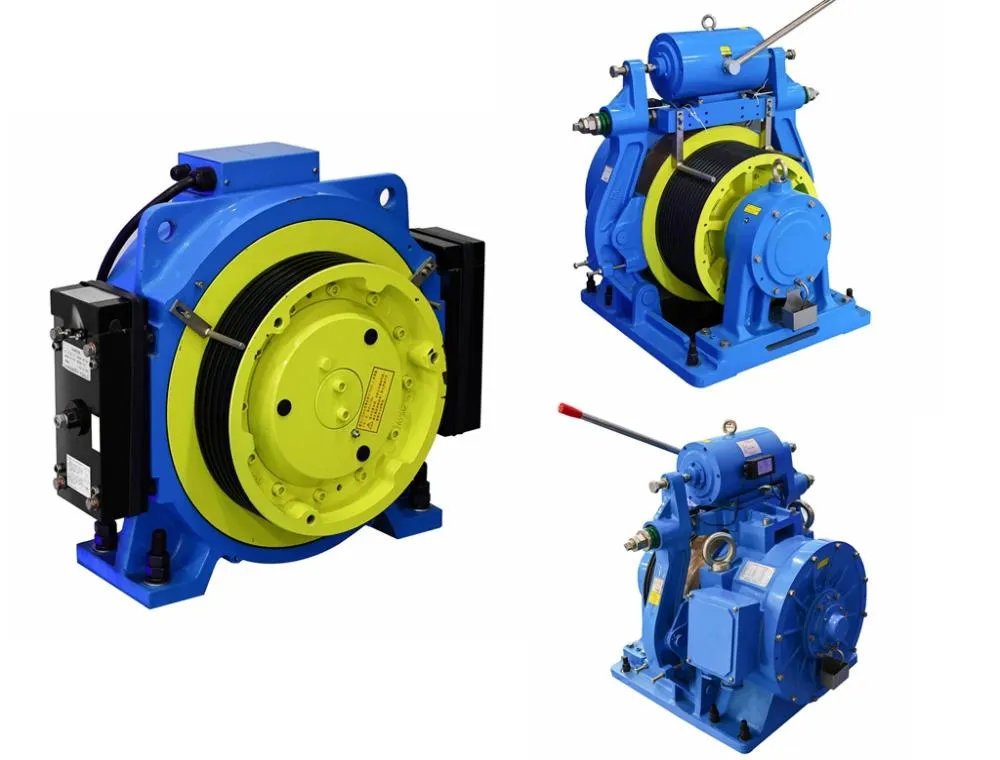

Gearless tractor replaces traditional worm gear machines. Saves energy by more than 60% with minimum vibration and maintenance-free operation.

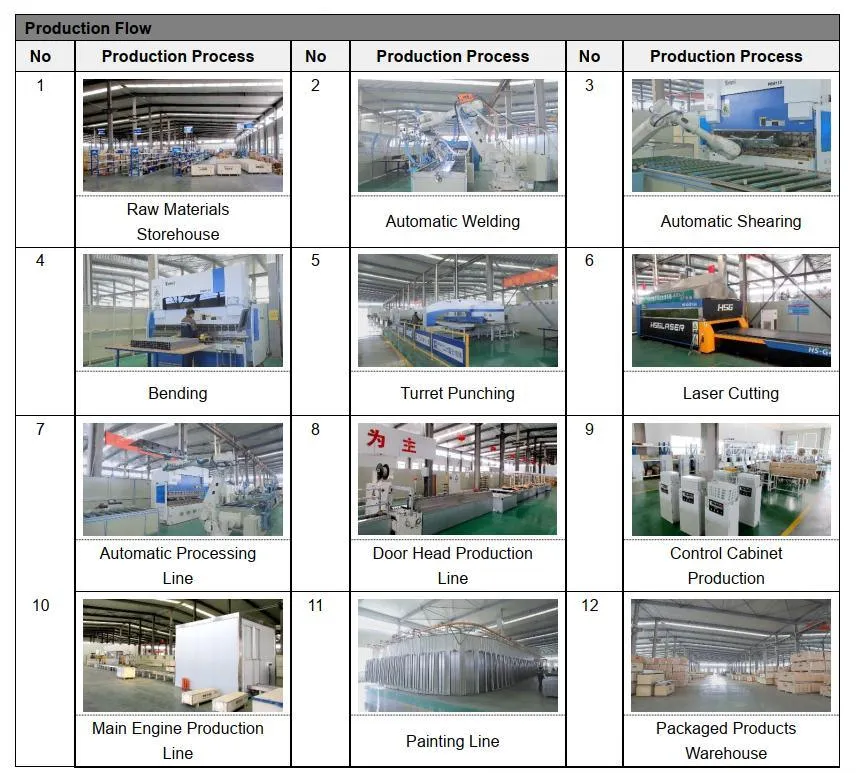

Our intelligent production line adopts robotic systems for 360° rotation from feeding to bending, including arc welding and gluing. This ensuring the highest manufacturing accuracy and efficiency.
The company holds multiple honors including "High-tech Enterprise" and holds over 15 patents in the elevator industry. Our team provides professional drawings and solutions based on your specific building information.
