Order Process: Please share your specific requirements including carrying capacity, lifting height, and platform size to receive a tailored proposal and legally binding contract invoice.

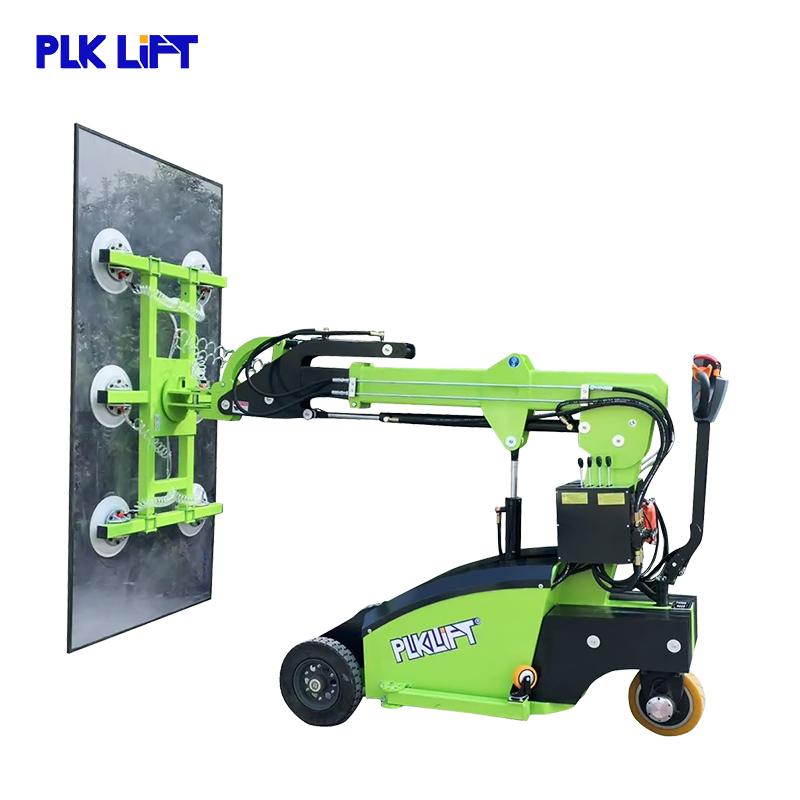

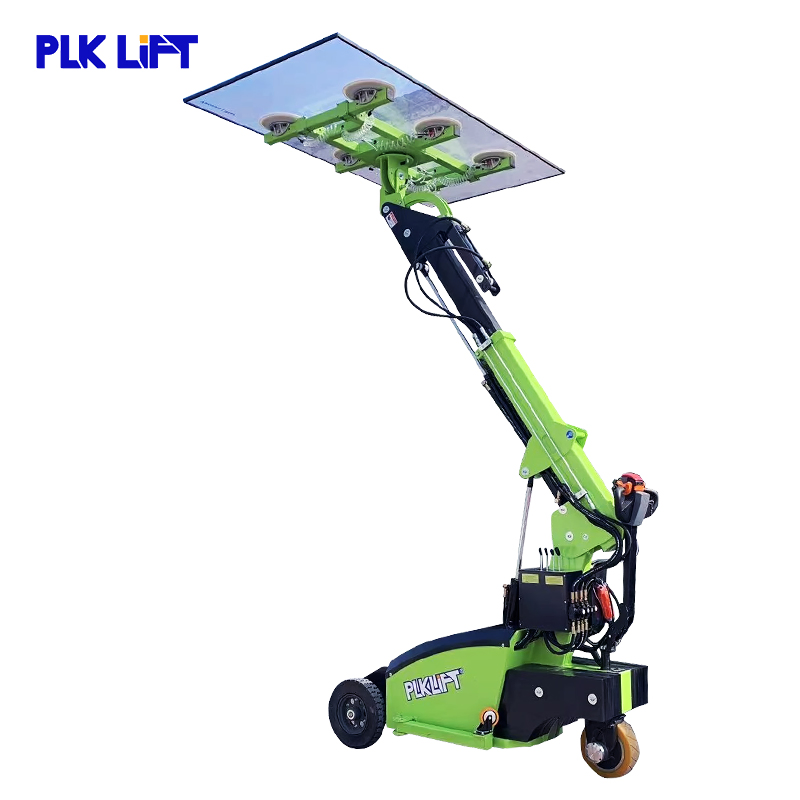

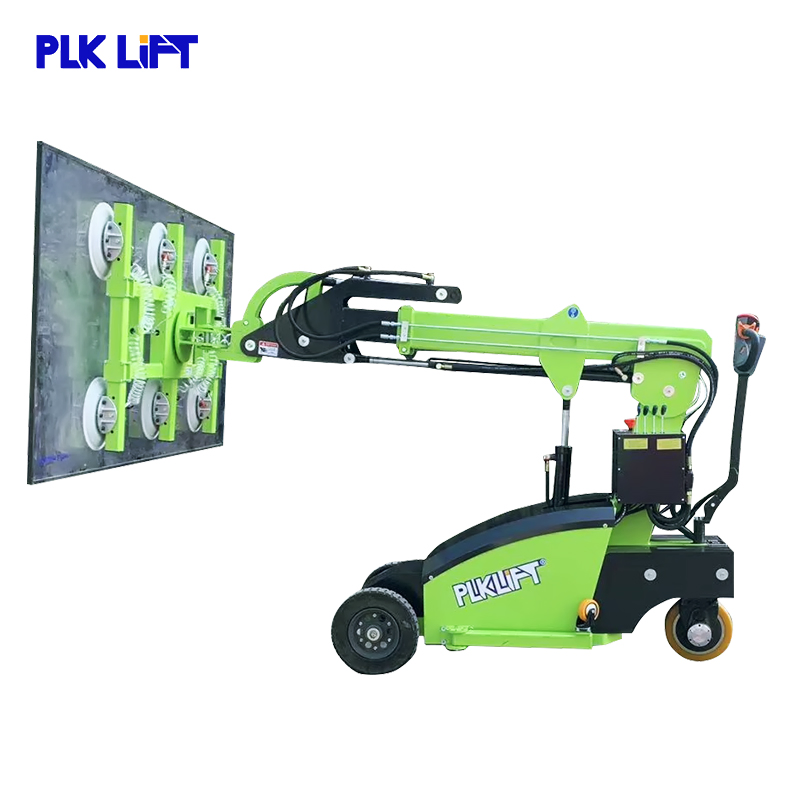

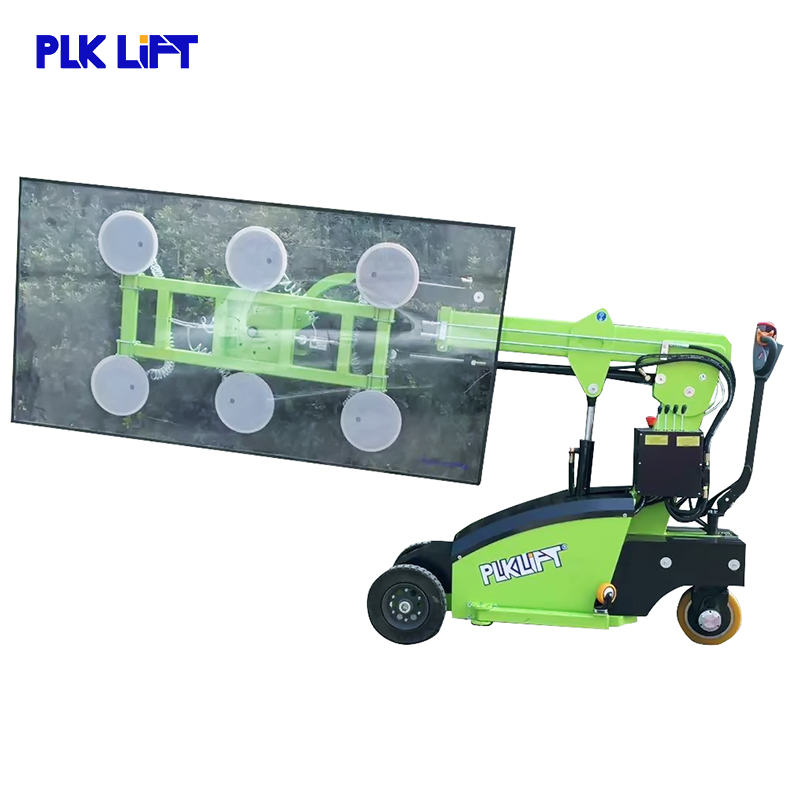

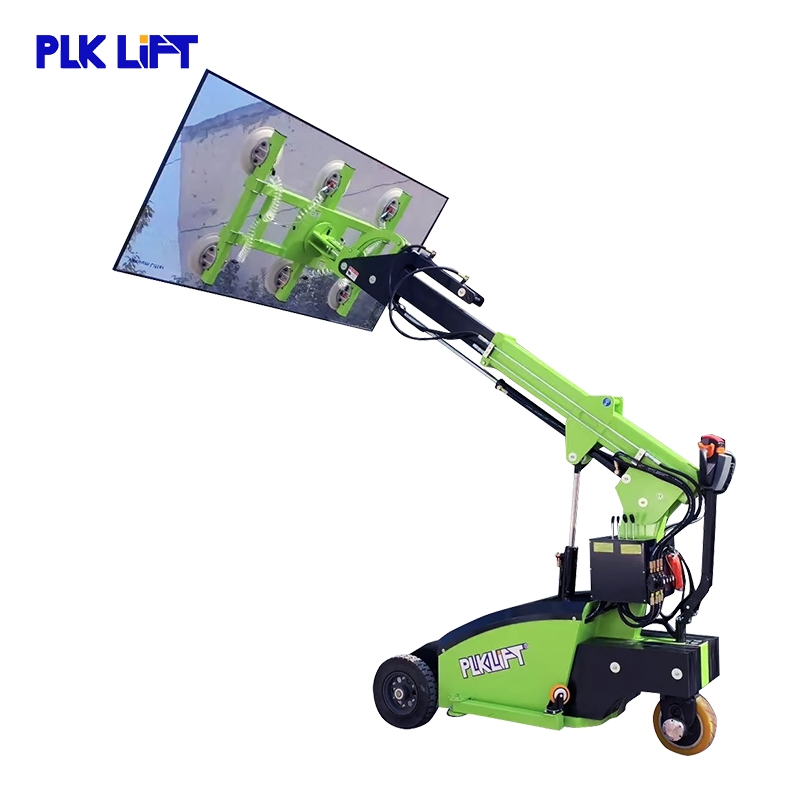

The hydraulic vacuum lifter is specially designed for handling various types of heavy plates such as steel, glass, granite, and marble using high-performance vacuum suction caps.

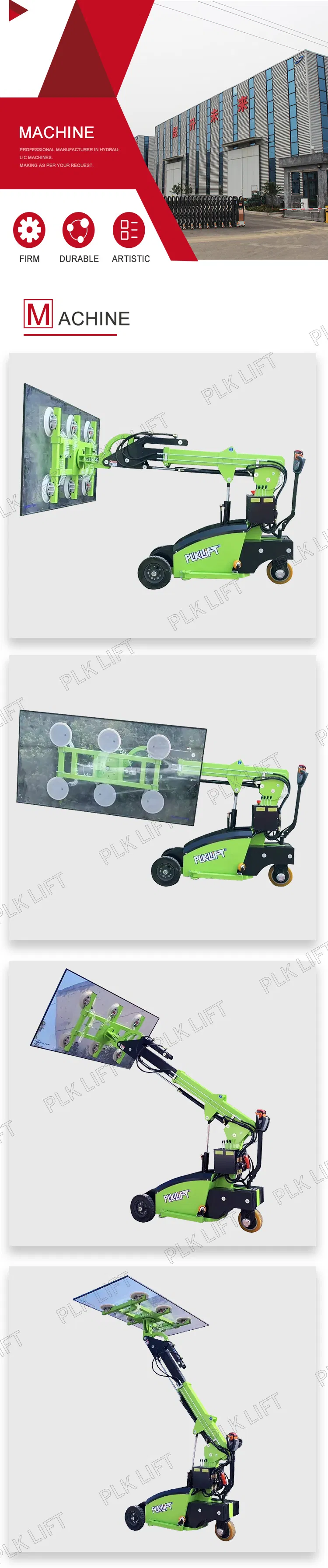

Reaches heights of 3.6m to 4m. Features a flexible boom arm with 360° rollover and 180° tilt frame pad. Ideal for installing windows, doors, and heavy panels.

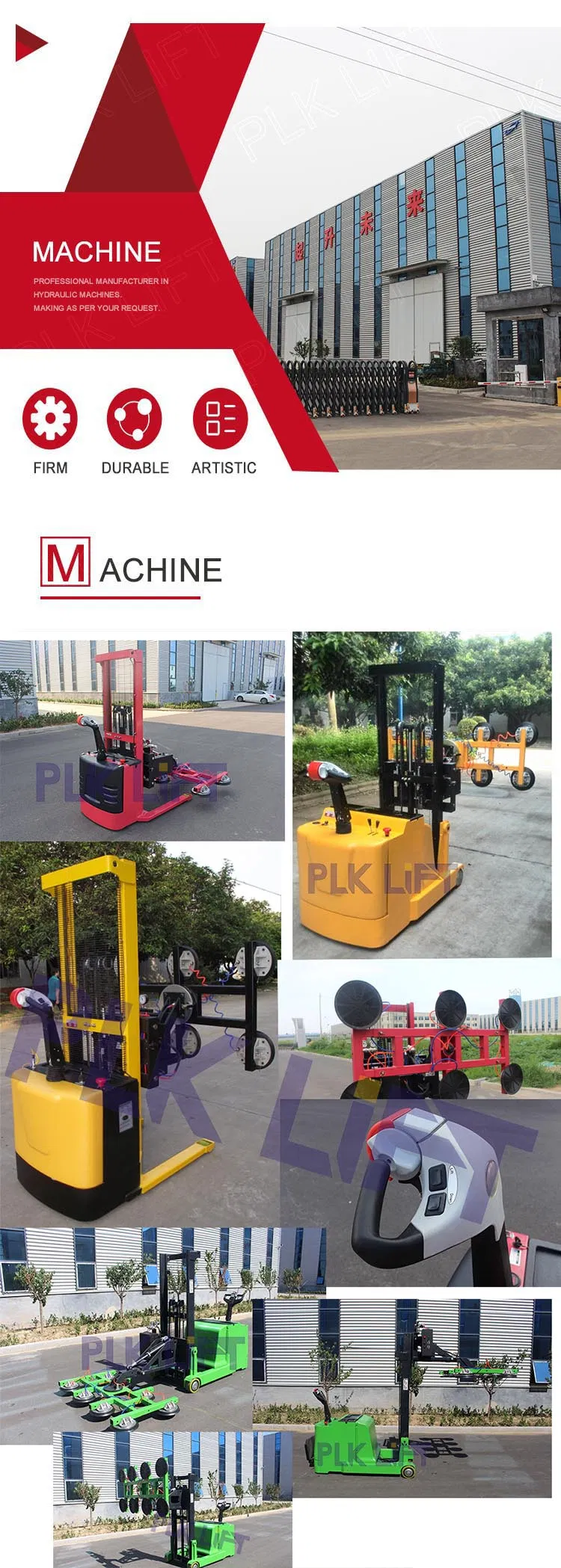

GL-HD SeriesFloor crane chassis design. Lifting height from 1.6m to 2.6m with 90° vertical movement. Economic solution for workshop and warehouse panel handling.
| Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 |
|---|---|---|---|---|---|
| Load Capacity (Retract/Extend) | 300kg / 150kg | 400kg / 200kg | 500kg / 250kg | 600kg / 300kg | 800kg / 400kg |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| Suction Cups QTY | 4 pcs | 4 pcs | 6 pcs | 6 pcs | 8 pcs |
| Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Drive Motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W |
| Model | GL-HD-8015 | GL-HD-8025 | GL-HD-6015 | GL-HD-4015 |
|---|---|---|---|---|
| Max Load Capacity | 800kg | 800kg | 600kg | 400kg |
| Lifting Height | 1500mm | 2500mm | 1500mm | 1500mm |
| Cap Diameter | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Battery | 2x12V/160Ah | 2x12V/160Ah | 2x12V/100Ah | 2x12V/70Ah |
