Efficient Geming Mobile Scissor Lift for Industrial Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

HTA3

Application

Workshop/Shipboard/Warehouse/Building Crane

Lift Mechanism

Telescoping Lift

Driven Type

Maximum Load

6000N

Maximum Speed

5-100mm/S

Certification

CE, RoHS

Temperature

-45 to +75°C

✨

Product Features

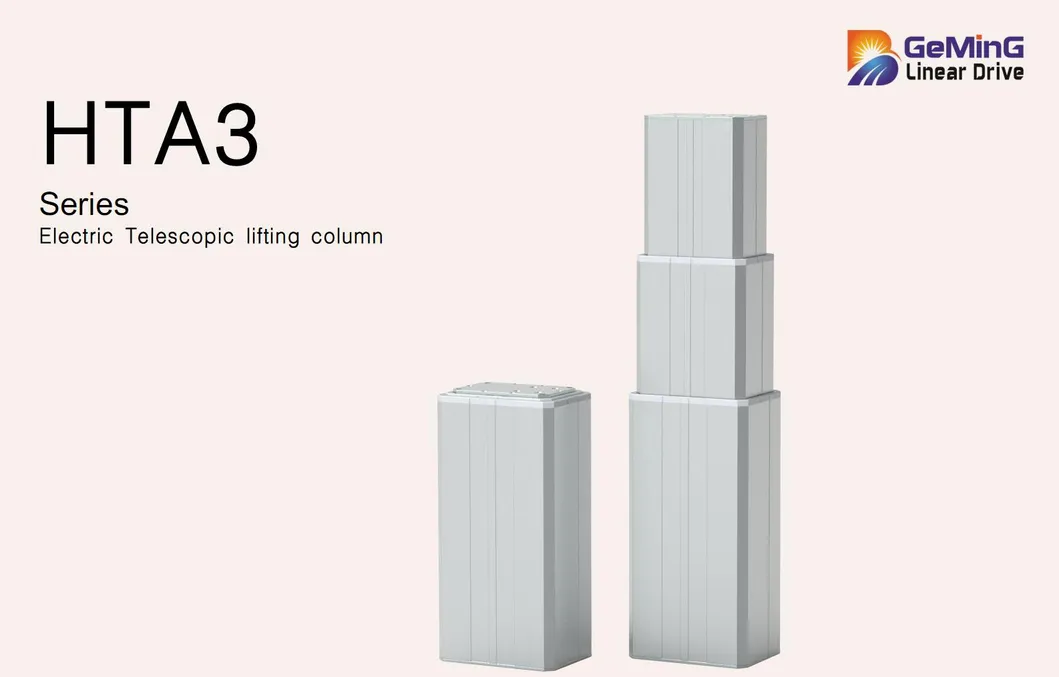

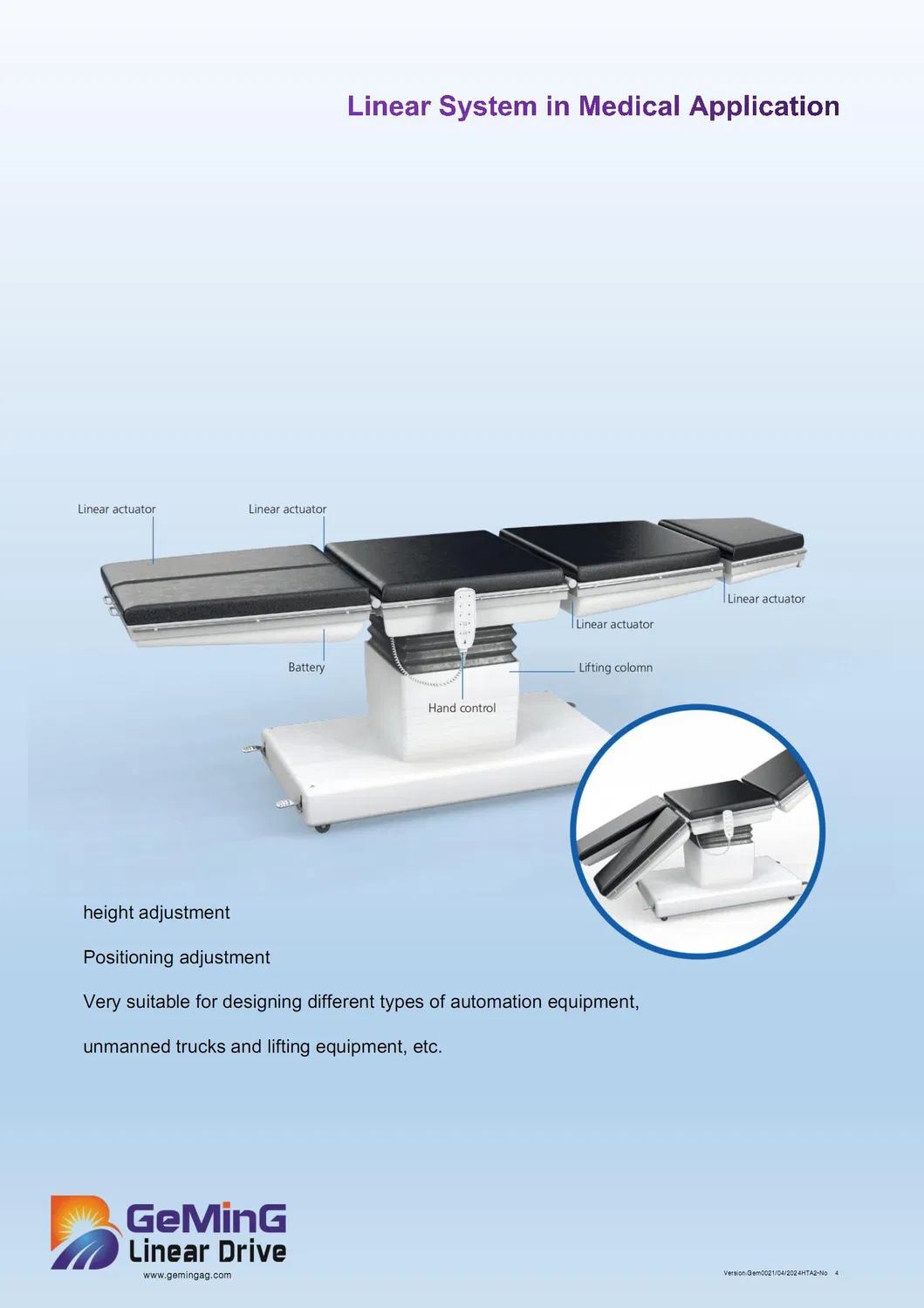

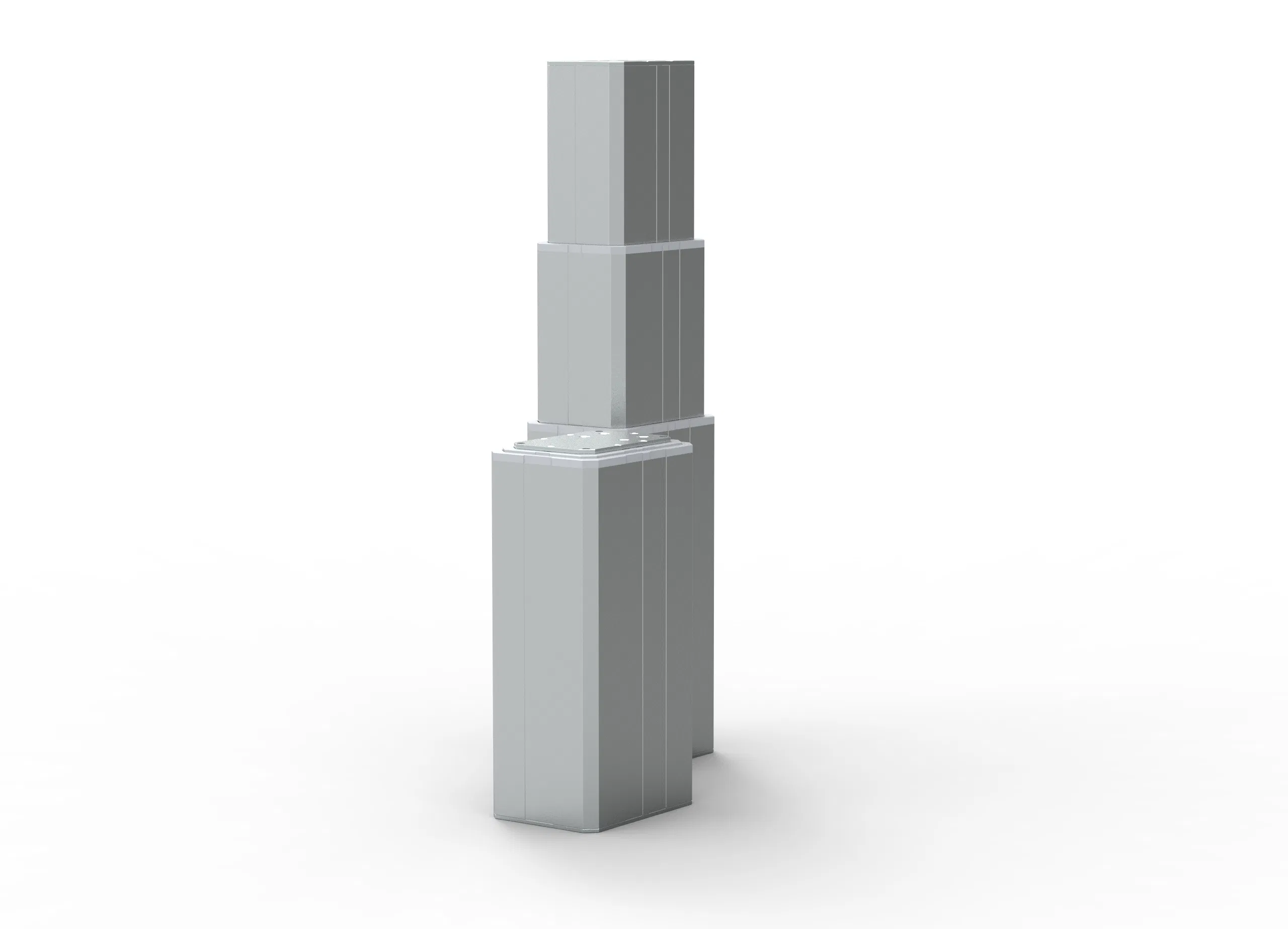

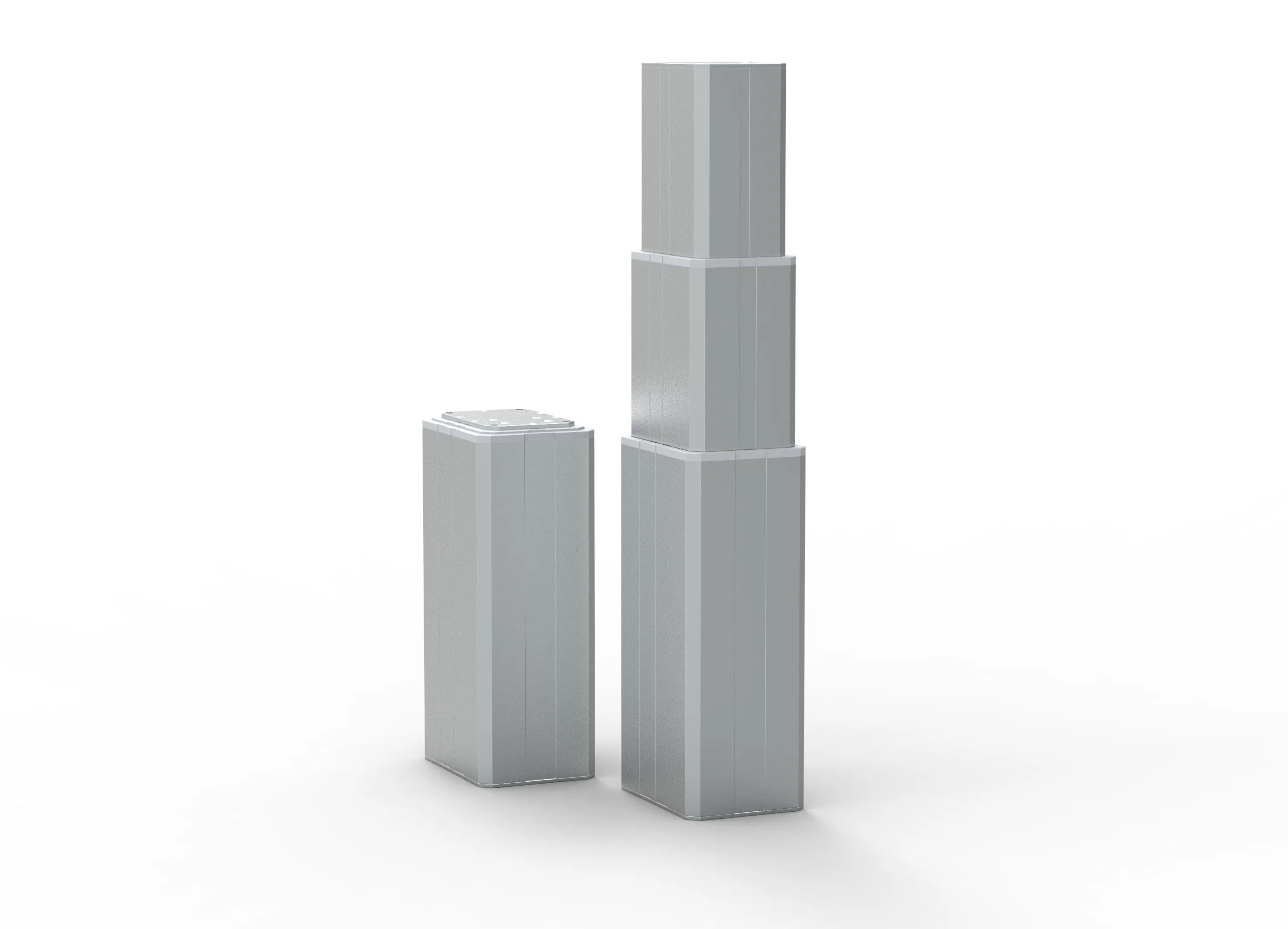

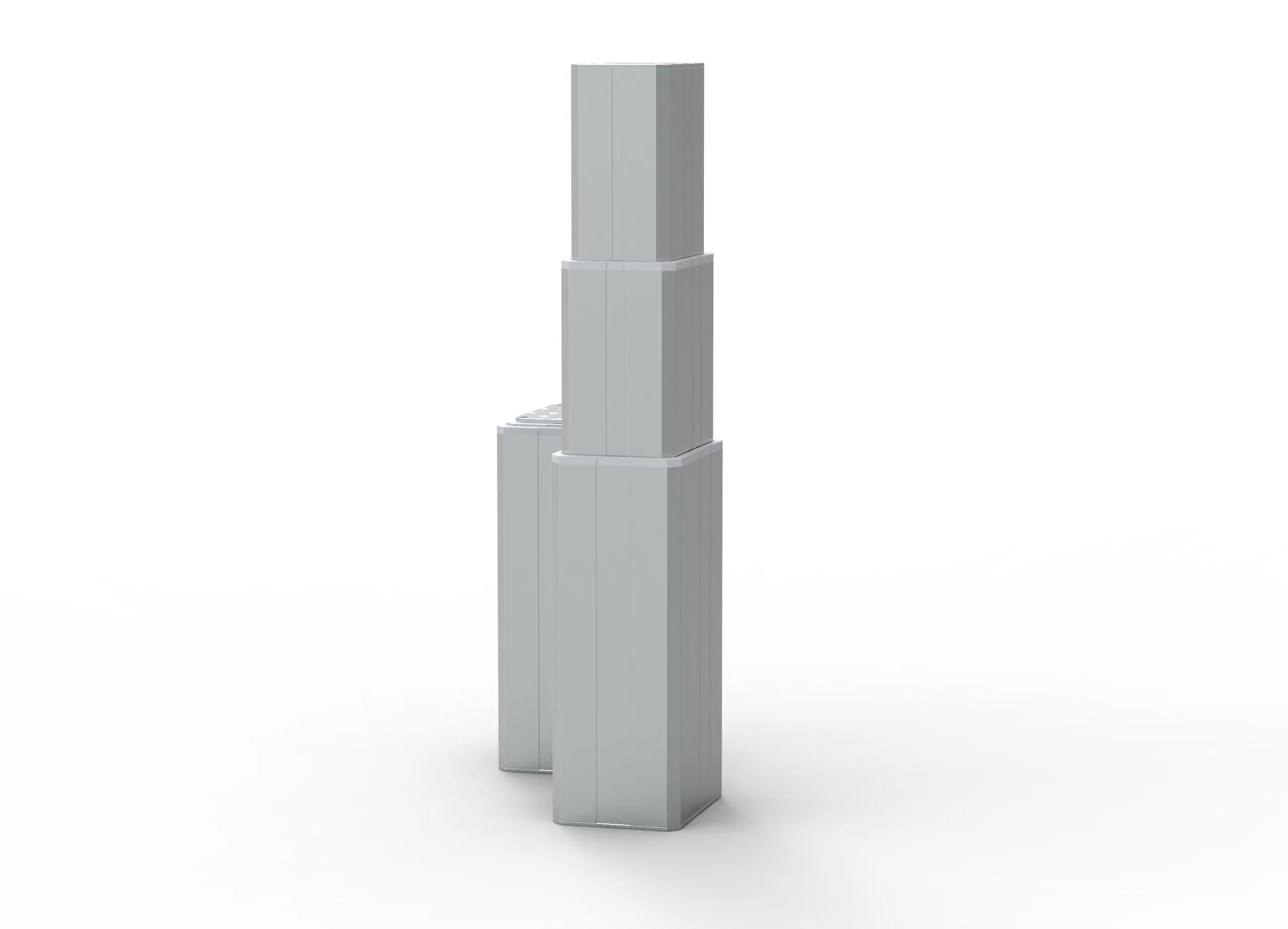

HTA3 is one of the lifting column products developed for specialized use. It is specially suitable for medical and working environments, such as hospital beds, home care beds, diagnosis and treatment tables and height-adjustable working methods. HTA3 uses a three-section outer tube to provide stable movement, and can provide the smallest installation size and longer stroke options.

⚙️

Model Selection & Customization

• Model Selection: Our professional technical team will choose the right model and transmission solutions for your usage based on your specific parameters.

• Drawing Request: If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.

• On Your Need: We can modify standard products or customize them to meet your specific needs.

📸

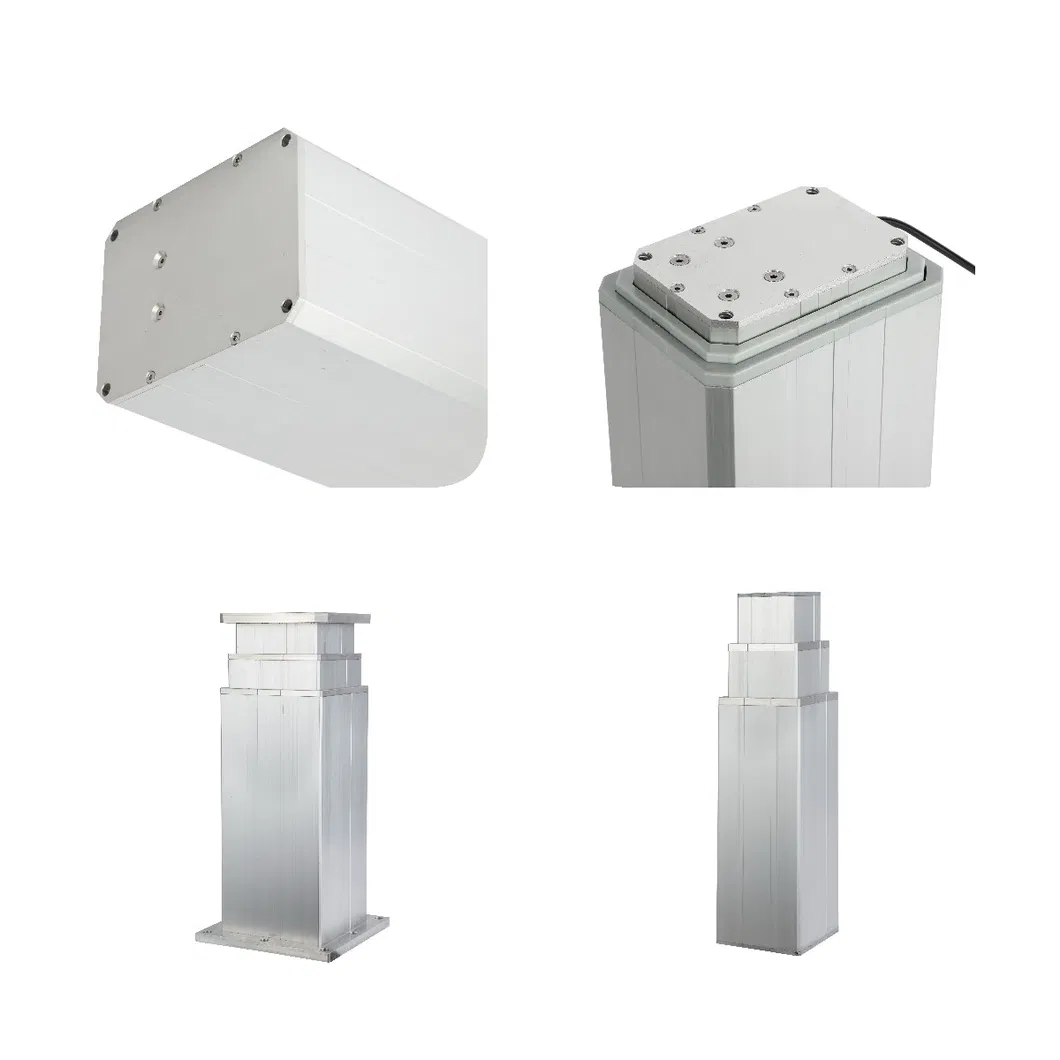

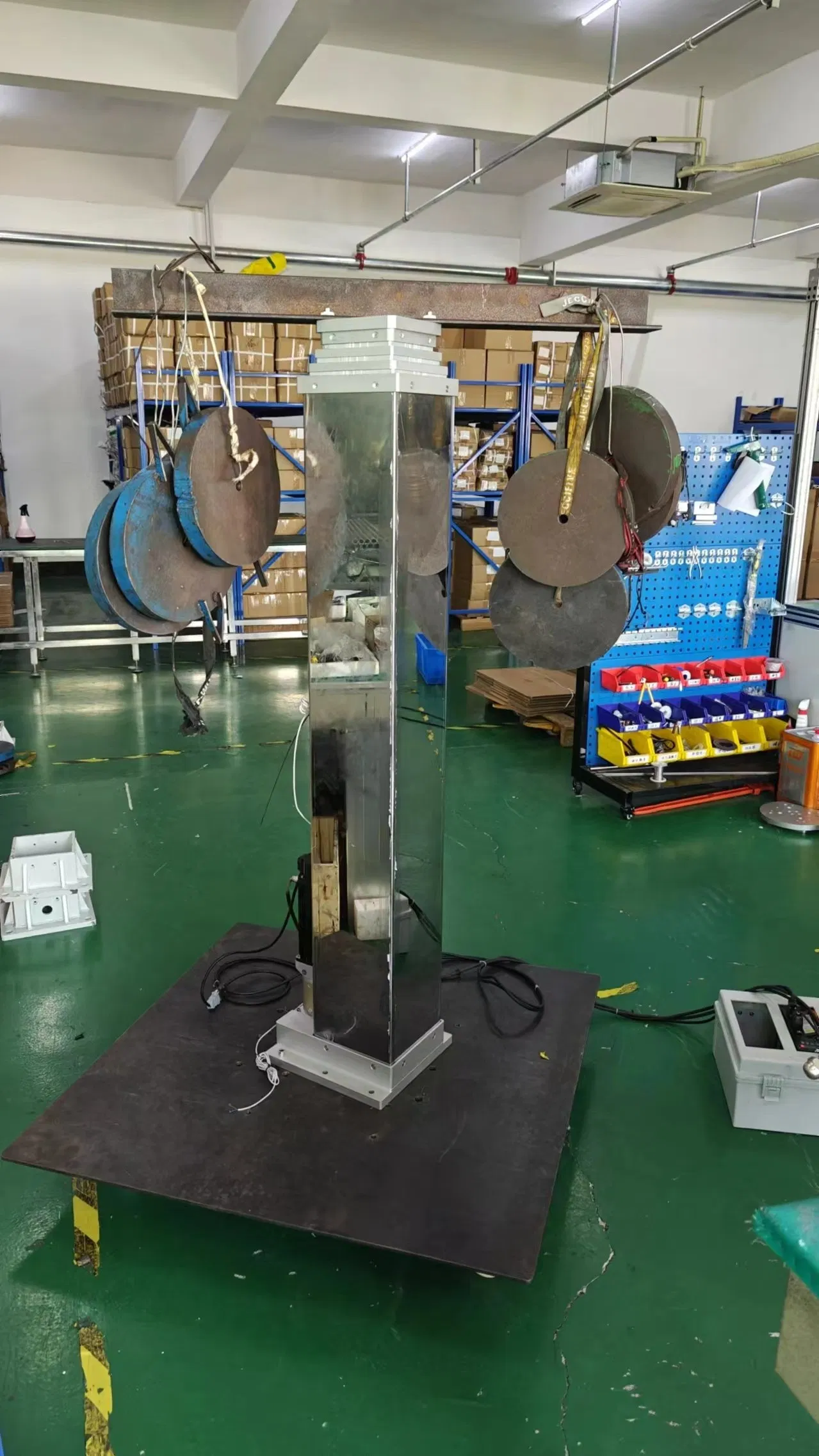

Detailed Photos

📊

Functional Overview

Feature	Specifications
Voltage	12, 24, 48V DC, 220V AC
Motor options	DC servo motor, AC servo motor
Maximum thrust (pull force)	6,000N / 4,000N
Maximum speed under load	5-100 mm / s
Minimum installation size	Stroke /2 + 200mm
Dynamic lateral moment	1,000Nm
Static lateral moment	1,800Nm
Color	Aluminum color, silver gray
Noise Level	48~52 DB
Temperature range	-35 ° C ~ + 75 ° C
Screw selection	Ball screw, trapezoidal screw
Safety certificate	ISO9001-2008, CE and RoHS

📐

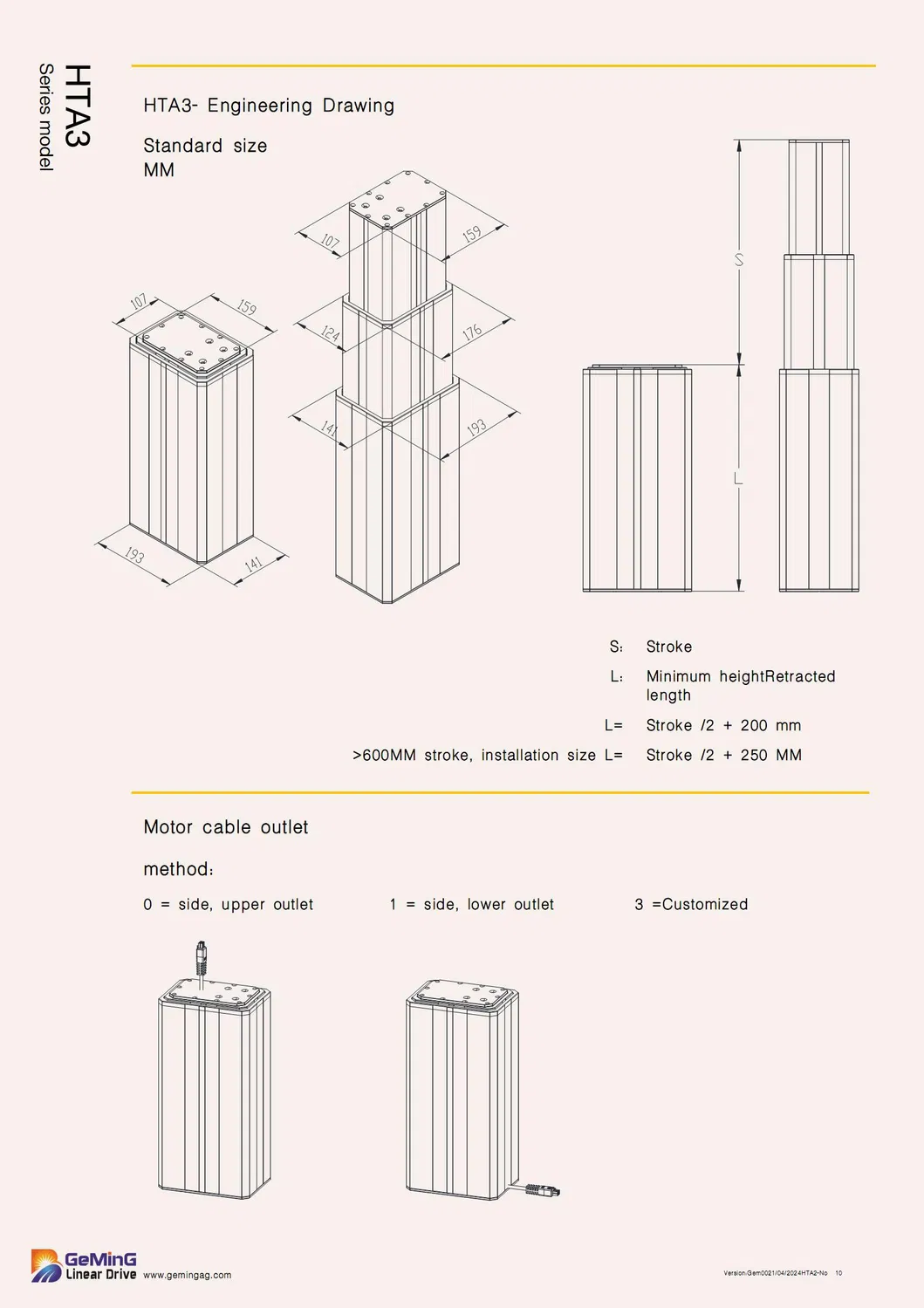

Engineering Drawings & Load Data

Code	Rated Load Thrust (N)	Pull (N)	Static Force (N)	Rated Load (A)	No-load Speed (mm/s)	Load Speed (mm/s)
A	7,000	4,000	8,000	6.2	4	3
B	5,000	4,000	7,000	6.2	7	6
C	3,500	3,000	6,000	6.2	11	9
D	2,800	2,800	4,500	6.2	14	11
E	1,400	1,400	3,500	6.2	28	23

🚀

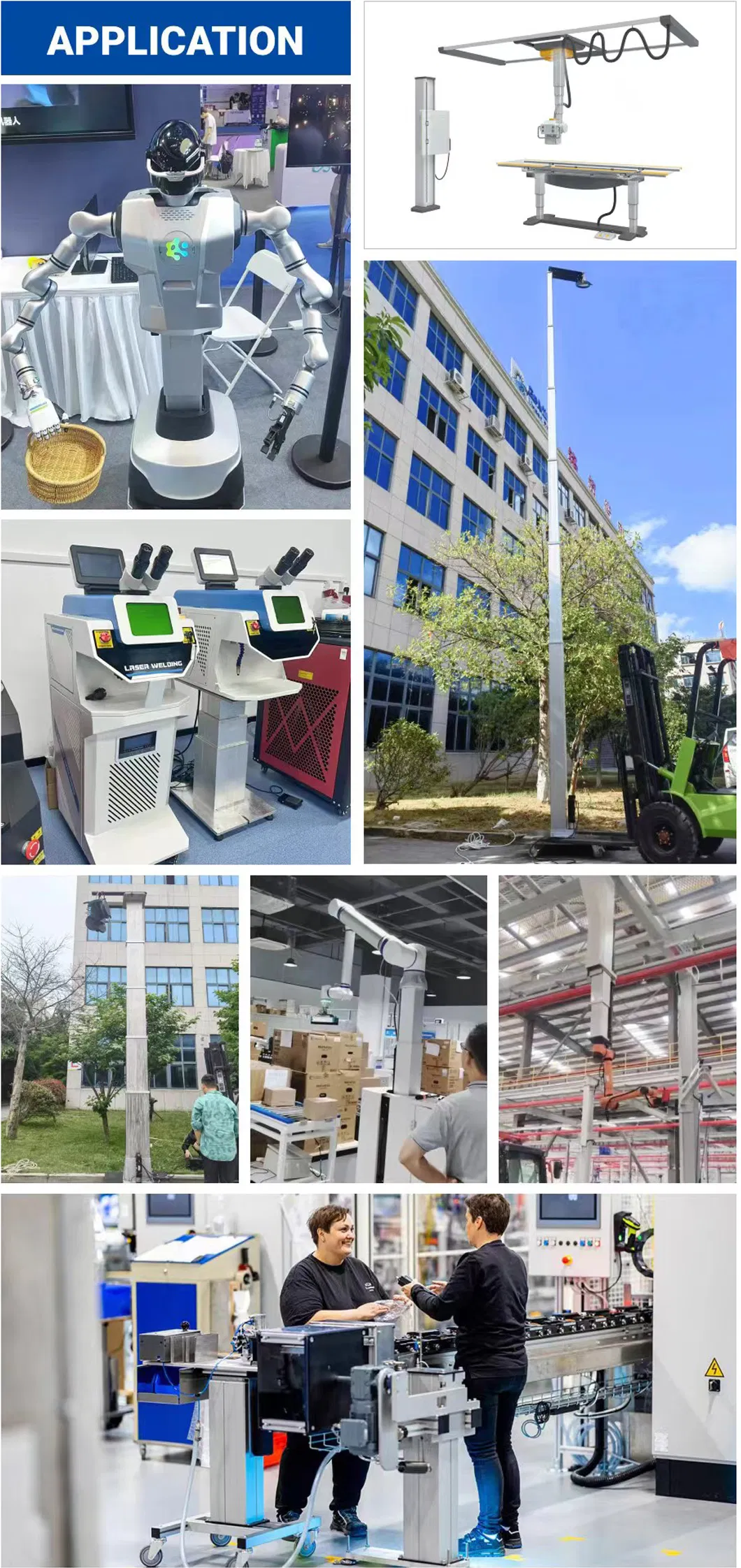

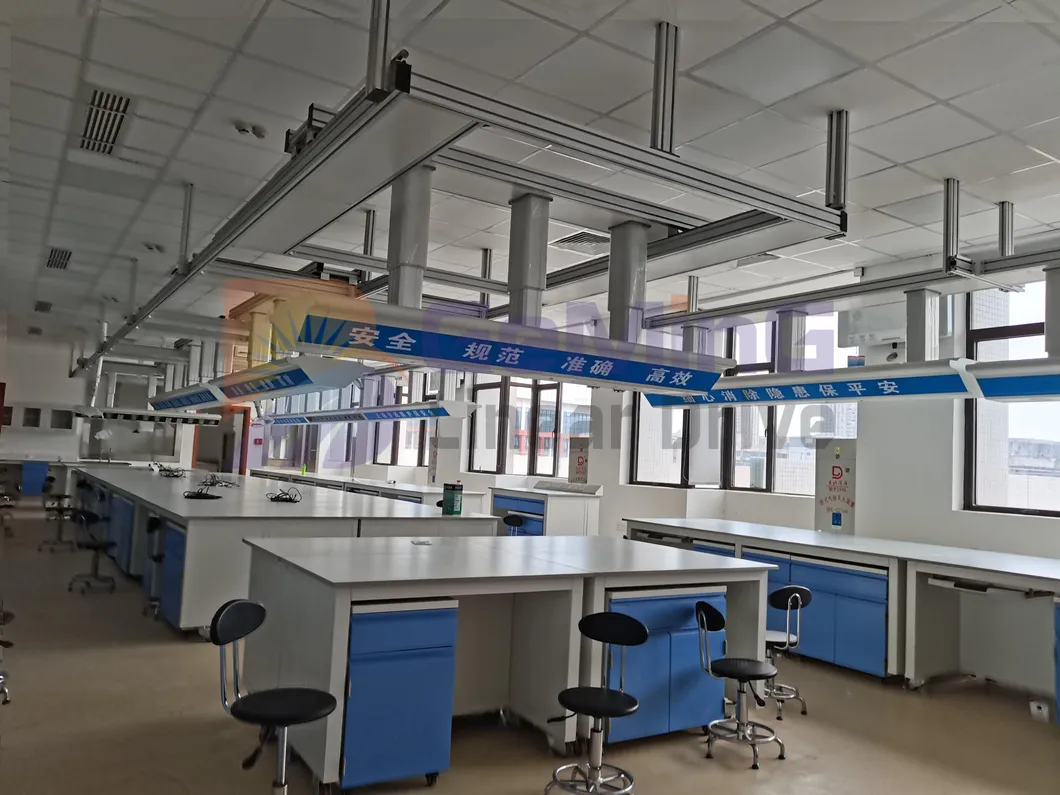

Applications

🏢

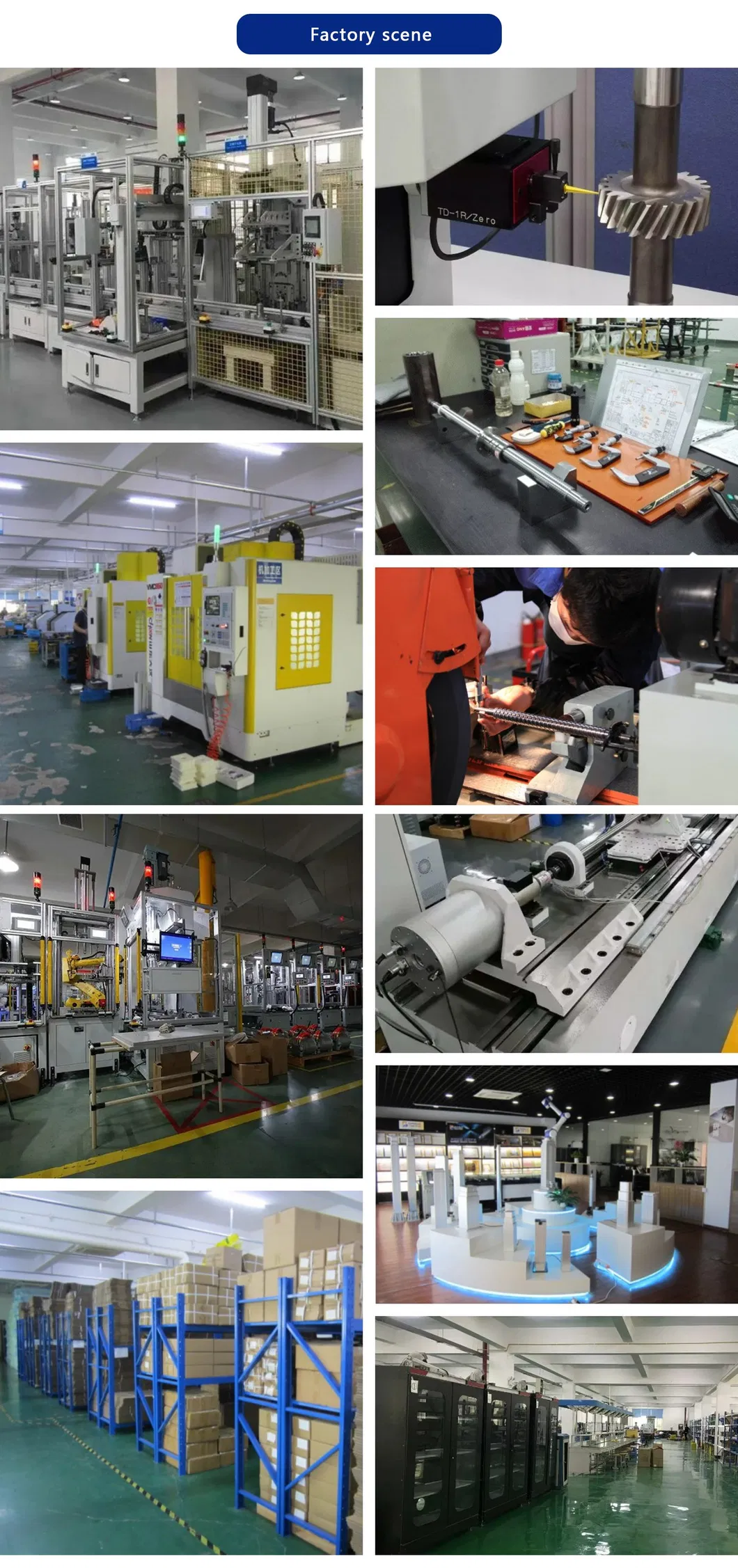

Manufacturing Excellence

Founded in 2011, the company specializes in R&D and manufacturing linear motion systems and has become a leading manufacturer of electric linear actuators, electric lifting column control systems and related technologies. With multiple manufacturing plants and sales agents, we provide global engineering and sales support. Our multinational team works together to provide high-quality, long-life linear motion solutions and best customer service to our partners.

❓

Frequently Asked Questions

What are your main products?

We produce lifting columns, medical lifting columns, furniture lifting columns, ergonomic lifting tables, linear actuators, industrial linear actuators, micro actuators, and six-axis robotic arms.

How to choose a suitable lifting mechanism?

Please provide detailed specifications such as voltage, speed, stroke, initial height, maximum height, motor working mode, required life, and noise level so we can recommend the best solution.

How to choose a suitable linear actuator?

If you have pictures or drawings, or detailed specs like voltage, speed, stroke, installation size, and load capacity, our team can recommend the right actuator for your needs.

Do you offer customized services?

Yes, we can customize product requirements including installation size, shape, motor selection, stroke, and voltage to meet your specific needs.

Do you provide personalized design services?

Yes, we design actuators, lifting mechanisms, and control systems. While simple customization is free, complex designs may involve mold development costs.

What is your typical delivery time?

Regular standard products typically take 6-20 days. Customized products may take longer depending on the specific order requirements.
