Customization: Available
After-sales Service: Installation
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.SC100 SC200 SC300
TypeRack and Gear
Load Capacity＜1T
Speed40M/Min - 60M/Min
UsageConstruction Hoist
Lift DriveElectric Motor
CageDouble Cage
Max Erection Height250m
Motor Power2X13kw Per Cage
Mast Section Size650X650X1508mm

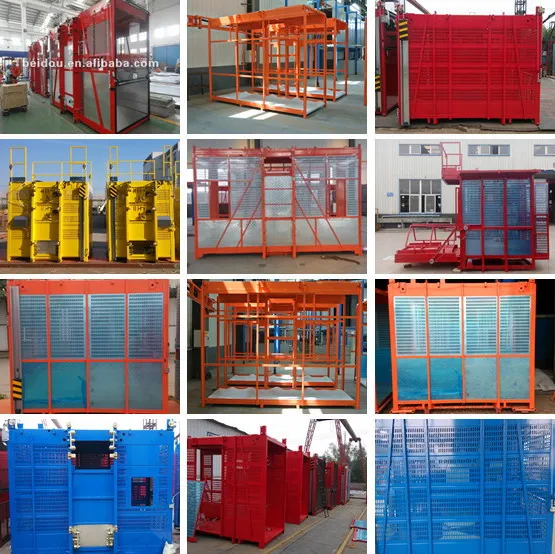

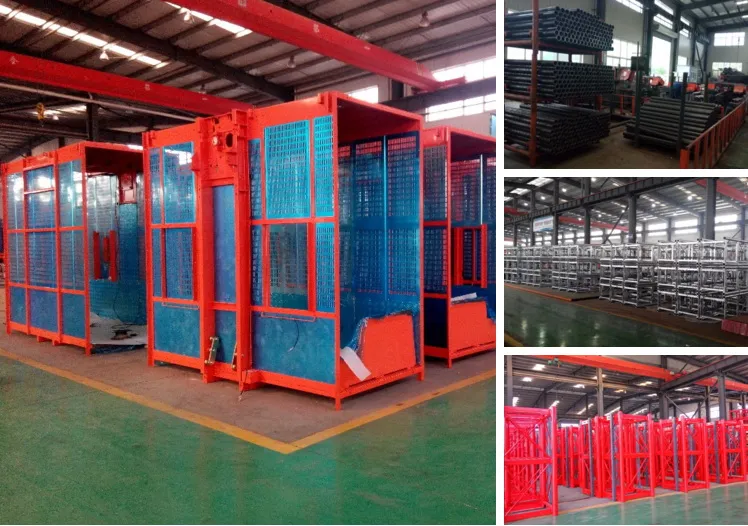

Construction Hoist Production Process Cage Detail
Product Description

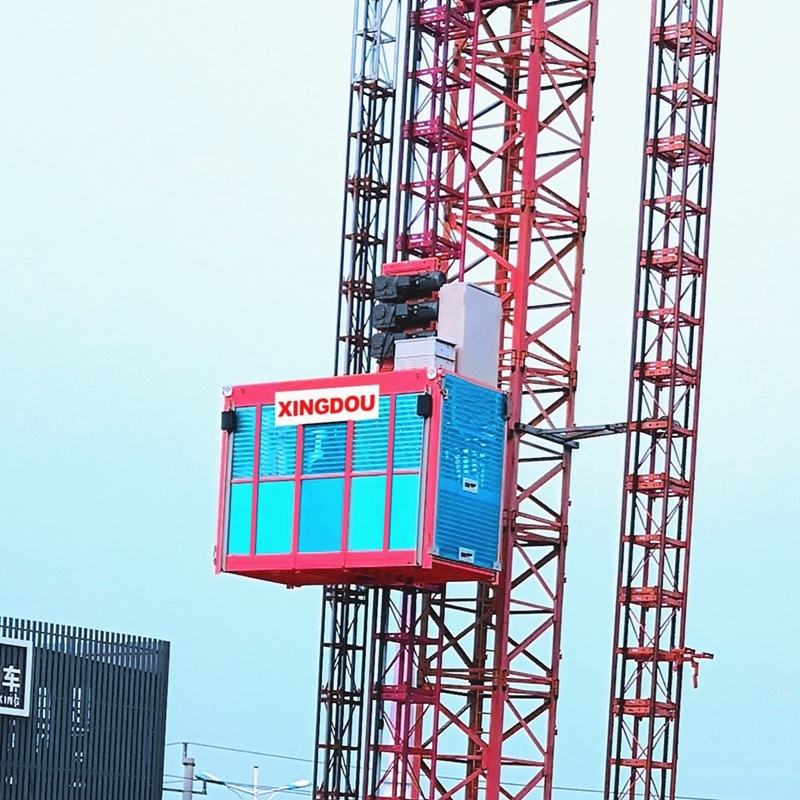

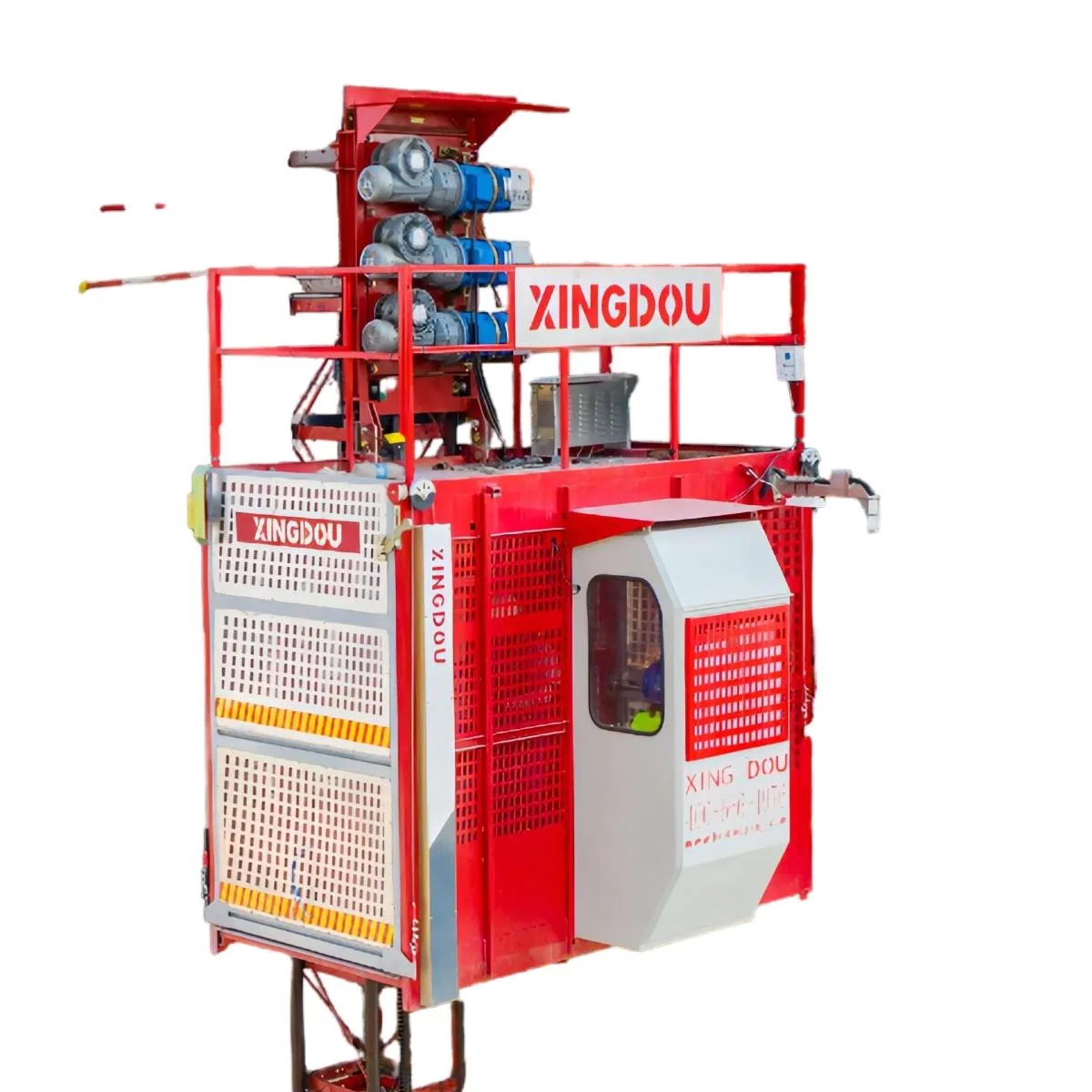

Sc200/200 Double Cages Construction Hoist / Construction Elevator

🏗️
Key Features:
1. Custom designs according to building situations.
2. ISO9001, CE, SGS, BV, SASO certifications.
3. Loading capacity from 500kg to 3000kg.
4. Frequency Inverter or DOL control systems available.
5. High-quality raw materials from Bao Steel Group.
6. Reliable electrical components (Schneider or similar).
Technical Specifications
Model Rated Loading Lifting Speed Motor Power
SC200/2002x2000kg33m/min2x(3x11kw)
SC150/1502x1500kg33m/min2x(2x13kw)
SC100/1002x1000kg33m/min2x(2x11kw)
Frequency Control Models
Model Rated Loading Lifting Speed Motor Power
SC200/200Z2x2000kg0-60m/min2x(2x23kw)
SC100/100Z2x1000kg0-60m/min2x(2x15kw)
Components & Design
⚙️

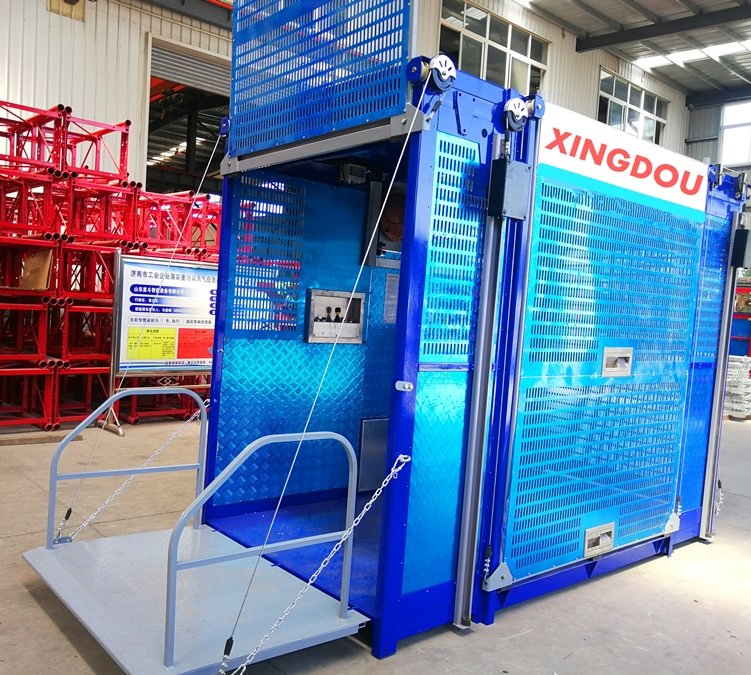

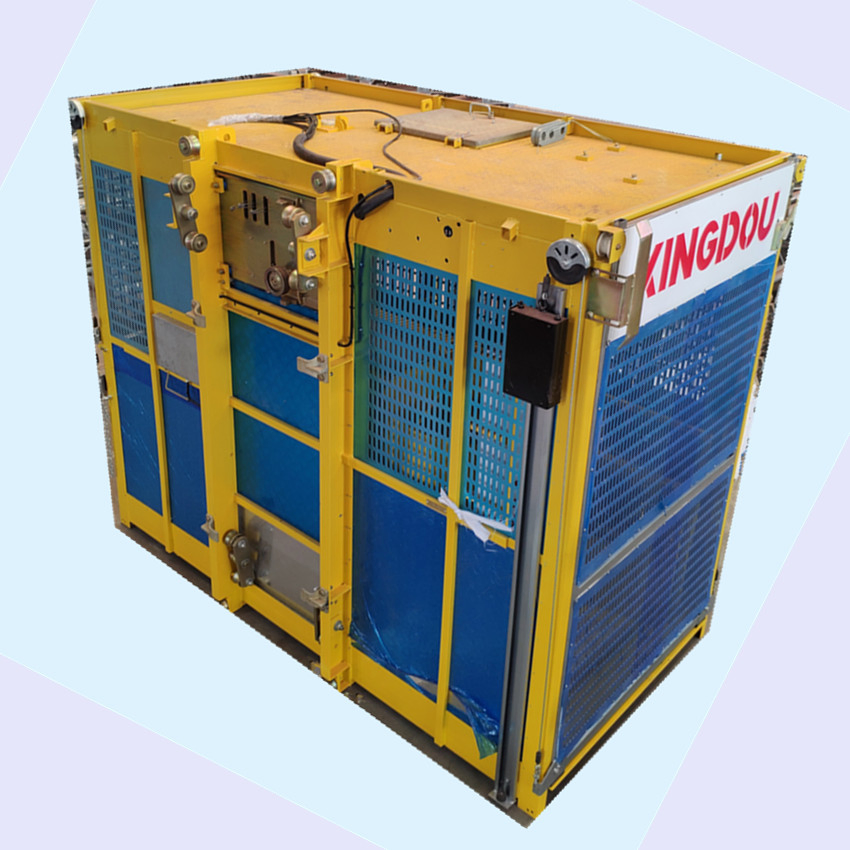

Cage Design: Made of punched aluminum sheet or steel sheet. Features a trapezoidal frame with symmetry for stability. Surface treatments include blasting, baking finish, or galvanizing.
📐
Mast Section & Rack: Constructed from high-quality Q345B steel. Common size: 650*650*1508mm. Rack materials include CL60 special rail steel or 60# high-quality carbon steel.

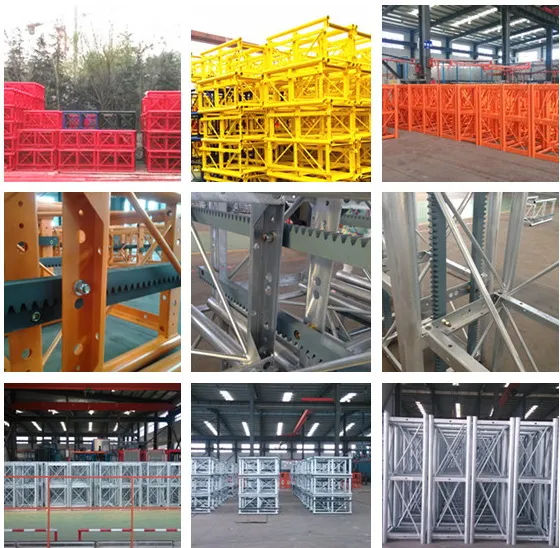

Mast Section Quality Control Global Applications
Safety Measures
🛡️
1. Anti-falling governor
2. Electrical and Mechanical interlocks
3. Safety hook & Overload protector
4. Upper and bottom limit switches
5. Bottom Buffer

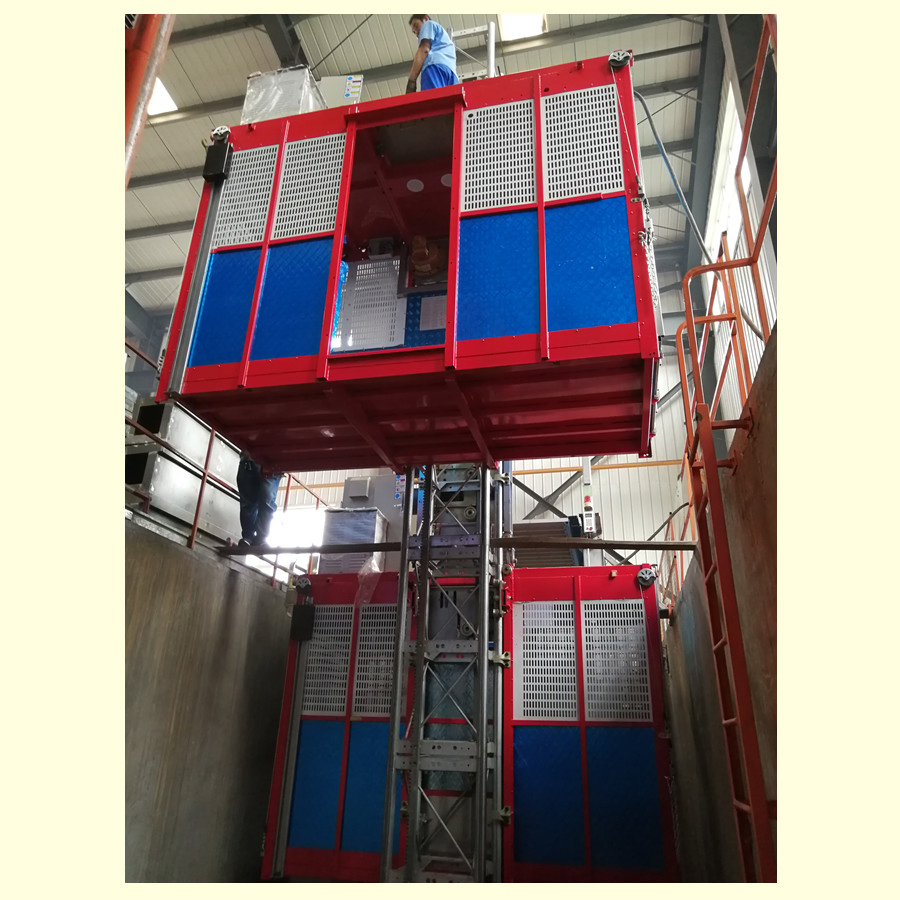

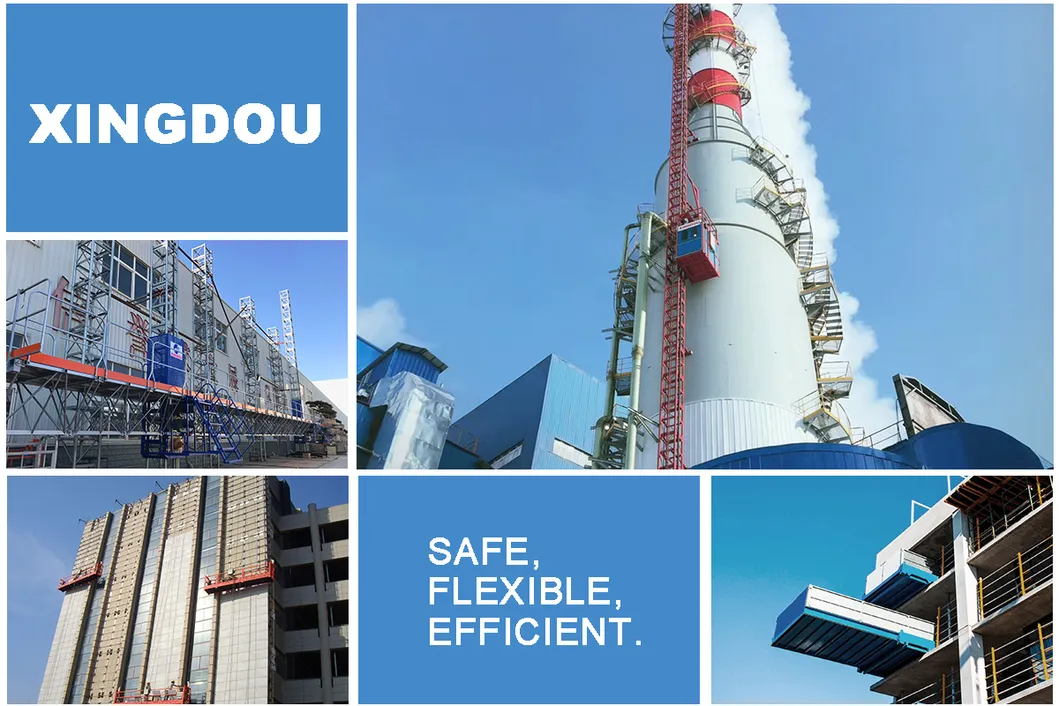

Hoist Operation Installation
Packaging & Delivery
Package Size320.00cm * 320.00cm * 240.00cm
Gross Weight5000.000kg
TransportContainer
Frequently Asked Questions
Q: What is the maximum height these hoists can reach? A: Our construction hoists are designed to reach a maximum erection height of up to 250 meters.
Q: Can the cage size be customized? A: Yes, we offer various optional sizes such as 3x1.5x2.1m and 3.2x1.5x2.4m, and can customize dimensions based on specific client requirements.
Q: What safety systems are integrated into the hoist? A: The equipment includes an anti-falling governor, mechanical interlocks, safety hooks, overload protectors, and multiple limit switches for secure operation.
Q: What type of motor and electrical systems are used? A: We use high-quality electric motors (e.g., 2X13kw per cage) and reliable electrical systems from brands like Schneider, which can be equipped with PLC fault sensors.
Q: What materials are used for the mast sections? A: Mast sections are made from Q345B steel plate or seamless steel tubes, with options for galvanized or heat spray coatings for corrosion resistance.
