Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
1 / 5
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift
Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift

Portable MID Rise Hydraulic 2 Post Lift Floor Connection Car Lift

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Professional Car Lift Solution

Basic Specifications

Model NO.
F4022MM
Type
One Cylinder Hydraulic Lift
Lifting Capacity
4000kg (4T)
Driving Type
Hydraulic
Certification
CE
Condition
New
Design
Two Post
Max Lifting Height
1900mm
Voltage
400V/230V 3 pH 2.2 Kw 50/60 Hz
Post Lift Height
2826mm
Space Between Posts
2820mm
Maximum Width
3370mm
Front Arms Range
740-1130mm
Rear Arms Range
860-1370mm
Standard Pad Height
90mm - 140mm
HS Code
8425429000

Product Description

Premium-Line Lift Features

Italy Made F4022MM 2 Post Lift designed for professional auto shop environments. This high-performance car lift combines durability with safety.

  • Capacity: 4,000 kg and 5,000 kg options available
  • Safety: Manual or electro safety release mechanisms
  • Control: Manual or electro down valve functionality
  • Low Profile: Floor connection cover only 22 mm for easy vehicle passage
  • Versatility: Multiple lifting arms combinations (optional)
  • Accessibility: Very low lifting pads down to 75 mm (optional)

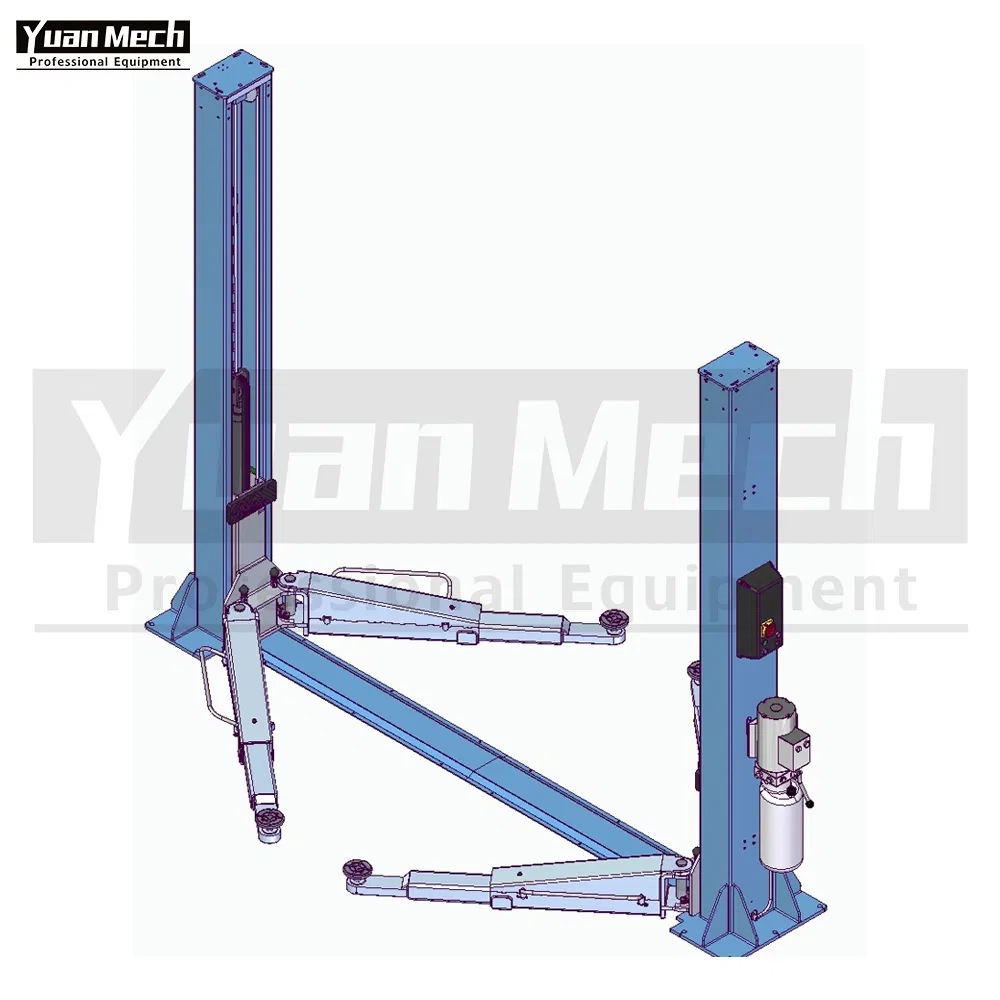

2 Post Lift Detail

Comprehensive Product Range

  • Two Post lifts (Floor and Top)
  • Double scissor lift (Low Profile)
  • Double scissor lift (High Profile Inground)
  • Midrise lift
  • Motorcycle lift
  • Big scissor lift (Low Profile)
  • Big scissor lift (High profile)
  • Four Post lift
Workshop Equipment

Product Gallery

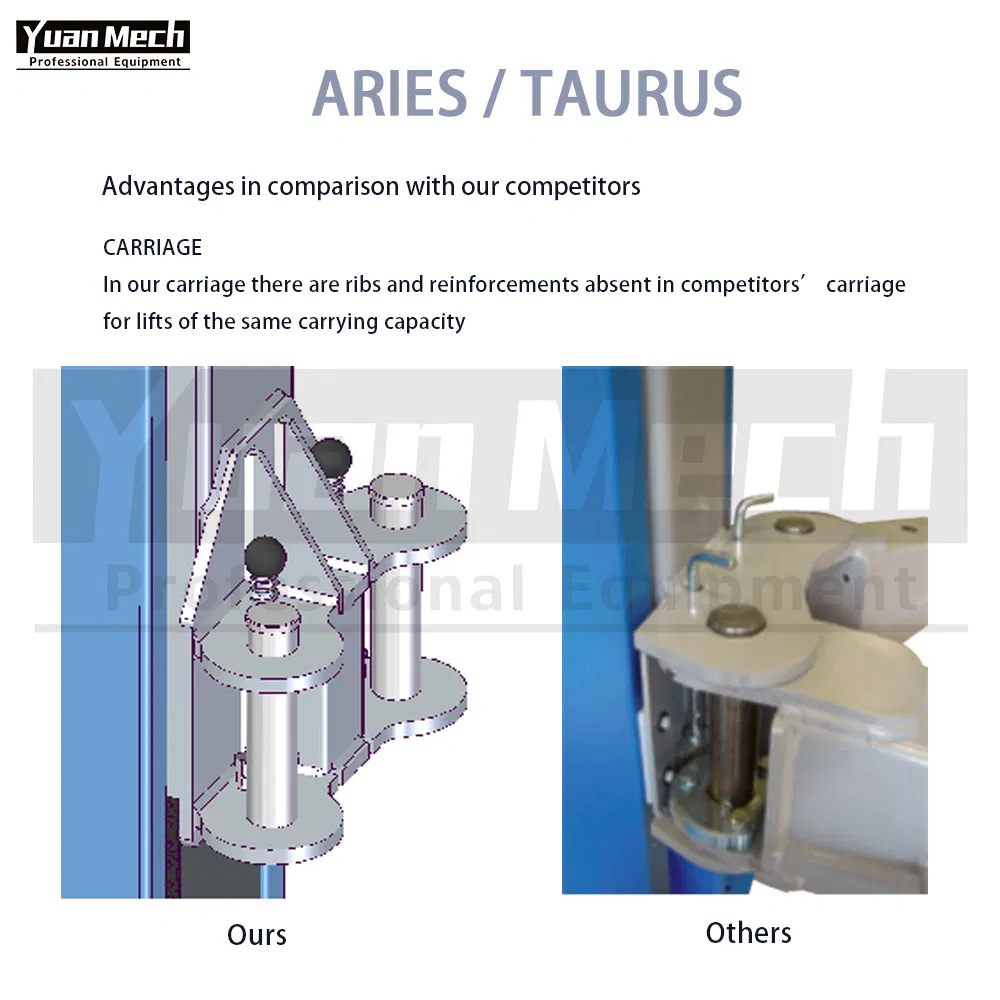

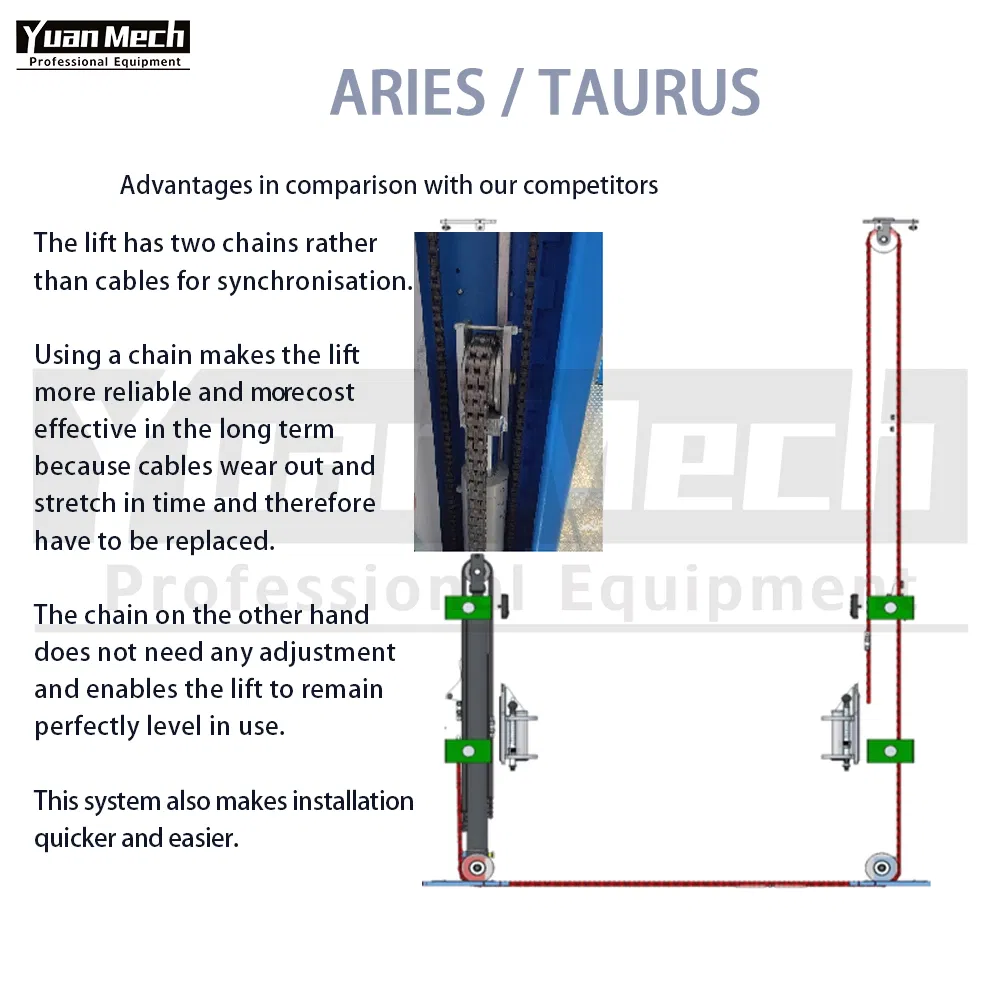

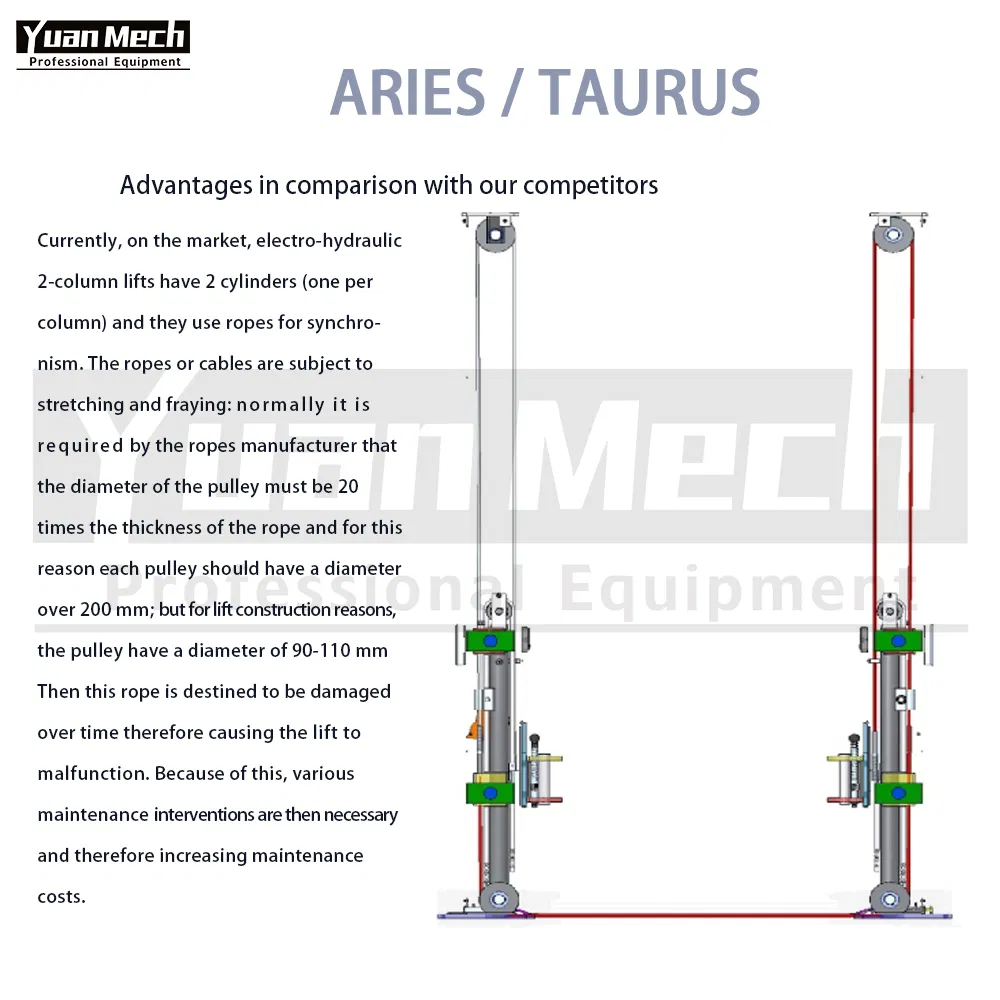

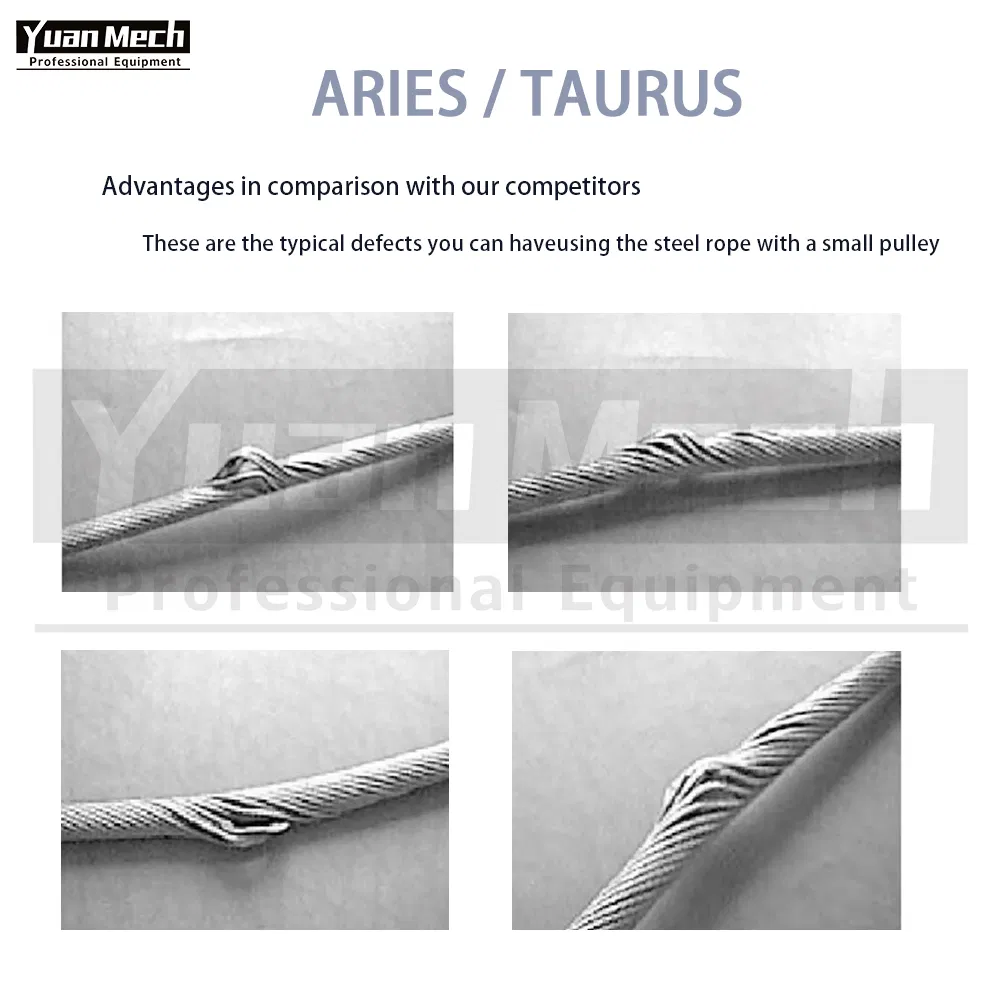

Lift View 1 Lift View 2 Lift View 3 Lift View 4 Lift View 5 Lift View 6

Technical Data

No. Item Specifications
1Power Supply400V/230V 3 ph 2.2 Kw 50/60 Hz
2Lifting Capacity4,000 kg / 5,000 kg
3Release TypeManual or electro safety release
4Down ValveManual or electro down valve
5Connection CoverUltra-low 22 mm thickness
6Lifting ArmsAdjustable combinations (Optional)
7Lifting PadMin thickness 75 mm (Optional)

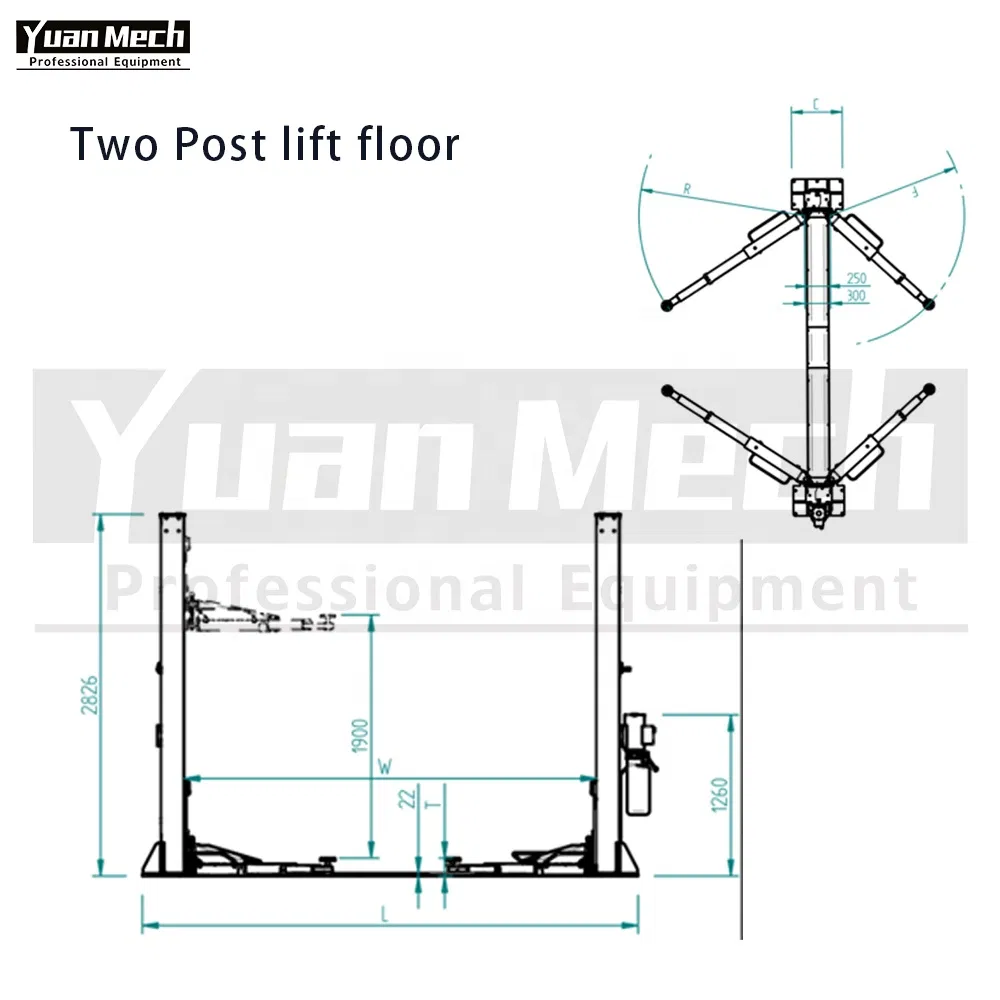

Technical Structure Drawing
Footer Banner

Frequently Asked Questions

Q1: What is the maximum lifting capacity of this model? The standard model supports up to 4,000 kg (4T), with options available for up to 5,000 kg to accommodate heavier vehicles.
Q2: Can the lift handle low-clearance vehicles? Yes, the floor connection cover is only 22 mm thick, and we offer optional lifting pads with a minimum height of just 75 mm for sports cars.
Q3: What are the power requirements for installation? The lift operates on 400V or 230V, 3-phase power, with a 2.2 Kw motor running at 50/60 Hz.
Q4: Is this equipment certified for safety? Absolutely. This car lift is CE certified and designed by professional technicians to meet premium quality and safety standards.
Q5: What type of safety release mechanism does it use? It offers flexibility with both manual and electro safety release options, as well as manual or electro down valves.
Q6: How is the product packaged for shipping? The equipment is securely packed in a plywood crate with dimensions of approximately 2870*500*700 mm to ensure safety during transit.
