Product Description

i
Basic Info.
Model NO.
ON-7214
Lifting Capacity
4T
Driving Type
Hydraulic
Certification
CE, ISO
Mechanical Lift Units
1
Double Cylinder Type
Planer-type
Condition
New
Design
Two Post
Specification
3800*500*700mm
Origin
China
HS Code
8425429000
Production Capacity
10000
★
Product Description

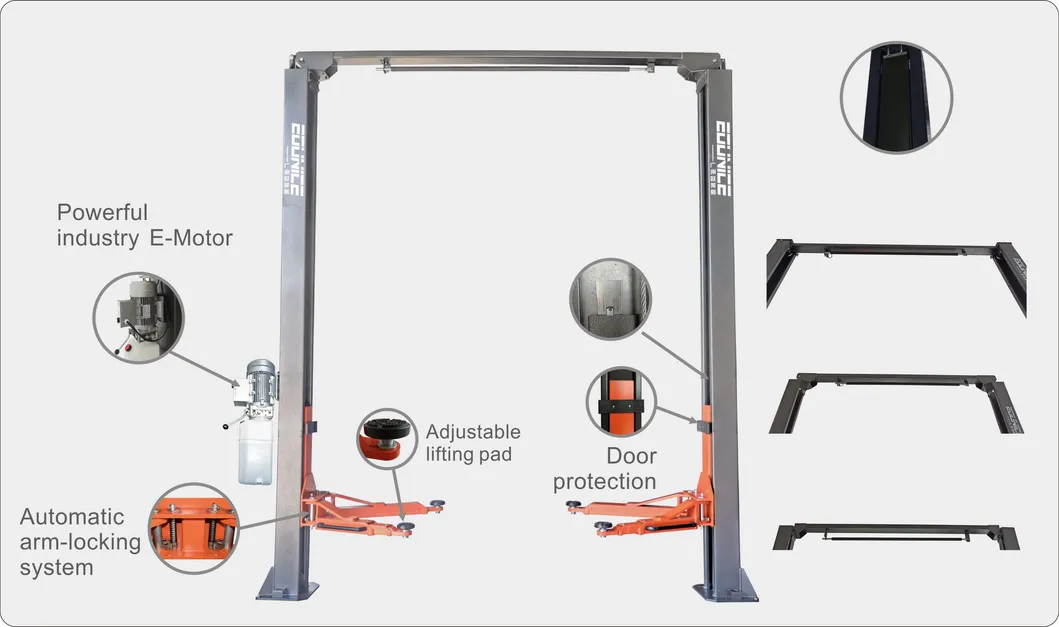

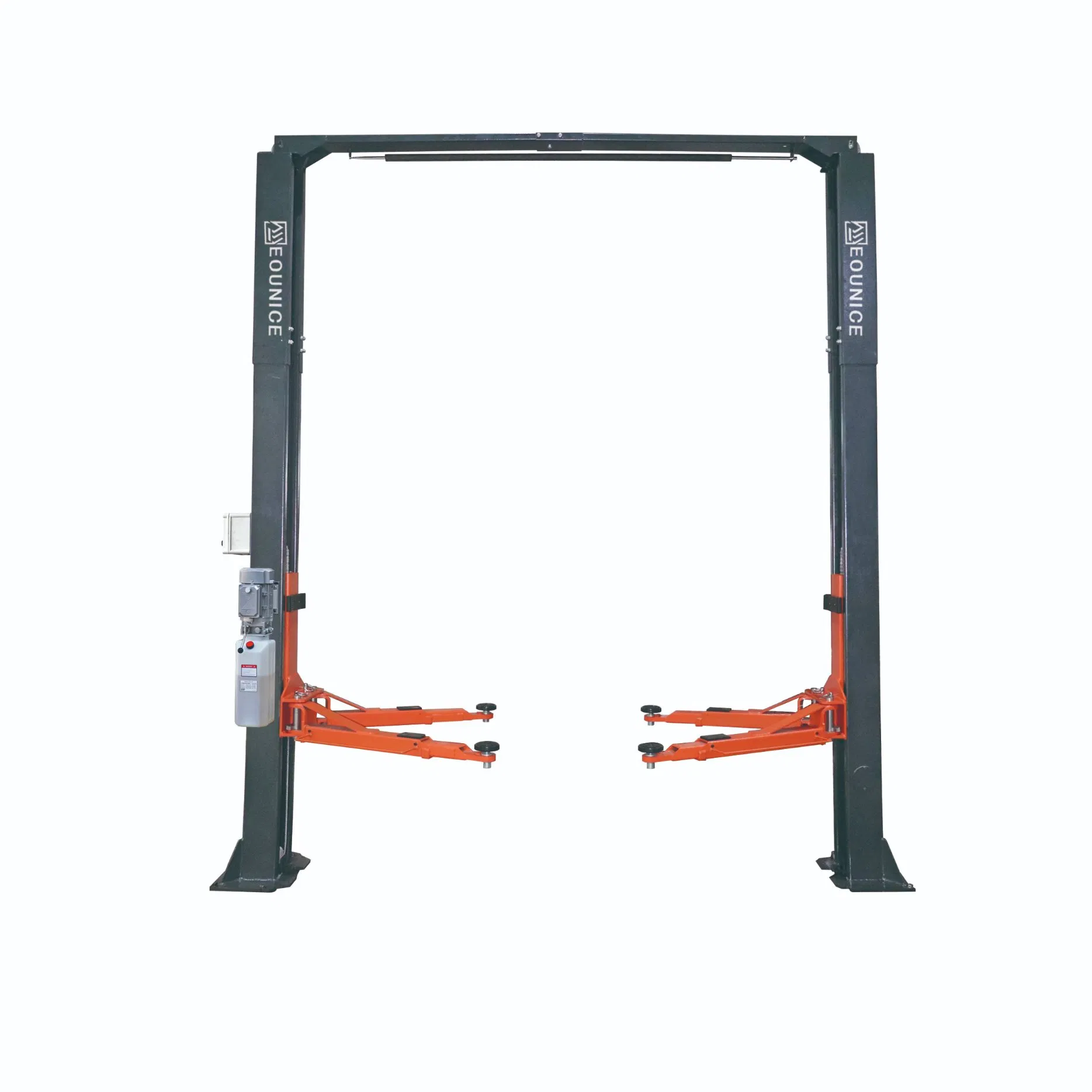

Two Post Lift
Manual Release Hoist
TECHNICAL DATA:
Model Lifting Capacity Lifting Time Lifting Height Min Height Total Height Width Between Columns Total Width Gross Weight Motor Power
ON-7214 4,000kgs (9,000LBS) ≤55S 1920mm (75 9/16") 95mm (3 3/4") 3835mm (151") 2850mm (112 1/4") 3410mm (134 1/4") 673kgs (1,484LBS) 2.2KW (3HP)
ON-7214/4.5 4,500kgs (10,000LBS) ≤55S 1920mm (75 9/16") 95mm (3 3/4") 3835mm (151") 2850mm (112 1/4") 3410mm (134 1/4") 703kgs (1,550LBS) 2.2KW (3HP)
PRODUCT INTRODUCTION:
  • CE approval for high safety standards.
  • 4,000Kg (9,000LBS.) lifting capacity.
  • Manual lock release with 24V low voltage operation.
  • Durable chain drive cylinder in each column with anti-surge valves.

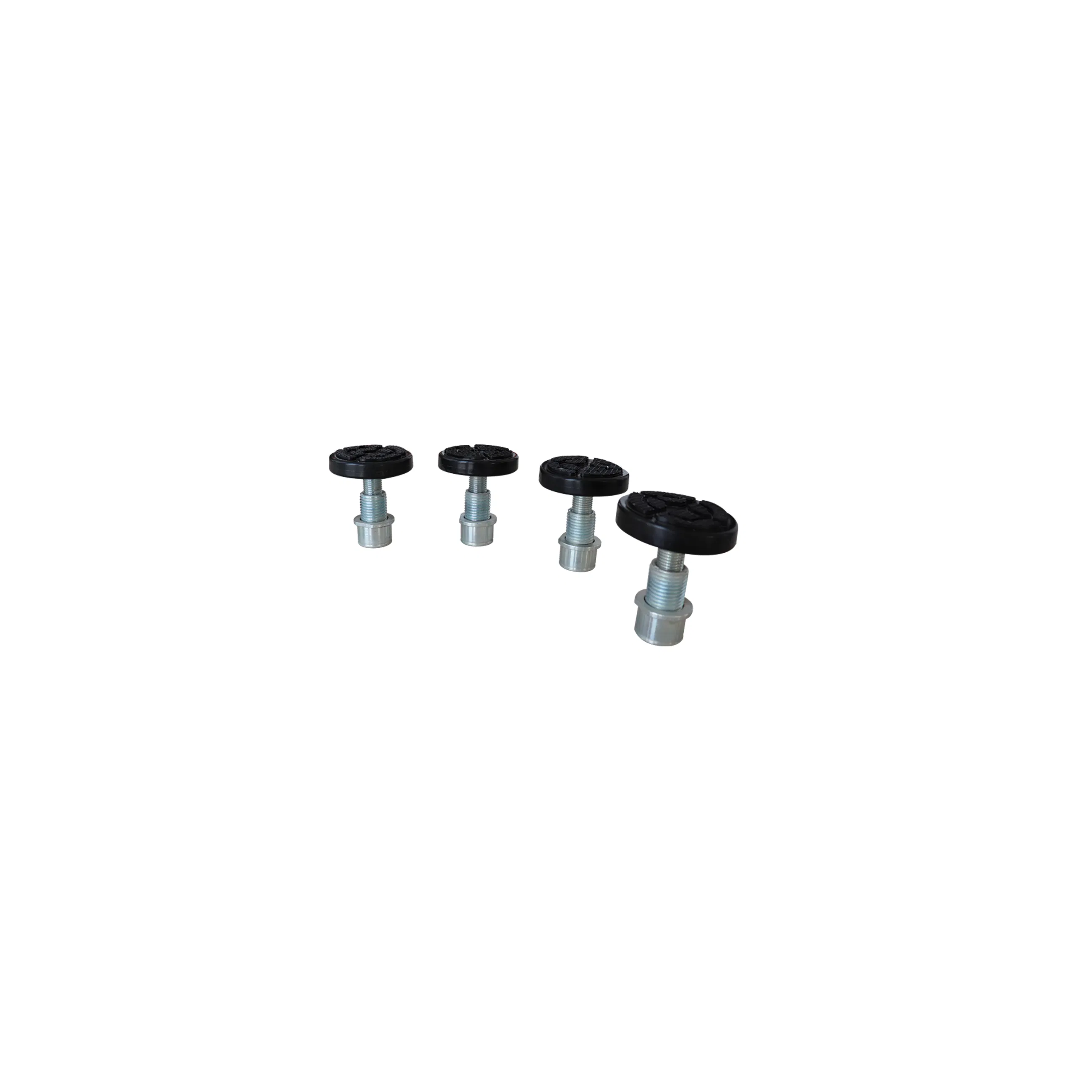

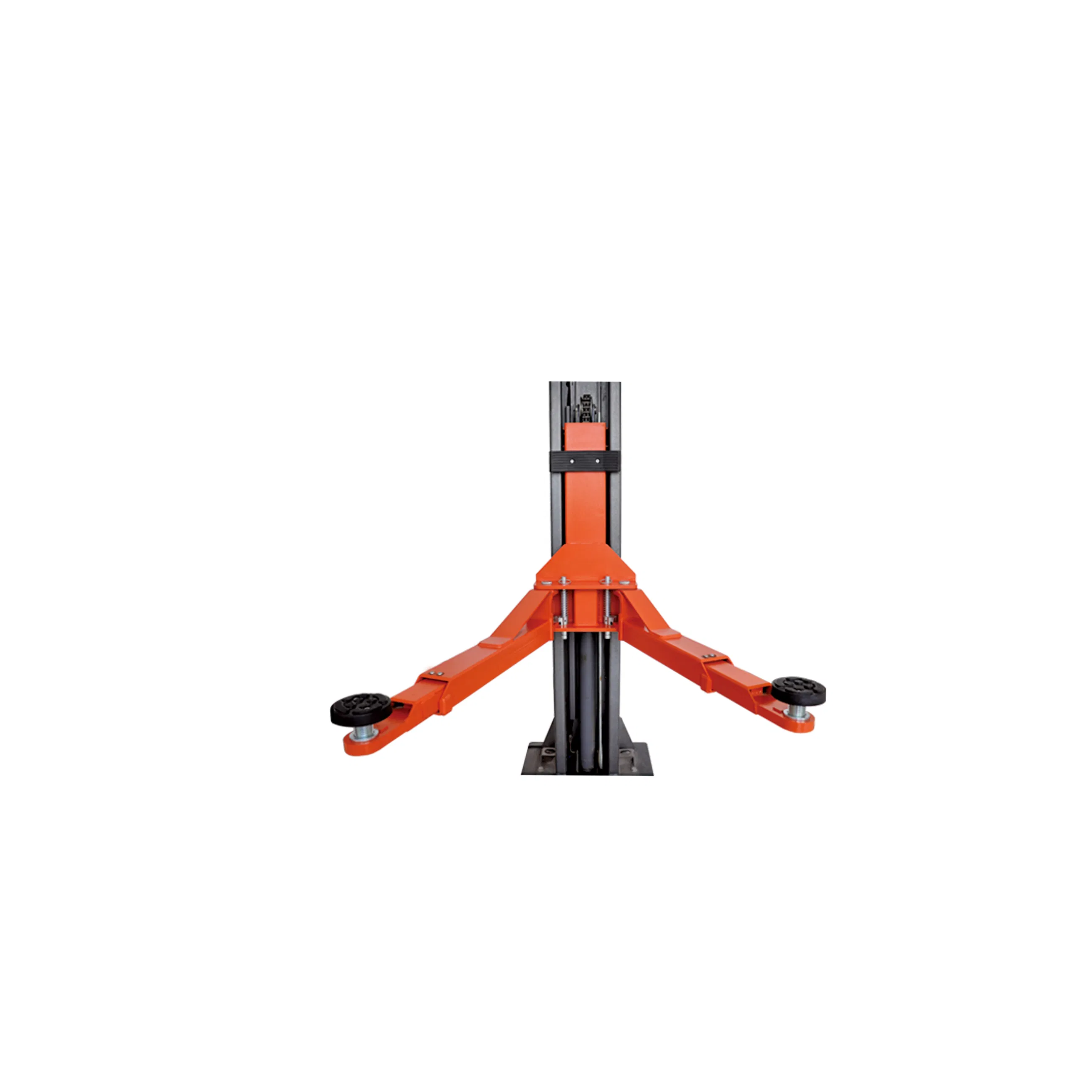

  • Standard with 4 two-stage lifting arms and screw-up rubber pads.
  • Includes column curtains, foot guards, and high limit switch.
  • 1920mm (75 9/16") lifting height suitable for various operators.

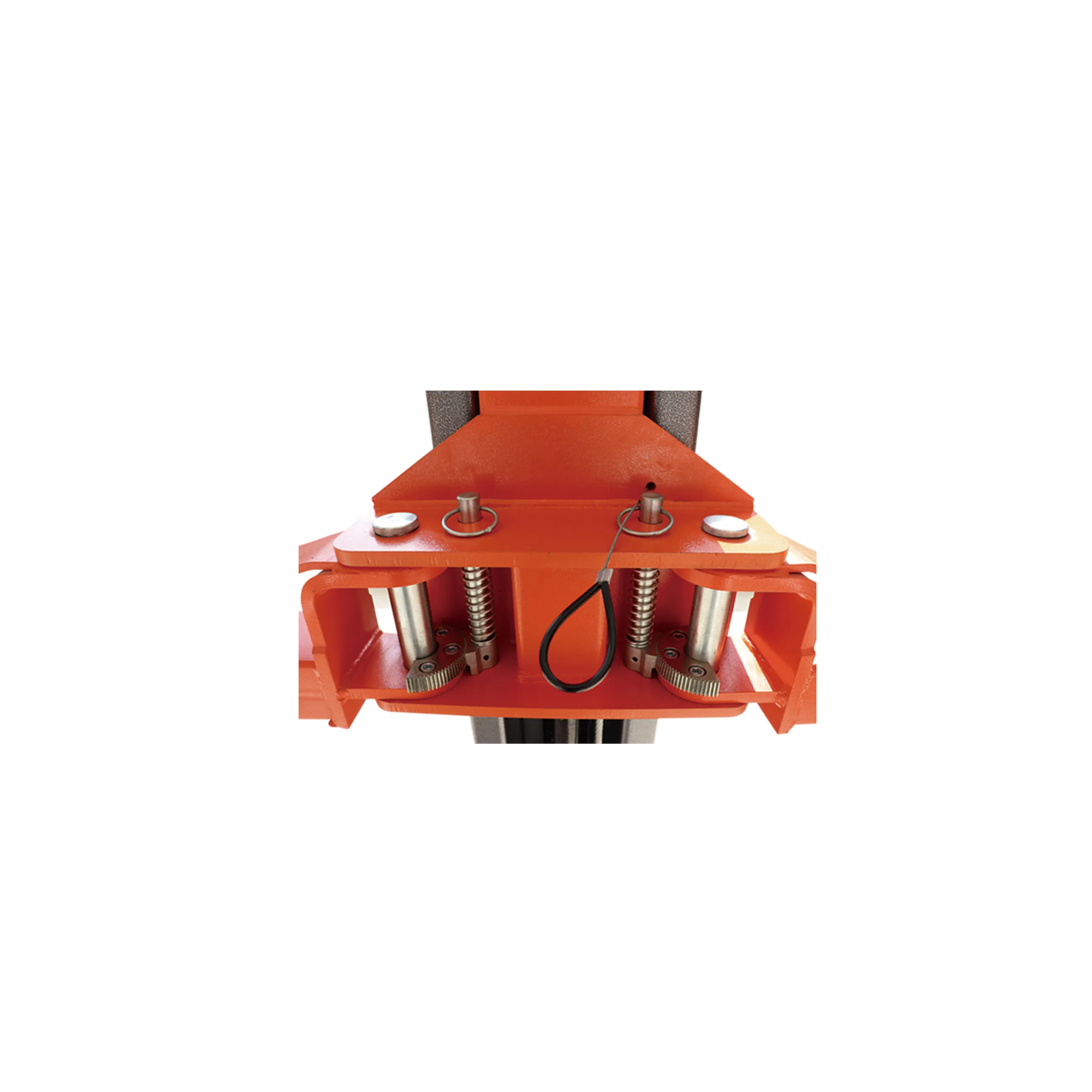

  • Overhead safety protection and automatic arms restraints.
  • Professional durable powder coating finish.
KEY FEATURES:
  • Ultra-thin adapter design with 95mm (3 3/4") min height for low-chassis vehicles.
  • Max height of 3835mm (151") perfect for high roof vehicles maintenance.
  • Side-installed column pulley system prevents cylinder misalignment.
  • Robot-welded structural parts ensure high strength and beautiful seams.
  • Imported powder coating and high-temperature curing for long-lasting finish.
⚙

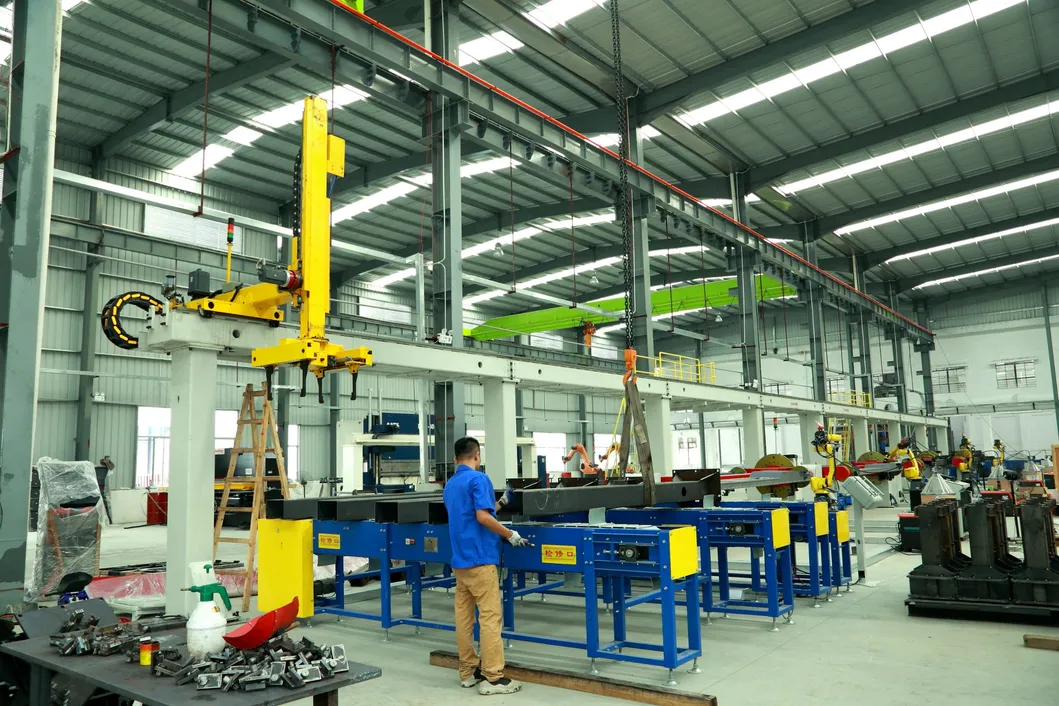

MANUFACTURING FACILITY
Factory Overview

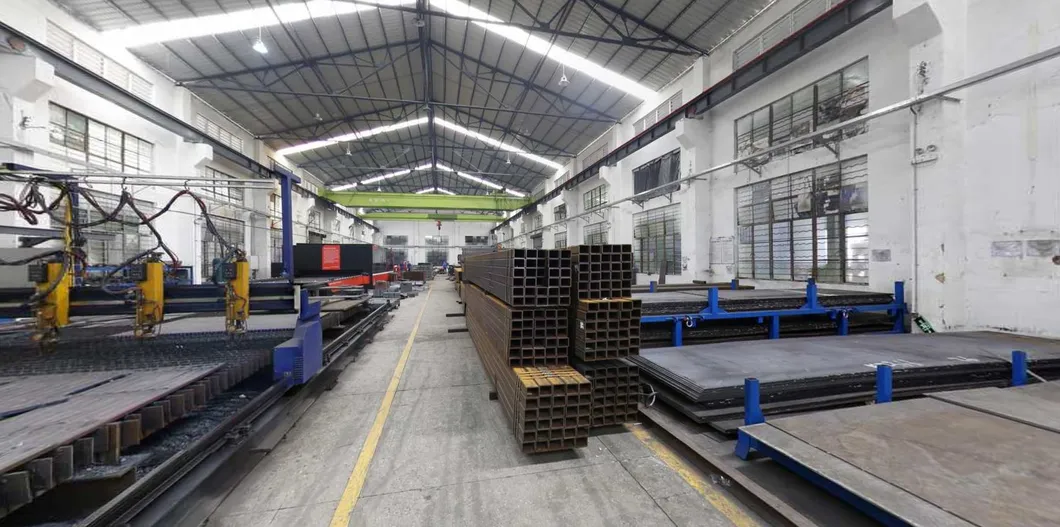

Facility 1

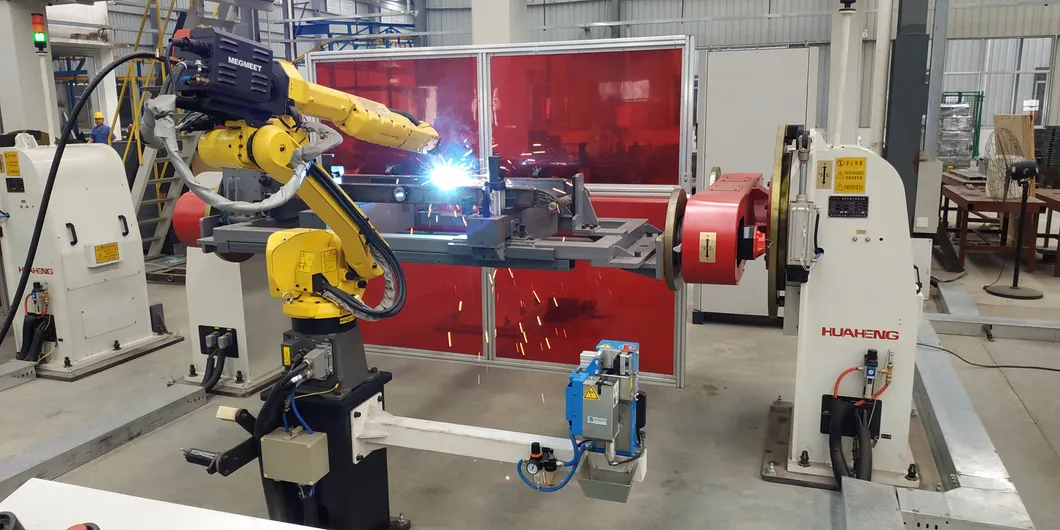

Facility 2
Facility 3

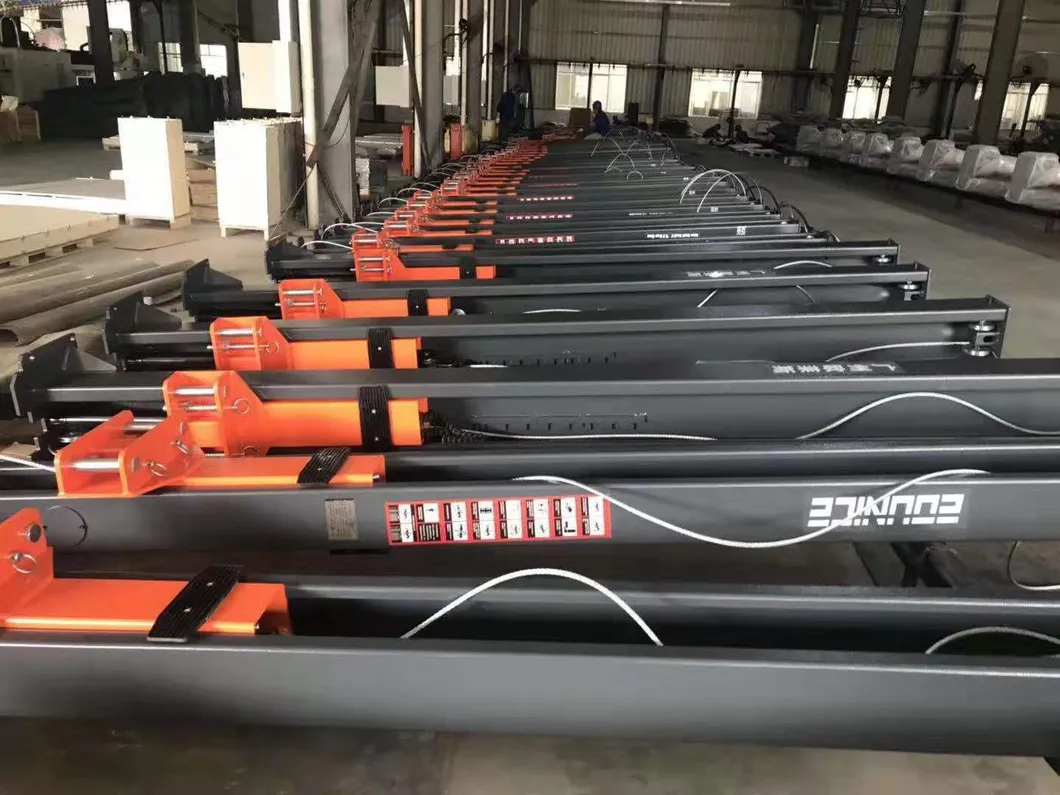

Facility 4
Facility 5
Facility 6
🛡
WARRANTY & SERVICES
Warranty Term: One year on equipment structure. Motors, power units, hydraulic cylinders, cables, and other assembly components are warranted for one year against defects under normal use.
  • Professional OEM & ODM services available.
  • Fully customized configurations according to client needs.
  • Free spare parts supplied during the warranty period (shipping cost excluded).
  • Lifelong technical support from a professional engineering team.
?
FAQ
Are you a trade company or a factory?
We are a professional manufacturer with our own trading operations to ensure seamless export and support for our global clients.
What is the typical lead time for production?
Commonly, the lead time is within 15 days after receiving a 30% deposit or L/C, based on standard container quantities (20FT or 40HQ).
What standard colors are available, and can I order a custom color?
Our regular colors are Blue, Red, and Yellow. Yes, we can produce machines in custom colors based on your specific requests.
What is the minimum height of the lifting pads?
The screw-up rubber pads have a minimum height of 95mm (3 3/4"), making them ideal for low-chassis vehicles.
Is the equipment CE certified for safety?
Yes, the product is CE approved and features overhead safety protection devices and automatic arm restraints for maximum operator security.
What kind of power supply is required for the motor?
The unit is equipped with a 2.2KW (3HP) motor, suitable for standard industrial power configurations.
