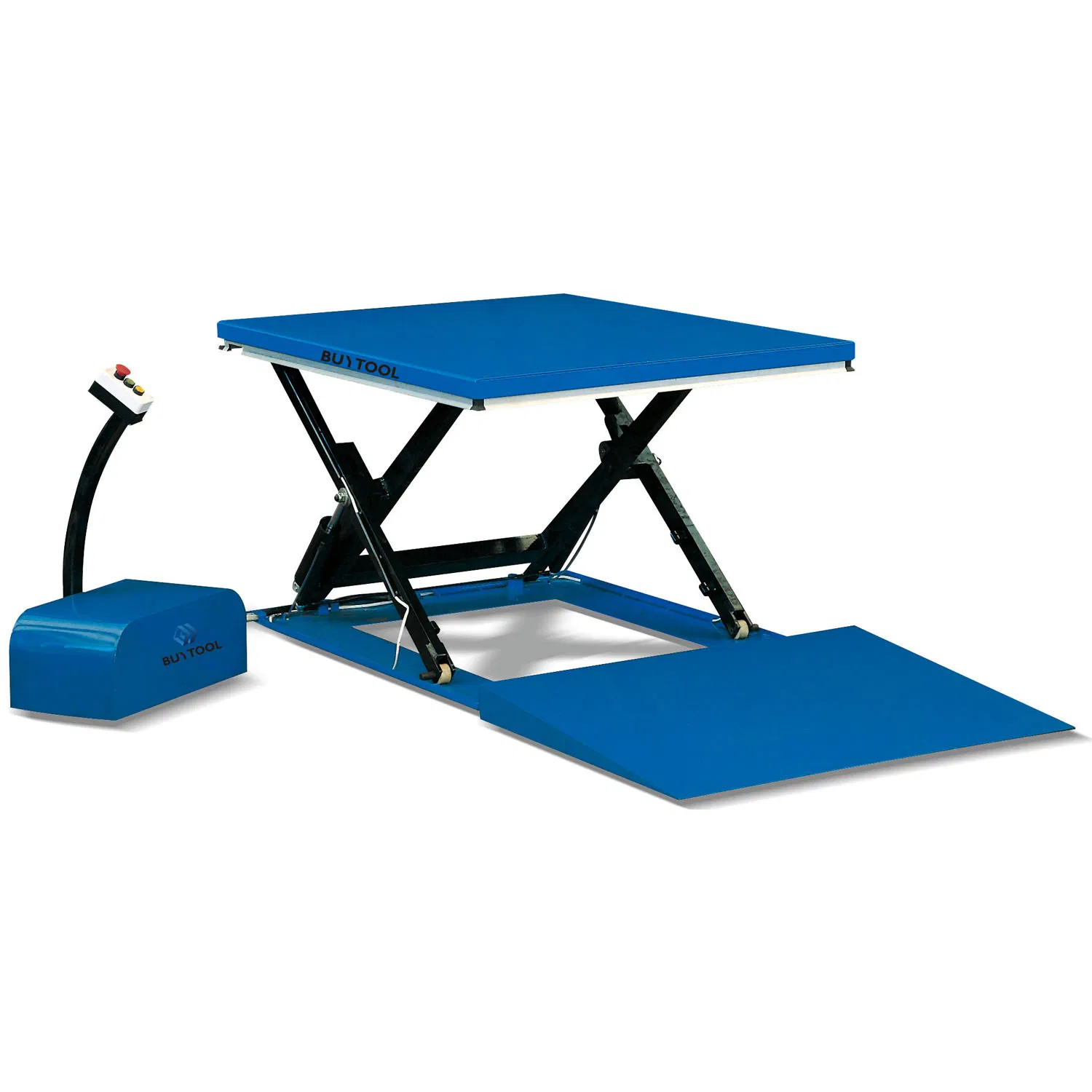

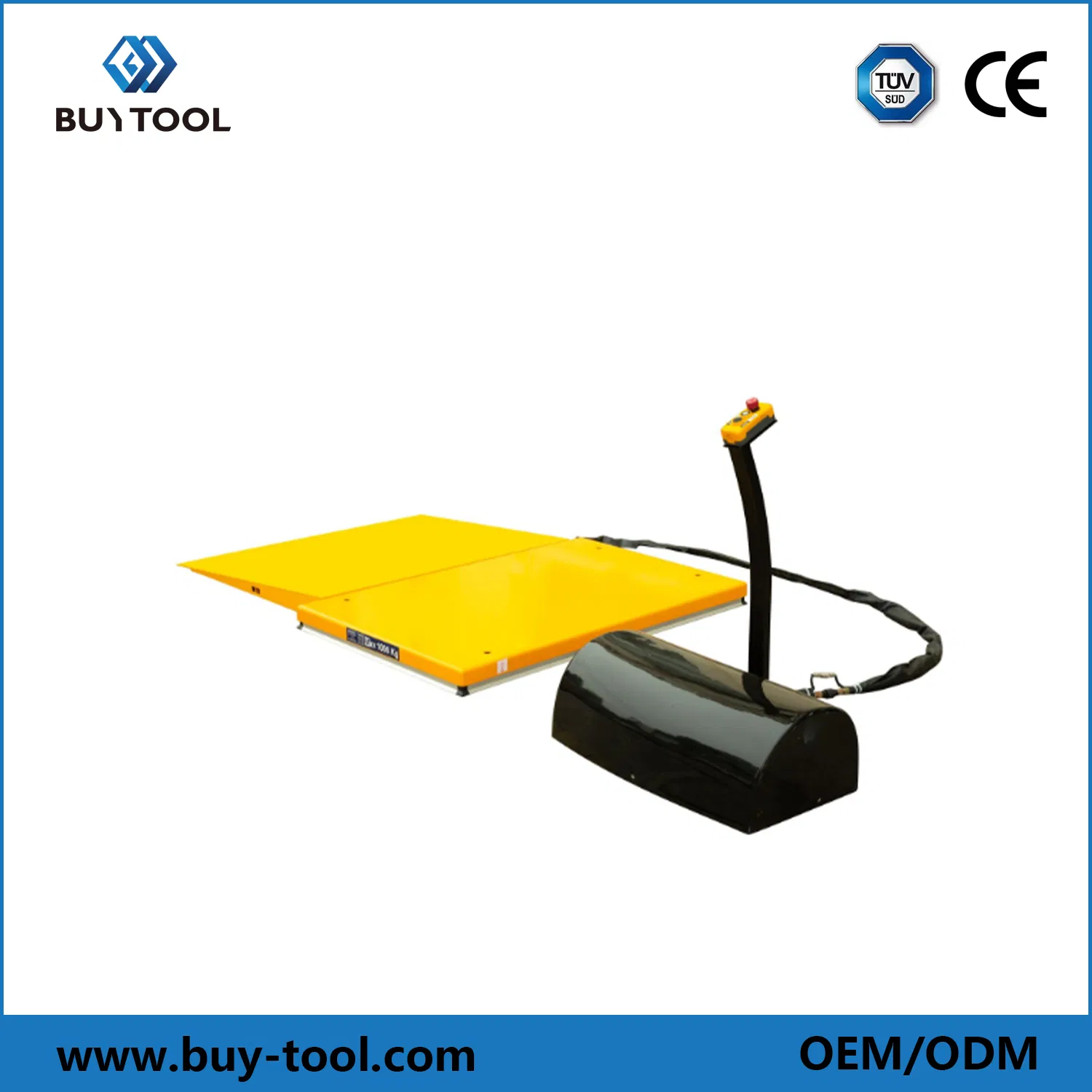

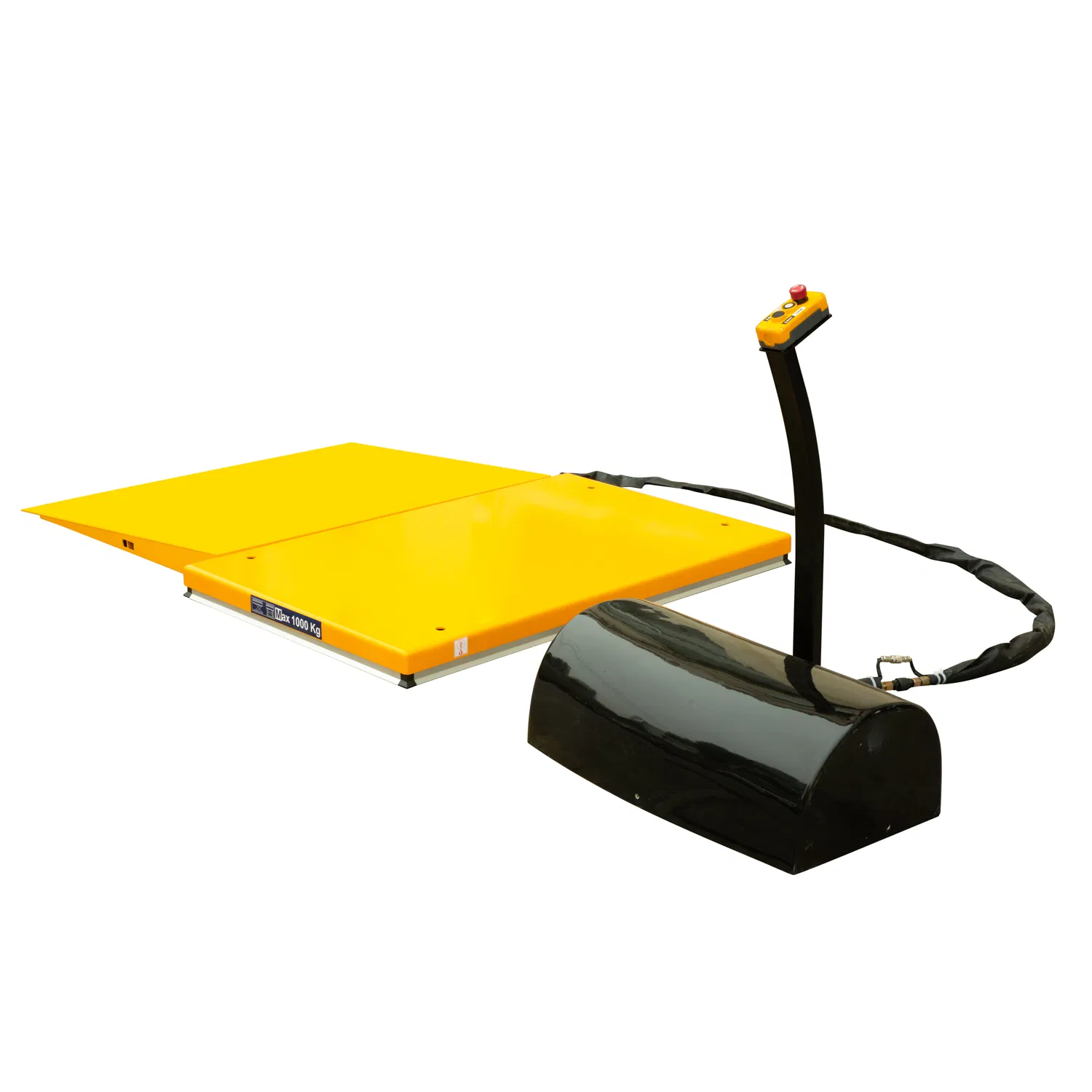

Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Customization:	Available
After-sales Service:	Twenty Hours Online Service
Warranty:	One Year

Basic Specifications

Model NO.HY1001, HY1005, HY1501, HY2001

Product NameLow Profile Lift Table

Lift MechanismScissor Lift

Capacity1000kg, 1500kg, 2000kg

Driven TypeAC 380V/50Hz

Table Size1450*1140mm

Min. Height85-105mm

Max. Height860-870mm

FeatureExplosion-Proof, Heavy Duty

CertificationCE Approved

Product Description

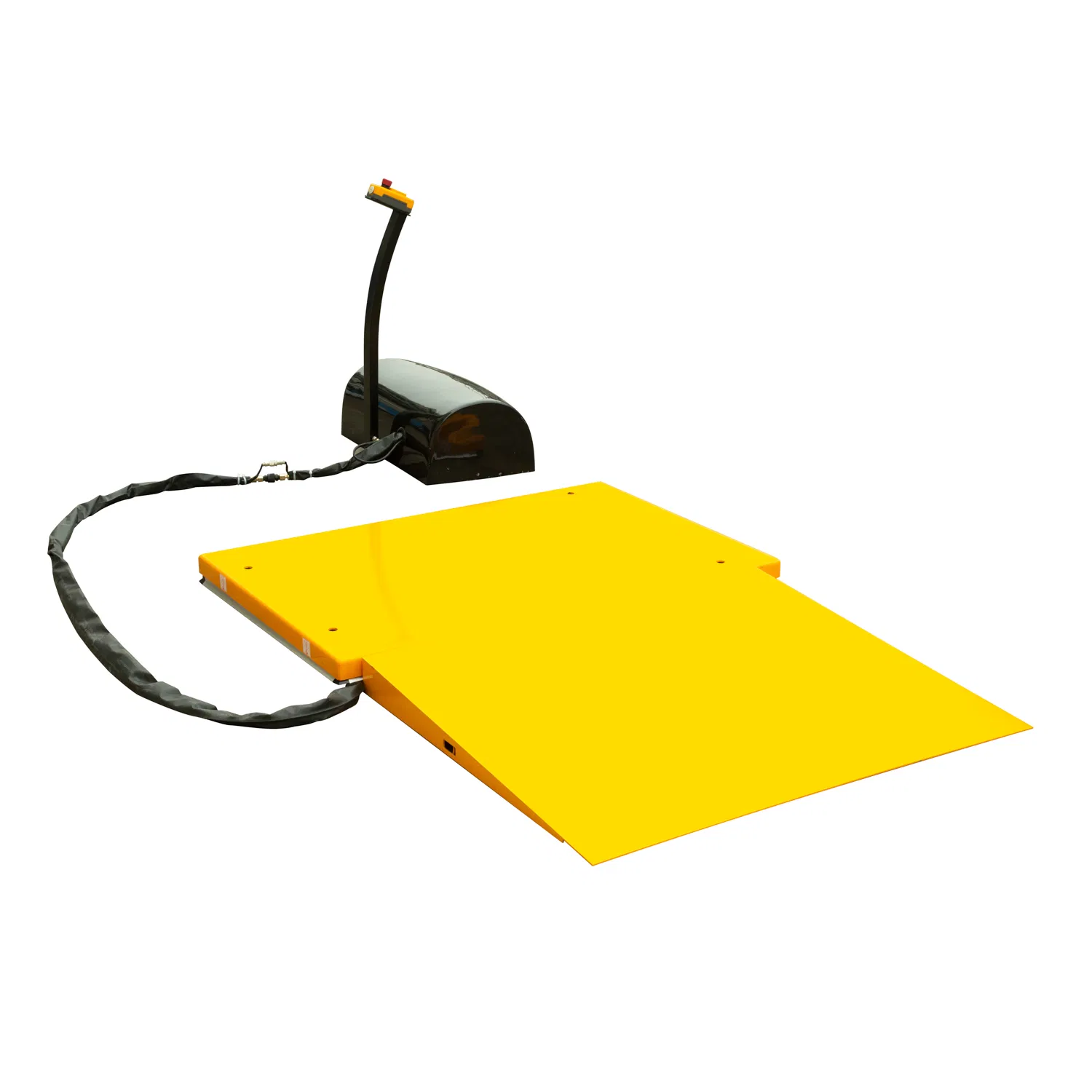

Low Profile Mini Hydraulic Scissor Lift Table 1000kg

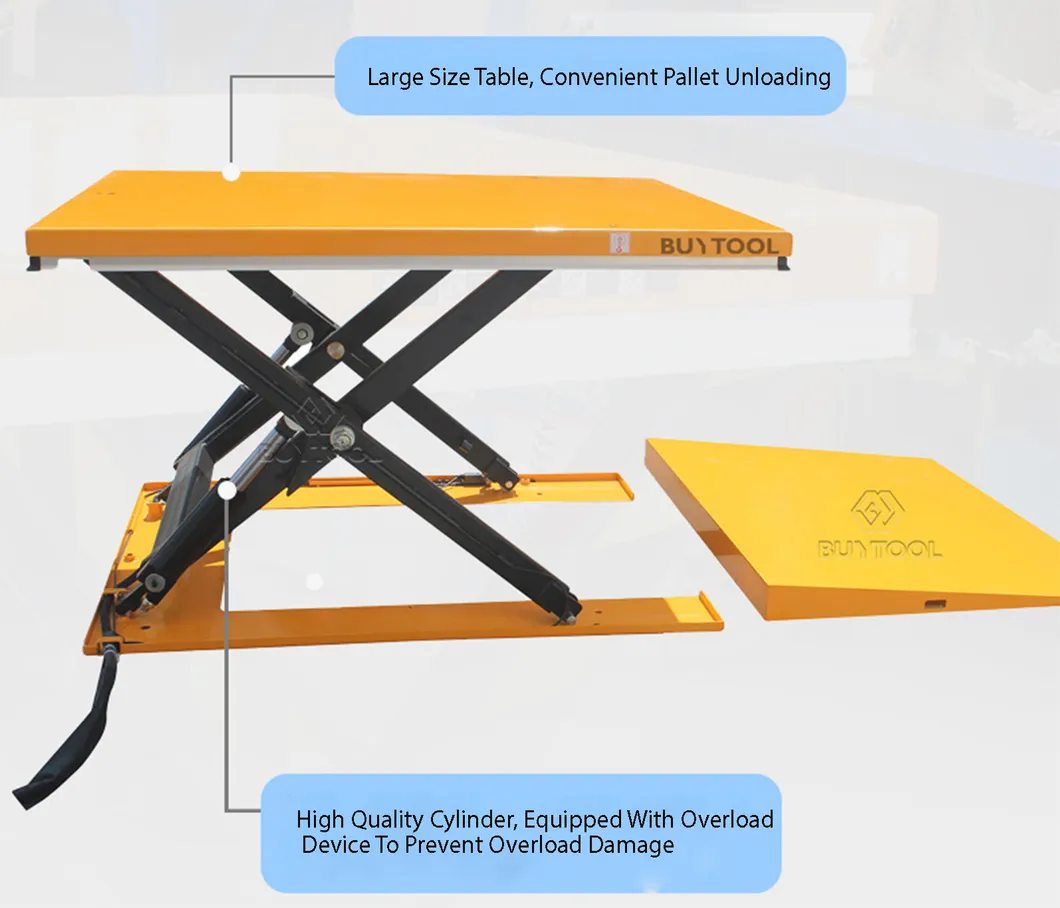

Heavy duty design with larger platform and standard loading ramp.
Low closed height eliminates the need for pit installation, saving costs and space.
Manufactured to European safety standards including EN1570: 1999.
Remote power pack with pedestal and controls, protected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
Equipped with 24V control box featuring UP/DOWN buttons and emergency stop.
Safety features include hose burst safety valve and mechanical safety chocks for maintenance.
Oiless bushings on pivot points for smooth operation and durability.

Technical Parameters

Model	Capacity (kg)	Platform Size (mm)	Min.Height (mm)	Max.Height (mm)	Stroke (mm)	Lifting Time (s)	Power Pack	Net Weight (kg)
HY1001	1000	1450×1140	85	860	775	25	380V/50HZ, 0.75kw	357
HY1002	1000	1600×1140	85	860	775	25	380V/50HZ, 0.75kw	364
HY1003	1000	1450×800	85	860	775	25	380V/50HZ, 0.75kw	326
HY1005	1000	1600×1000	85	860	775	25	380V/50HZ, 0.75kw	352
HY1501	1500	1600×800	105	870	775	30	380V/50HZ, 1.5kw	362
HY2001	2000	1600×1200	105	870	775	35	380V/50HZ, 2.2kw	419

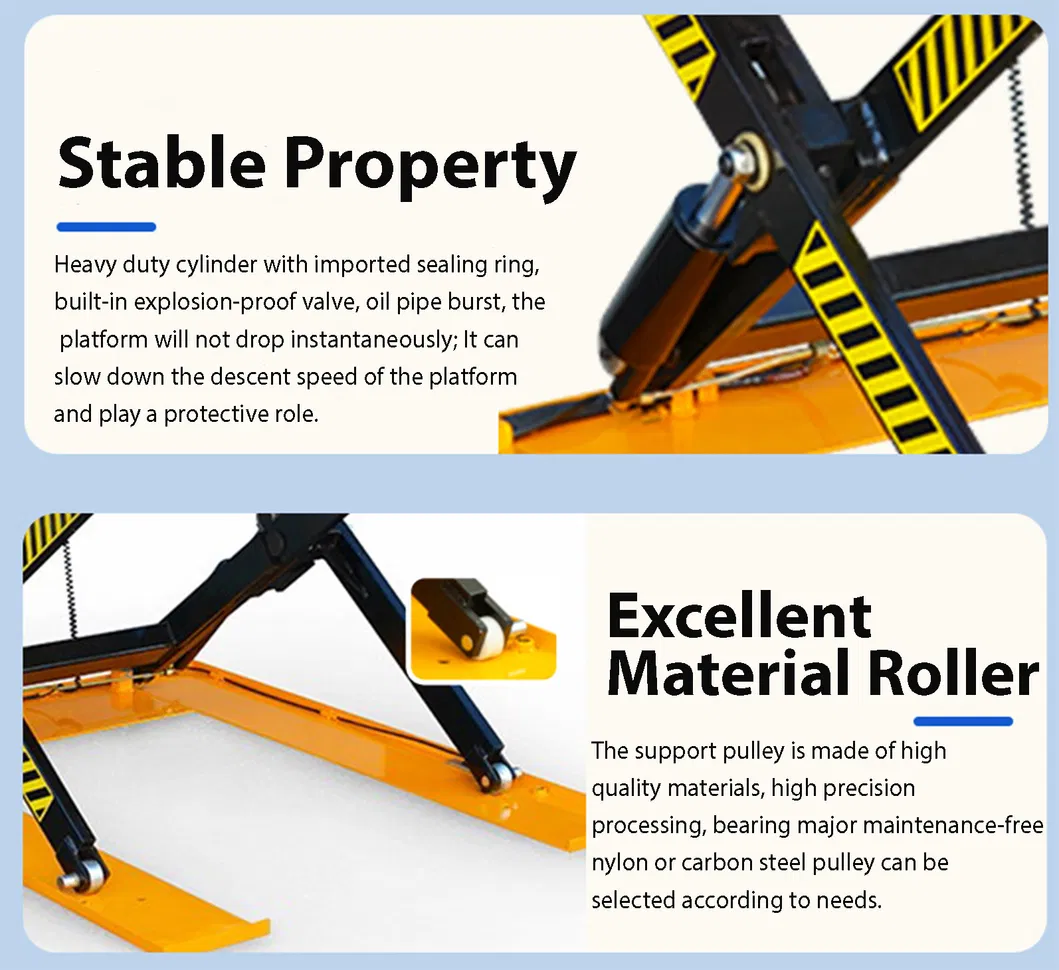

Detailed Photos

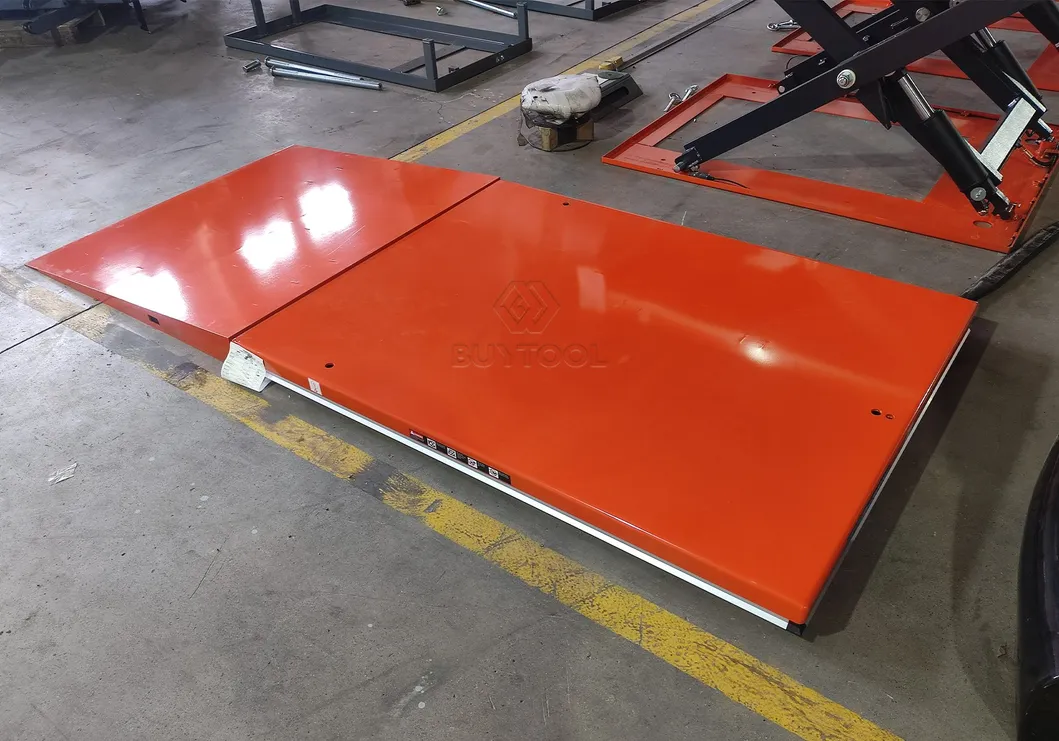

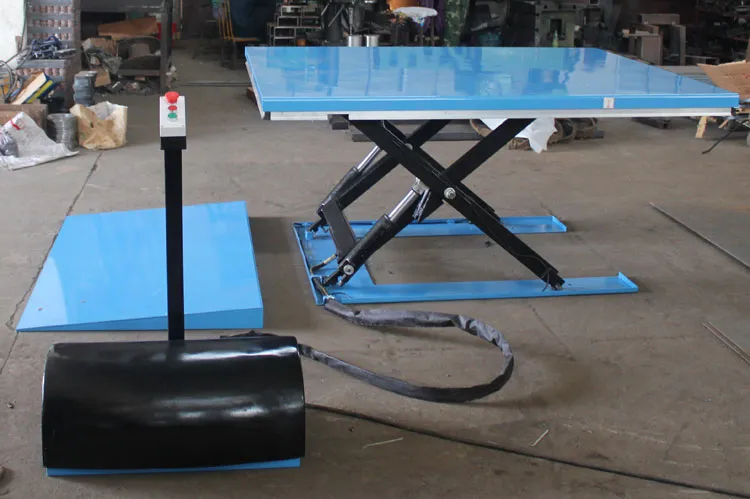

Range Of Application

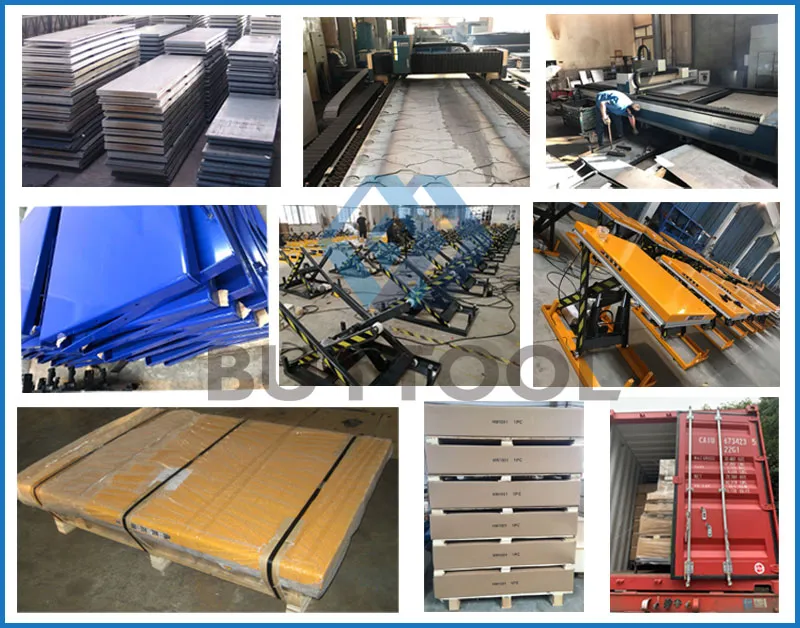

Packing and Shipping

Frequently Asked Questions

Q: What about the quality of the products?

A: Our products are CE approved with a 5-step inspection process: raw material check (ISO9001), strict production monitoring, load limit testing, 100% pre-shipment inspection, and optional buyer inspection.

Q: How long is the quality guarantee?

A: All of our products carry a comprehensive one-year warranty.

Q: What is the standard lead time for orders?

A: Normally 30 days. For single-item full containers, it can be 20 days; for mixed containers (5+ items), it may take up to 45 days.

Q: Does this lift table require a pit for installation?

A: No, these tables achieve a very low closed height (85-105mm), eliminating the need for a pit installation.

Q: What safety features are included?

A: It includes a safety perimeter to stop descent on contact, a hose burst safety valve, 24V control box with emergency stop, and mechanical safety chocks for maintenance.

Q: What are the power supply requirements?

A: The standard power supply is AC 380V/50HZ/3-phase, equipped with an external power pack and IP54 protection.
