📋 Basic Info.
Application
Workshop/Shipboard/Warehouse/Building Crane
Lift Mechanism
Scissor Lift
Certification
GS, CE, RoHS, ISO 9001
Voltage
110V-400V Customized
Load Capacity
1000kg, 2000kg, 4000kg
Lifting Height
1m, 1.3m, 1.4m, 1.5m, Customized
🔍 Product Description

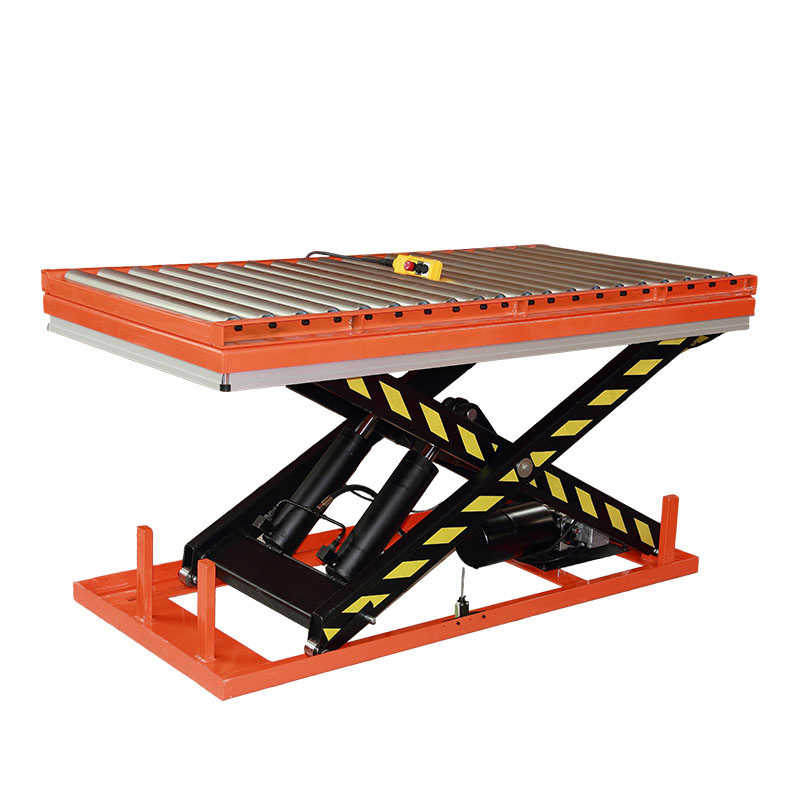

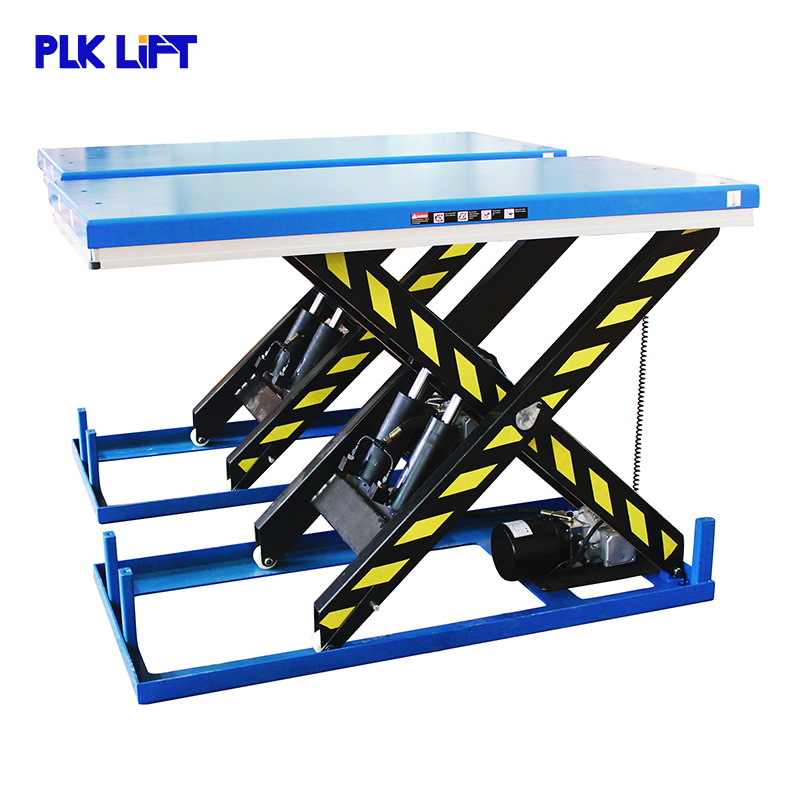

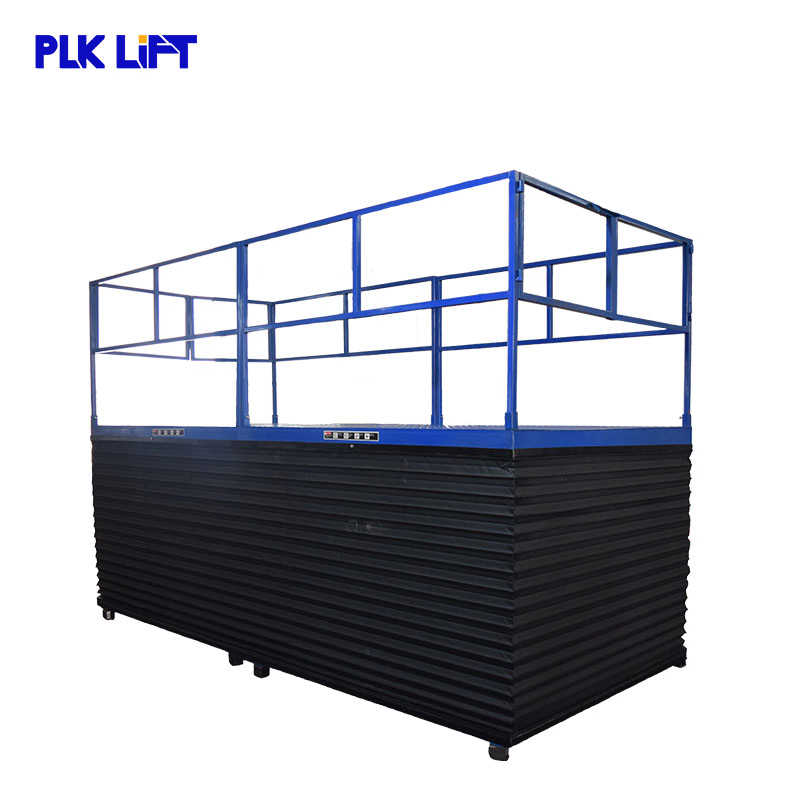

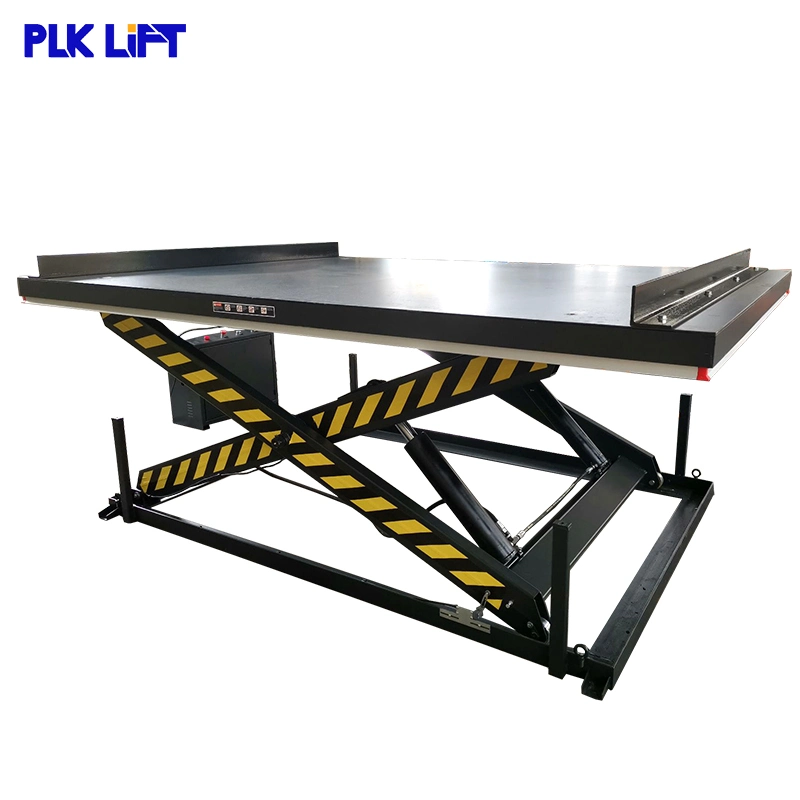

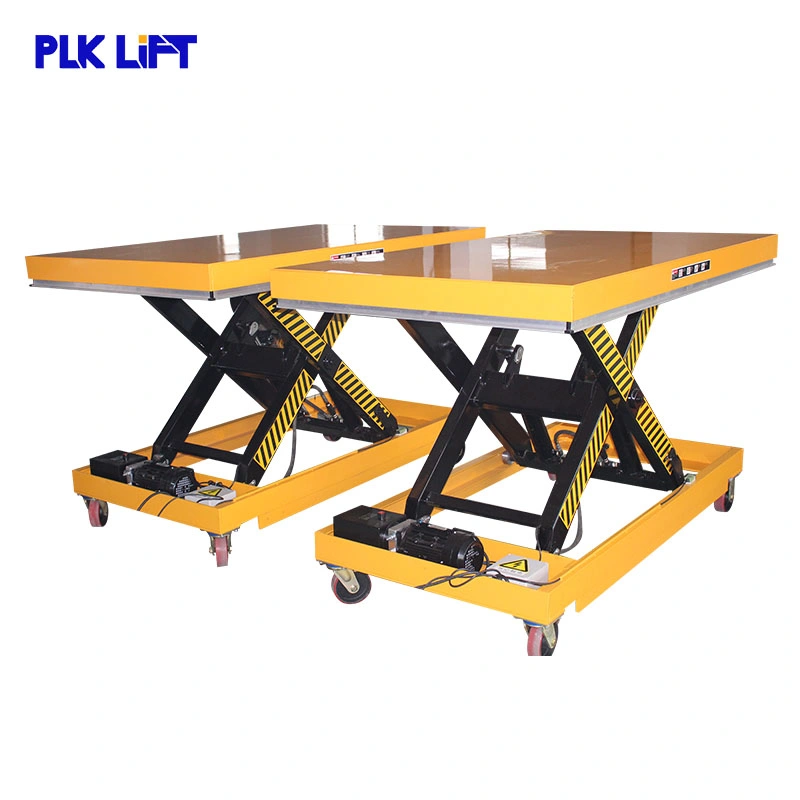

Portable Hydraulic Three Scissor Lift Table For Sale
The Hydraulic table is our standard model, equipped with a single layer scissor. The maximum platform height is 3000mm, with load capacities of 1000kg and 2000kg available.
This scissor lift table is equipped with a safety valve to protect both the goods and the user. There are also 6 types of options available, including rollers, organ covers, and wheels.
Hydraulic tables are popular for their small volume and easy operation, making them a wise choice for various lifting needs.
| Model |
Load Capacity (KG) |
Self Height (MM) |
Max Platform Height (MM) |
Platform Size (MM) |
Lifting Time (S) |
Net Weight (KG) |
| HW1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
| HW1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
| HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
| HW2003 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 |
| HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
| HW4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 |
| HW501L | 500 | 200 | 1000 | 1200*600 | 20~25 | 120 |
| HW1000I | 1000 | 190 | 1010 | 1300*800 | 20~25 | 160 |
| HW3000I | 3000 | 220 | 1010 | 1300*800 | 20~25 | 350 |
⭐ Features & Advantages
✔Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
✔High quality pump station makes scissor lift table lifts and falls very stable.
✔Anti-pinch scissor design; main pin-roll adopts self-lubricating design for longer life.
✔Heavy duty cylinders with drainage system and check valve to prevent dropping in case of hose burst.
✔Pressure relief valve prevents overload; Flow control valve makes descent speed adjustable.
✔Equipped with aluminum safety sensor under the platform for anti-pinch protection.
✔Up to American standard ANSI/ASME and Europe standard EN1570.
🛡️ Safety Precautions
🛡️Explosion-proof valves: protect hydraulic pipe from rupture.
🛡️Spillover valve: prevents high pressure when machine moves up and adjusts pressure.
🛡️Emergency decline valve: allows safe descent during emergencies or power outages.
🛡️Overload protection locking device: secures the unit in case of dangerous overload.
🛡️Automatic aluminum safety sensor: stops the platform immediately upon encountering barriers.
❓ Frequently Asked Questions
Q1: What are the main applications for these scissor lift tables?
They are ideal for workshops, shipboard use, warehouses, and building cranes for stationary lifting tasks.
Q2: Can the voltage be customized for different countries?
Yes, we support customized voltages including 110V, 220V, 380V, and 400V to meet local requirements.
Q3: How does the emergency decline valve work?
The emergency decline valve allows the platform to be lowered manually if there is a power failure or an emergency situation.
Q4: Are the lift tables protected against corrosion?
Yes, all units undergo shot blasting and stoving varnish surface treatment for high-level anti-corrosion protection.
Q5: What is the maximum load capacity available?
Standard models support up to 4000kg, but customization options are available for specific weight requirements.
Q6: What safety certifications do these products hold?
Our products are fully certified with CE, GS, RoHS, and ISO 9001 standards, ensuring international safety compliance.
