China Wholesale Elevator Mini Lift

Customization:	Available
Type:	Rack and Gear
Load Capacity:	＜1T

Send Inquiry

Product Description

Technical Specifications

Model NO.

SC100, SC200, SC150, SC100/100, SC200/200, SC150/150

Speed

40M/Min - 60M/Min

Usage

Construction Hoist

Lift Drive

Electric Motor / Rack and Gear

Cage Dimension

3*1.5*2.2m, 3*1.3*2.2m, 3.2*1.5*2.2m

Max Height

250m

Motor Power

2X13kw Per Cage

Mast Size

650X650X1508mm (or 800X800X1508mm)

Electrical System

Schneider (PLC Fault Sensor available)

Capacity

1000sets / Year

Origin

China

HS Code

84281090

Product Overview

China Wholesale Elevator Mini Lift

Professional Experience: 15 years manufacturing and 10 years exporting excellence.
Safety Record: Zero accident record with a "Safety First" design philosophy.
Maintenance: Easy to maintain; no wearing parts replacement needed for 3-4 years with regular care.
Fast Support: Emergency solutions provided within 0.5-12 hours.
Global Reach: Serving over 100 regions in more than 30 countries worldwide.
OEM Support: Turning ideas into actual technical drawings and products.

Core Production Parameters

Type	Model	Rated Loading	Lifting Speed	Motor Power
Double Cages	SC200/200	2x2000kg	33m/min	2x(3x11kw) / 2x(3x8.5kw)
	SC150/150	2x1500kg	33m/min	2x(2x13kw)
	SC100/100	2x1000kg	33m/min	2x(2x11kw)
Single Cage	SC200	2000kg	33m/min	3x11kw / 3x8.5kw
Single Cage	SC150	1500kg	33m/min	2x13kw

Design Details & Construction

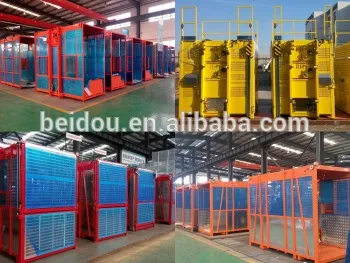

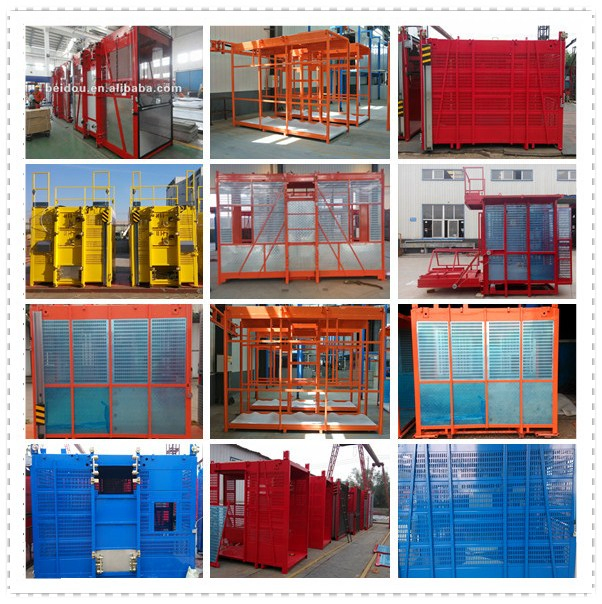

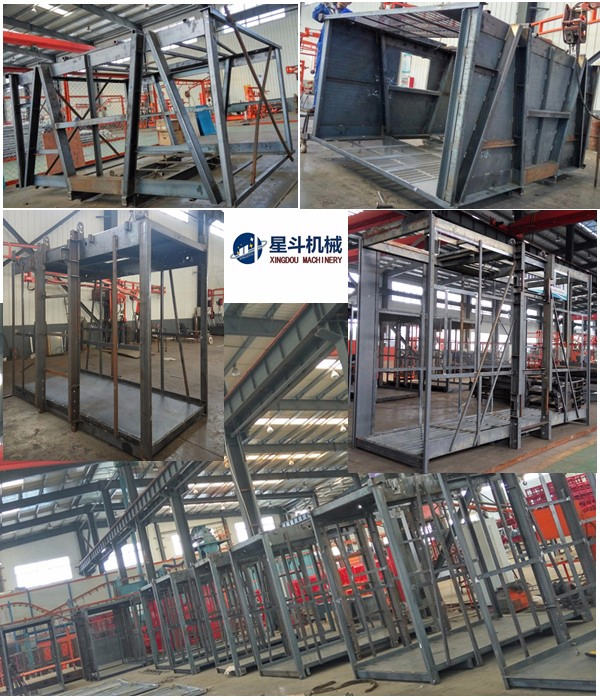

🏗️Cage Construction: Boarded with punched aluminum sheet or wire mesh. The main structure uses high-quality bent steel for superior vertical stability and structural firmness.

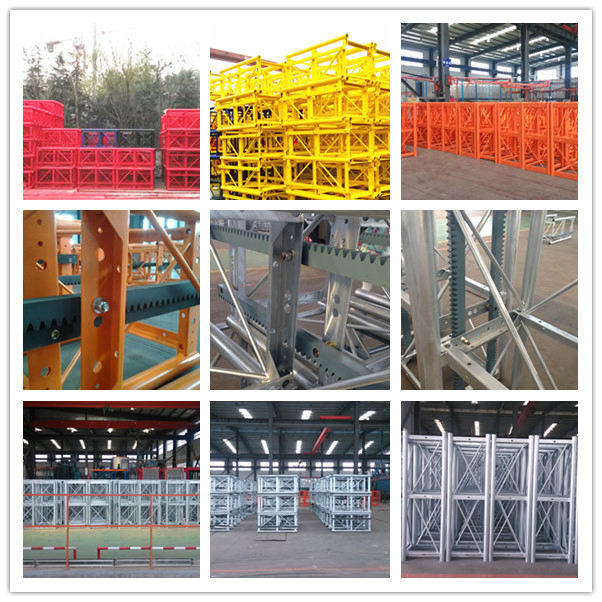

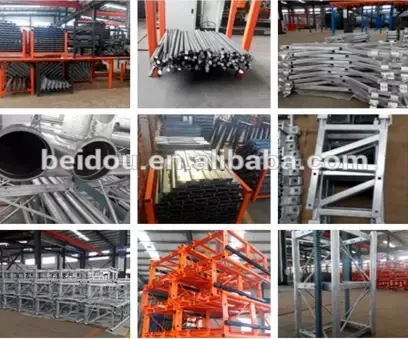

⚙️Mast Section: Made of HF welding pipe and Q345B seamless pipe. Features high anti-pressure and anti-aging properties. Options include galvanized or heat spray coats.

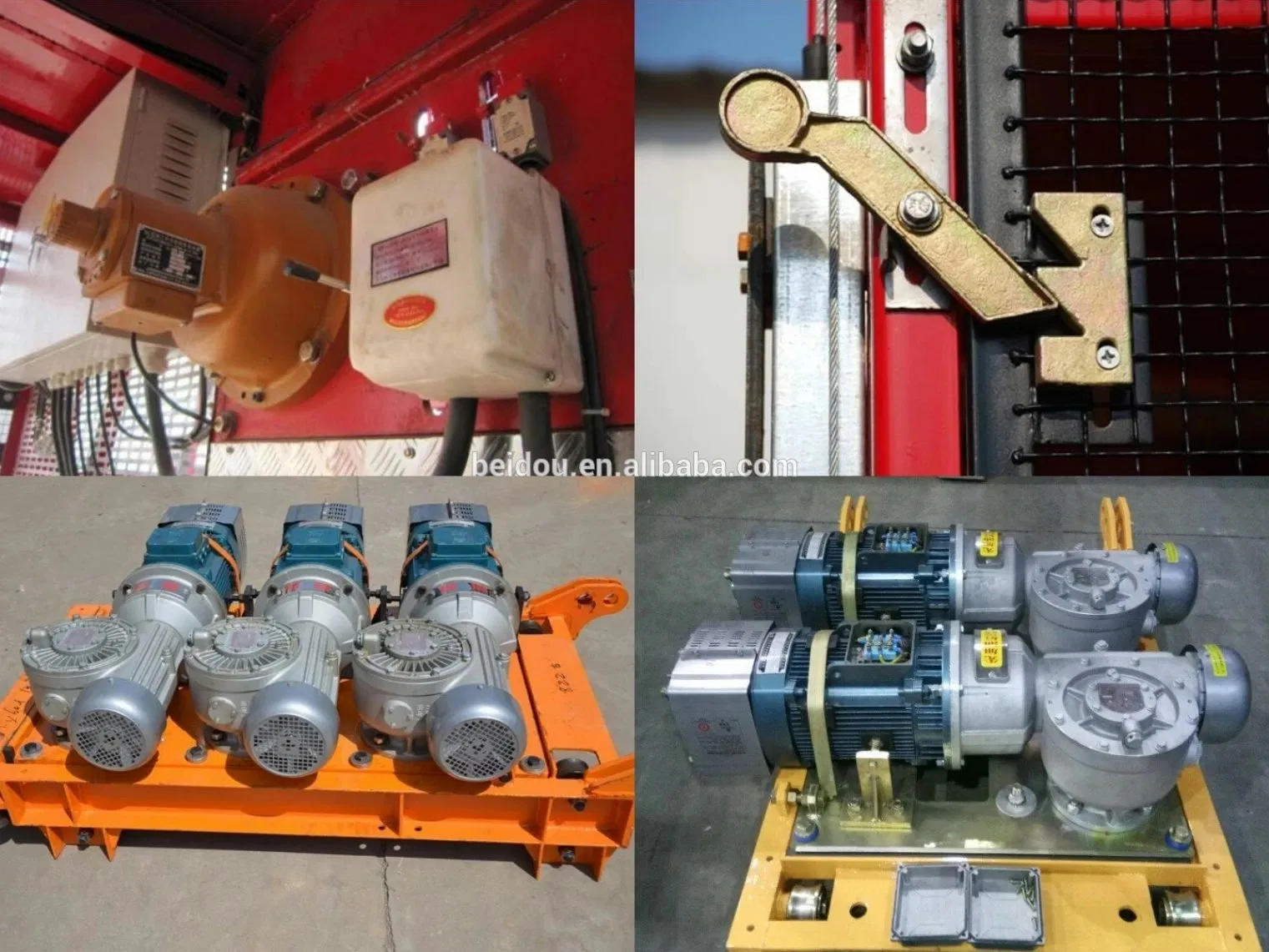

🛡️Safety Measures: Equipped with Anti-falling governors, mechanical interlocks, safety hooks, limit switches, overload protectors, and bottom buffers. Auto-leveling devices are available as options.

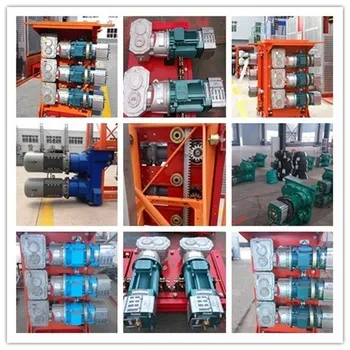

Driven System & Logistics

High efficiency and energy-saving models are available, with gearbox energy usage rates exceeding 90%. Brands like SEW, NORD, or specialized Korean motors can be selected based on requirements.

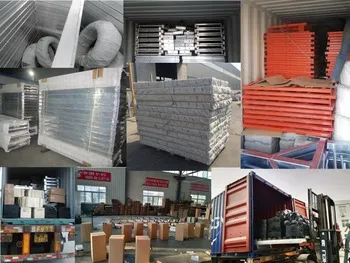

📦Professional Packaging: We ensure products are protected from rust and impact during transit. Well-organized packaging allows for easy identification of spare parts and efficient unloading at construction sites.

Frequently Asked Questions

Q1: What is the maximum installation height for this construction hoist?

The standard maximum erection height is 250 meters, supported by our high-quality mast sections.

Q2: Can the cage size be customized for specific project needs?

Yes, we offer multiple standard sizes such as 3x1.5x2.2m and 3.2x1.5x2.2m, and we can adjust dimensions according to your specific requirements.

Q3: What safety devices are included in the standard configuration?

Every unit includes an anti-falling governor, electrical and mechanical interlocks, safety hooks, upper/bottom limit switches, and overload protectors.

Q4: What are the material options for the mast section and rack gears?

Mast sections use Q345B/Q235B steel. Rack gears are typically made from CL60 special rail steel or high-quality carbon steel like C45/C55.

Q5: How long is the product warranty and what does it cover?

We provide a warranty period for the main components after installation. We also offer lifetime technical support, including maintenance guidance and technical upgrades.

Q6: Do you provide installation guidance on-site?

Yes, we can provide technical guidance personnel to visit the construction site for installation and commissioning guidance if necessary.
