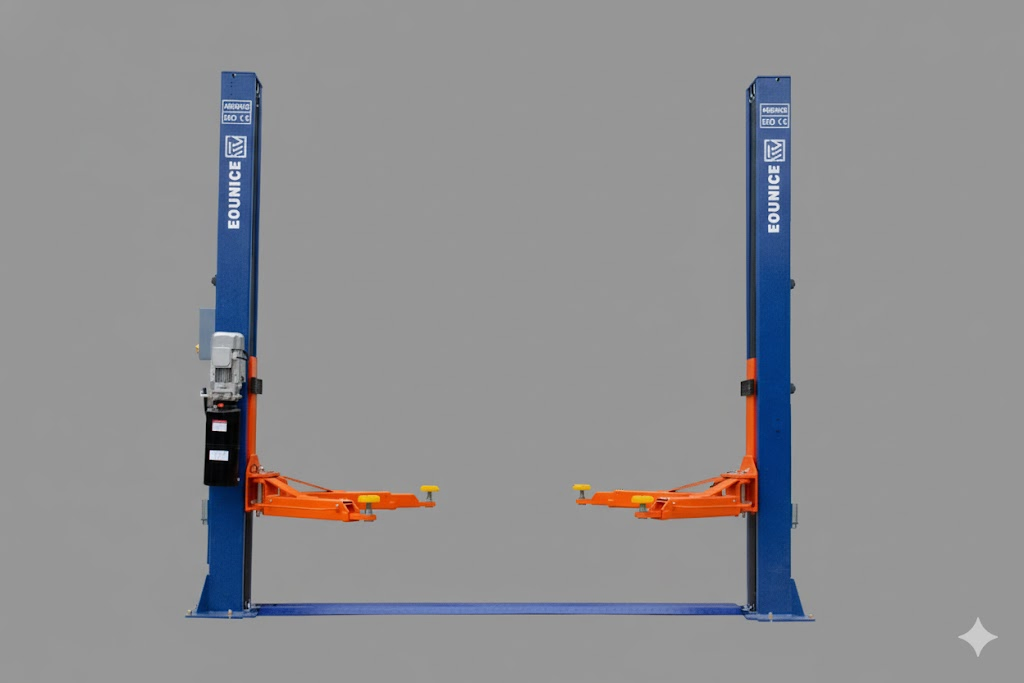

Heavy-Duty Floor Plate 2 Post Lift/ 2 Post Hoist with Electric Release-4200kg

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Basic Specifications

Model NO.ON-7224E

TypeDouble Cylinder Hydraulic Lift

Lifting Capacity4200kg

Driving TypeHydraulic

CertificationCE, ISO

DesignTwo Post

Lifting Time≤ 55s

Faling Time≤ 35s

Lifting Height1920mm (75 9/16")

Min Height95mm (3 3/4'')

Overall Width3410mm (134 1/4")

Overall Height3892mm (153 1/4'')

Key Features

4.2 Ton lifting capacity, passed 120% dynamic and 150% static load test.
2574mm drive through width, suitable for most vehicles.
500mm wide column base plate making the lift more stable and reliable.

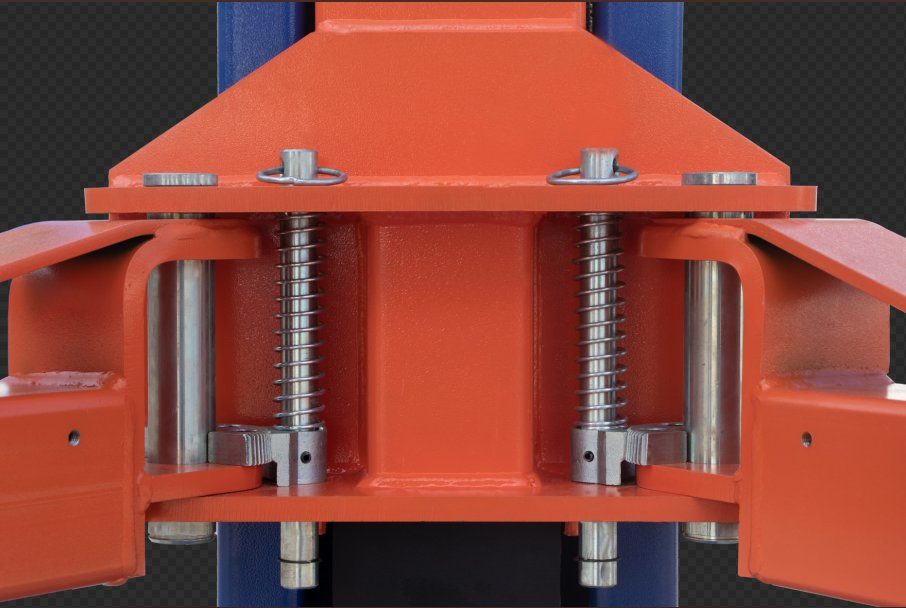

Standard with 4 two-stage lifting arms, suitable for different chassis vehicles.

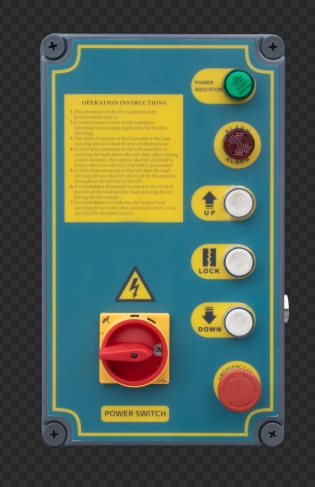

24V low-voltage operation electric lock release device for enhanced safety.

Technical Data

Model	Lifting Capacity	Lifting Time	Lifting Height	Min Height	Overall Height	Width Between Columns	Overall Width	Motor Power	Gross Weight
ON-7224E	4200kg (9300LBS)	≤55S	1920mm (75 9/16")	95mm (3 3/4'')	2824mm (111 3/16'')	2850mm (112 3/16'')	3410mm (134 1/4'')	2.2kw	625kg (1378LBS)

Manufacturing Excellence

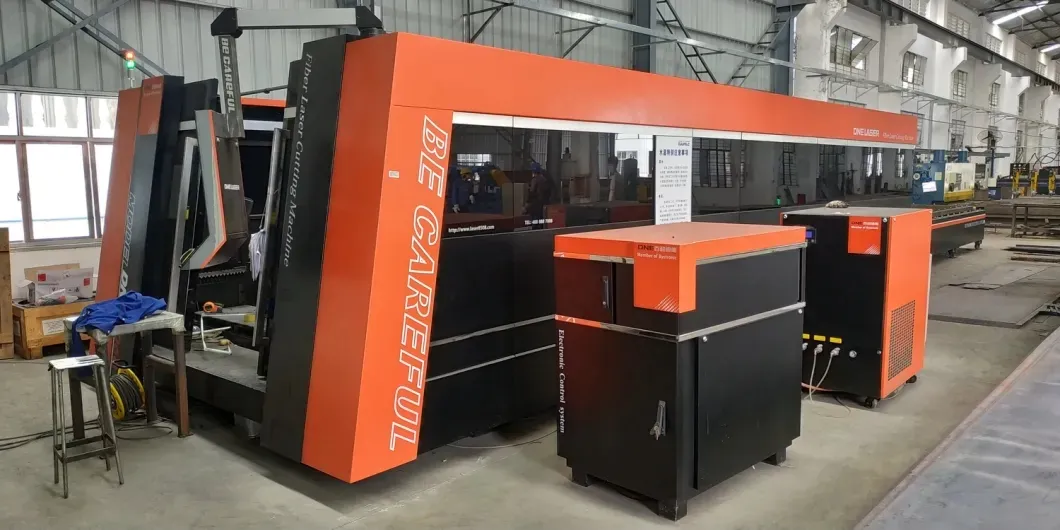

Seamless Laser Cutting

Achieve high accuracy and precision cuts while preventing damage or warping, even with thin materials. High sheet utilization minimizes waste and maintains low power consumption.

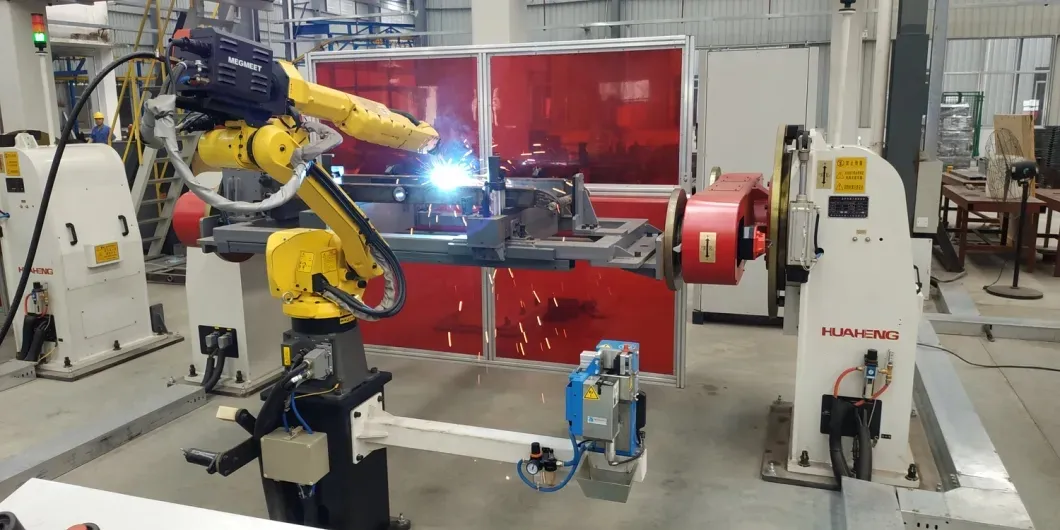

Robotic Welding Technology

Provides a seamless appearance that is visually appealing and significantly enhances structural strength.

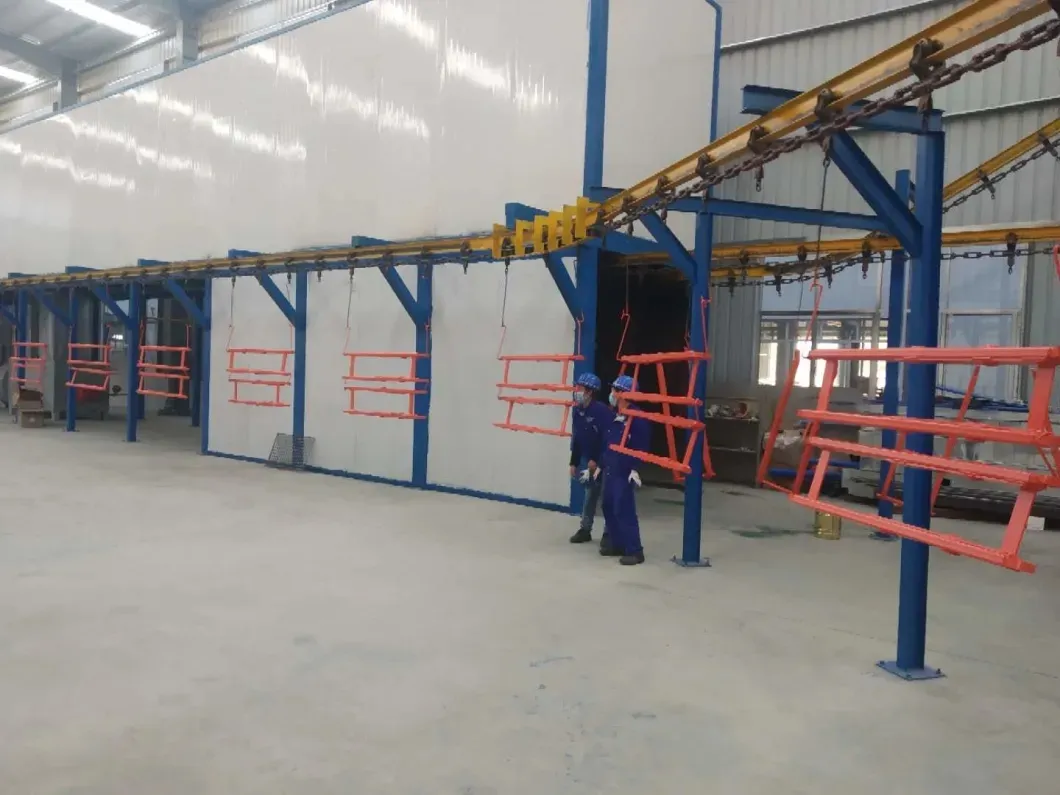

Advanced Powder Coating

Utilizing imported powder and sprayers for high adhesion, clear effects, and an aesthetically smooth, durable appearance.

Packaging & Shipping

Lifts are expertly packed in sturdy steel frames, while control consoles are housed in robust plywood boxes to guarantee they reach you in impeccable condition.

Frequently Asked Questions

1. Why should I choose these car lifts? Our products benefit from 20 years of technical research and carry prestigious certifications including TUV, CE, ISO9001, and CCPC, ensuring superior safety and industry excellence.

2. How safe are the post car lifts? The lifts undergo rigorous testing and are CE certified. They also comply with American and Australian Standards for total peace of mind during operation.

3. Are these lifts suitable for commercial use? Yes, all of our lifts are designed for commercial applications, delivering consistent and professional performance in various environments.

4. Do you offer any custom designs? Absolutely. We provide customized OEM/ODM services tailored to your needs, including the ability to produce products based on precise samples or technical drawings.

5. What is the typical delivery time? Typically, delivery takes between 10 to 20 days after the advance payment is received, depending on the specific items and order volume.

6. Is maintenance required for optimal performance? Yes, a straightforward monthly checklist and visual inspections with every operation are recommended. Regular maintenance of cables and hydraulic systems ensures longevity and safety.
