4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
1 / 5
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment
4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment

4500kg Base Plate Two Post Lift Hoist for Heavy Duty Automobile Vehicles/ Garage Equipment

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
ON-7224/4.5
Lifting Capacity
4.5T
Driving Type
Hydraulic

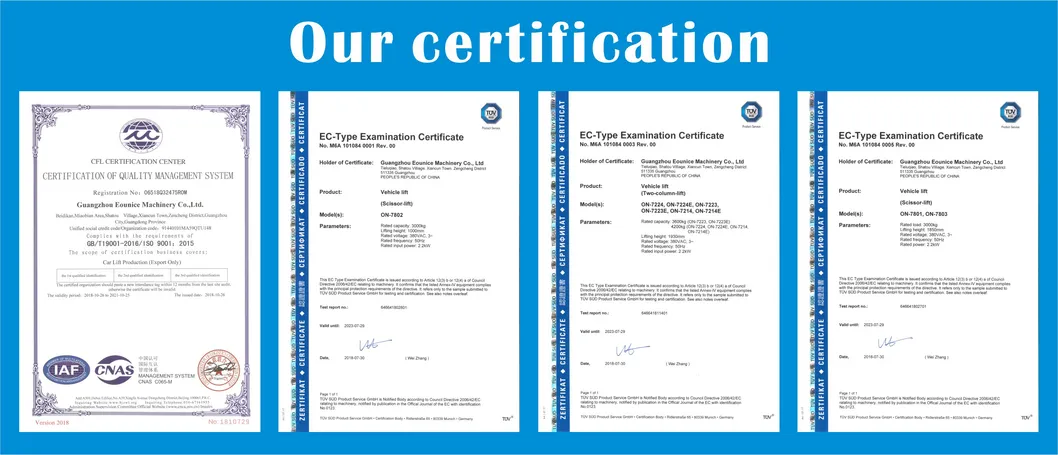

Certification
CE, ISO
Driving Motor Number
1
Lift Type
Planer-type
Condition
New
Design
Two Post
Specification
2800*500*700mm
HS Code
8425429000
Production Capacity
10000
Product Presentation

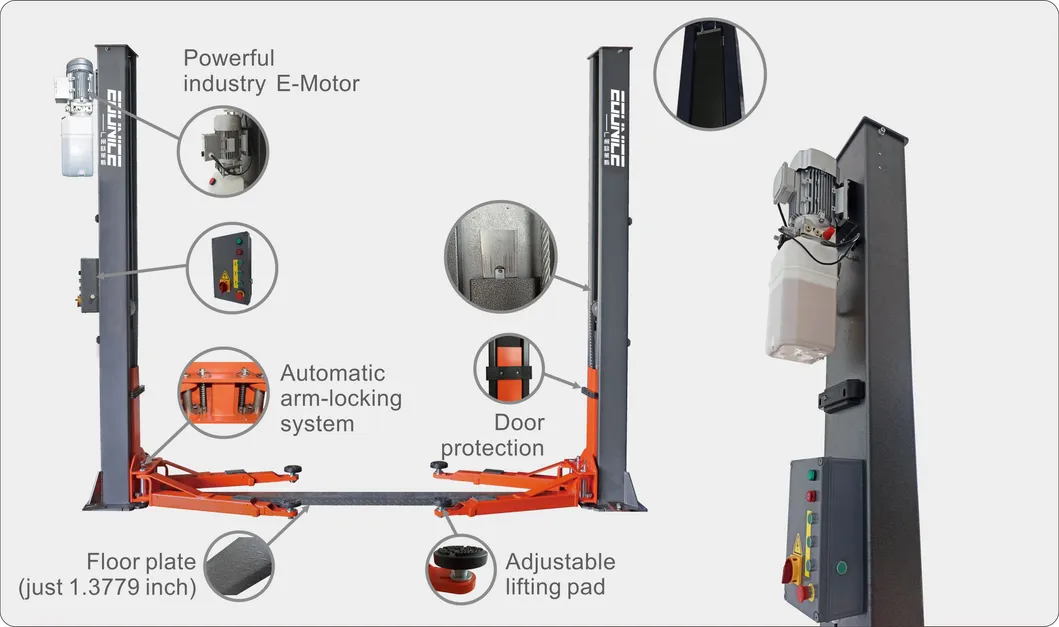

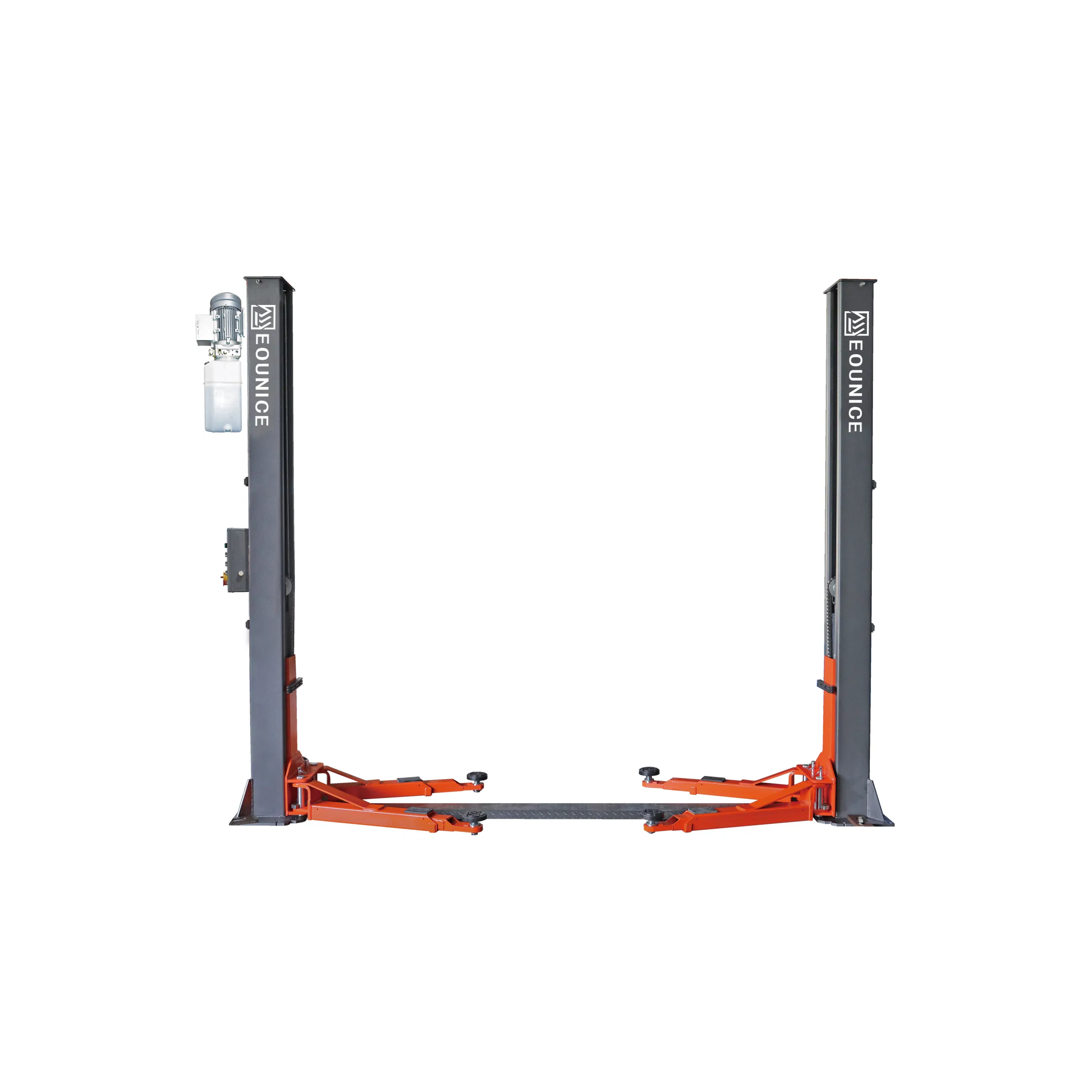

Base Plate Two Post Lift
Heavy Duty Automobile Vehicle Lift
Technical Data Sheet
Model Lifting Capacity Lifting Time Lifting Height Minimum Height Total Height Between Columns Total Width Gross Weight Motor Power
ON-7224 4,200kgs (9,300LBS) ≤55S 1920mm (75 9/16") 95mm (3 3/4") 2824mm (111 3/16") 2850mm (112 1/4") 3410mm (134 1/4") 628kgs (1,385LBS) 2.2KW (3HP)
ON-7224/4.5 4,500kgs (10,000LBS) ≤55S 1920mm (75 9/16") 95mm (3 3/4") 2824mm (111 3/16") 2850mm (112 1/4") 3410mm (134 1/4") 658kgs (1,451LBS) 2.2KW (3HP)
Product Introduction & Features
  • CE approval with 4,500Kg (10,000LBS) lifting capacity.
  • Manual release with 24V low voltage operation for safety.
  • Durable chain drive cylinder in each column with anti-surge valves.

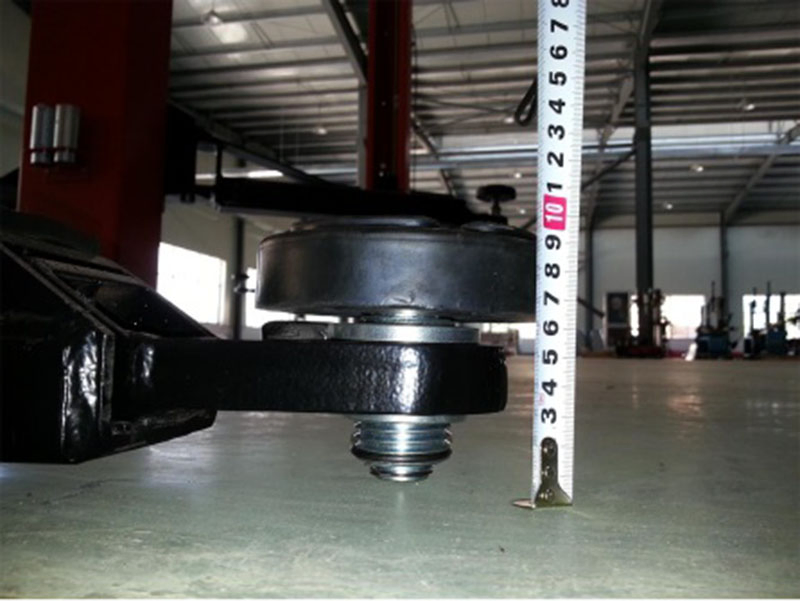

  • Four two-stage lifting arms with screw-up rubber pads (min height 95mm).
  • Equipped with high limit switch, curtain inside column, and foot guard.
  • Ultra-thin adapter and cover plate design (33mm) for low-chassis vehicles.
  • Safety pulley design preventing oil cylinder detachment.
  • Robot-welded structural parts for superior strength and consistency.
  • Professional imported powder coating with high-temperature curing.
Factory & Quality Control

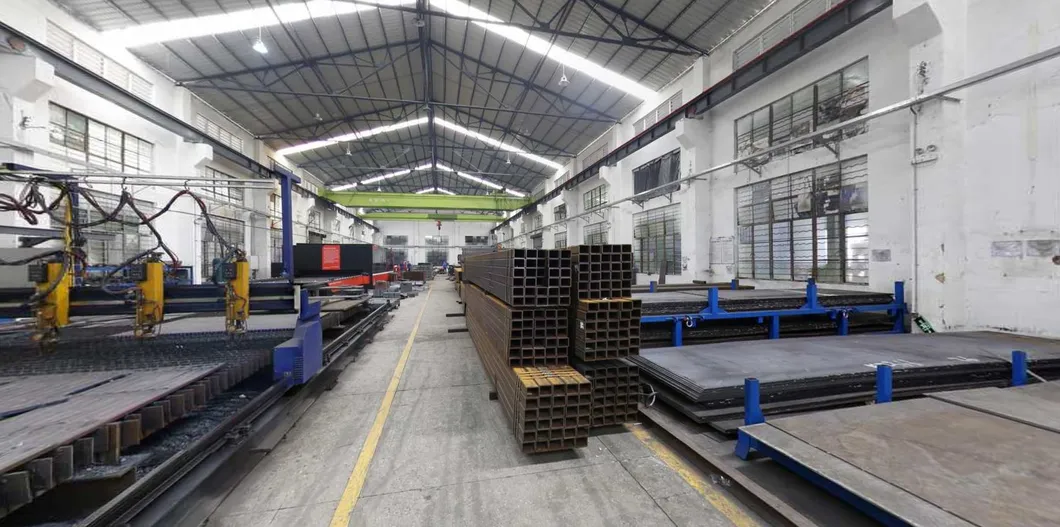

Factory Overview

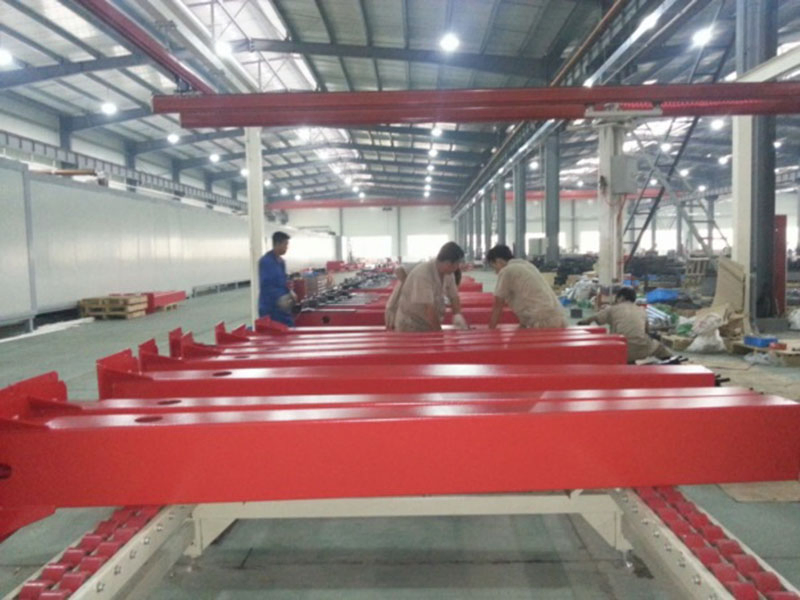

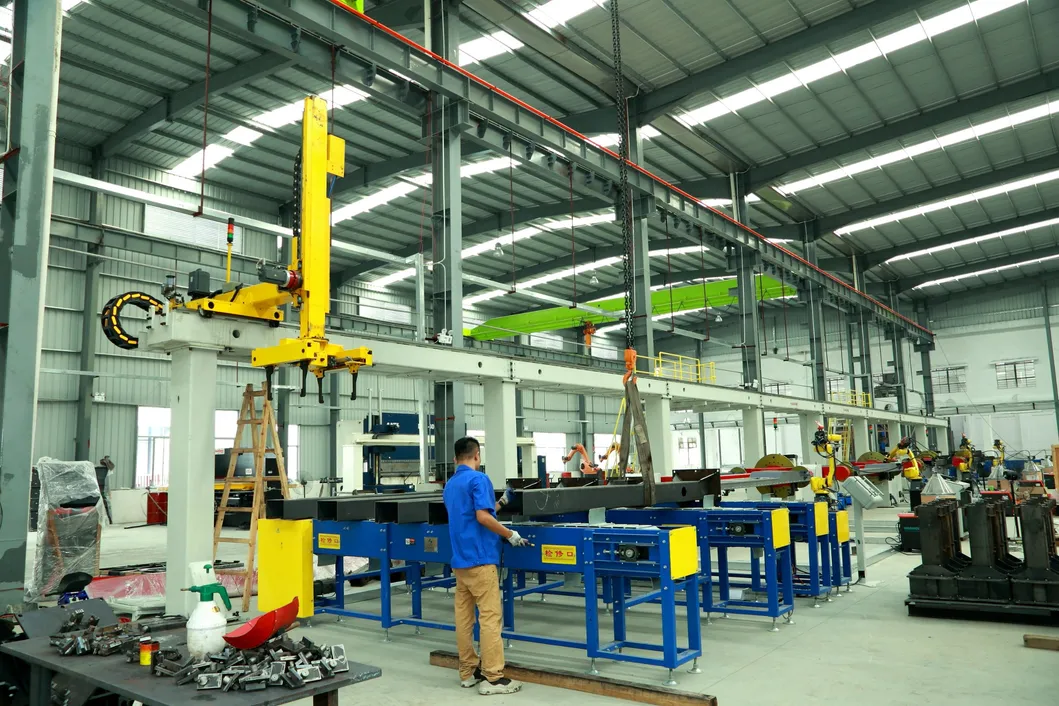

Production Line

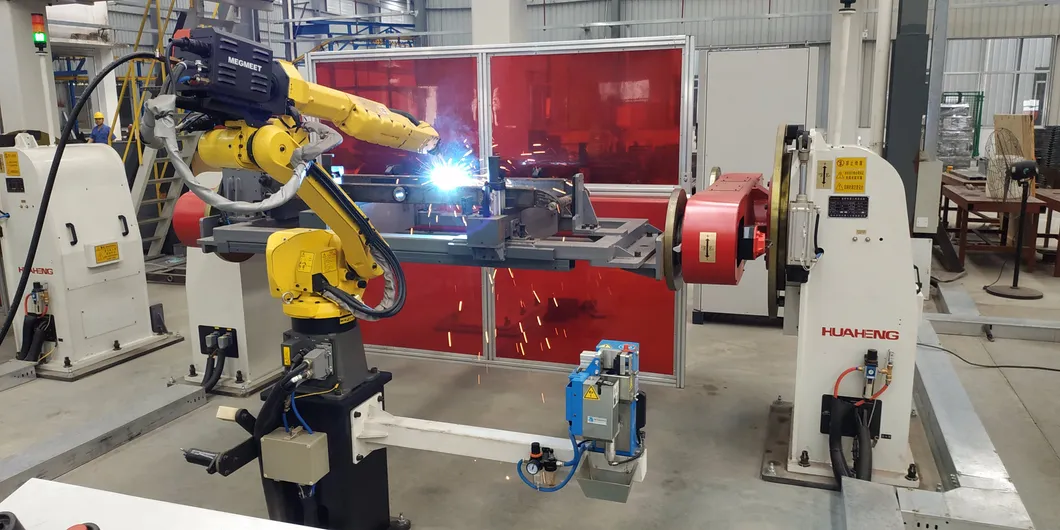

Equipment Display

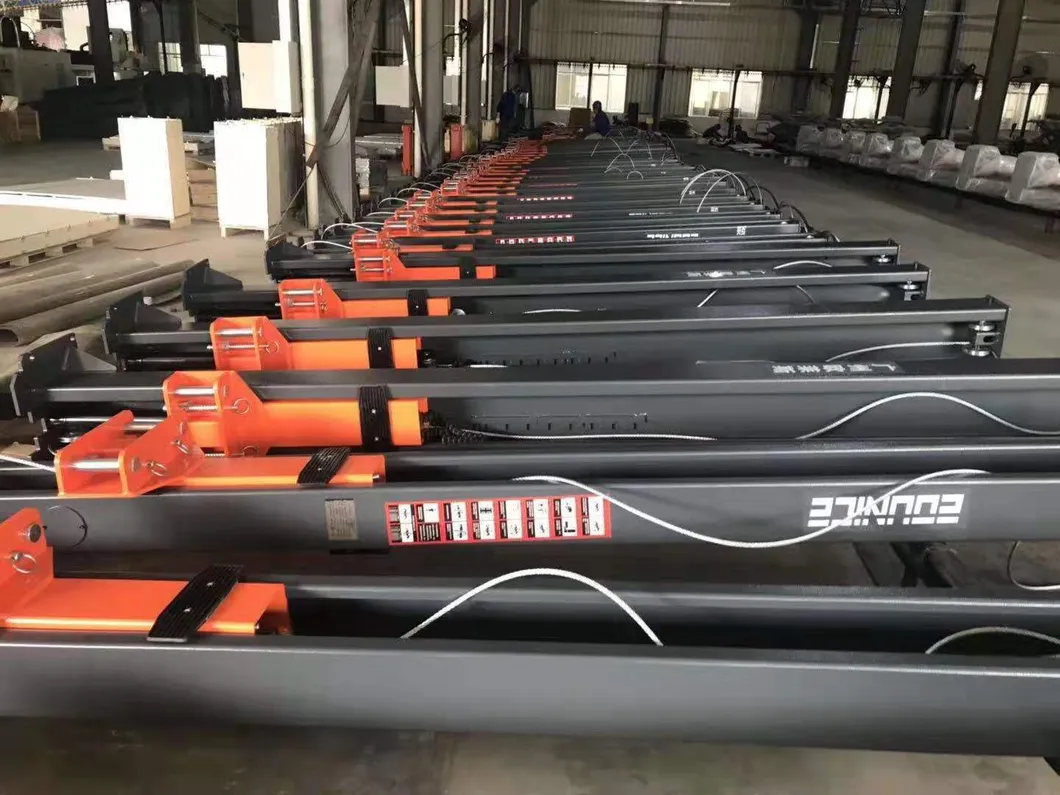

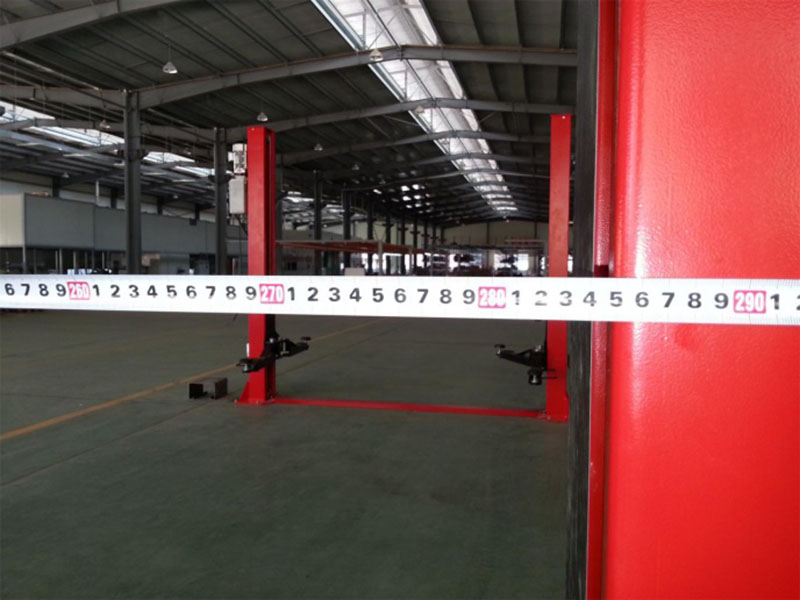

Quality Inspection
Warehouse
Packing Area
Loading
Service & Warranty

Warranty Term: One year on equipment structure; one year on motors, gear boxes, power units, hydraulic cylinders, cables, chains, valves, and switches under normal use.

Our Services:

  • OEM & ODM service available.
  • Customized design and specifications.
  • Free spare parts during warranty (shipping cost applies).
  • Life-long professional technical support.
Frequently Asked Questions
Q1: Are you a trade company or a factory? A: We are a professional manufacturer with our own trading department to ensure seamless service and high-quality production.
Q2: What is the estimated production lead time? A: Generally, the lead time is within 15 days after receiving the deposit or L/C, based on standard container quantities (20FT or 40HQ).
Q3: Can I order the machine in a custom color? A: Yes. While our regular colors are Blue, Red, and Yellow, we can customize the color according to your specific requirements.
Q4: Are custom sizes available for the lifts? A: Yes, sizes can be customized. However, they must remain compatible with standard container internal dimensions for transport.
Q5: What does the quality warranty cover? A: We provide a 1-year quality warranty covering the main structure and assembly components like hydraulic cylinders, power units, and switches.
Q6: Do you provide OEM or ODM services? A: Yes, we offer full OEM and ODM services along with customized engineering to meet various maintenance and garage requirements.
